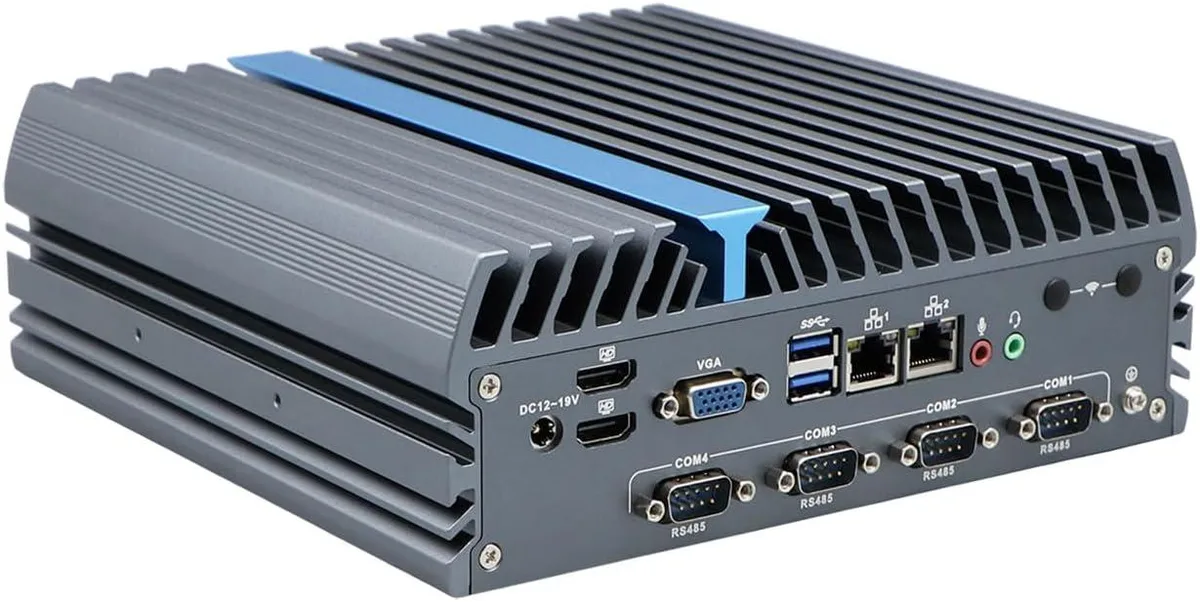

Gray fanless aluminum mini PC, compact square chassis with wall-mount brackets visible

partaker

partaker I8 barebone mini PC i5-12500T 16GB 512GB

SKU CH-NDA0-M0SYF

Fanless aluminum mini PC with a six-core Intel i5, 16 GB DDR4, 512 GB NVMe, dual HDMI, VGA, dual LAN, four RS485 ports and Mini PCIe expansion for industrial use

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I8 H610 I5 12500T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20°C to 60°C
  • Six-core i5 desktop CPU reaches 4.4 GHz for edge workloads
  • Dual DDR4 3200 SODIMM slots support up to 64 GB RAM
  • Triple 4K outputs via two HDMI plus VGA for multi-screen HMI
  • Industrial I/O includes dual LAN, four RS485 COM, GPIO and Mini PCIe expansion

Industrial Fanless Mini PC

The Partaker I8 is a fanless industrial mini PC built around an Intel Core i5 12th Gen processor with six cores and twelve threads. It ships with 16 GB of DDR4 memory and a 512 GB NVMe SSD installed. The all-aluminium chassis acts as a heatsink, allowing silent operation in dusty or vibration-prone settings. This unit targets automation, medical, logistics and transportation deployments that demand 24/7 reliability.

Sustained Load Thermal Behaviour

Passive cooling across the full aluminium body dissipates heat without moving parts, so performance remains stable during continuous operation. The system is rated for ambient temperatures from -20 °C to 60 °C and humidity up to 95 percent non-condensing. A configurable watchdog timer and wide 12 V to 19 V DC input protect against power fluctuations in harsh electrical environments. No fan curves or throttle points exist because there is no fan.

Triple 4K Display Output

Two HDMI ports drive independent 4K displays at 60 Hz while a VGA port adds a third 1080p screen. This fixed three-head capability decides whether the I8 fits a surveillance wall, medical imaging station or multi-screen HMI. If an application requires more than three displays or higher refresh rates, this platform cannot meet that need.

أبرز المميزات

  • Fanless aluminium chassis runs silently from -20°C to 60°C
  • Six-core i5 desktop CPU reaches 4.4 GHz for edge workloads
  • Dual DDR4 3200 SODIMM slots support up to 64 GB RAM
  • Triple 4K outputs via two HDMI plus VGA for multi-screen HMI
  • Industrial I/O includes dual LAN, four RS485 COM, GPIO and Mini PCIe expansion

المواصفات

ColorGray
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How quiet and cool does the fanless aluminium chassis stay when the i5-12500T runs at its 35-69 W TDP all day?

The all-aluminium body acts as a giant heatsink with no moving parts, so it is completely silent and rated for continuous operation from -20 °C to 60 °C ambient.

Which display cables and mounts do I need to use the two HDMI ports and the VGA port for triple 4K output?

You supply two HDMI cables for 4K at 60 Hz and one VGA cable for 1080p at 60 Hz; wall-mount ears are included, desktop stand is optional.

Will my existing PCIe Wi-Fi card or 4G modem fit the internal Mini PCIe slot and work with the Nano SIM tray?

The full-length Mini PCIe slot carries PCIe and USB 2.0 signals and includes an internal Nano SIM slot, so standard half-size or full-size Mini PCIe wireless cards are compatible.
