Compact grey aluminium mini PC with external USB fan kit

partaker

Partaker I8 barebone mini PC i3-12300T 16GB 256GB

SKU CH-CV17-P5FF3

Fanless industrial mini PC with 12th Gen Core i3, 16 GB DDR4 and 256 GB NVMe, dual LAN, four RS-485 ports and triple 4K display outputs

  • ColorGray
  • CPU TypeIntel Core i3 12th Gen

I8 H610 I3 12300T FAN 16GB RAM / 256GB SSD

  • Fanless aluminium chassis with external USB fan runs -20°C to 60°C for 24/7 industrial use
  • Quad-core 12th Gen i3 up to 4.2 GHz with 16 GB DDR4 3200 handles multitasking
  • 2 HDMI 4K 60 Hz plus VGA 1080p drive three independent displays
  • 2 Gigabit LAN, 4 RS485 COM, 6 USB and Mini PCIe with Nano SIM for industrial I/O
  • Wide 12-19 V DC input, TPM 2.0, watchdog and wake-on-LAN ensure managed reliability

Industrial barebone for edge workloads

The Partaker I8 is a fanless aluminium mini PC built around an Intel Core i3 12th Gen processor with 16 GB of DDR4 3200 MT/s memory and a 256 GB NVMe SSD. It targets integrators who need a compact, wide-temperature platform for automation, surveillance or medical imaging. The chassis measures 215 x 210 x 75 mm and weighs 3.27 kg, mounting on a wall or desktop.

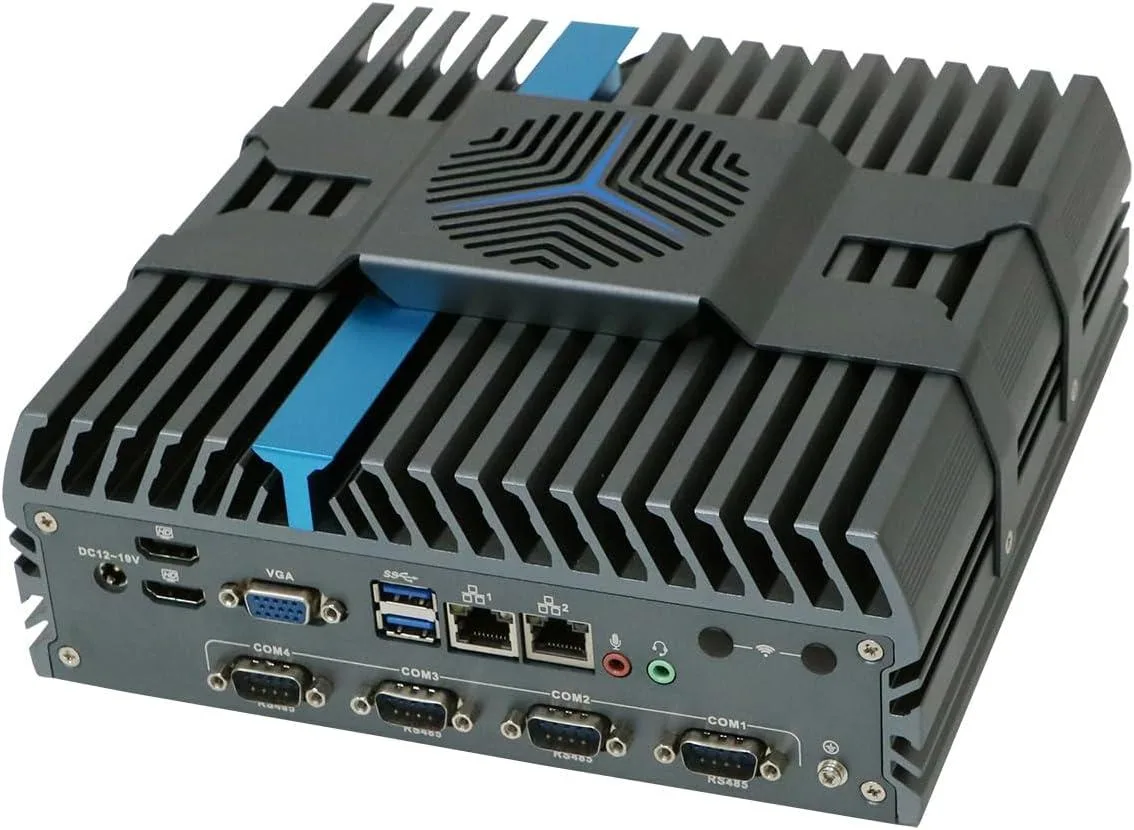

Passive chassis with optional USB fan kit

The all-aluminium body acts as a heatsink, operating silently from -20 °C to 60 °C without internal moving parts. An external USB-powered fan kit is included for sustained 24/7 loads, keeping the 35–69 W TDP processor stable in dusty or humid environments. Power is supplied by a 12 V 10 A adapter accepting 100–240 V AC input.

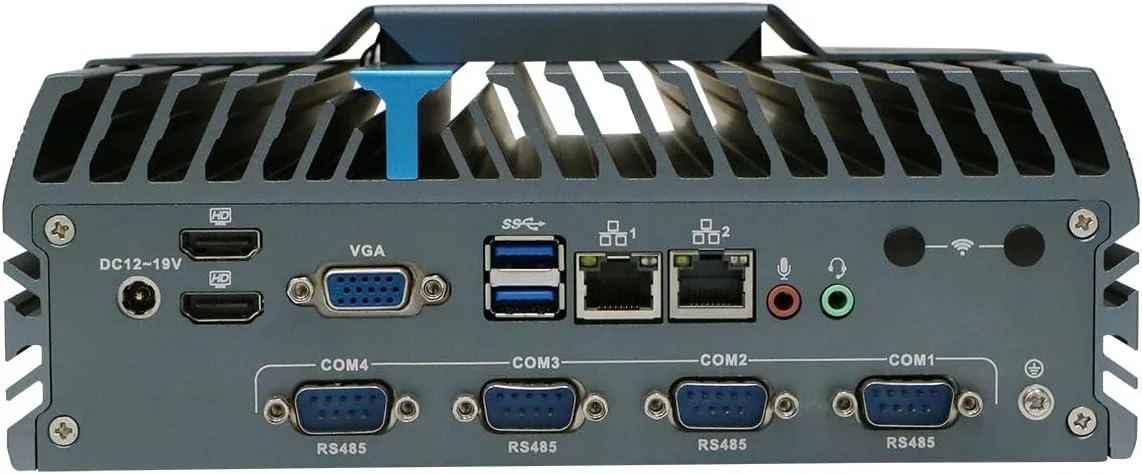

Rich industrial I/O and expansion

Two HDMI ports and one VGA drive three independent 4K displays at 60 Hz. Dual Gigabit LAN, four RS485 COM ports, six USB ports and audio connect sensors, PLCs and peripherals directly. A full-size Mini PCIe slot with a Nano SIM holder adds 4G or Wi-Fi, while a 2.5-inch SATA bay and an M.2 2280 M-key slot provide additional storage.

أبرز المميزات

  • Fanless aluminium chassis with external USB fan runs -20°C to 60°C for 24/7 industrial use
  • Quad-core 12th Gen i3 up to 4.2 GHz with 16 GB DDR4 3200 handles multitasking
  • 2 HDMI 4K 60 Hz plus VGA 1080p drive three independent displays
  • 2 Gigabit LAN, 4 RS485 COM, 6 USB and Mini PCIe with Nano SIM for industrial I/O
  • Wide 12-19 V DC input, TPM 2.0, watchdog and wake-on-LAN ensure managed reliability

المواصفات

ColorGray
CPU TypeIntel Core i3 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How do I install the external USB fan kit and what step is often missed?

Mount the unit using the included wall-mount ears, plug the fan kit into a USB port, then connect the 12V 10A power supply. The step often missed is securing the fan cable so vibration does not unplug it during 24/7 operation.

Which components will need replacement first in a 24/7 industrial deployment?

The external USB fan kit is the only moving part; plan to replace it before bearing wear causes airflow loss. The 256 GB M.2 NVMe SSD and 16 GB DDR4 SODIMMs are solid-state and rated for continuous duty.

What thermal limit appears first when the i3-12300T runs sustained loads at 60 °C ambient?

The 35-69 W TDP envelope combined with fan-only cooling means the CPU will hit its thermal throttle point before the chassis or power supply reaches any limit.
