Gray aluminum mini PC with external USB fan kit

partaker

partaker I8 barebone mini PC i3-12300T 16GB 512GB

SKU CH-7C1H-BYW5D

Fanless aluminium chassis with external USB cooling runs an Intel Core i3-12300T, 16 GB DDR4 and a 512 GB NVMe SSD, plus dual HDMI, VGA, two LAN ports.

  • ColorGray
  • CPU TypeIntel Core i3 12th Gen

I8 H610 I3 12300T FAN 16GB RAM / 512GB SSD

  • Active cooling via external USB fan enables 24/7 operation from -20°C to 60°C
  • Quad-core 12th Gen Intel processor up to 4.2 GHz with 16 GB DDR4 3200 MT/s handles multitasking

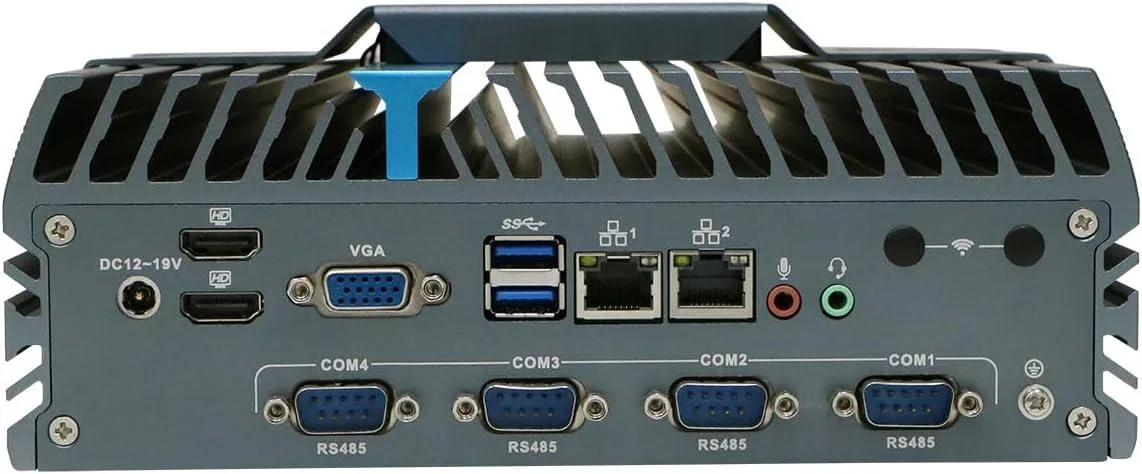

  • Four RS485 COM ports plus dual Gigabit LAN connect industrial equipment directly
  • Triple independent displays via two 4K HDMI and one VGA for multi-screen HMI
  • Wide 12 V to 19 V DC input with watchdog, TPM 2.0 and wake-on-LAN for harsh electrical environments

Industrial Mini PC with 12th Gen i3

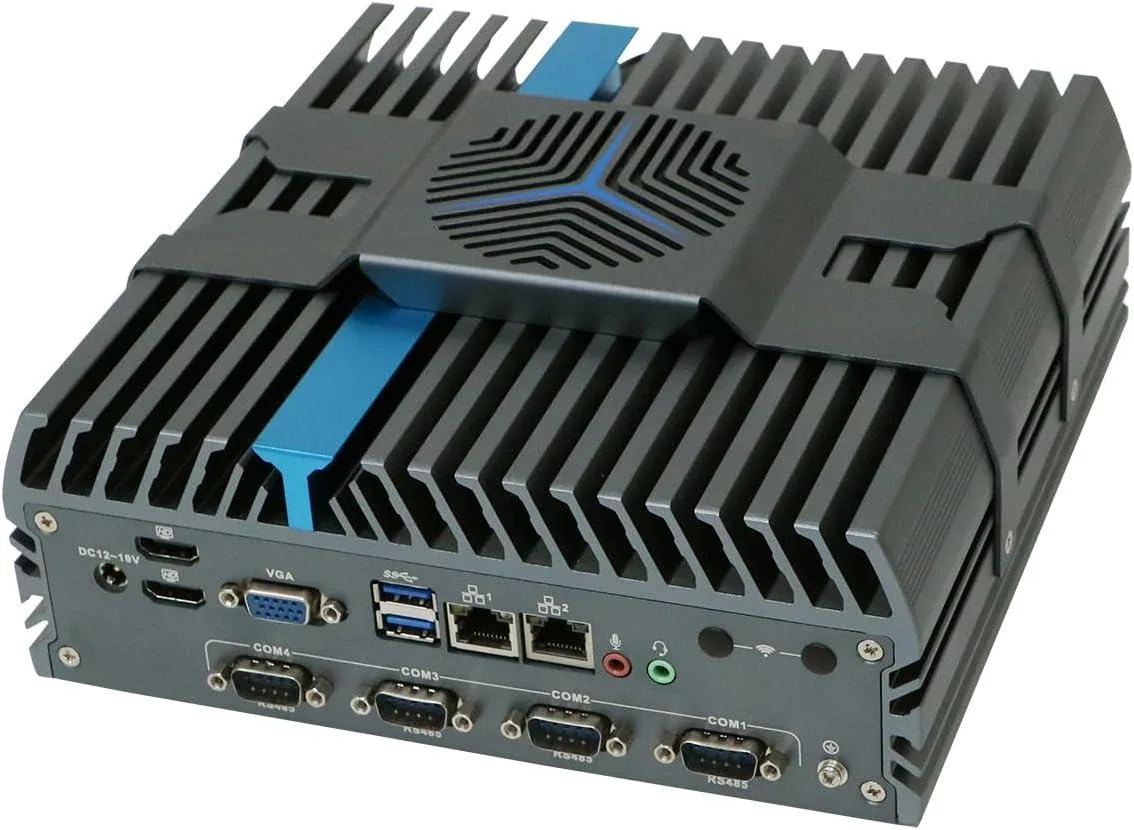

The Partaker I8 is a fanless aluminium barebone designed for continuous industrial workloads. It ships with a 35 W quad-core Intel Core i3 12th Gen processor, 16 GB of DDR4 3200 memory and a 512 GB NVMe SSD. Wide 12 V to 19 V DC input, dual gigabit LAN and four RS485 COM ports suit automation, medical and transport deployments.

Upgrade from legacy embedded boxes

Replaces older fan-cooled industrial PCs that rely on internal moving parts and narrow temperature ranges. The external USB fan kit removes internal dust paths while the chassis operates from -20 °C to 60 °C with an industrial SSD. The jump is worth it when 24/7 uptime, wide-voltage supply and legacy serial connectivity are mandatory.

Fits wall-mount or desktop builds

Measures 215 mm by 210 mm by 75 mm and includes mounting brackets for DIN-rail or VESA attachment. One full-length Mini PCIe slot with a Nano SIM holder adds 4G or Wi-Fi without occupying the M.2 2280 NVMe slot. A second 2.5 inch SATA bay provides local storage expansion while triple independent 4K outputs drive multi-screen HMIs.

أبرز المميزات

  • Active cooling via external USB fan enables 24/7 operation from -20°C to 60°C
  • Quad-core 12th Gen Intel processor up to 4.2 GHz with 16 GB DDR4 3200 MT/s handles multitasking
  • Four RS485 COM ports plus dual Gigabit LAN connect industrial equipment directly
  • Triple independent displays via two 4K HDMI and one VGA for multi-screen HMI
  • Wide 12 V to 19 V DC input with watchdog, TPM 2.0 and wake-on-LAN for harsh electrical environments

المواصفات

ColorGray
CPU TypeIntel Core i3 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

What are the exact dimensions and weight of the I8 chassis for wall mounting?

The aluminum chassis measures 215 x 210 x 75 mm and weighs 3.27 kg, with wall-mount ears included in the packing list.

How do I install the external USB fan kit, and what is the common mistake?

Connect the supplied USB fan kit to any free USB port; the common mistake is leaving it unplugged, which removes the only active airflow for the fanless chassis.

Which storage drives can I add later, and what are the limits?

You can add one M.2 2280 PCIe 3.0 x4 NVMe SSD and one 2.5-inch SATA SSD or HDD; memory maxes out at 64 GB across two DDR4 3200 MT/s SODIMM slots.
