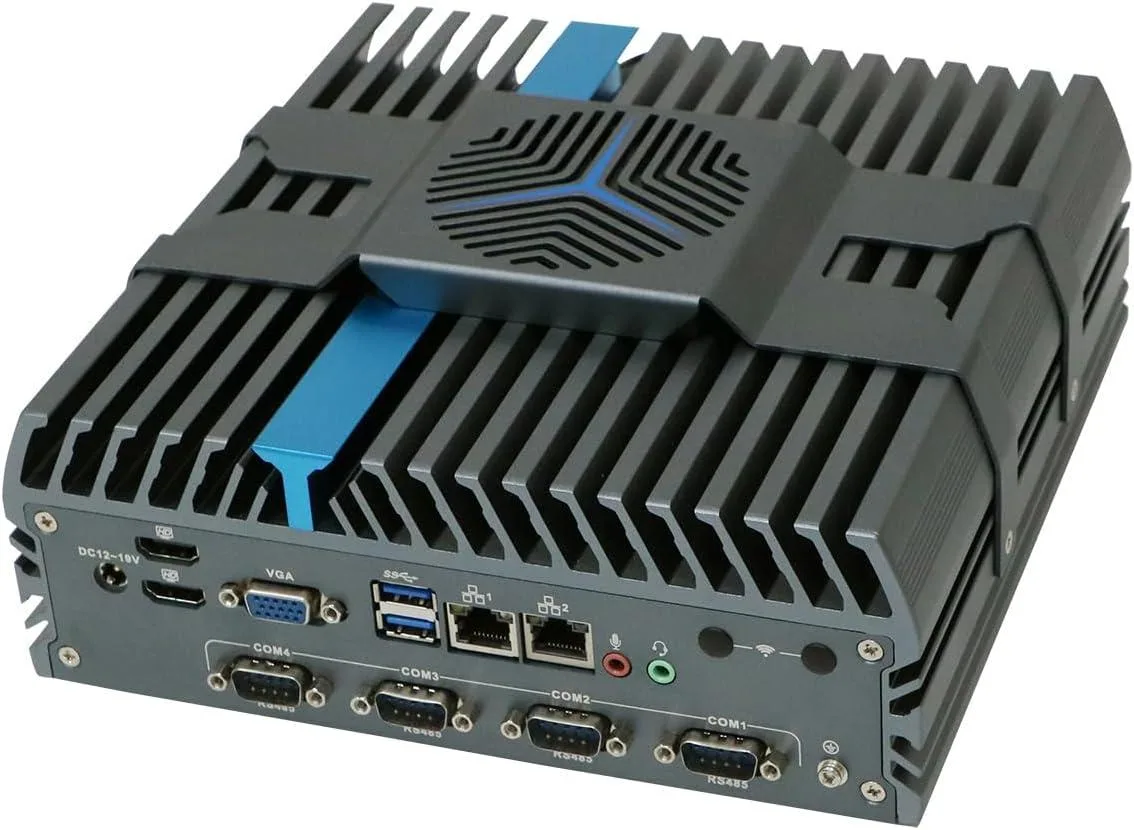

Gray aluminum mini PC with USB fan kit and wall-mount brackets

partaker

partaker I8 Core i5 12500T 16G 512G barebone mini PC

SKU CH-EB8H-FVPJV

Fanless aluminium mini PC with Core i5-12500T, 16 GB DDR4 and 512 GB NVMe, offering dual 4K HDMI, VGA, dual LAN, four RS-485 ports, GPIO and CAN expansion for 24/7 industrial use

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I8 H610 I5 12500T FAN 16GB RAM / 512GB SSD

  • Runs industrial workloads continuously with -20°C to 60°C operating range
  • Six-core Intel Core i5 handles multitasking and edge computing at up to 4.4 GHz
  • Drives three independent 4K displays via two HDMI and one VGA port
  • Connects legacy and modern gear with 4× RS485, dual LAN, and six USB ports
  • Expands storage and wireless via M.2 NVMe, 2.5" SATA, and Mini PCIe with Nano SIM

Industrial mini PC for edge workloads

The Partaker I8 is a fanless aluminium barebone built around an Intel Core i5 12500T six-core processor with 16 GB DDR4 3200 MT/s memory and a 512 GB NVMe SSD. It targets system integrators deploying 24/7 industrial, medical or logistics gateways that require serial and CAN connectivity in a compact sealed chassis.

Passive cooling with external USB fan kit

An included USB fan kit provides active airflow across the aluminium body, keeping the 35–74 W TDP processor stable from -20 °C to 60 °C ambient with 5–95 % humidity. The design has no internal moving parts, so acoustic output stays low while the wide-range 12–19 V DC input tolerates fluctuating supply voltages common in vehicle or factory cabinets.

Dense I/O in a 215 x 210 x 75 mm footprint

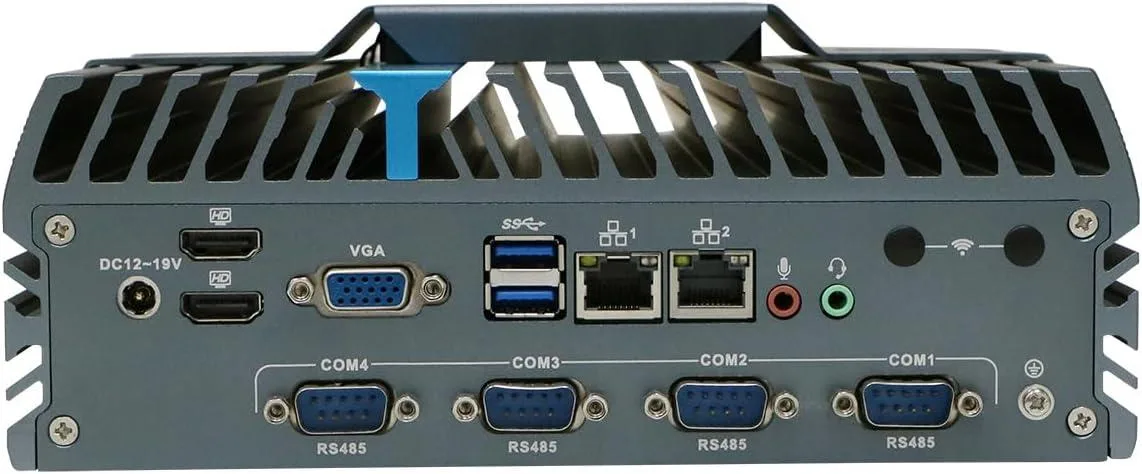

Two HDMI and one VGA drive three independent 4K displays for surveillance or HMI walls. Dual Gigabit LAN, four RS-485 ports, GPIO, optional CAN and a Mini PCIe slot with Nano SIM support 4G or Wi-Fi expansion. Two SODIMM slots accept up to 64 GB and a 2.5 inch SATA bay adds local storage without increasing the 3.27 kg wall-mountable enclosure.

أبرز المميزات

  • Runs industrial workloads continuously with -20°C to 60°C operating range
  • Six-core Intel Core i5 handles multitasking and edge computing at up to 4.4 GHz
  • Drives three independent 4K displays via two HDMI and one VGA port
  • Connects legacy and modern gear with 4× RS485, dual LAN, and six USB ports
  • Expands storage and wireless via M.2 NVMe, 2.5" SATA, and Mini PCIe with Nano SIM

المواصفات

ColorGray
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How do I connect the USB external fan kit that comes with the Partaker I8?

Plug the fan kit into any of the six USB ports — two are USB 3.0 and four are USB 2.0 — then secure the unit with the included wall-mount ears or optional desktop feet.

Which storage drives can I add later to the M.2 2280 slot and the 2.5 inch bay?

The M.2 2280 M-key slot accepts PCIe 3.0 x4 NVMe SSDs, while the 2.5 inch bay takes SATA SSDs or HDDs; both support up to the 64 GB memory ceiling.

At what ambient temperature does the aluminium chassis with USB fan kit hit its thermal limit?

The system is rated for continuous operation up to 60 °C with an industrial SSD installed; above that the watchdog or TPM 2.0 may trigger a protective shutdown.
