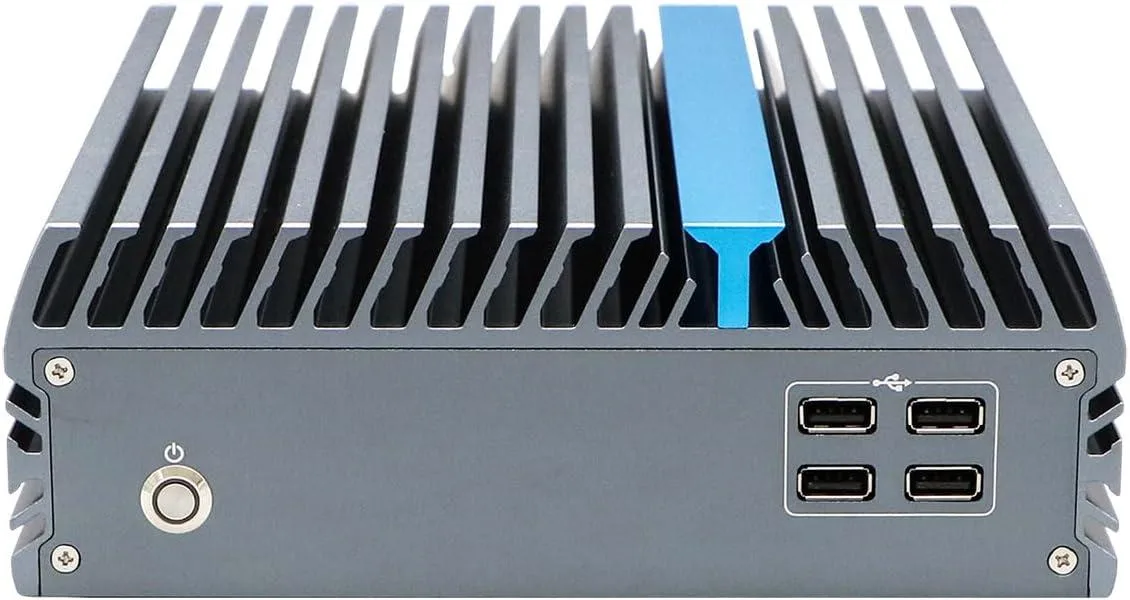

Gray fanless aluminum mini PC, compact square chassis with wall-mount ears

partaker

Partaker I8 Core i3-12300T 16GB 256GB barebone mini PC

SKU CH-AHRP-32587

Fanless aluminum mini PC with a 12th-gen quad-core processor, 16 GB DDR4, 256 GB NVMe, dual 4K HDMI plus VGA, dual Gigabit LAN, four RS485 ports.

  • ColorGray
  • CPU TypeIntel Core i3 12th Gen

I8 H610 I3 12300T 16GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Quad-core 12th-gen CPU with 8 threads up to 4.2 GHz
  • Triple independent 4K displays via two HDMI and VGA
  • Four RS485 COM ports plus dual Gigabit LAN for industrial I/O
  • Dual DDR4 3200 SODIMM slots support up to 64 GB memory

Industrial fanless barebone

The Partaker I8 is a fanless industrial mini PC built around a 12th-generation Intel Core i3 processor with a 35 to 69 watt TDP. Its all-aluminium chassis acts as a heatsink, allowing silent operation from minus 20 to 60 degrees Celsius. The unit ships with 16 gigabytes of DDR4 memory and a 256 gigabyte NVMe SSD installed. It targets automation, medical, logistics and transport deployments that need continuous uptime without moving parts.

Sustained-load thermal behaviour

Because the system relies on passive surface airflow, the aluminium body absorbs and spreads heat during long compute sessions. The 35 to 69 watt processor range means clock speeds will adjust to stay within the thermal envelope rather than throttle abruptly. Dual SODIMM slots support up to 64 gigabytes of DDR4 at 3200 MT/s for memory-heavy edge workloads. An additional 2.5-inch SATA bay and the M.2 2280 slot allow storage expansion without adding active cooling.

DC 12-to-19-volt wide input

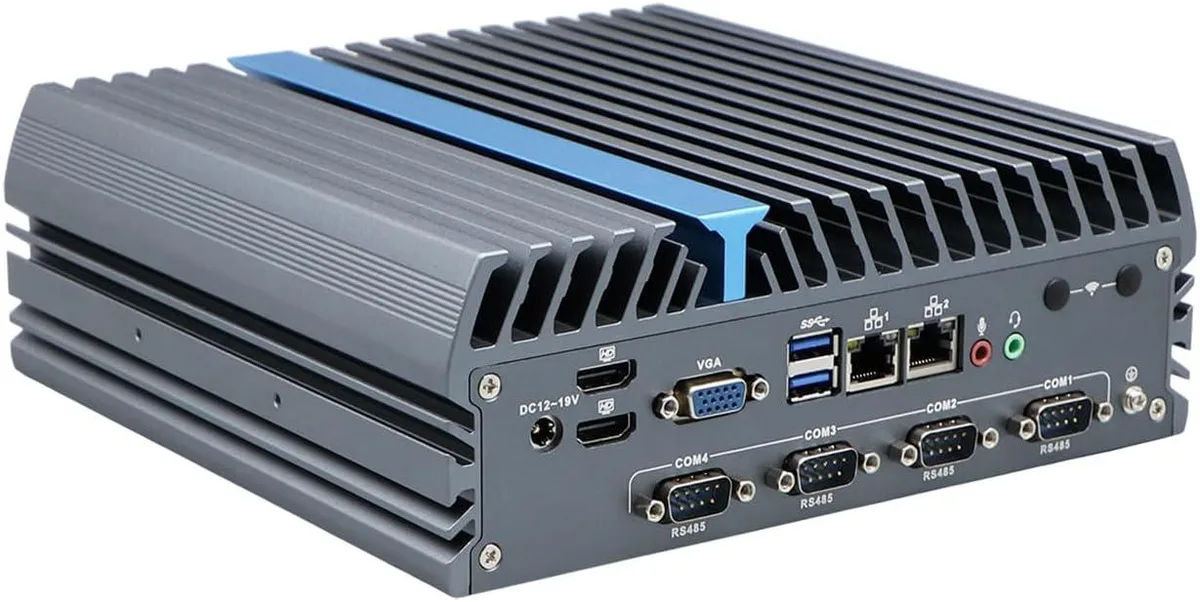

The single specification that decides fit is the wide-range DC input accepting 12 to 19 volts from the included 100 to 240 volt AC adapter. Installations that only provide 12-volt or 24-volt rails must verify compatibility before purchase. The board also exposes four RS485 COM ports, dual gigabit LAN, two HDMI and one VGA for triple independent 4K displays. A full-length Mini PCIe slot with Nano SIM holder enables 4G or Wi-Fi expansion.

أبرز المميزات

  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Quad-core 12th-gen CPU with 8 threads up to 4.2 GHz
  • Triple independent 4K displays via two HDMI and VGA
  • Four RS485 COM ports plus dual Gigabit LAN for industrial I/O
  • Dual DDR4 3200 SODIMM slots support up to 64 GB memory

المواصفات

ColorGray
CPU TypeIntel Core i3 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How much power does the 35 W to 69 W TDP processor draw inside the fanless aluminium chassis during continuous 24/7 operation?

The CPU runs at a 35 W to 69 W TDP with passive cooling, operating from -20 °C to 60 °C without fans or moving parts.

What display cables and power input do I need before the unit can drive three independent screens?

Two HDMI cables for 4K@60 Hz outputs, one VGA cable for 1080p@60 Hz, and a 12 V to 19 V DC source with the supplied 12 V 10 A adapter.

Can the dual DDR4 3200 SODIMM slots and M.2 2280 NVMe drive work with my existing 2.5-inch SATA SSD?

Yes, the board provides two DDR4 3200 SODIMM slots up to 64 GB, one M.2 2280 PCIe 3.0 x4 NVMe slot, and one 2.5-inch SATA bay simultaneously.
