ICY DOCK

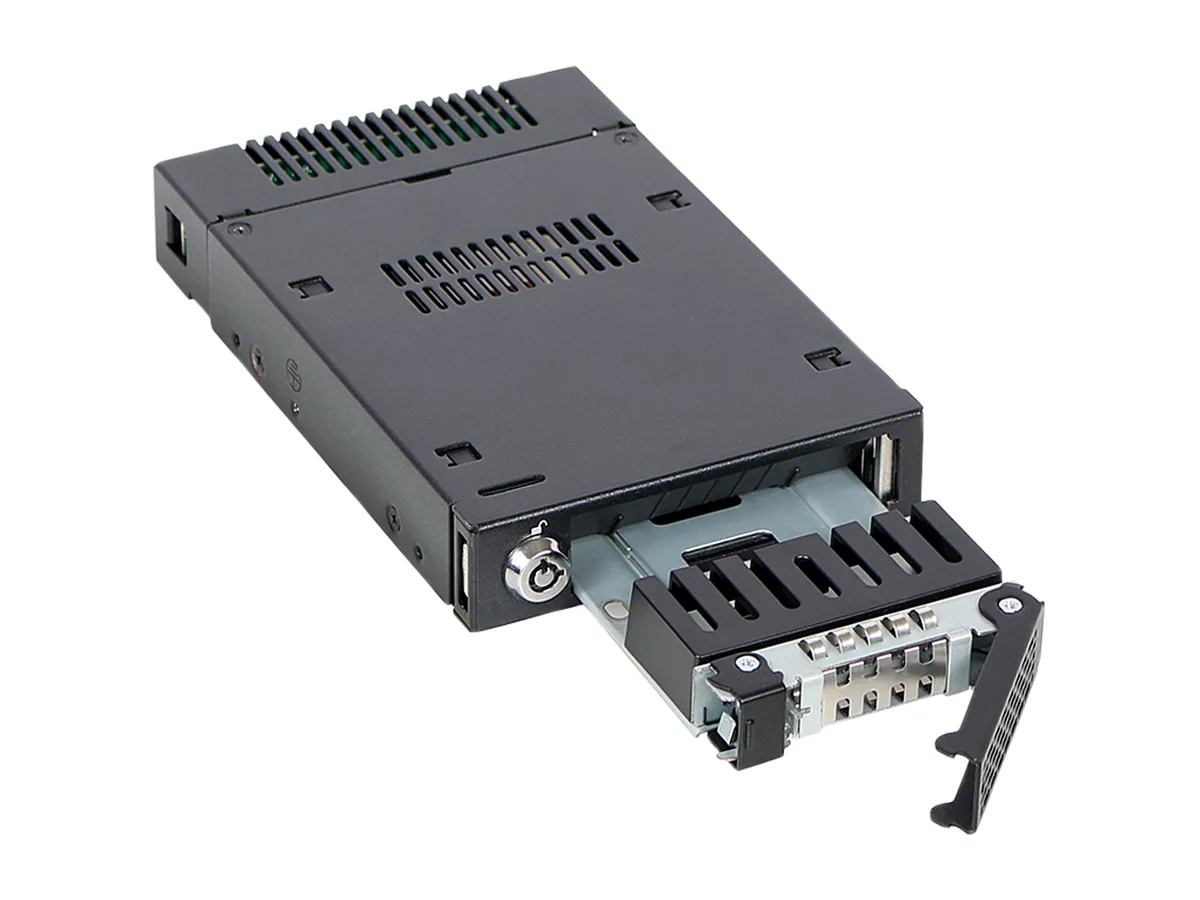

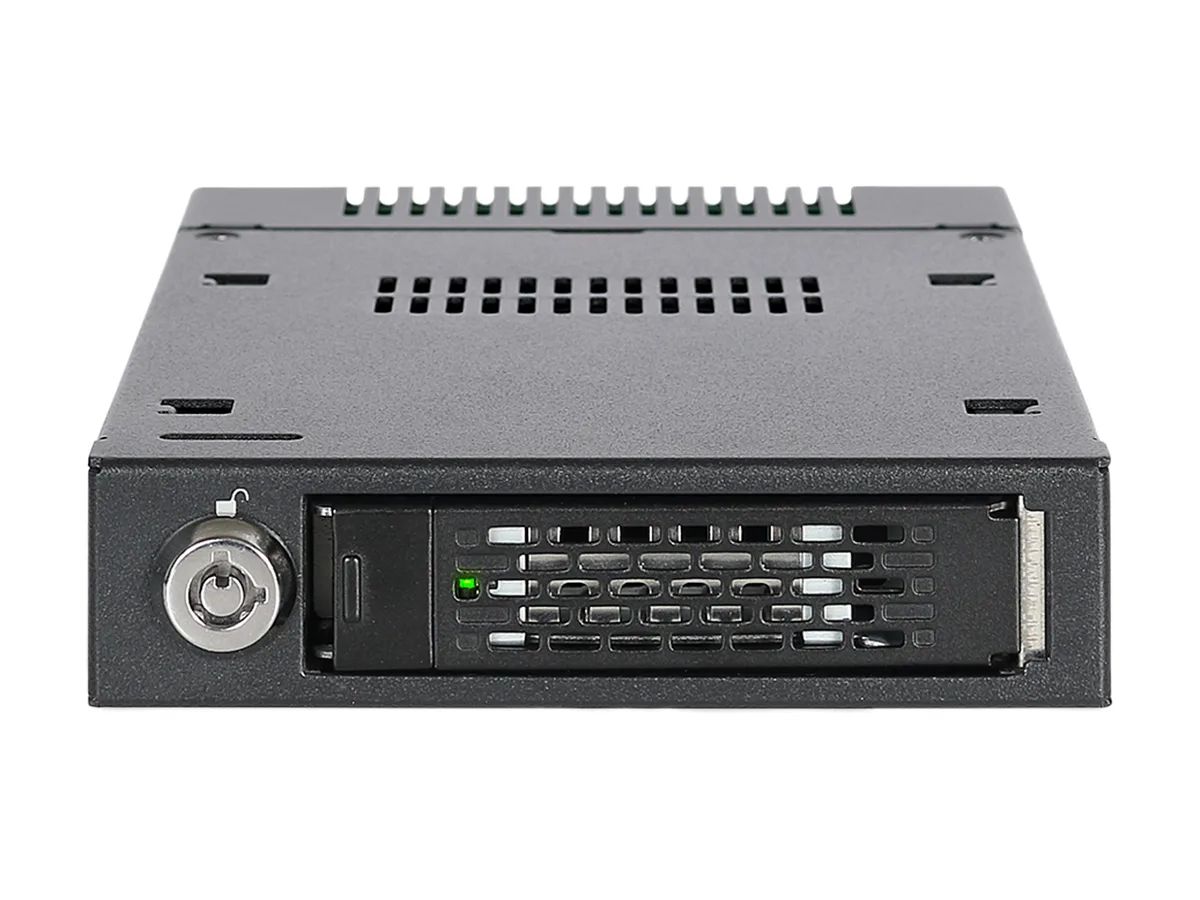

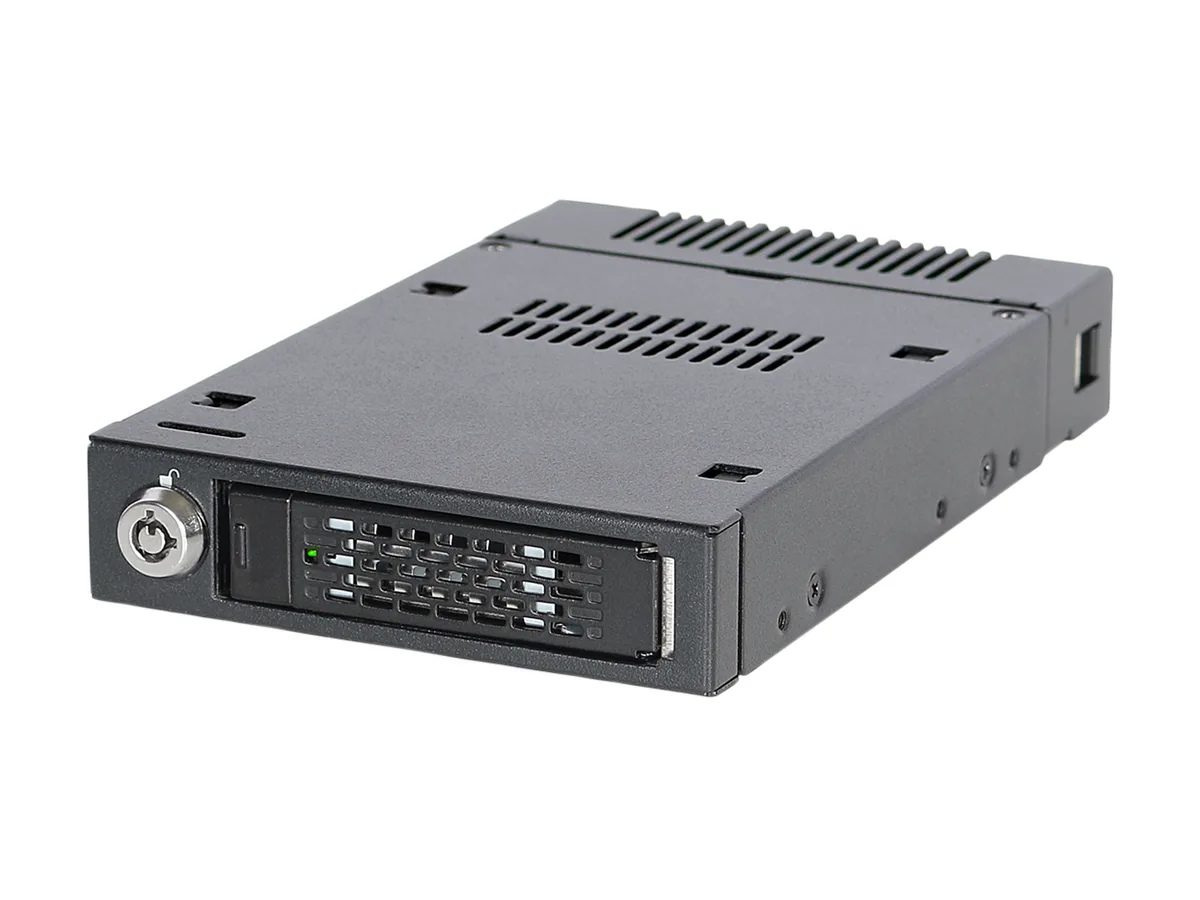

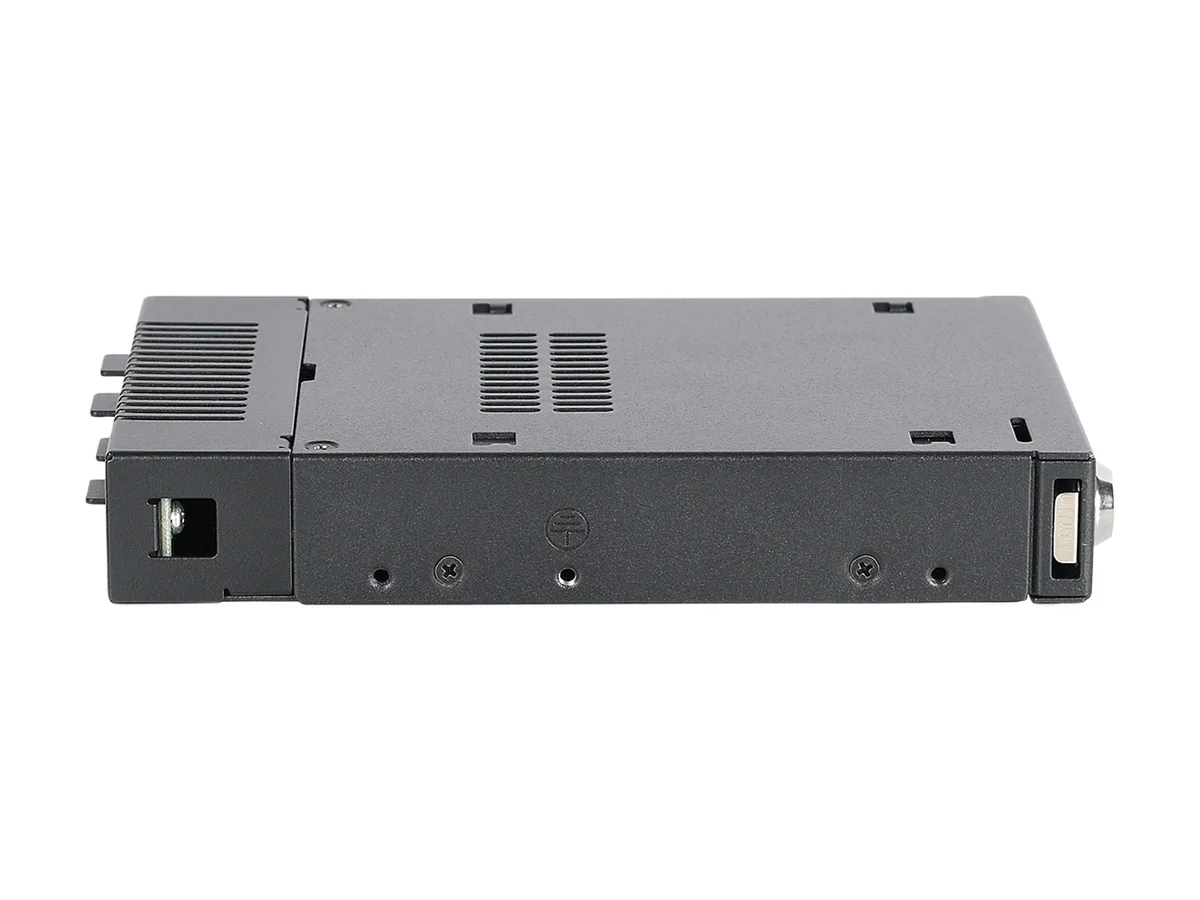

ICY DOCK MB601VK-1B 2.5" U.2 NVMe SSD Mobile Rack 3.5" Bay
Holds one 2.5″ U.2 NVMe SSD up to 15 mm in a 3.5″ bay with a 32 Gbps SFF-8639 connection and a lockable metal tray
- ColorBlack
- Conversion Tray1 x 2.5" Drive to 3.5" Bay
- Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
- Mobile Rack InterfaceU.2 Connector (SFF-8639)
- Protection CaseSingle Drive
- Compatible Products1 x 2.5" U.2 NVMe SSD (Up to 15mm height)
- Fits one 2.5″ U.2 NVMe SSD up to 15 mm tall
- Installs in any standard external 3.5″ device or floppy bay
- Connects via U.2 port (SFF-8639) for full NVMe bandwidth of 32 Gbps
- Rugged full-metal enclosure meets flammability requirements
- Two-segment key lock and eagle-hook latch secure the drive tray
U.2 NVMe mobile rack for 3.5" bays
The ICY DOCK ToughArmor MB601VK-1B adapts a single 2.5" U.2 NVMe SSD up to 15 mm tall into any standard external 3.5" device bay. It connects through a U.2 port (SFF-8639) and supports the full NVMe bandwidth specification of 32 Gbps. A ruggedised full-metal enclosure meets flammability requirements and provides EMI grounding to protect the drive from electrical damage.
Suits systems with a native U.2 NVMe host link
This rack is built for workstations and servers that already expose a U.2 NVMe connection at the drive bay. It will not operate on platforms that lack a direct NVMe pathway to the bay, nor on setups limited to other signalling methods. Builders needing hot-swap trays for multiple drives or for different form factors should consider alternative enclosures.

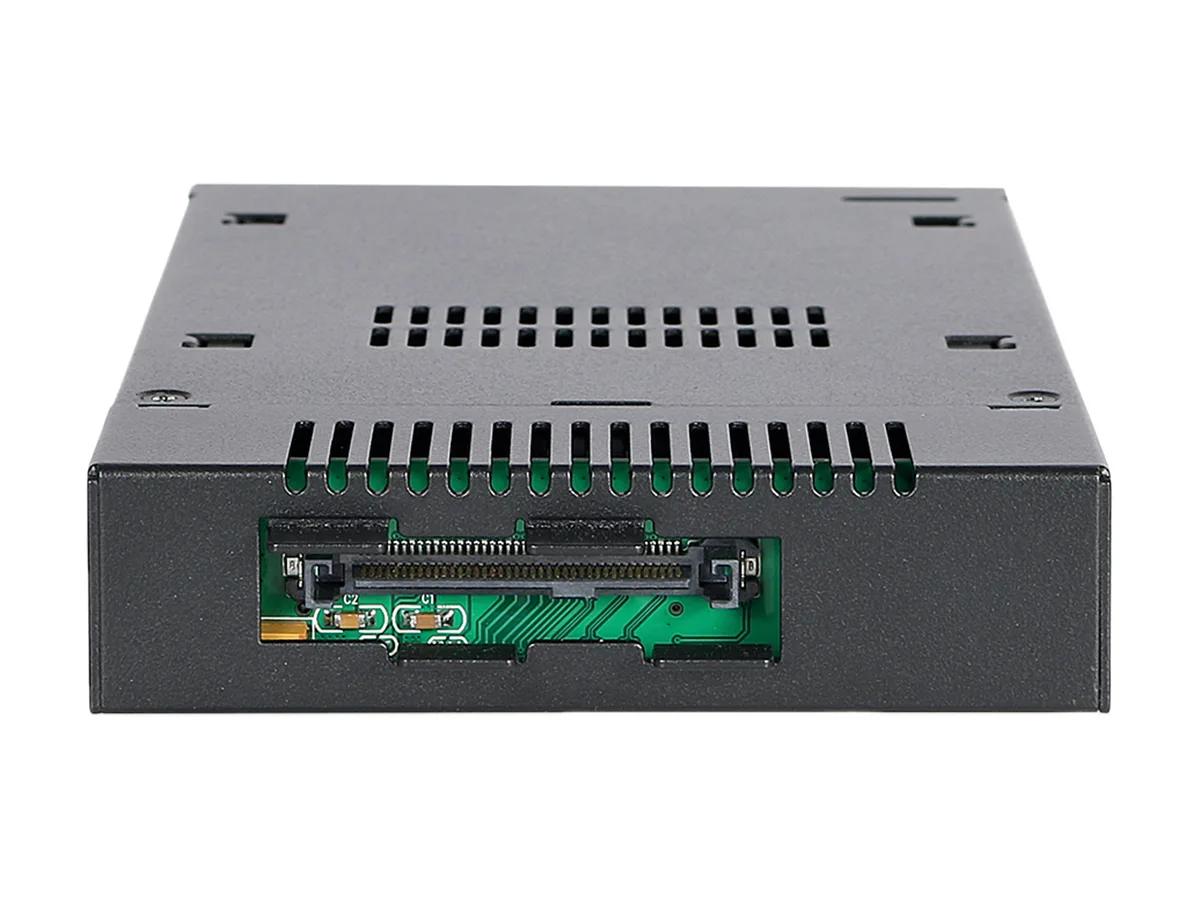

U.2 connector (SFF-8639) host interface
The single U.2 port is the only data and power path, so the host must supply a native NVMe link through that connector. Without a compatible U.2 NVMe host connection the SSD cannot communicate or receive power. Verify the motherboard, backplane or add-in card provides this exact interface before purchase.
Přednosti
- Fits one 2.5″ U.2 NVMe SSD up to 15 mm tall
- Installs in any standard external 3.5″ device or floppy bay
- Connects via U.2 port (SFF-8639) for full NVMe bandwidth of 32 Gbps
- Rugged full-metal enclosure meets flammability requirements
- Two-segment key lock and eagle-hook latch secure the drive tray
Specifikace
| Brand | ICY DOCK |
|---|---|
| Model | ToughArmor MB601VK-1B |
| Color | Black |
| Part Number | MB601VK-1B |
| Conversion Tray | 1 x 2.5" Drive to 3.5" Bay |
| Mobile Rack Drives Support | 1 x 2.5" Drive to 3.5" Bay |
| Mobile Rack Interface | U.2 Connector (SFF-8639) |
| Protection Case | Single Drive |
| Compatible Products | 1 x 2.5" U.2 NVMe SSD (Up to 15mm height) |
| Specifications | Support Drive Size: 1 x 2.5" U.2 NVMe SSD (Up to 15mm height) Compatible Drive Type: U.2 NVMe Number of Drives: 1 Drive Bay: 1 x external 3.5" drive bay Host Interface: 1 x U.2 connector (SFF-8639) Power Input: Via U.2 (SFF-8639) Transfer Rate: Up to 32Gbps Support HDD Capacity: No Limitation Drive Cooling: Metal heat dispersion with passive cooling Structure / Material: Full Metal Support Hot-Swap: Yes Drive Security: 2 segment key lock Product Dimension (L x W x H): 168.7 x 101.2 x 25.4mm Product Net Weight: 441g Drive Activity LED Indication: Drive power: solid green; HDD access: |
| Features | Fits 1x 2.5" U.2 NVMe SSD, up to 15mm in height Installs into any standard external 3.5" device bay or floppy bay Uses a U.2 port (SFF-8639) to connect, requires NVMe host Supports the full NVMe bandwidth specification of 32 Gbps Ruggedized full-metal enclosure meeting flammability requirements 2-segment key lock for additional physical security Eagle-hook tray latch securely holds the tray inside the enclosure EMI Grounding – protects hard drives from electrical damage Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage Active Power Technology (AP |
| Package Contents | 1 x Device 1 x User manual 10 x Screw 2 x Key |
| Přepravní hmotnost | 0.91 kg |
| Rozměry balení | 305 × 229 × 102 mm |
Otázky k tomuto produktu
Do I need a motherboard with a U.2 (SFF-8639) NVMe port to use this mobile rack?
Yes, the rack connects through a U.2 connector (SFF-8639) and requires an NVMe host port on the motherboard or an add-in card to function.
Will a 2.5" U.2 NVMe SSD that is 15 mm tall fit alongside my existing 3.5" drives in the same chassis?
The tray accepts one 2.5" U.2 NVMe SSD up to 15 mm height and mounts in any standard external 3.5" device bay, so it occupies the same bay space as a 3.5" drive.
How can I confirm the rack is delivering the full 32 Gbps NVMe bandwidth after installation?
Verify the drive appears at PCIe Gen 3 x4 speeds in the OS device manager or run a synthetic NVMe benchmark and check that sequential reads approach the drive's rated maximum.
