Lirealar

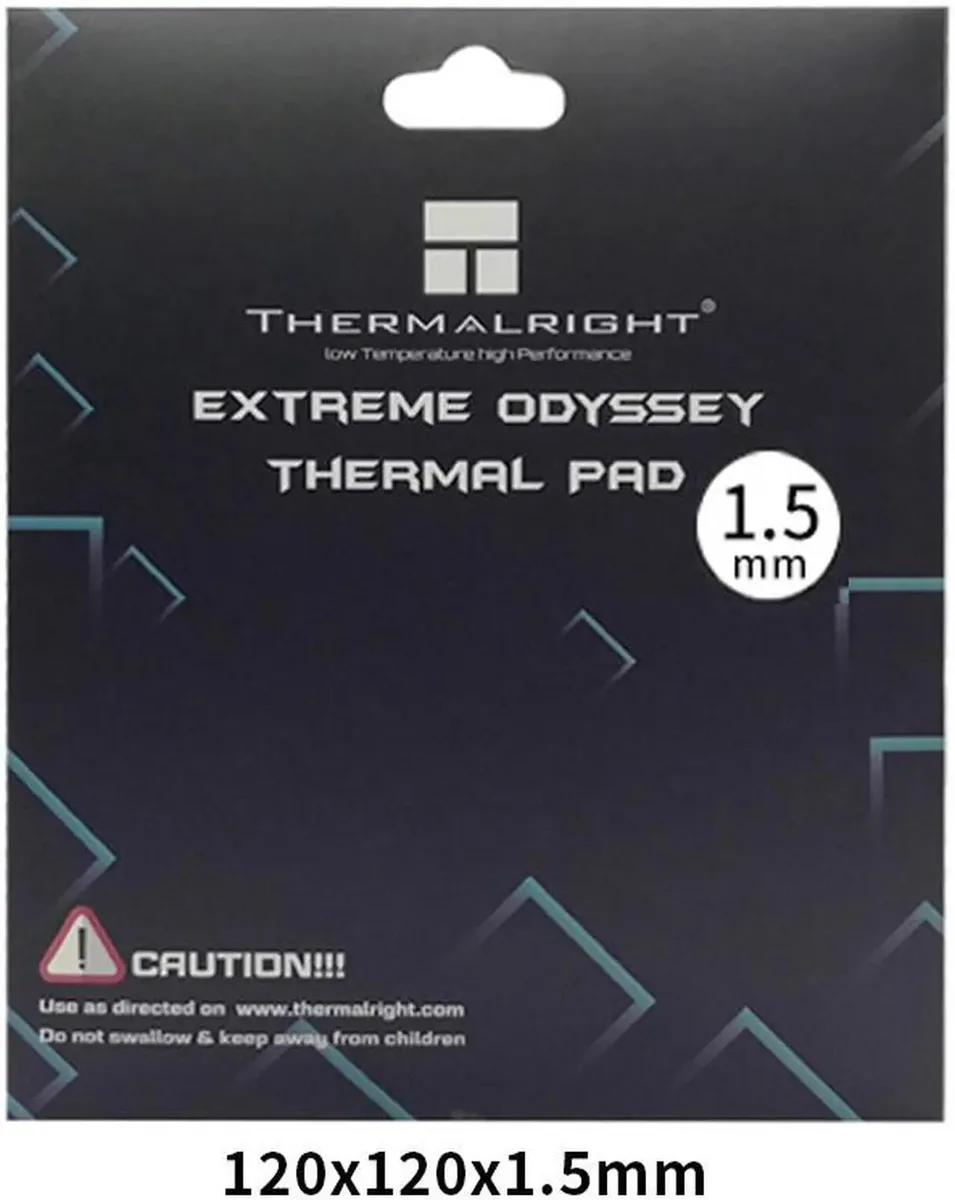

Lirealar 120x120mm thermal pad 12.8 W/mK 1.5mm 15g
A 120 × 120 × 1.5 mm silicone thermal pad rated at 12.8 W/mK that fills gaps between CPUs, GPUs or LEDs and their heatsinks while remaining electrically non-conductive and reusable
- Volume / Net Weight15g
- Thermal Conductivity12.8 W/mK,
- Long Term Operating Temperature-40 C to +400C
- SpecificationsColor:Gray Thermal Conductivity:12.8W/M-K Density:3.1±0.2g/c
- FeaturesNon-Elecnical Conducive Non-Corrosive, Non-Curing & Non-Toxi
Type Thermal Pad
- Thermal Pad
- Thermal Paste
Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.
- High 12.8 W/mK conductivity moves heat efficiently from CPU or GPU
- Non-conductive insulation prevents electrical shorts on sensitive components
- Flexible 1.5 mm thickness fills uneven gaps between die and heatsink
- Wide -40 °C to 200 °C range suits desktop, laptop and LED coolers
- Reusable non-curing pad installs cleanly and can be repositioned
Gap-filling pad for desktop and laptop heatsinks
This 120x120mm silicone pad sits between a GPU, CPU or LED module and its cooler to replace air gaps with a 12.8 W/mK thermal path. The 1.5mm thickness and 15g weight suit stock cooler clearances on mainstream graphics cards and notebooks. Non-conductive and non-corrosive chemistry makes it safe for direct die contact.
Softness range limits clamping pressure
Shore 00 hardness spans 30 to 55 so the pad compresses under light mounting force but will not flow like grease. Continuous operating temperature is rated from -40°C to 200°C with a short-term peak of 400°C. Breakdown voltage exceeds 9.8 kV at 1mm, providing electrical isolation across the interface.
Peel-and-place install with reusable viscosity
Natural tack holds the sheet in position while you align the heatsink, and the pad can be lifted and repositioned if the first seat is uneven. Density of 3.1 g/cc means it resists pump-out over thermal cycles. Installers must ensure the 1.5mm thickness matches the specific gap; thinner or thicker stacks will not be compensated by this single sheet.
Besonderheiten
- High 12.8 W/mK conductivity moves heat efficiently from CPU or GPU
- Non-conductive insulation prevents electrical shorts on sensitive components
- Flexible 1.5 mm thickness fills uneven gaps between die and heatsink
- Wide -40 °C to 200 °C range suits desktop, laptop and LED coolers
- Reusable non-curing pad installs cleanly and can be repositioned
Technische Daten
| Series | Thermal Pad |
|---|---|
| Model | 120x120x1.5mm |
| Volume / Net Weight | 15g |
| Thermal Conductivity | 12.8 W/mK, |
| Long Term Operating Temperature | -40 C to +400C |

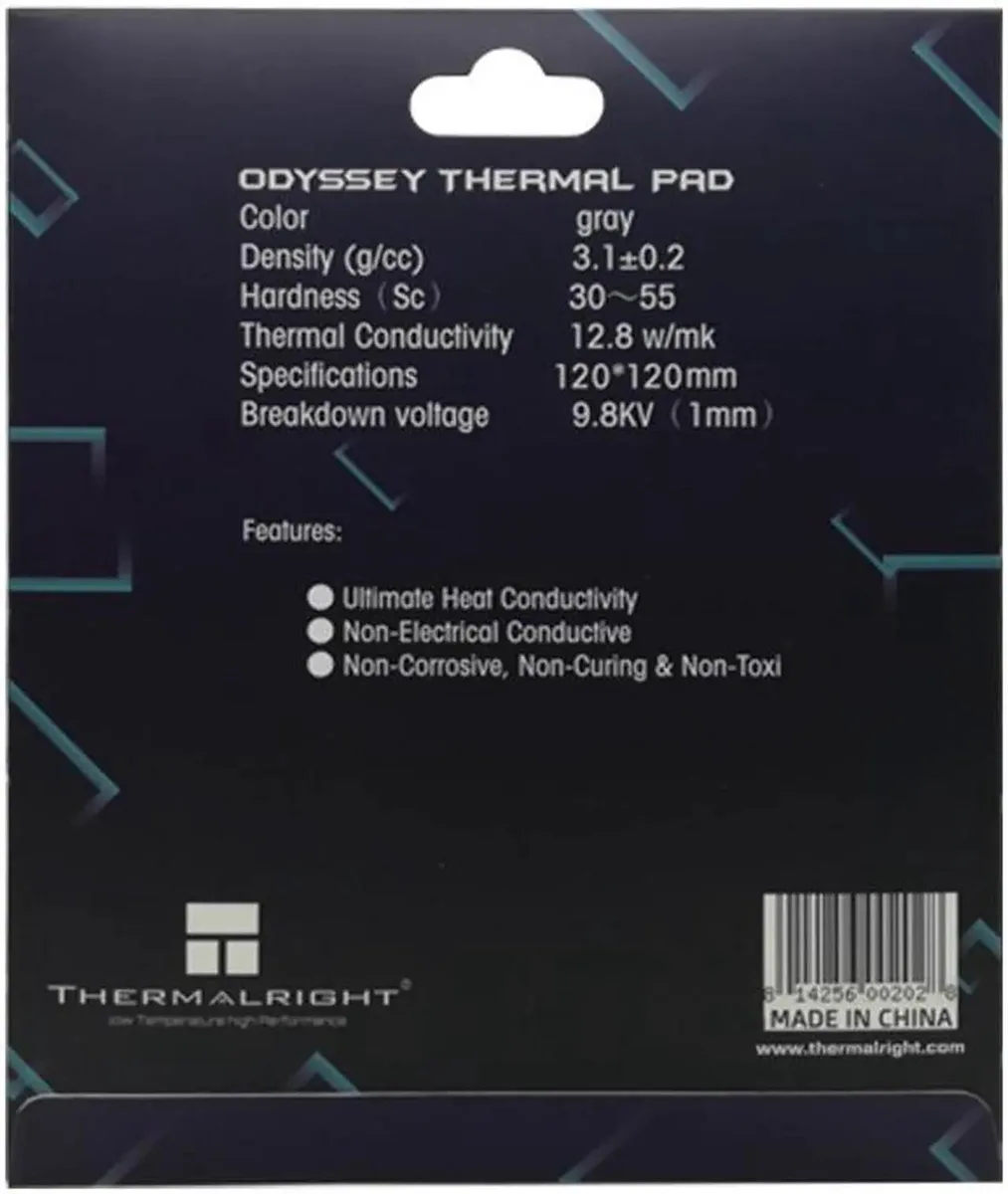

| Specifications | Color:Gray Thermal Conductivity:12.8W/M-K Density:3.1±0.2g/cc Hardness:30-55(Sc) Breakdown Voltage:>9.8KV(1mm) Temperature Range:-40°C~200°C |
| Features | Non-Elecnical Conducive Non-Corrosive, Non-Curing & Non-Toxi One Pad , multi-purpose, durable,insulated, non-conductive lnsulation does not conduct electricity and is safe for use Natural viscosity, easy to assemble and reusable |
Andere Versionen dieses Modells
5 weitere aus dieser Serie
Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.
Lirealar
Lirealar 120x120mm thermal pad 12.8 W/mK 0.5mm 15g
- 15g
- 12.8 W/mK,
19,99 $
0.00025781BTC
Auf Lager
Fragen zu diesem Artikel
Which thickness should I pick for my GPU or CPU gap?
The pad is 1.5 mm thick, a common size for many stock cooler clearances; measure your gap before ordering.
What does 12.8 W/mK mean for actual temperatures?
It indicates high thermal conductivity for a silicone pad, so heat moves from die to heatsink more efficiently than standard pads, lowering junction temperatures under load.
Is the pad electrically safe and what voltage can it withstand?
It is non-conductive with a breakdown voltage above 9.8 kV per mm, providing reliable insulation for typical low-voltage PC components.
