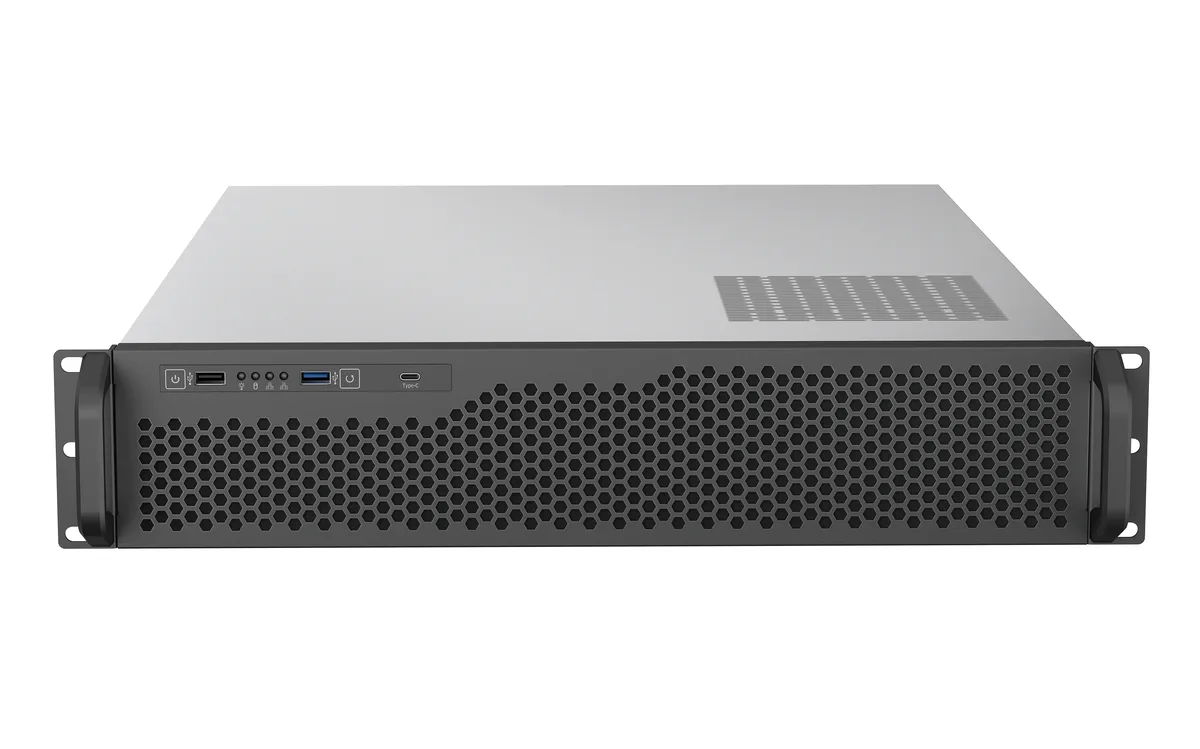

Black and silver 2U rackmount server chassis with front drive bays and USB ports

Rosewill

Rosewill RSV-Z2006 2U rackmount server chassis

SKU CH-3CHR-0C88C MPN RSV-Z2006

A 2U rackmount chassis holding six 3.5" drives with five 80 mm PWM fans, front USB 3.2 Type-C and horizontal GPU support up to 280 mm

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
  • Power SupplySupports ATX power supply

Chassis Type 2U · 6 Bays · 23.6" Depth · ATX

  • Full-length GPU fits in 2U with 280 mm clearance
  • Six hot-swap 3.5" bays provide high-density storage
  • Five 80 mm PWM fans deliver directed airflow
  • Front USB 3.2 Type-C enables 10 Gbps transfers
  • ATX and Mini-ATX boards supported up to 12" x 9.6

2U Rackmount Server Chassis

The Rosewill RSV-Z2006 is a 2U rackmount server chassis built for ATX and Mini-ATX motherboards. It supports a horizontally mounted full-size graphics card up to 280 mm long using a PCIe riser purchased separately. Five 80 mm PWM fans provide directed airflow for high-wattage components. Six internal 3.5-inch drive bays offer substantial storage capacity for data-intensive workloads.

Suited for GPU compute and storage density

This chassis fits builders who need a compact 2U form factor with horizontal GPU support and six 3.5-inch bays. It is not for systems requiring a CPU cooler taller than 75 mm or a power supply longer than 180 mm. Buyers who need more than six drive bays or vertical GPU mounting should look at a different chassis.

75 mm maximum CPU cooler height

The 75 mm cooler clearance is the single specification that decides compatibility with many server-grade processors. Verify your cooler height before purchase, as taller tower coolers will not fit in this 2U enclosure.

Besonderheiten

  • Full-length GPU fits in 2U with 280 mm clearance
  • Six hot-swap 3.5" bays provide high-density storage
  • Five 80 mm PWM fans deliver directed airflow
  • Front USB 3.2 Type-C enables 10 Gbps transfers
  • ATX and Mini-ATX boards supported up to 12" x 9.6

Technische Daten

BrandRosewill
ModelRSV-Z2006
Chassis TypeRackmount
Form Factor2U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x Lan activity
Internal 3.5" Drive Bays6
Expansion Slots2 / 4 x Vertical
Max CPU Cooler Height75 mm
Max GPU Length280 mm
Max PSU Length180 mm
Front Ports1 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsFront: 2 x 80mm fans (2 x 80mm PWM fan included)
Middle: 3 x 80mm fans (3 x 80mm PWM fan included)
Versandgewicht10.45 kg
Paketgröße695 × 545 × 190 mm

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Will my existing ATX motherboard and full-size graphics card fit in this 2U chassis?

The RSV-Z2006 accepts standard 12" x 9.6" ATX boards and horizontally mounts a GPU up to 280 mm long. A PCIe riser card is required and sold separately.

How can I confirm the five 80 mm PWM fans are spinning correctly after installation?

Connect each fan to a PWM header, then monitor RPM in the BIOS or operating system. The front LED panel also shows power status and drive activity for quick visual checks.

Which drive trays and front-panel cables come in the box, and what must I source separately?

Six tool-less 3.5" hot-swap trays, two front 80 mm fans, three middle 80 mm fans, and the USB 3.0 / USB 3.2 Type-C front-port cables are included. An ATX power supply and PCIe riser are not included.
