Silver-black 2U rackmount server chassis with front USB ports and LED indicators

Rosewill

Rosewill RSV-Z2600U 2U server chassis

SKU CH-AFEW-KV2C9 MPN RSV-Z2600U

A 2U rackmount server chassis with four internal 3.5-inch drive bays, three pre-installed 80mm cooling fans, Micro-ATX motherboard support and front USB 3.0 ports

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialSGCC
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, 2 x LAN activity

Chassis Type 2U · 4 Bays · 15.0" Depth · Micro ATX

  • Four 3.5" drive bays give high storage density
  • Three pre-installed 80 mm fans provide quiet cooling
  • Micro-ATX and Mini-ITX support enable flexible builds
  • Four expansion slots allow additional PCI cards

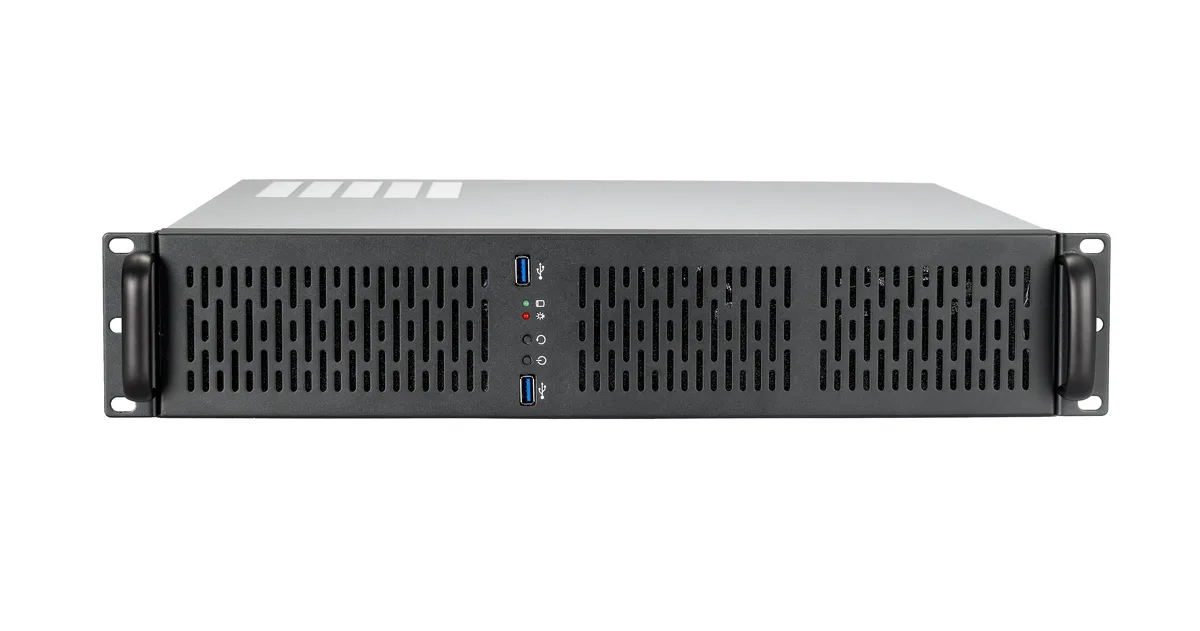

  • Front USB 3.0 ports and LED indicators simplify monitoring

2U rackmount server chassis

The Rosewill RSV-Z2600U is a 2U rackmount server chassis built for SGCC construction. It accepts Micro-ATX and Mini-ITX motherboards and provides four internal 3.5-inch drive bays that also fit 2.5-inch drives. Three pre-installed 80mm PWM fans deliver front-to-rear airflow. Two front USB 3.0 ports and LED indicators for power, HDD and LAN activity complete the front panel.

Suits small servers and storage nodes

This chassis suits builders assembling a compact file server, NAS or virtualization host that needs up to four 3.5-inch drives in a 2U footprint. The four low-profile expansion slots allow add-in cards such as RAID controllers or extra network interfaces. It is not for systems requiring full-height cards, standard ATX boards, more than four internal drives or CPU coolers taller than 70 mm.

Check motherboard and power supply fit

Verify your motherboard is Micro-ATX or Mini-ITX and that your CPU cooler height stays within 70 mm. Confirm the power supply is a PS2 (ATX) unit no longer than 150 mm. Ensure any GPU is a low-profile model not exceeding 150 mm in length. The rack depth is 380 mm, so confirm your cabinet rails accommodate that dimension.

Besonderheiten

  • Four 3.5" drive bays give high storage density
  • Three pre-installed 80 mm fans provide quiet cooling
  • Micro-ATX and Mini-ITX support enable flexible builds
  • Four expansion slots allow additional PCI cards
  • Front USB 3.0 ports and LED indicators simplify monitoring

Technische Daten

BrandRosewill
ModelRSV-Z2600U
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialSGCC
Motherboard CompatibilityMicro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, 2 x LAN activity

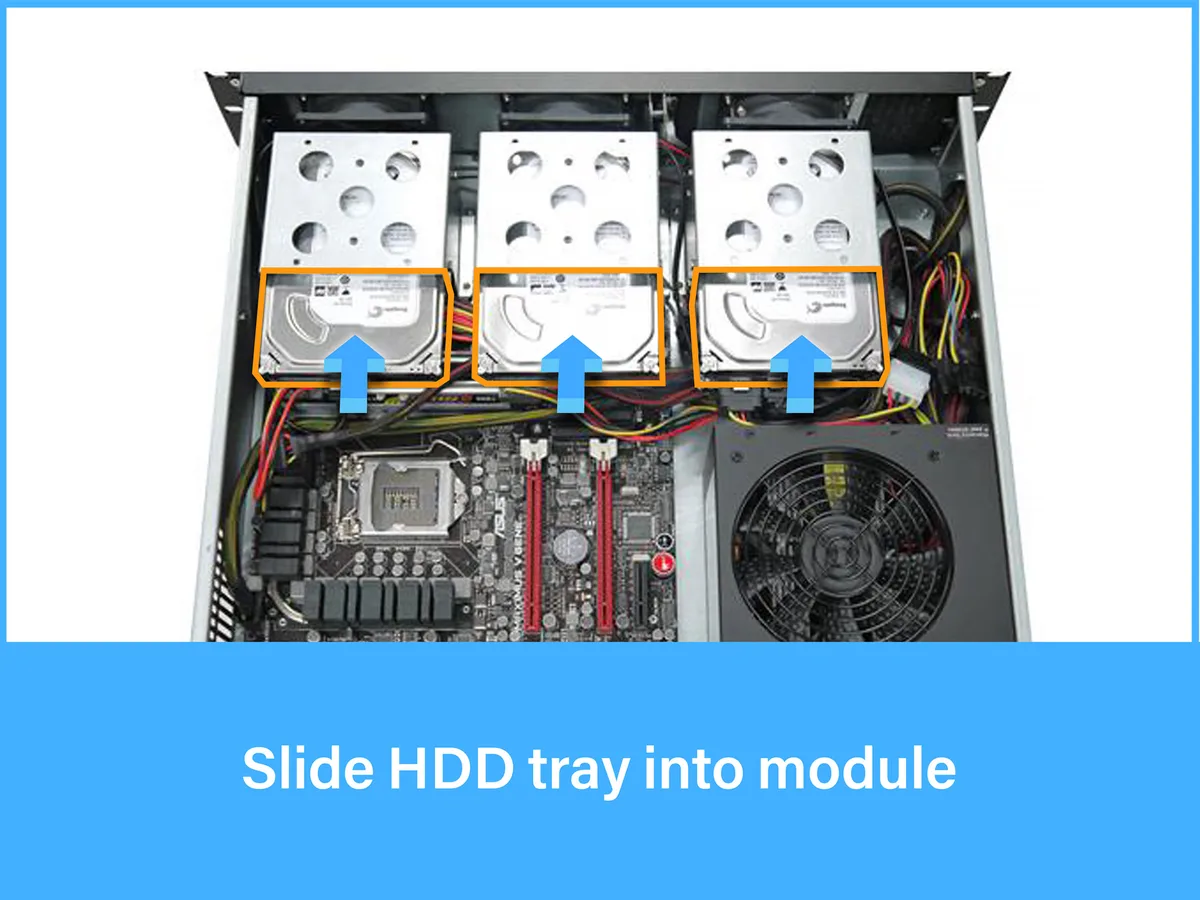

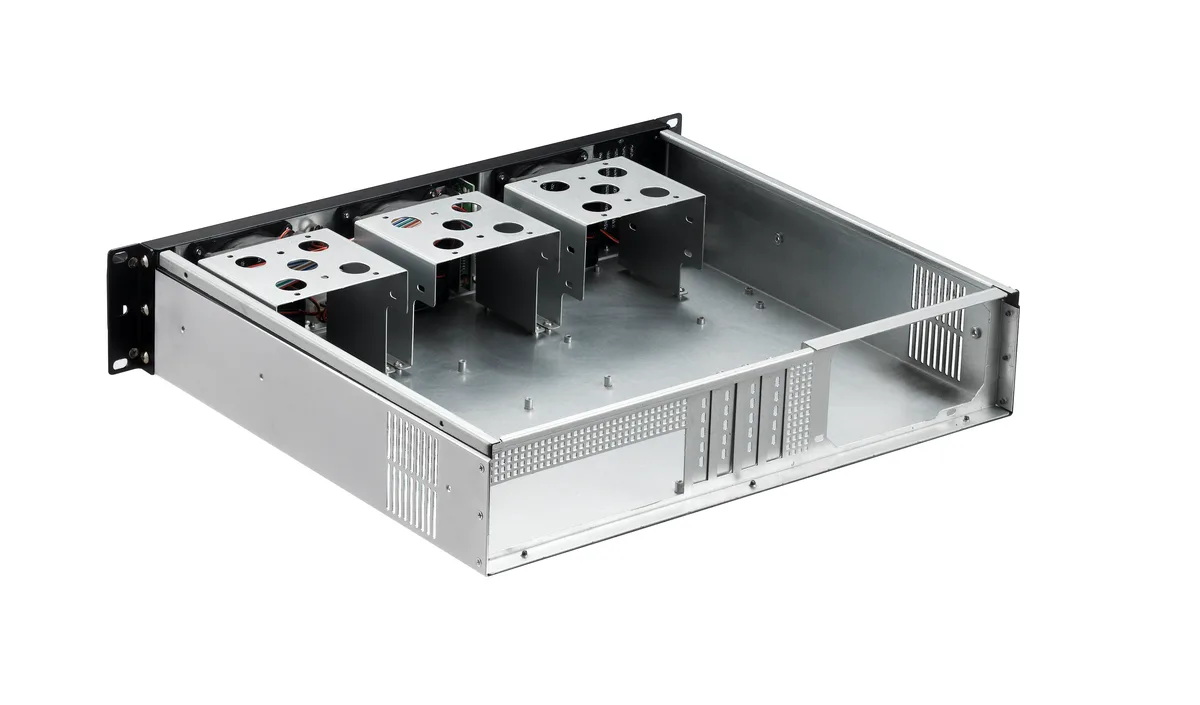

Internal 3.5" Drive Bays4 x 3.5" (compatible with 3 x 2.5")

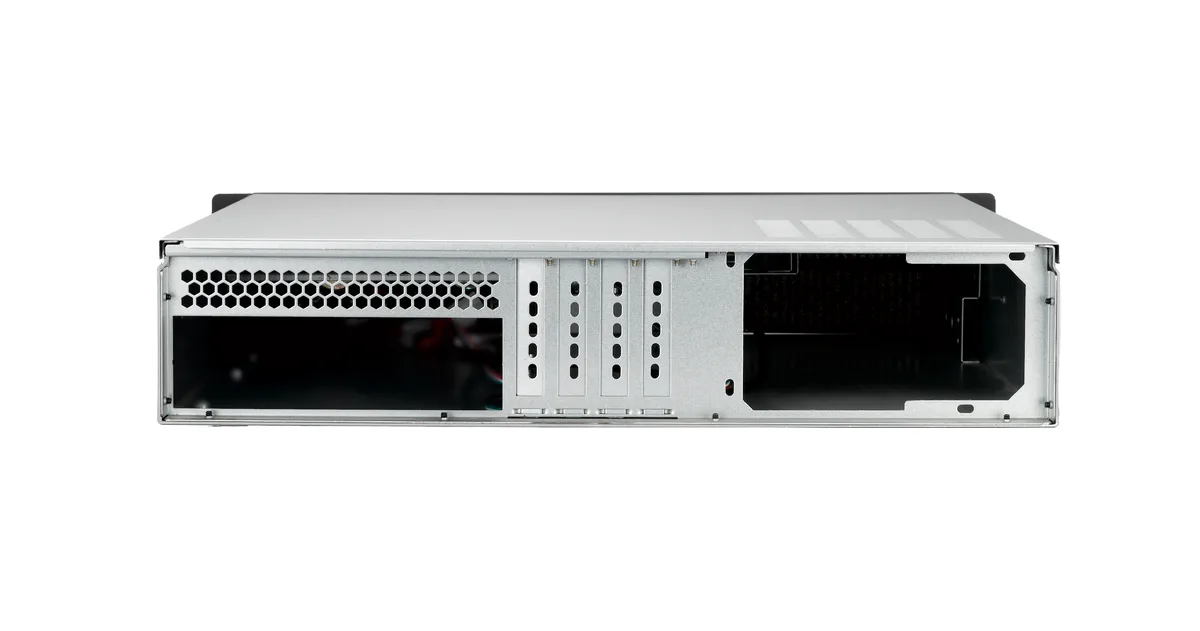

Expansion Slots4
Max CPU Cooler Height70 mm
Max GPU LengthLow-Profile 150 mm
Max PSU Length150 mm PS2 (ATX)

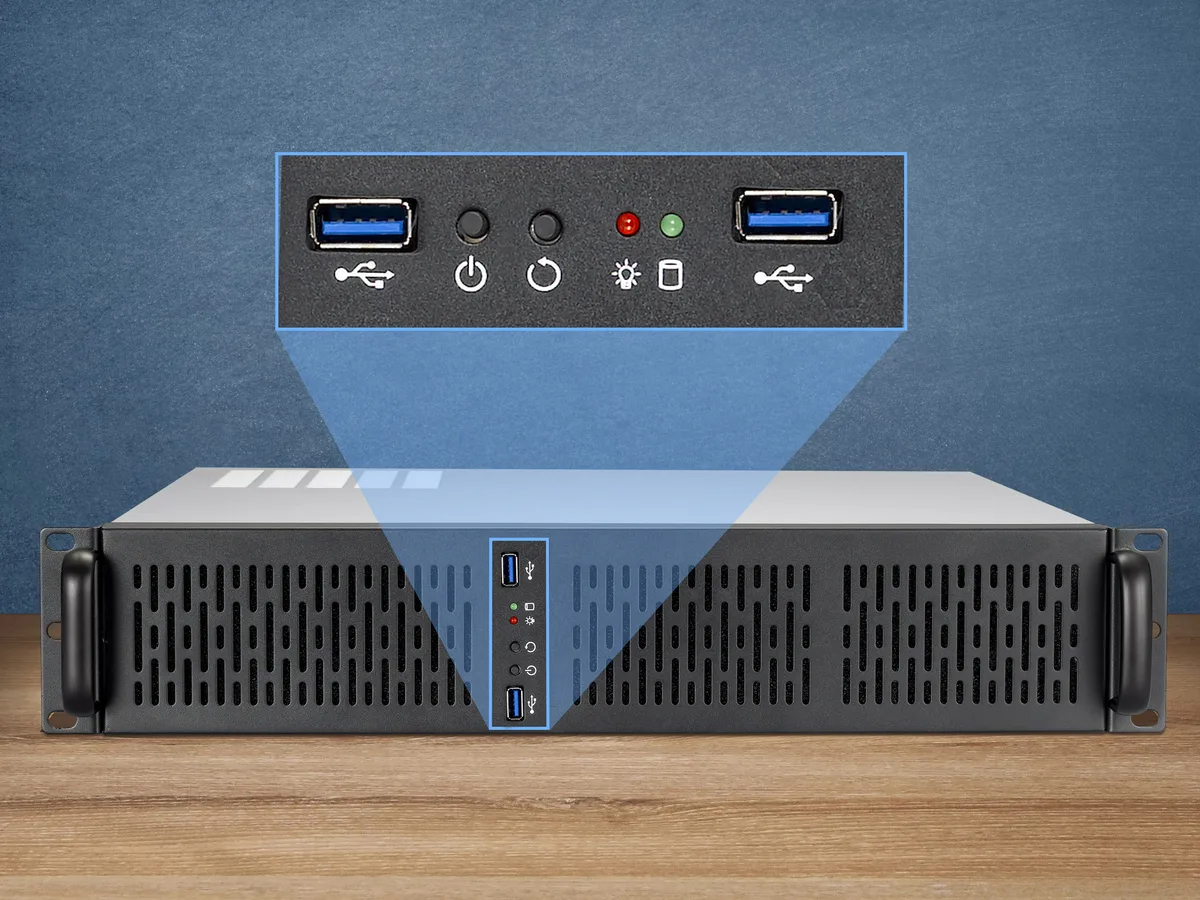

Front Ports2 x USB 3.0
Fan OptionsFront - 4 x 3.5" (compatible with 3 x 2.5")
FeaturesThe Rosewill RSV-Z2600U 2U rackmount server case features 4 internal 3.5" HDD bays to boost your home server or server room. 3 pre-installed cooling fans help prevent your server chassis from overheating. 4 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes one USB 3.0 and USB 2.0 ports.
Dimensions430mm x 89 mm x 380mm (16.93" x 3.50" x 14.96")
Weight4.80kg (10.58 lbs)
Package ContentsRSV-Z2600 Server Case
Screw Sets
Other Accessories
Versandgewicht6.80 kg
Paketgröße559 × 483 × 191 mm

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

What motherboard form factor must I already have to fit in this 2U rackmount chassis?

The chassis accepts Micro-ATX or Mini-ITX boards only; full-size ATX will not fit the 430 mm x 89 mm x 380 mm interior.

Will a standard-height CPU cooler clear the 70 mm limit inside this case?

Only low-profile coolers up to 70 mm tall can be used; tower coolers exceeding that height will prevent the top cover from closing.

How do I confirm the three pre-installed 80 mm PWM fans are spinning after assembly?

Watch the front-panel LED indicators — power, HDD activity and dual LAN lights — and listen for airflow; the fans are PWM so speed varies with thermal load.
