Silver 3U rackmount server chassis with six 3.5-inch drive bays and dual 80mm front fans

Rosewill

Rosewill RSV-Z3200U 3U Server Chassis 6×3.5" Bays E-ATX 2×80mm Fans 2×USB 3.0 Silver/Black

SKU CH-X7VV-YTBXP MPN RSV-Z3200U

3U rackmount chassis holds six 3.5-inch drives, fits E-ATX boards, includes two 80mm fans and front USB 3.0 ports

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorSilver
  • Case Material1.0mm SGCC
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, LAN activity

Chassis Type 3U · 6 Bays · 17.7" Depth · E-ATX

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • 6 internal 3.5" drive bays for high-density storage

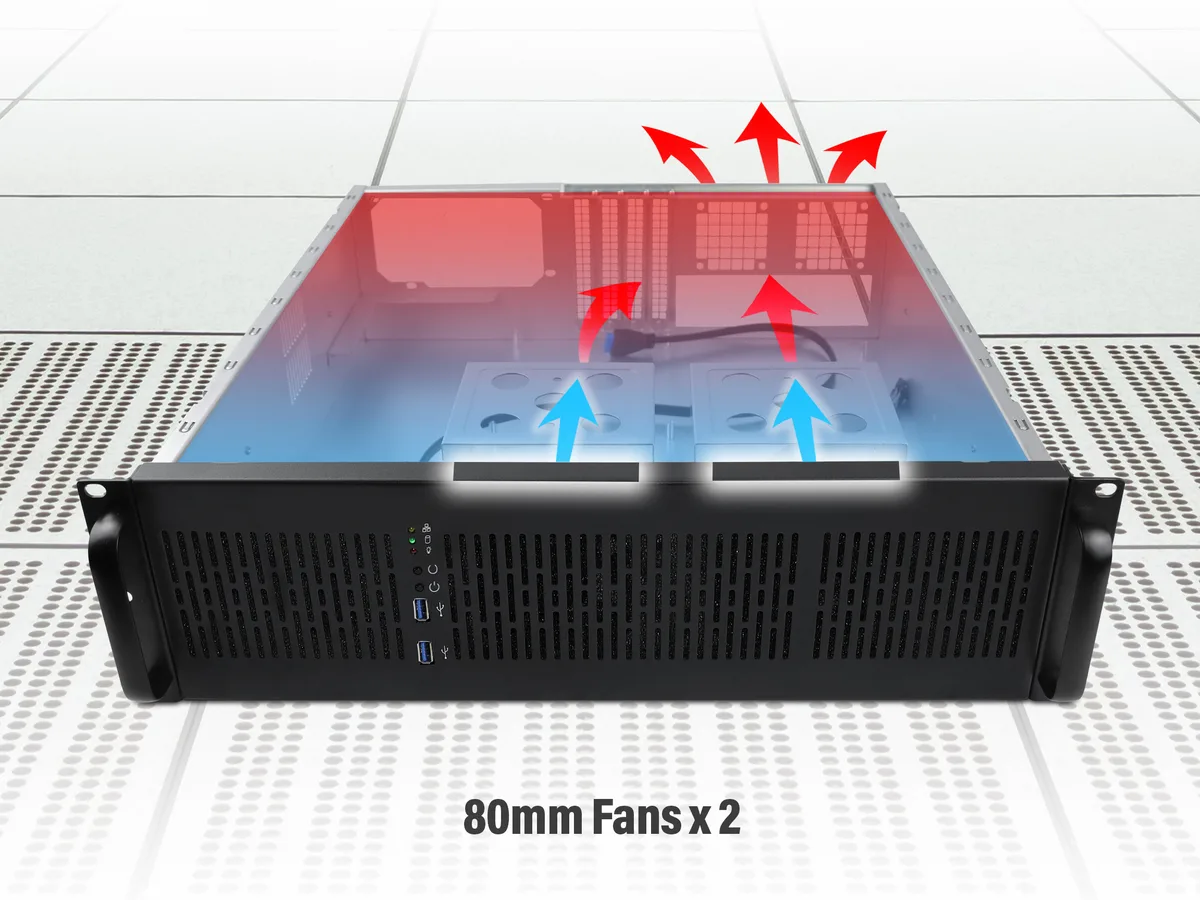

  • 2 pre-installed 80mm front fans deliver quiet cooling
  • E-ATX motherboard support fits extended server boards
  • 4 PCI expansion slots add specialised I/O or RAID cards

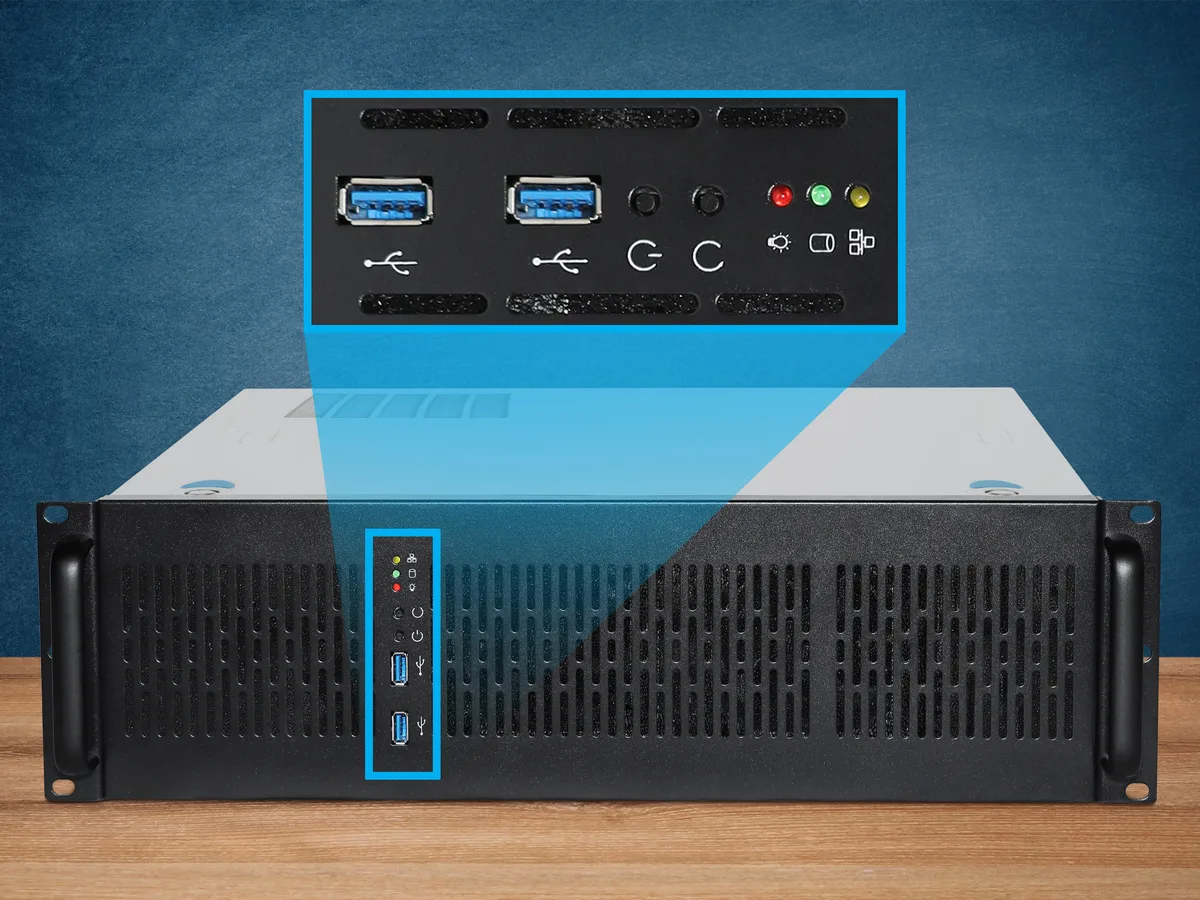

  • Front-panel LEDs show power, LAN and HDD status at a glance

3U Rackmount Chassis for E-ATX Builds

The Rosewill RSV-Z3200U is a 3U rackmount server chassis built from 1.0mm SGCC steel and finished in silver and black. It accepts ATX, E-ATX, Micro ATX and Mini ITX motherboards and provides six internal 3.5-inch drive bays for high-density storage. Two 80mm front fans are pre-installed to direct airflow across drives and components. Front-panel LED indicators show power, drive activity and network status at a glance.

Storage-Dense Servers and Quiet Rack Deployments

This chassis suits administrators who need six hot-swap-ready bays and E-ATX board support in a compact 3U footprint. The 110mm CPU cooler limit and 150mm low-profile GPU ceiling rule out tall tower coolers and full-height graphics cards. Builds that require more than four expansion slots, additional 2.5-inch bays, or redundant power supplies should consider a larger platform.

Six Internal 3.5-Inch Drive Bays

The defining specification is the six internal 3.5-inch bays, which set the storage ceiling for the entire build. With a maximum PSU length of 180mm in the PS2 form factor and four PCI expansion slots, the chassis balances density and expandability for file, backup or virtualization workloads.

Besonderheiten

  • 6 internal 3.5" drive bays for high-density storage
  • 2 pre-installed 80mm front fans deliver quiet cooling
  • E-ATX motherboard support fits extended server boards
  • 4 PCI expansion slots add specialised I/O or RAID cards
  • Front-panel LEDs show power, LAN and HDD status at a glance

Technische Daten

BrandRosewill
ModelRSV-Z3200U
Chassis TypeRackmount
Form Factor3U
ColorSilver
Case Material1.0mm SGCC
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, LAN activity
Internal 3.5" Drive Bays6
Expansion Slots4
Max CPU Cooler Height110 mm
Max GPU LengthLow-Profile 150 mm
Max PSU Length180 mm PS2 (ATX)
Front Ports2 x USB 3.0
Fan OptionsFront - 2 x 80mm fans (2 x 80mm fan included)
FeaturesSupports PS2 Power Supply form factor

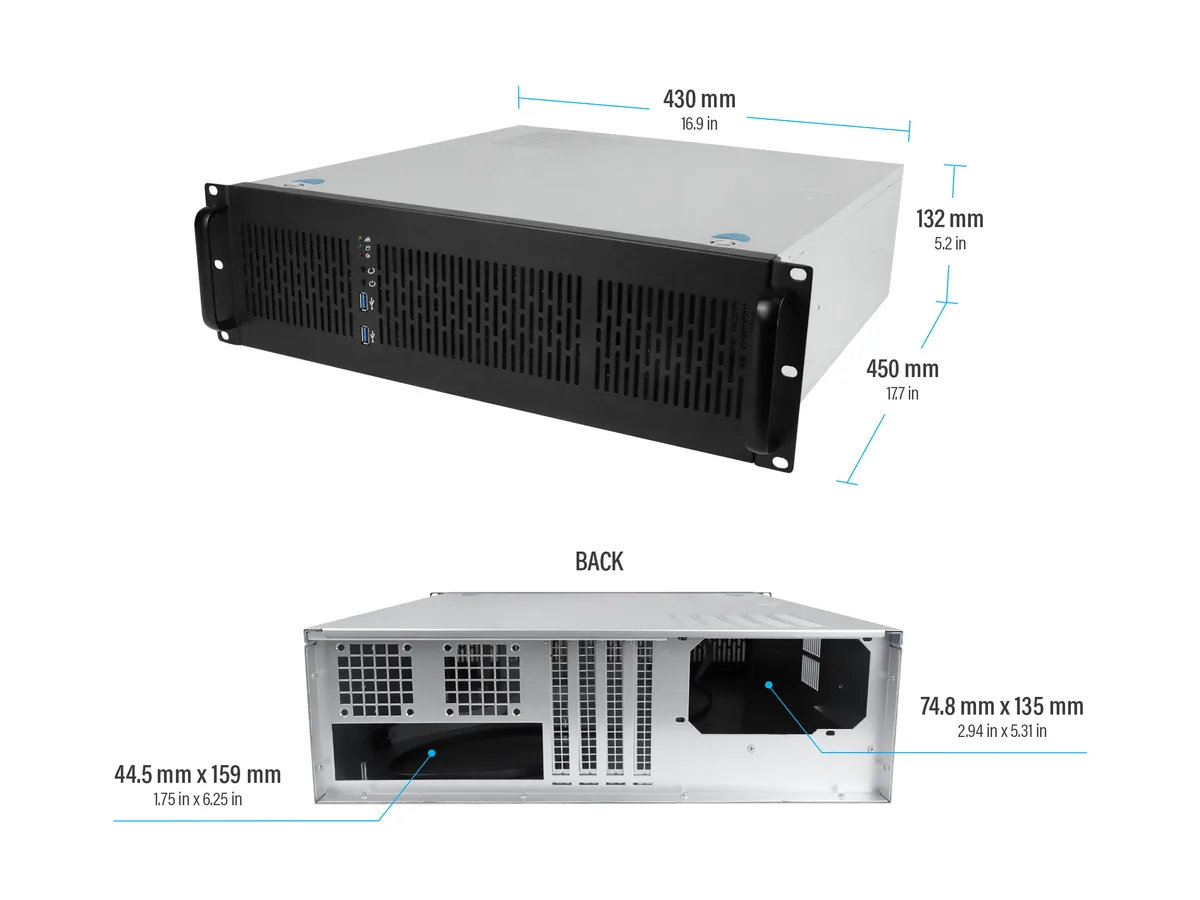

Dimensions430mm x 132mm x 450mm(16.93" x 5.2" x 17.72")
Weight6.0kg (13.23lbs)
Package ContentsRSV-Z3200U Server Case
Screws
QIG
Versandgewicht7.30 kg
Paketgröße545 × 520 × 220 mm

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

What USB standard do the front ports use and what transfer rate does it cap at?

The front panel provides two USB 3.0 ports that operate at up to 5 Gbps, so connected drives or peripherals are limited to that speed.

What are the exact internal clearances for the CPU cooler, GPU and power supply?

The chassis accepts a CPU cooler up to 110 mm tall, a low-profile graphics card no longer than 150 mm, and a PS2-form-factor power supply up to 180 mm deep.

How are the six 3.5-inch drive bays mounted and what is the common installation mistake?

The bays are fixed internal trays; the step people miss is securing each drive with screws on both sides before sliding the tray back into the chassis.
