Zyvpee EE80201S1-0000-G99 8020 12V 1.56W 80mm case fan
80 mm ball-bearing case fan delivering 12 V, 1.56 W cooling for Dell 99GRF servers
- TypeCase Fan
- CompatibilityCase
- Bearing TypeBall
- Power ConnectorSee pics
- ColorBlack
- LEDNon-LED
- Ball-bearing reliability for long service life
- 12 V, 1.56 W power draw keeps energy use low
- 80 x 20 mm form factor fits standard 80 mm mounts
- Three-wire, five-pin connector supports speed monitoring
- Direct replacement for Dell 99GRF server fan
80 mm server replacement fan

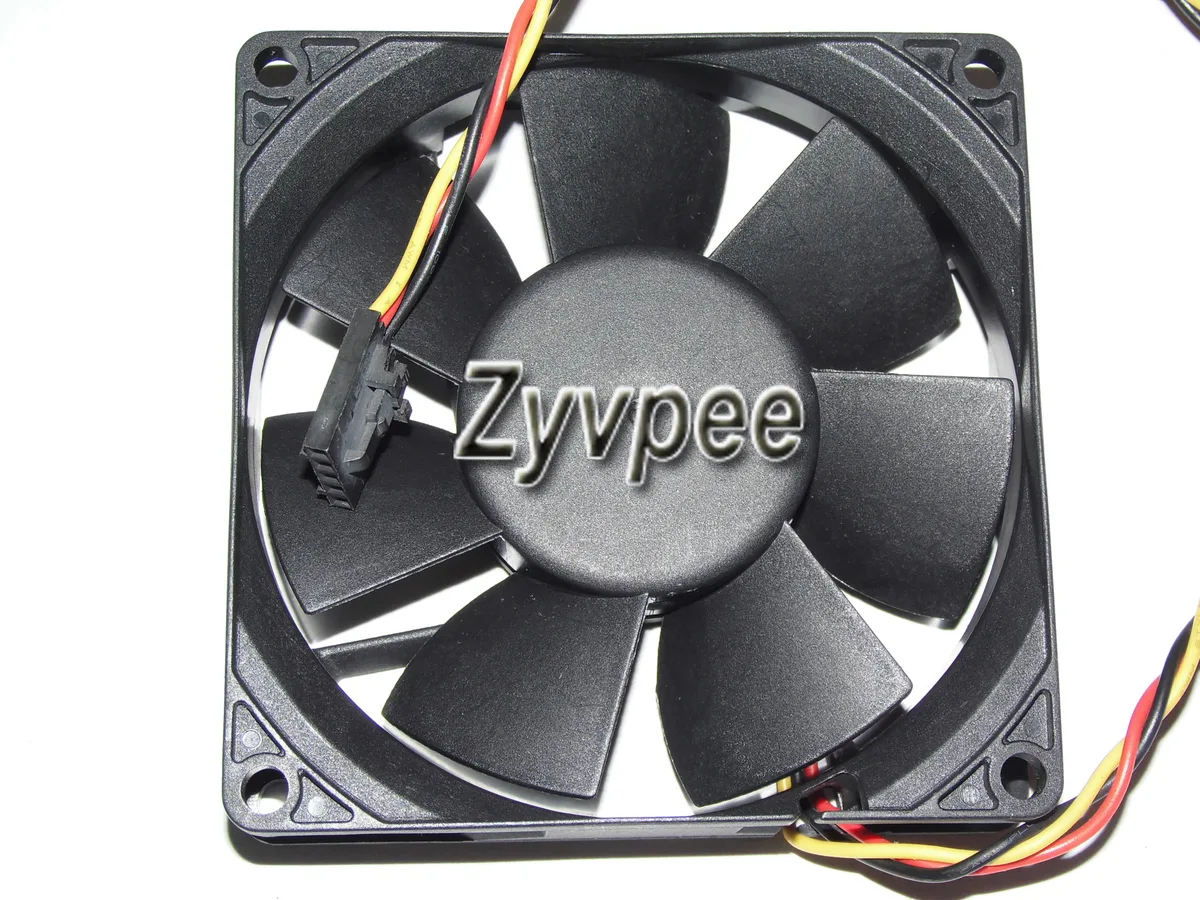

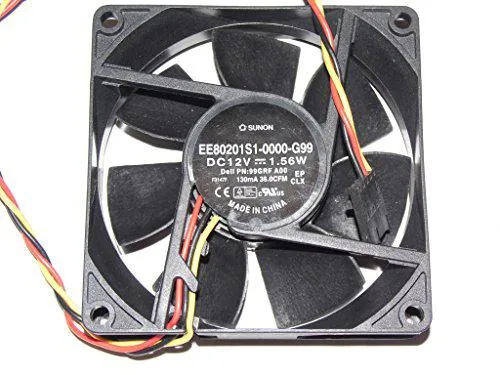

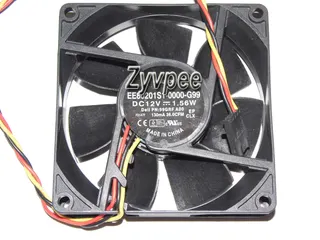

The Zyvpee EE80201S1-0000-G99 is an 80 mm square DC case fan rated at 12 V and 1.56 W. It uses a ball bearing and a three-wire lead ending in a five-pin housing. The unit matches the Dell part number 99GRF and is intended as a direct drop-in cooler for compatible server chassis.
Three-wire five-pin connector detail
The fan ships with a three-wire cable that terminates in a five-pin connector as shown in the product photos. This wiring arrangement carries power, ground and a tachometer signal on specific pins that must match the motherboard or fan header layout. No additional cables, adapters or mounting screws are included in the package.
Verify header pin-out and clearance
Before ordering, confirm that your system’s fan header uses the same five-pin pin-out and that the 80 mm by 20 mm frame fits the mounting holes. The photographs are the definitive reference for connector orientation and physical dimensions; if they do not match your requirements, the fan will not install correctly.
Besonderheiten
- Ball-bearing reliability for long service life
- 12 V, 1.56 W power draw keeps energy use low
- 80 x 20 mm form factor fits standard 80 mm mounts
- Three-wire, five-pin connector supports speed monitoring
- Direct replacement for Dell 99GRF server fan
Technische Daten
| Series | EE80201S1-0000-G99 |
|---|---|
| Model | EE80201S1-0000-G99 |
| Type | Case Fan |
| Compatibility | Case |
| Bearing Type | Ball |
| Power Connector | See pics |
| Color | Black |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 80*80*20mm |
Fragen zu diesem Artikel
Does the ball bearing in the EE80201S1-0000-G99 need lubrication or replacement after long use?
The ball bearing is sealed and rated for continuous operation; no user lubrication is required and the fan is replaced as a unit if it ever fails.
What limit appears first when the 12 V 1.56 W fan runs at full speed for hours?
The 1.56 W power draw sets the thermal ceiling; the motor reaches its steady-state temperature before any voltage or current limit is hit.
How loud does the 80 mm Sunon cooler get when it runs all day in a server chassis?
With a ball bearing and 12 V DC drive the acoustic signature stays a steady low hum; no rattle or bearing whine develops over time.
