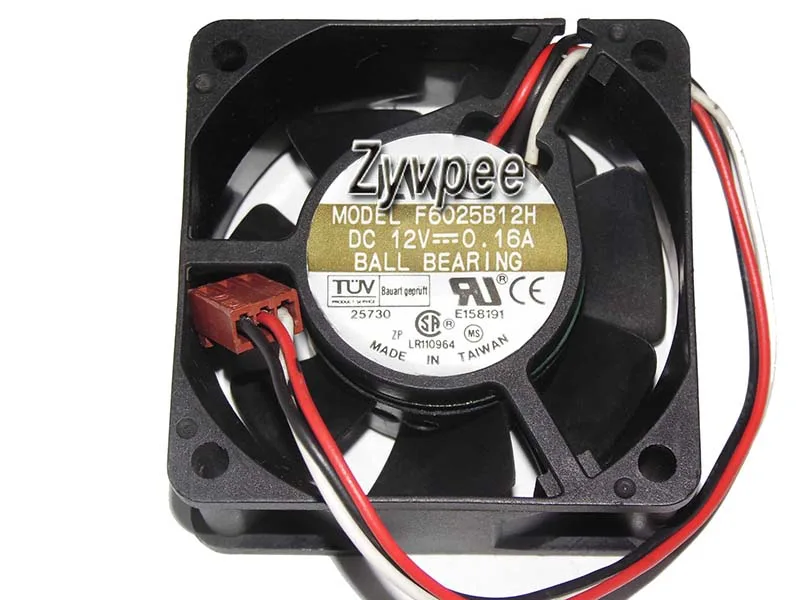

Zyvpee F6025B12H 60×25mm 12V 0.16A 3-pin case fan
Cools components with a 60×25mm ball-bearing fan running at up to 1600 RPM on a 12V 3-pin connector
- TypeCase Fan
- Bearing TypeBall
- RPM<1600 RPM
- Power Connector3 Pin
- ColorBlack
- LEDNon-LED
- 12 V power keeps wiring simple
- ball bearing runs below 1600 RPM for long life
- 60 mm × 25 mm frame fits tight 6025 mounts
- 3-pin connector gives direct voltage control
- 16 A draw leaves headroom on 12 V rail
Compact 60 mm case fan
The Zyvpee F6025B12H is a 60 by 25 mm case fan designed for tight chassis spaces or targeted component cooling. It runs on 12 V power and draws 0.16 A, making it suitable for low-noise system builds or replacement cooling in small-form-factor PCs.
Ball-bearing build with 3-pin connector
A ball bearing supports the rotor for consistent rotation below 1600 RPM without LED lighting. The three-pin connector supplies power and a tachometer signal so the motherboard can monitor fan speed, while the black frame blends into most interior colour schemes.
Check clearance and header type before ordering
Verify that your case or heatsink has mounting holes spaced for a 60 mm square frame and 25 mm thickness. Ensure the motherboard or fan controller provides a three-pin header; a four-pin PWM header will run the fan at full speed without speed control.
Besonderheiten
- 12 V power keeps wiring simple
- ball bearing runs below 1600 RPM for long life
- 60 mm × 25 mm frame fits tight 6025 mounts
- 3-pin connector gives direct voltage control
- 16 A draw leaves headroom on 12 V rail
Technische Daten
| Brand | 3ccooler.com |
|---|---|
| Series | F6025B12H |
| Model | F6025B12H |
| Type | Case Fan |
| Bearing Type | Ball |
| RPM | <1600 RPM |
| Power Connector | 3 Pin |
| Color | Black |
| LED | Non-LED |
| Features | CPU Cooling |
| Dimensions | 60*25mm |
Fragen zu diesem Artikel
What does the 3-pin connector limit for speed control on the F6025B12H?
The 3-pin connector supports voltage-based fan speed control only; it does not carry a PWM signal for precise duty-cycle adjustment.
What clearance does the 60×25 mm frame need for mounting?
The fan requires a 60 mm square cut-out with 25 mm depth; verify screw-hole spacing matches standard 60 mm mounting points before installation.
How is the F6025B12H wired, and which lead is often mistaken?
Connect the red wire to 12 V, black to ground, and yellow to the tachometer header; the yellow wire is frequently left unplugged, losing RPM monitoring.
