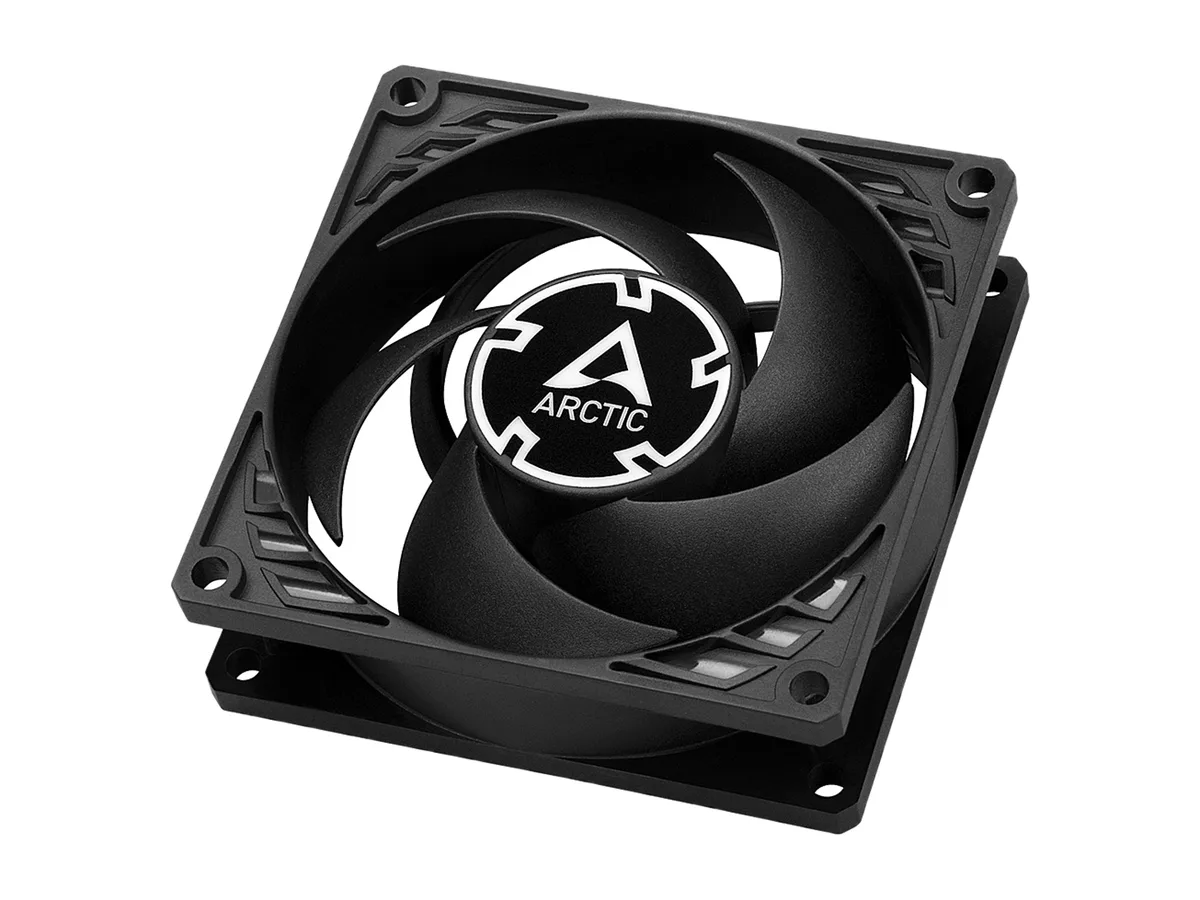

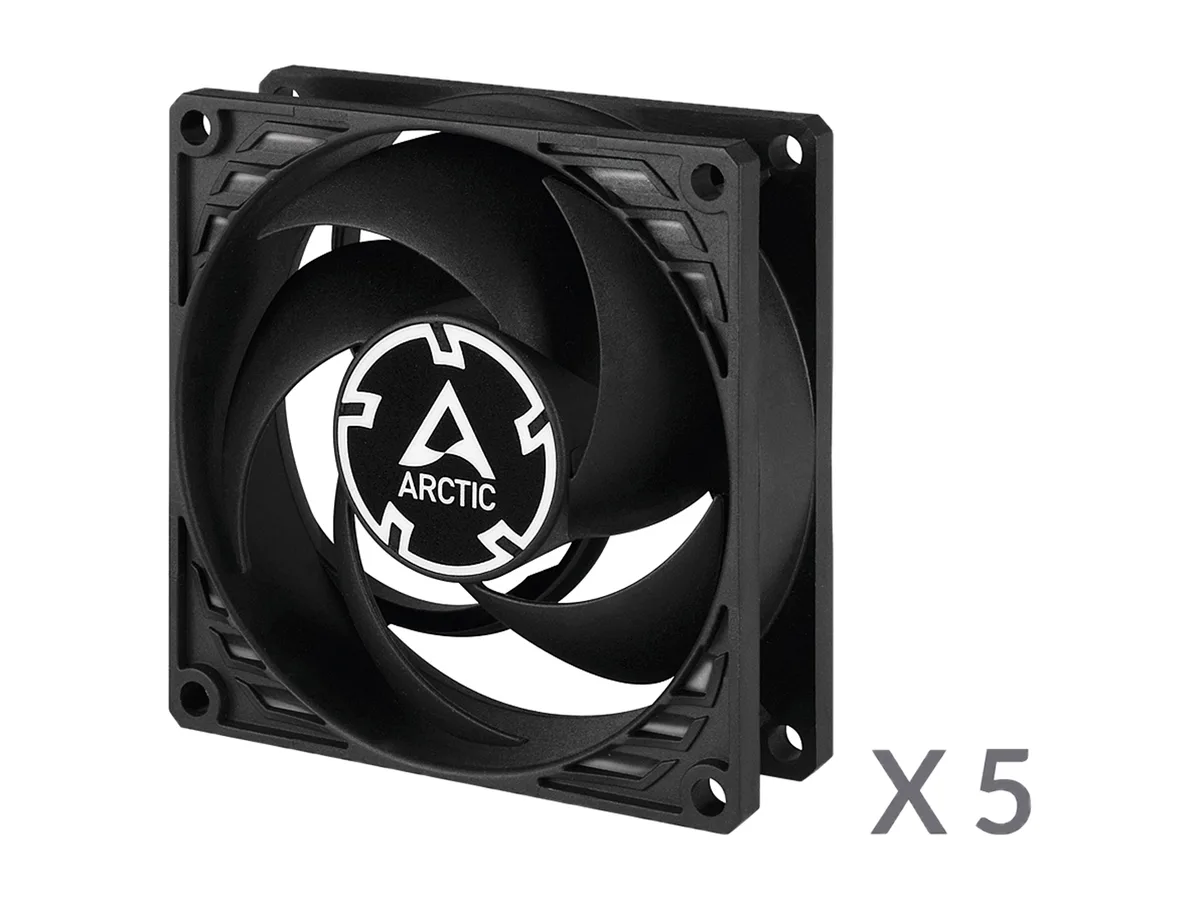

Five black 80mm case fans with 4-pin connectors and no LEDs

ARCTIC COOLING

ARCTIC COOLING ACFAN00154A P8 PWM PST 80mm case fan 5-pack

SKU CH-AJFW-3SWSG MPN ACFAN00154A

Five 80 mm pressure-optimised case fans with fluid dynamic bearings, 200-3.000 RPM PWM control and 23.4 CFM airflow

  • Fan Counts5 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size80mm
  • Fan Thickness25mm

Model P8 PWM PST Value 5-pack

Las versiones tachadas existen, pero no están disponibles aquí.

  • Pressure-optimised design delivers 23.4 CFM through heatsinks and radiators
  • Fluid Dynamic Bearing cuts friction for longer service life
  • PWM control spans 200 to 3.000 RPM for precise speed management
  • Ultra-quiet motor keeps noise at 0.3 Sone at full speed
  • Five fans with PST share one PWM signal for simplified cabling

Five 80 mm pressure-optimised fans

This value pack contains five ARCTIC P8 PWM PST case fans, each measuring 80 mm by 80 mm by 25 mm. They use a Fluid Dynamic Bearing and a newly developed motor that runs from 200 to 3.000 RPM under PWM control. The design targets high static pressure for heatsinks, radiators and partly covered vents while keeping noise to 0.3 Sone at full speed.

Suits pressure-restricted cooling.

Builders fitting 80 mm mounts on CPU coolers, liquid-cooling radiators or restrictive case grilles will benefit from the focused airstream and 23.4 CFM at maximum RPM. The pack includes twenty screws and a manual card for straightforward installation. Systems that rely on larger fan sizes or need high free-air volume rather than static pressure should consider different configurations.

80 mm form factor with 4-pin PWM and PST daisy-chain

Each fan carries a 4-pin connector plus a 4-pin socket, allowing multiple units to share a single motherboard header through PWM Sharing Technology. Speed is regulated across the 200 to 3.000 RPM range, so the motherboard can balance cooling performance against acoustic output without extra controllers.

Puntos fuertes

  • Pressure-optimised design delivers 23.4 CFM through heatsinks and radiators
  • Fluid Dynamic Bearing cuts friction for longer service life
  • PWM control spans 200 to 3.000 RPM for precise speed management
  • Ultra-quiet motor keeps noise at 0.3 Sone at full speed
  • Five fans with PST share one PWM signal for simplified cabling

Especificaciones

BrandARCTIC COOLING
SeriesP8 PWM PST Value Pack
ModelACFAN00154A
Fan Counts5 Fans
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size80mm
Fan Thickness25mm
Bearing TypeFluid Dynamic Bearing
RPM200 - 3.000 RPM (Controlled by PWM)
Air Flow23.4 CFM (@ 3.000 RPM)
Noise Level0.3 Sone (@ 3.000 RPM)
Power Connector4-pin Connector + 4-pin Socket
ColorBlack
LEDNon-LED
FeaturesOptimised for static pressure
Ideal choice on heatsinks, radiators and (partly-) covered case vents
Newly developed, very quiet motor
Wide RPM range
Extended life span
High Quality Bearing
PWM Sharing Technology (PST) regulates fan speed synchronously
Push- or pull-configuration
Dimensions80.00 x 80.00 x 25.00 mm

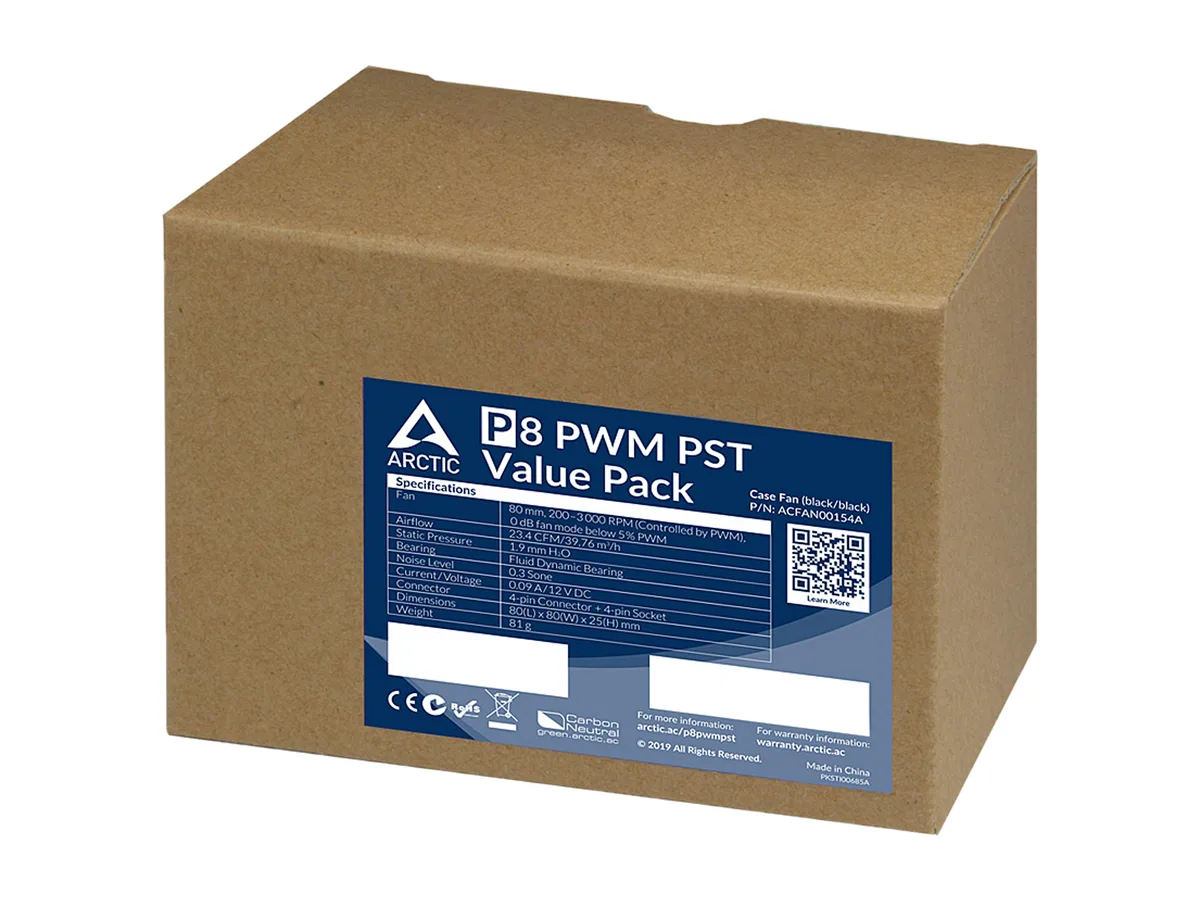

Package Contents5 x P8 PWM PST Fan
20 x Screws
1 x Manual Card
Peso de envío0.47 kg
Dimensiones del paquete132 × 91 × 91 mm

Otras versiones de este modelo

4 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

How can I verify the fans are running correctly after installation?

Connect the 4-pin PWM headers and confirm the motherboard reports speeds between 200 and 3.000 RPM under load.

What ships in the box and what must I provide?

The pack includes five 80 mm fans, twenty mounting screws and a manual card; you supply only a 4-pin PWM header per fan or daisy-chain via the PST socket.

Which version should I choose for a radiator or heatsink?

This single 80 mm, 25 mm thick, pressure-optimised model with fluid dynamic bearing is the only variant offered in the five-fan value pack.
