Rectangular silver 3U server PSU with dual fans visible on front and rear faces

Athena Power

Athena Power AP-U3ATX60FEP8 600W server power supply

SKU CH-FR23-XETA1 MPN AP-U3ATX60FEP8

A 600W single unit with 80PLUS Bronze efficiency, dual fans and full-range input for 3U server chassis

  • Single/RedundantSingle
  • Maximum Power600W
  • Main Connector20+4Pin

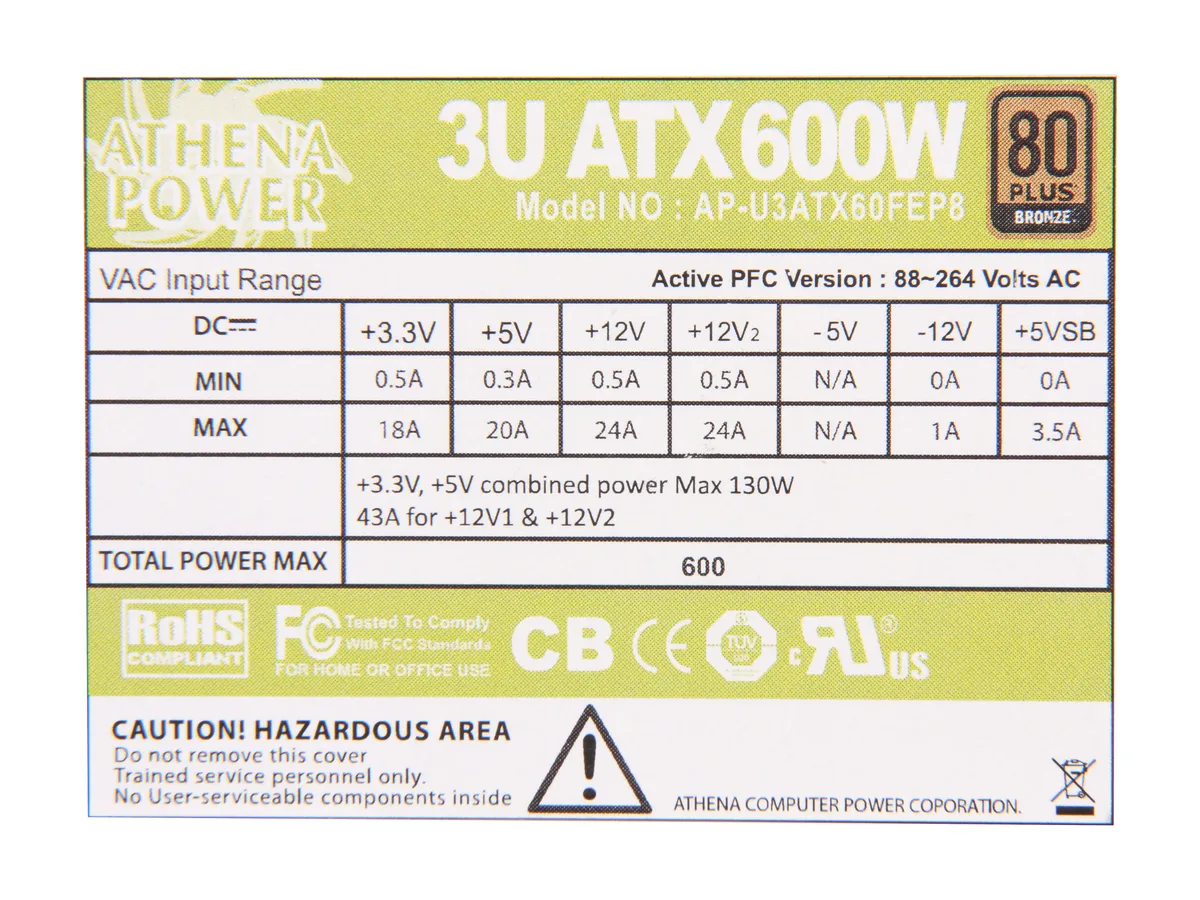

  • Output Current+3.3V@18A,+5V@20A,+12V1@24A, +12V2@24A, -12V@1A, [email prot
  • Input Voltage100 - 264 Volts Ac
  • Input Frequency Range47 - 63 Hz

Option 600W

  • 600W
  • 800W

Las versiones tachadas existen, pero no están disponibles aquí.

  • 80 PLUS Bronze certification lowers energy waste
  • 600W output with dual +12V rails each rated 24A
  • Active PFC across 100-264V input range
  • Dual 60mm fans with thermal speed control
  • 100000-hour MTBF at 25°C full load

600W single server power supply

The Athena Power AP-U3ATX60FEP8 is a new 600W single-unit server power supply built for 24x7 IPC and server environments. It carries 80 PLUS Bronze certification and active PFC across a 100 to 264 V AC input range. Dual 60 mm fans with thermal speed control balance airflow and noise in 3U form-factor cases.

Dual-fan thermal management and connector set

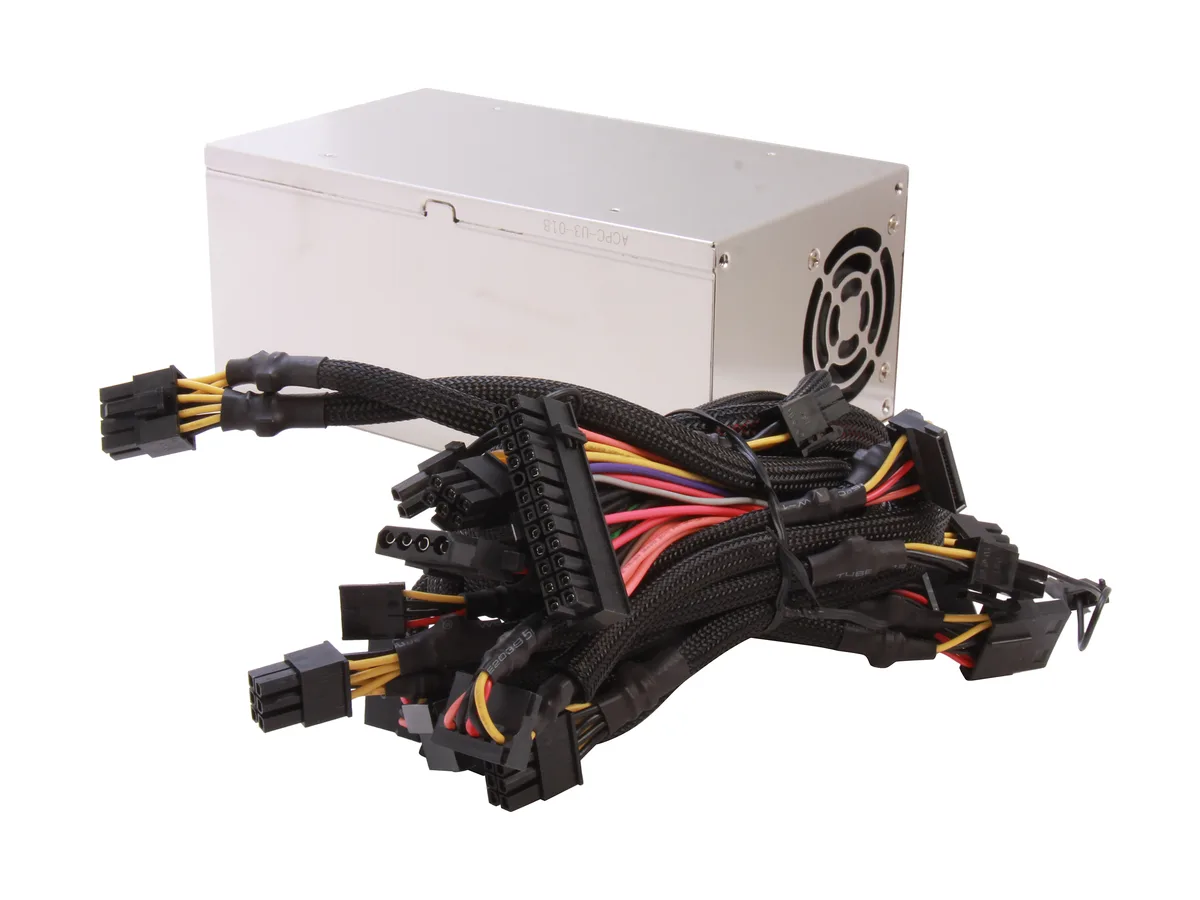

Two thermally controlled fans draw heat from the system interior and exhaust it through the front, handling 100% of internally generated heat. The bundle adds one ATX 20+4-pin, one P4 4-pin, two EPS 8-pin, two PCIe 6-pin, two PCIe 6+2-pin, six SATA, two Molex and one floppy connector plus a power cord for immediate deployment.

Output rails and environmental headroom

The +12V rails deliver 24 A each while +3.3V and +5V provide 18 A and 20 A respectively, supporting multi-drive arrays and dual-CPU boards. Hold-up time is 17 ms minimum at nominal input. MTBF is rated at 100,000 hours at full load and 25 °C. Operating temperature reaches 50 °C; buyers needing higher wattage or redundant architecture must look elsewhere.

Puntos fuertes

  • 80 PLUS Bronze certification lowers energy waste
  • 600W output with dual +12V rails each rated 24A
  • Active PFC across 100-264V input range
  • Dual 60mm fans with thermal speed control
  • 100000-hour MTBF at 25°C full load

Especificaciones

BrandAthena Power
ModelAP-U3ATX60FEP8
Single/RedundantSingle
Maximum Power600W
Main Connector20+4Pin
Output Current+3.3V@18A,+5V@20A,+12V1@24A, +12V2@24A, -12V@1A, [email protected]
Input Voltage100 - 264 Volts Ac
Input Frequency Range47 - 63 Hz
Fans2
MTBF100,000 Hours on Maximum Load at +25 degree C
Hold-up Time17 ms Minimum at Nominal Input Voltage
ProtectionOver voltage, short circuit and overload protection.

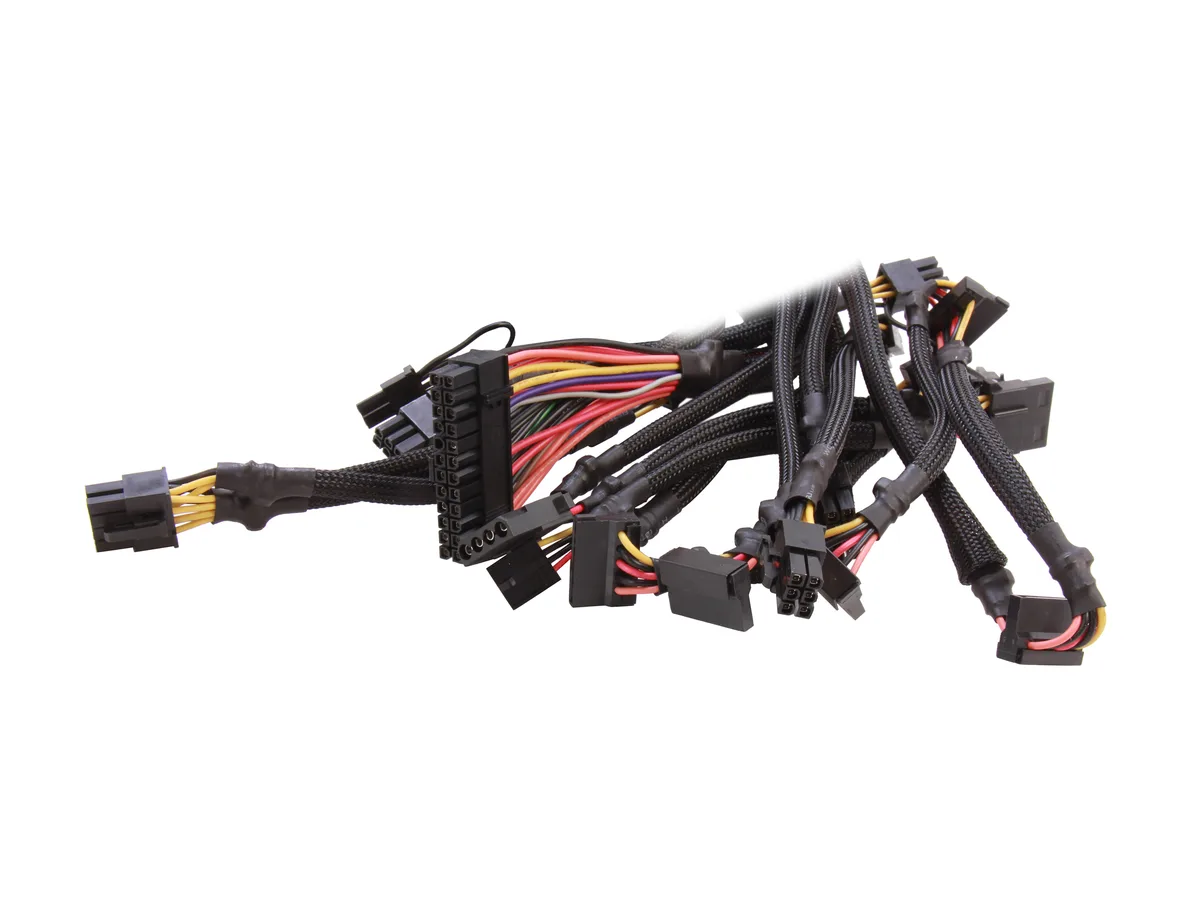

FeaturesConnectors:
ATX 24(20+4) Pin x 1
P4-12V 4 Pin x 1
EPS-12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 2
Floppy 4 Pin x 1
80PLUS Bronze Certification
Active PFC (Power Factor Correction) meets EN61000-3-2
Full Range Input: 100~264 Volts AC
Smart Auto Fan Speed Controller
100% Hi-pot, ATE and Burn-in Tested
Output Over Voltage, Short Circuit and Overload Protection.
Low Noise and Ripple
RoHS Compliance
Dimensions4.55" x 3.4" x 7.87"
Weight5lbs
Humidity5~90% on Operating. 5~95% on Storage
Temperature0 degree C ~ +50 degree C on Full Load

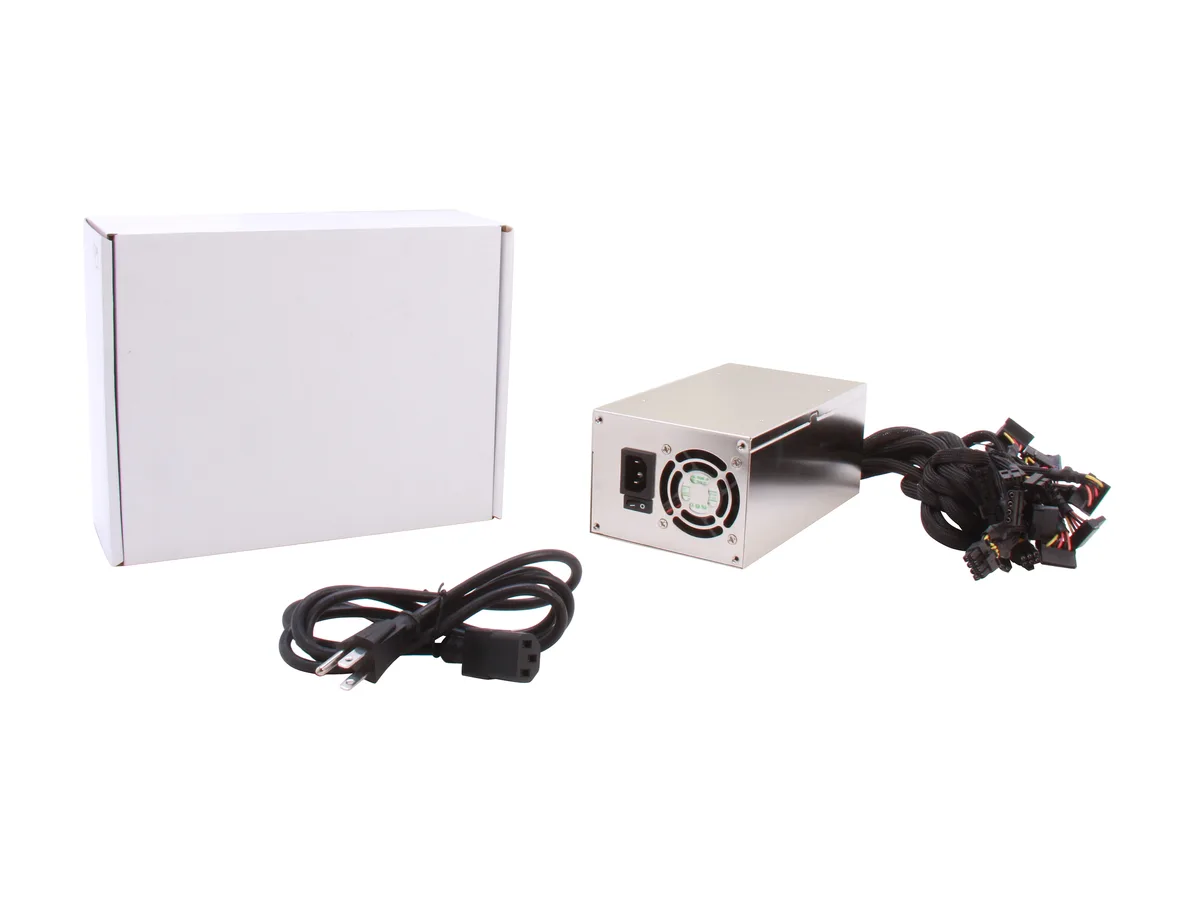

Package Contents1 x AP-U3ATX60FEP8
1 x Power Cord
Peso de envío2.09 kg
Dimensiones del paquete284 × 188 × 99 mm

Preguntas sobre este artículo

How long is the fan assembly rated to run before it may need replacement?

The unit carries an MTBF of 100,000 hours at full load and 25 °C, giving a baseline for when the dual 60 mm fans might require service.

Which protection circuit is likely to activate first during a prolonged heavy load?

Overload protection will trip before the 600 W ceiling is exceeded, while over-voltage and short-circuit safeguards cover fault conditions.

How loud and hot does the supply get when it runs continuously in a 3U chassis?

Thermally controlled dual fans balance airflow and noise, and the operating range extends to 50 °C at full load.
