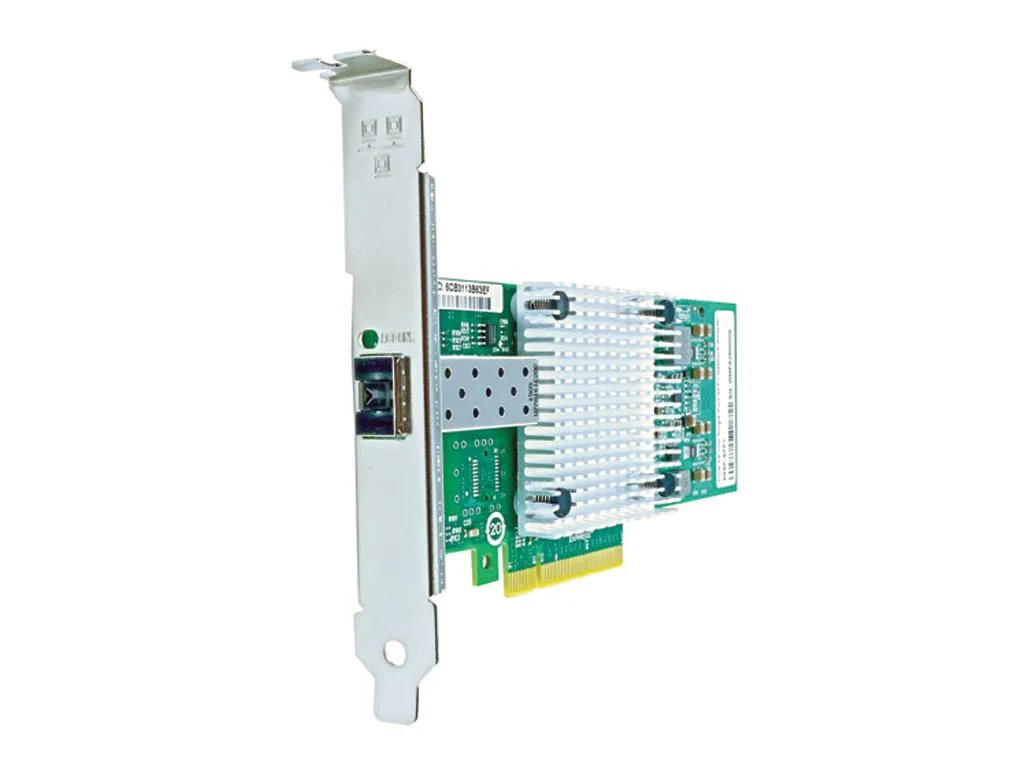

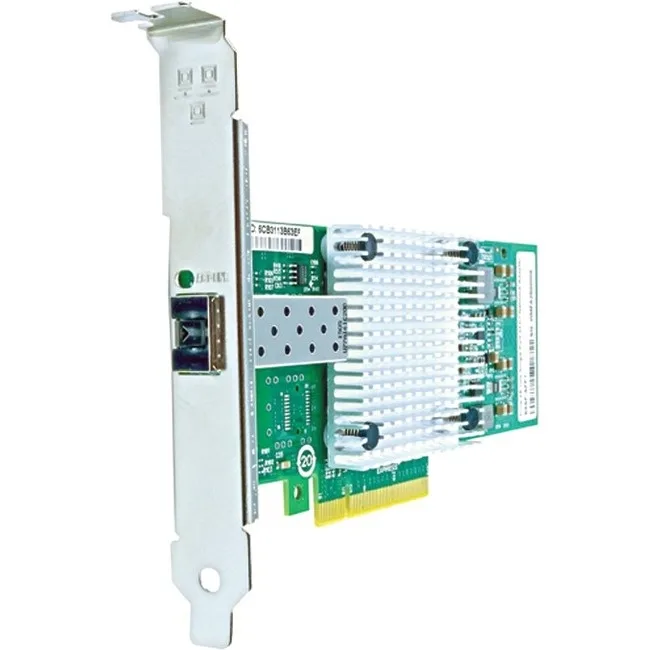

Single-port SFP+ PCIe x8 network card with transceiver, low-profile bracket, gold edge connector

Axiom

Axiom E10G41BFLR-AX 10GBase-LR SFP+ PCIe 2.0 x8 network card

SKU CH-A6YD-5BASJ MPN E10G41BFLR-AX

Single-port 10GBase-LR SFP+ PCIe 2.0 x8 network card with transceiver for server connectivity

  • Weight0.23
  • Single-port 10GBase-LR connectivity over optical fiber
  • PCI Express 2.0 x8 host interface for server installation
  • Supports iSCSI and PXE network boot capabilities
  • Includes SNMP and RMON statistic counters for monitoring
  • Compact plug-in card measuring 6.5 by 0.6 by 2.7 inches

Single-Port 10GBase-LR SFP+ Card

The Axiom E10G41BFLR-AX is a PCI Express 2.0 x8 network interface card with one SFP+ cage that accepts an optical transceiver. It provides a 10 Gb/s link over single-mode fibre for server deployments. The plug-in card measures 6.5 by 2.7 inches and weighs 4.32 oz.

For Long-Reach Fibre Links

This card suits administrators who need a single 10 Gb/s fibre connection in a server chassis with an available x8 slot. It is not for deployments that require multiple ports or copper media. It is not for systems that lack a PCI Express 2.0 x8 expansion slot.

Optical 10GBase-LR Media Support

The decisive specification is the 10GBase-LR optical interface, which determines the fibre type, wavelength and reach the link can achieve. The included transceiver matches that standard so the card is ready for single-mode fibre runs.

Puntos fuertes

  • Single-port 10GBase-LR connectivity over optical fiber
  • PCI Express 2.0 x8 host interface for server installation
  • Supports iSCSI and PXE network boot capabilities
  • Includes SNMP and RMON statistic counters for monitoring
  • Compact plug-in card measuring 6.5 by 0.6 by 2.7 inches

Especificaciones

BrandAXIOM MEMORY
Weight0.23
Peso de envío0.10 kg
Dimensiones del paquete165 × 69 × 14 mm

Preguntas sobre este artículo

What host interface must my server provide for this PCIe 2.0 x8 card to operate?

The card requires a PCI Express 2.0 x8 slot on the motherboard or riser to function.

Will the single SFP+ port link with my existing 10GBase-LR optics and cabling?

Yes, the SFP+ port is designed for 10GBase-LR optical transceivers and compatible single-mode fiber.

How can I confirm the card is operating correctly after installation?

Check for link and activity LEDs on the bracket and verify the adapter appears in the OS network list at 10 Gbps.
