ICY DOCK

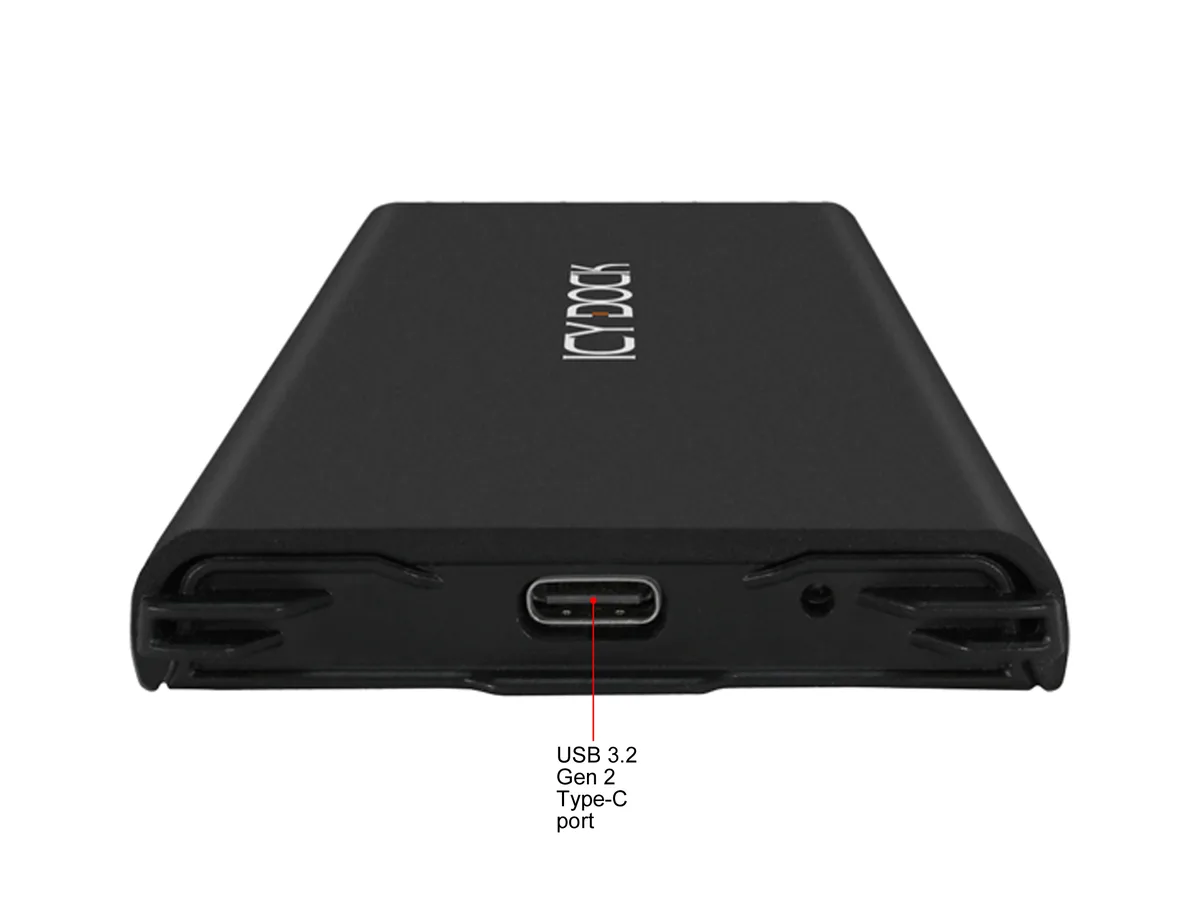

ICY DOCK MB861U31-1M2B M.2 NVMe drive enclosure USB 3.2 Gen 2 10Gbps
Portable aluminium enclosure holds one M.2 PCIe NVMe SSD up to 110 mm and connects via USB 3.2 Gen 2 at 10 Gb/s
- ColorBlack
- SizeM.2
- TypeEnclosure
- AC AdapterNo
- MaterialAluminum & Plastic
- Thunderbolt 3Yes
- Tool-less drive swaps with patent-pending adjustable M.2 locker
- Fits every M.2 NVMe length from 2230 to 22110
- Aluminium heatsink lid and thermal pad keep drive cool
- USB 3.2 Gen 2 delivers up to 10 Gb/s transfer speed
- Both USB Type-C and Type-A cables included for any port
Compact NVMe enclosure
The ICY DOCK MB861U31-1M2B is a portable enclosure that turns a single M.2 PCIe NVMe SSD into an external USB 3.2 Gen 2 drive. It accepts every common M.2 length from 30 mm to 110 mm and draws power directly from the host port.
Suited for single-drive mobility
This unit suits users who want tool-less installation and passive aluminium cooling for one NVMe stick. It is not for anyone needing to install more than one drive, builders who require active fan cooling, or workflows that depend on Thunderbolt 3 host connectivity.
USB 3.2 Gen 2 10 Gbps interface
The external USB 3.2 Gen 2 connection delivers up to 10 Gbps transfer rates, limited only by the installed SSD. Both USB Type-C to Type-C and Type-C to Type-A cables are included for broad system compatibility.
Puntos fuertes
- Tool-less drive swaps with patent-pending adjustable M.2 locker
- Fits every M.2 NVMe length from 2230 to 22110
- Aluminium heatsink lid and thermal pad keep drive cool
- USB 3.2 Gen 2 delivers up to 10 Gb/s transfer speed
- Both USB Type-C and Type-A cables included for any port
Especificaciones
| Brand | ICY DOCK |
|---|---|
| Series | ICYNano |
| Model | MB861U31-1M2B |
| Color | Black |
| Size | M.2 |
| Type | Enclosure |
| AC Adapter | No |
| Material | Aluminum & Plastic |
| Thunderbolt 3 | Yes |
| Internal Interface | 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) |
| External Interface | 1 x USB 3.2 Gen 2 |
| HDD Count Supported | Single SSD |
| Number of Bay | 1 |
| Fan | No |
| Power | Via USB |
| Specifications | Support Drive Size: 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) Host Interface: USB 3.2 Gen 2 Power Input: Via USB Transfer Rate: Up to 10Gb/s (Depending on hard drive speed) Structure / Material: Aluminum & Plastic Product Dimension (L x W x H): 150 x 63 x 12mm Product Net Weight: 99g Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue |
| Features | Fits 1x M.2 PCIe NVMe SSD of all length - 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110) Patent-Pending adjustable M.2 drive locker offers tool-less and screw-less drive installation process Dual-function aluminum heatsink lid provides maximum drive protection and heat dissipation High-efficiency thermal pad included for optimal cooling performance Supports USB 3.2 Gen 2 Interface - up to 10 Gb/s transfer speed True plug and play design and backward compatible with USB 2.0, 3.0, 3.2 Gen 1 interfaces USB Type C to C and C to A cables included for best performanc |
| Dimensions | 5.91" x 2.48" x 0.47" |
| Weight | 0.22 lbs. |
| Package Contents | Device, user manual, thermal pad, USB 3.2 Gen 2 Type A & C cable |
| Peso de envío | 0.20 kg |
| Dimensiones del paquete | 191 × 102 × 52 mm |
Preguntas sobre este artículo
What M.2 lengths does the enclosure accept?
The adjustable locker holds 2230, 2242, 2260, 2280 and 22110 drives.
How is the SSD secured without screws?
Slide the drive in, then move the patent-pending locker until it clicks — no tools required.
Does the thermal pad need replacement over time?
The included high-efficiency pad is designed for the life of the enclosure; replace only if it degrades.
