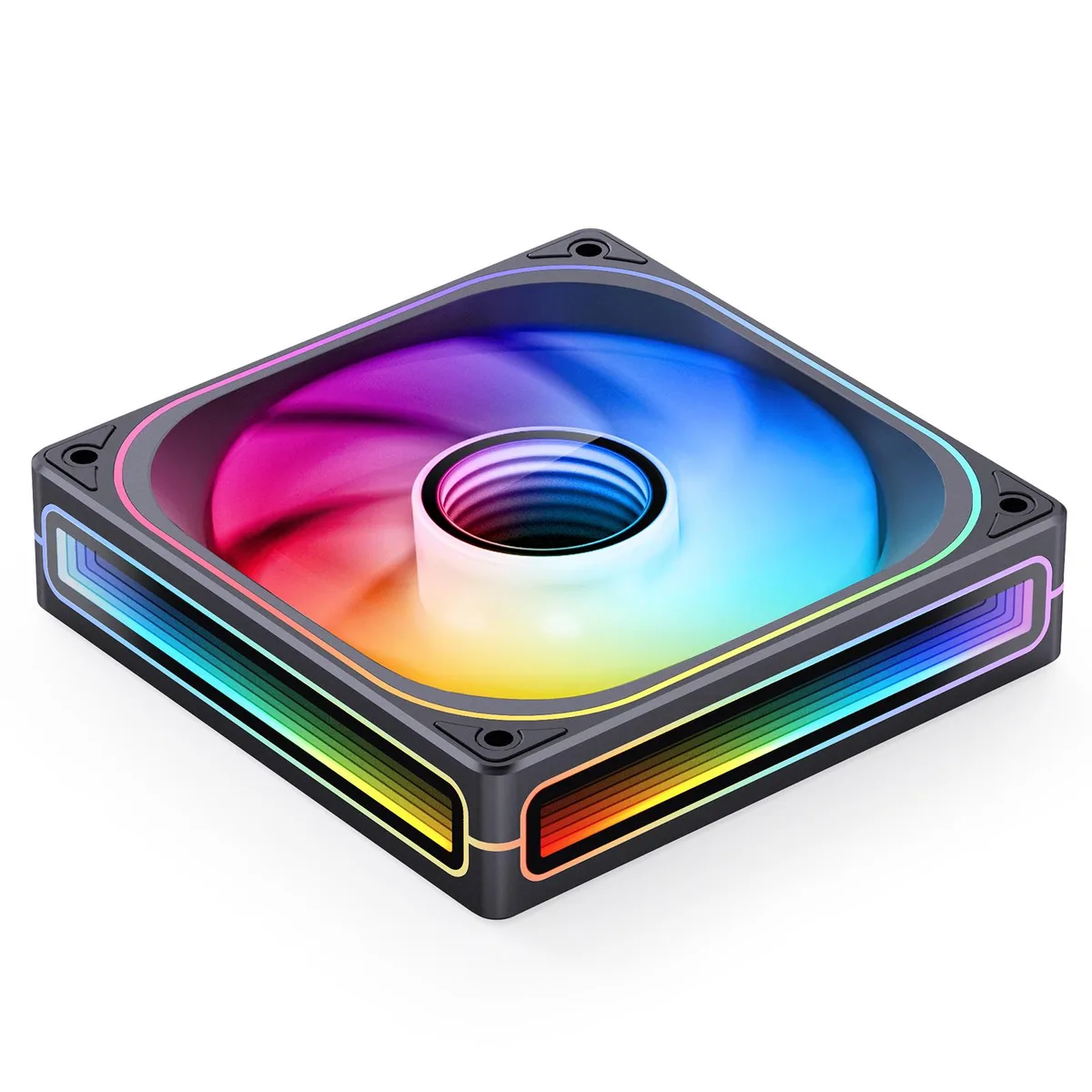

Black 120mm reversed-blade case fan with four-sided infinity mirror ARGB lighting and aluminium nameplate

JONSBO

JONSBO ZA-120BR Reversed 120mm 28mm ARGB Case Fan

SKU CH-FYNE-KFY1A MPN ZA-120BR

Reversed-blade 120 mm case fan with 28 mm thickness, 700-2400 RPM, 21.46-62.40 CFM airflow, .49-2.46 mmH₂O pressure, 21.3-37.3 dB(A) noise, 4-pin PWM and 3-pin ARGB connectors.

  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness28mm
  • RPM700-2400rpm(±10%)
  • Air Flow21.46-62.40 CFM

Model ZA-120BR

Ver 9 configuraciones más
  • Four-sided infinity mirror creates a layered light illusion
  • 700-2400 RPM PWM control delivers 21.46-62.40 CFM airflow
  • 3-37.3 dB(A) keeps noise low at high speed
  • 28 mm thick frame fits standard 120 mm mounts
  • Single 3-pin ARGB plus 4-pin PWM cable simplifies motherboard sync

Reversed 120 mm ARGB case fan

The JONSBO ZA-120BR is a 120 mm case fan with a 28 mm frame and reversed blade orientation. It uses a 4-pin PWM connector for speed control and a 3-pin ARGB header for addressable lighting sync. The fan features a four-sided infinity mirror design and an aluminium nameplate in black.

Builders who want reverse airflow

This unit suits builders who need a reversed-flow fan for specific intake or exhaust layouts and who want ARGB illumination with an infinity mirror effect. It is not for buyers who need a standard airflow direction.

28 mm frame thickness

The 28 mm thickness determines whether the fan fits in the available mounting space. Clearance around the motherboard, radiator or side panel must accommodate this dimension before purchase.

Puntos fuertes

  • Four-sided infinity mirror creates a layered light illusion
  • 700-2400 RPM PWM control delivers 21.46-62.40 CFM airflow
  • 3-37.3 dB(A) keeps noise low at high speed
  • 28 mm thick frame fits standard 120 mm mounts
  • Single 3-pin ARGB plus 4-pin PWM cable simplifies motherboard sync

Especificaciones

BrandJONSBO
SeriesZA SERIES
ModelZA-120BR
Part NumberZA-120BR
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness28mm
RPM700-2400rpm(±10%)
Air Flow21.46-62.40 CFM
Air Pressure0.49-2.46 mmH2O
Noise Level21.3-37.3 dB(A)
Power ConnectorPWM 4PIN ARGB 3PIN
ColorBlack
LEDARGB
FeaturesJONSBO ZA-120 28MM ARGB Infinity Mirror Series Case Fan-
4-Sides Thousand- layer Mirror Illusion
Easy Installation of the Joint Structure
One Line Connection to Motherboard
Aluminum CD Pattern Nameplate
Addressable RGB sync- Insert 3PIN ARGB pins directly into the motherboard, synchronizing Over 16 million color effects
Quiet/Low Noise PWN fan
Dimensions120mm(L)*120mm(W)*28mm(H)

Otras versiones de este modelo

5 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

How can I confirm the fan is running correctly after installation?

Check that the RPM stays between 700 and 2400rpm(±10%), airflow falls within 21.46-62.40 CFM, static pressure reads 0.49-2.46 mmH2O, and noise remains in the 21.3-37.3 dB(A) range.

What comes in the box and what must be purchased separately?

The fan includes a 4-pin PWM power connector, a 3-pin ARGB connector with integrated male and female headers, and an aluminum CD-pattern nameplate; no separate cables or controllers are required for motherboard connection.

Which version should I choose among the listed options?

This model is the ZA-120BR with reversed blades, 120mm size, 28mm thickness, black finish, and ARGB lighting; select it if your case needs a reversed-blade fan of those exact dimensions.
