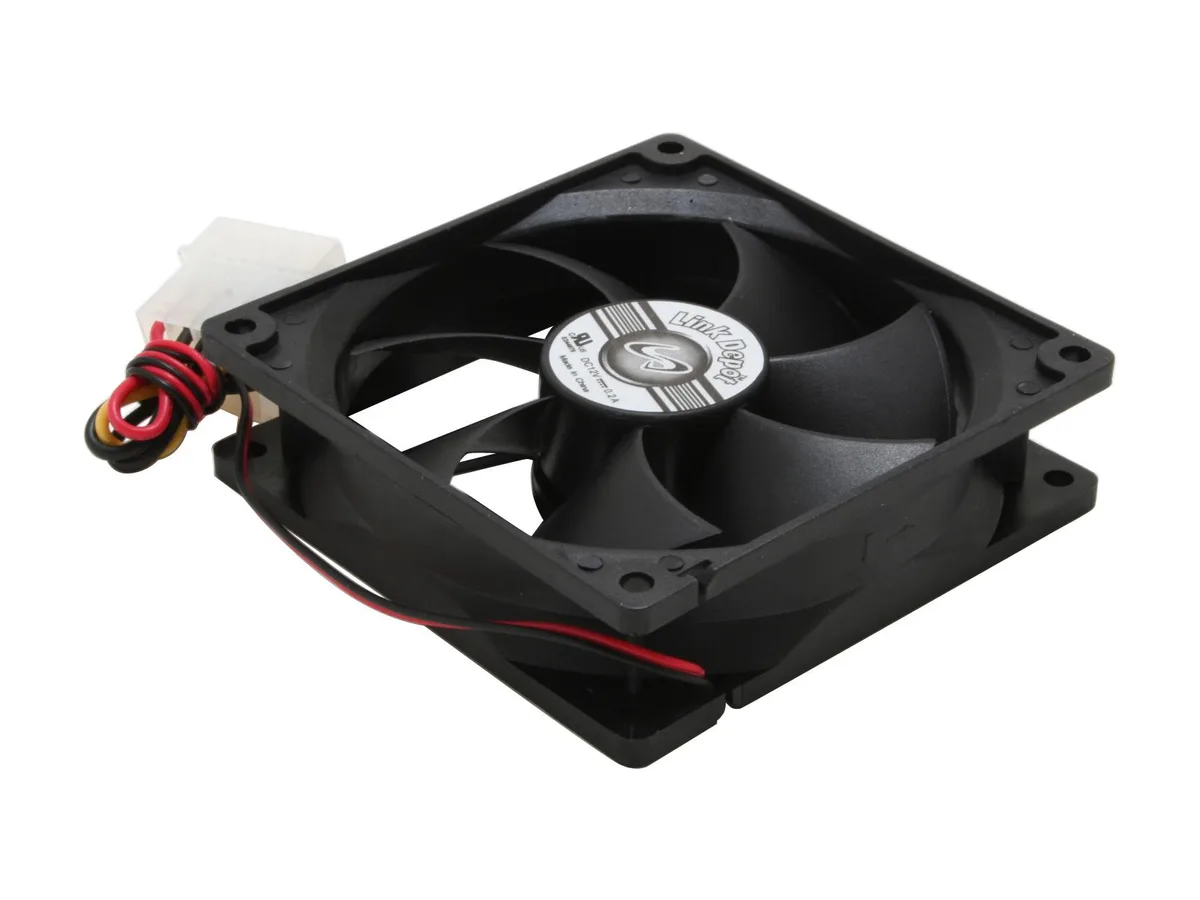

Black square 92mm case fan with black blades and 4-pin connector

Link Depot Corp.

Link Depot Corp. FAN-9025-S 92mm 2500RPM 43.5CFM case fan

SKU CH-G259-42JPM MPN FAN-9025-S

A 92mm case fan spinning at 2500RPM to move 43.5CFM of air at 28.8dBA through a 4-pin connector

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size92mm
  • Fan Thickness25mm
  • 92mm frame fits tight case spaces
  • 2500RPM delivers 43.5CFM airflow for component cooling
  • Sleeve bearing keeps operation quiet at 28.8dBA
  • 4-pin connector enables PWM speed control
  • Black 92x92x25mm design matches standard mounting points

92mm case fan for compact builds

The Link Depot Corp. FAN-9025-S is a single 92mm case fan designed for standard chassis mounting. It spins at 2500RPM and delivers 43.5CFM of airflow while producing 28.8dBA of noise. The black frame measures 92 x 92 x 25mm and uses a sleeve bearing. It connects via a 4‑pin power connector and includes no separate fan controller.

Simple 4‑pin mounting with sleeve‑bearing limits

Installation requires aligning the four screw holes with any 92mm fan mount and plugging the 4‑pin connector into a motherboard header or fan hub. The sleeve bearing runs quietly at first but can develop rattle or reduced speed over time, especially if the fan is mounted horizontally or exposed to dust. No controller is included, so speed adjustment depends entirely on the motherboard BIOS or software.

Check 92mm clearance and 4‑pin header availability

Verify that your case has a 92mm mounting grid with 25mm depth clearance and that a 4‑pin fan header is free on the motherboard or controller. Builds that need higher static pressure for dense heatsinks or radiators may find the airflow figure limiting. Systems requiring PWM control should confirm the header supports it, as the fan has no onboard controller.

Puntos fuertes

  • 92mm frame fits tight case spaces
  • 2500RPM delivers 43.5CFM airflow for component cooling
  • Sleeve bearing keeps operation quiet at 28.8dBA
  • 4-pin connector enables PWM speed control
  • Black 92x92x25mm design matches standard mounting points

Especificaciones

BrandLink Depot
ModelFAN-9025-S
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size92mm
Fan Thickness25mm
Bearing TypeSleeve
RPM2500RPM
Air Flow43.5CFM
Noise Level28.8dBA
Power Connector4 Pin
ColorBlack
Dimensions92 x 92 x 25mm
Peso de envío0.09 kg
Dimensiones del paquete102 × 102 × 38 mm

Preguntas sobre este artículo

How can I verify the fan is running at its rated 2500 RPM after installation?

Connect the 4-pin connector to a motherboard header or fan controller, then monitor the reported RPM in BIOS or hardware monitoring software; the reading should settle near 2500 RPM under load.

What is included with the FAN-9025-S and what must be purchased separately?

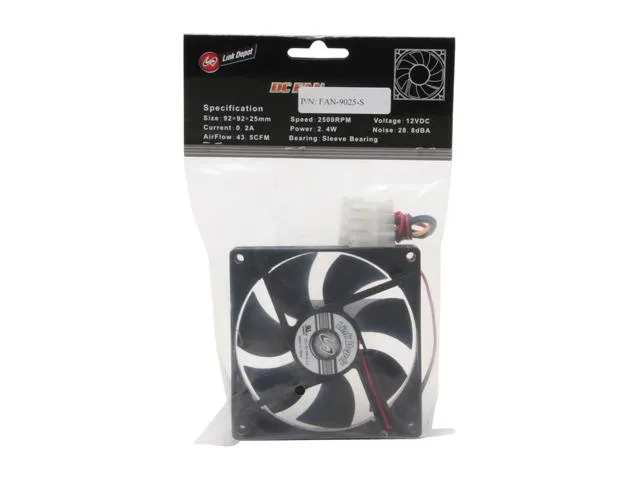

The box contains one 92 mm sleeve-bearing case fan with a 4-pin power connector; mounting screws and any fan controller are not included and must be bought separately.

Which version should I choose if I need a 92 mm fan for a standard case mounting pattern?

The FAN-9025-S is a single 92 x 92 x 25 mm model delivering 43.5 CFM at 28.8 dBA; no alternative capacities or versions are offered for this MPN.
