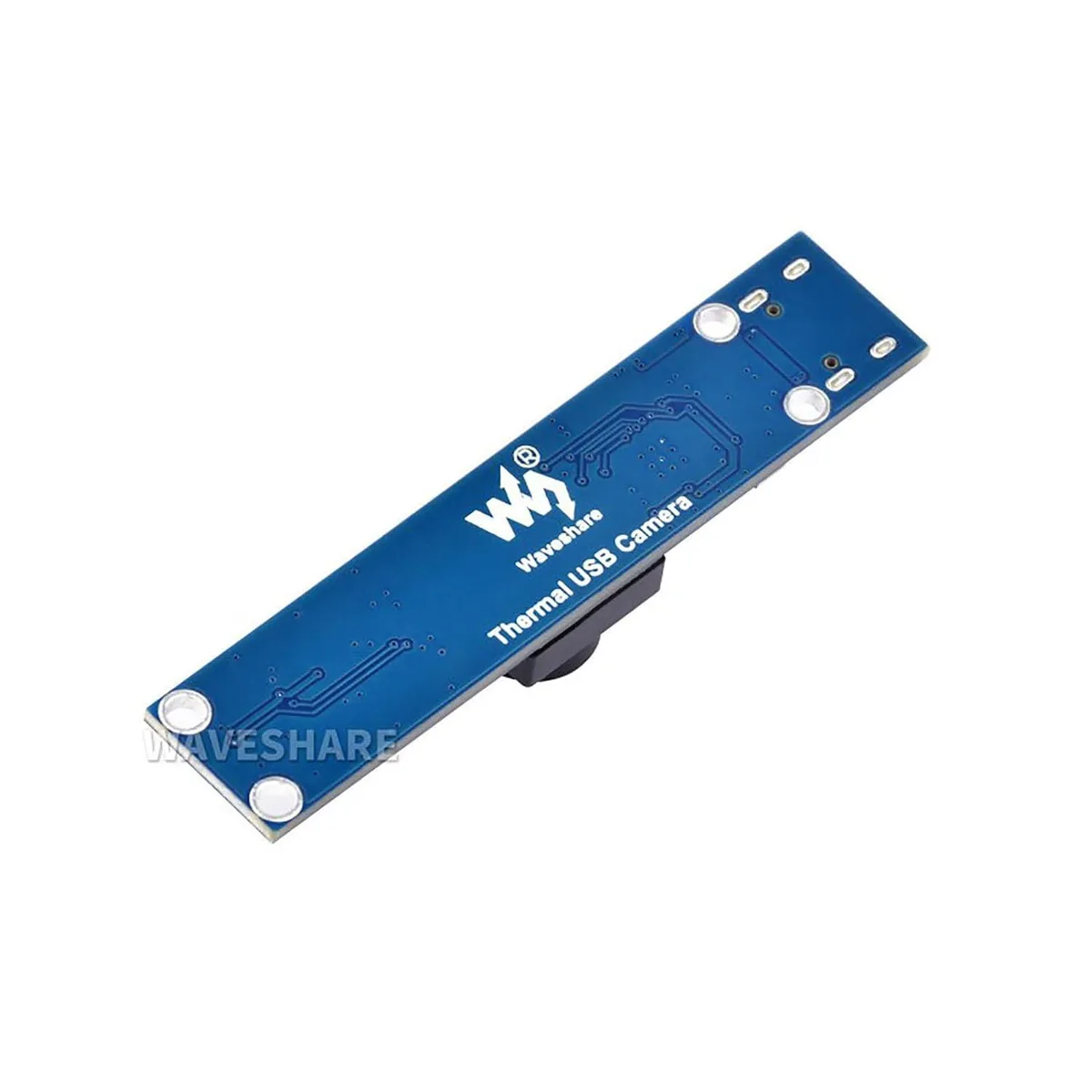

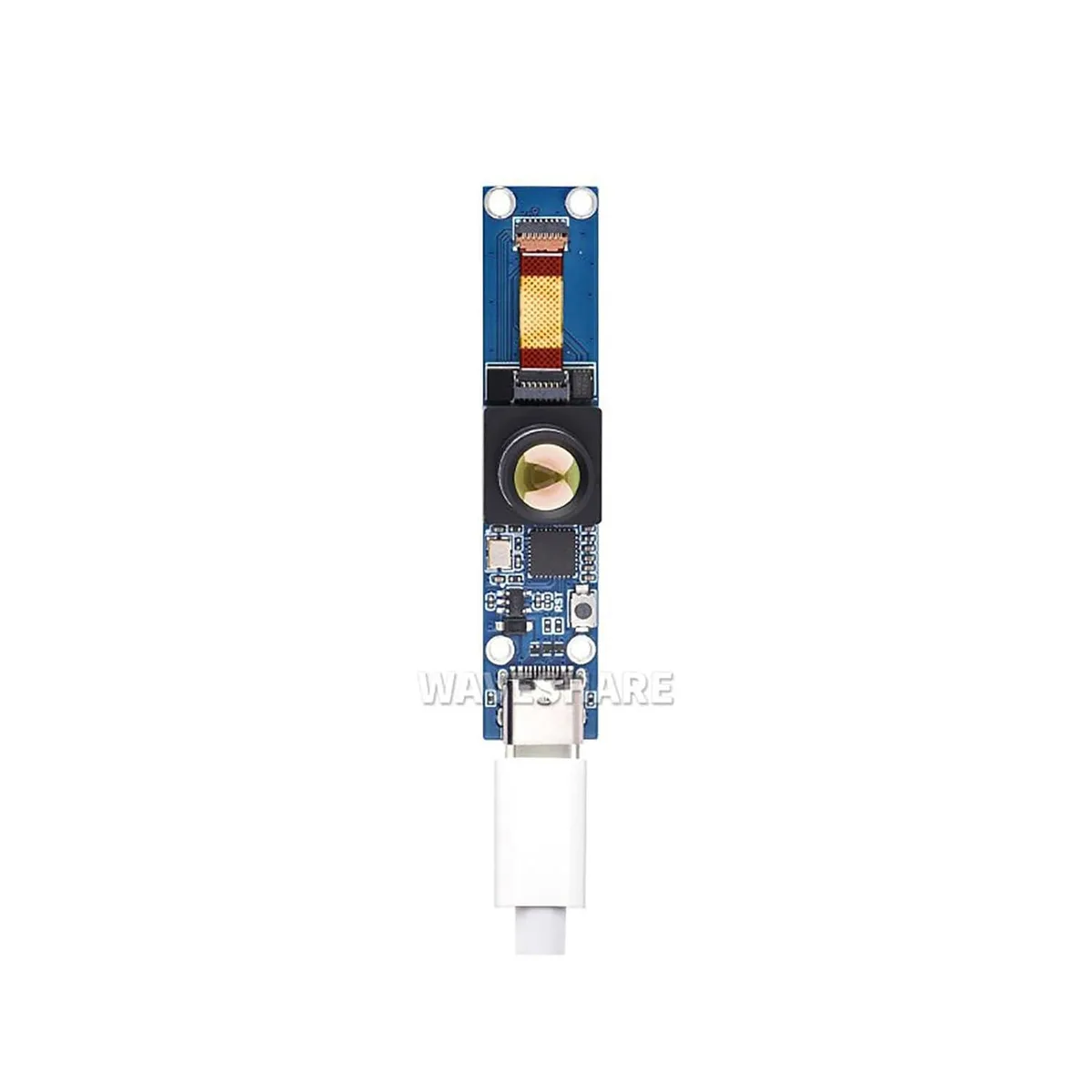

Small rectangular thermal camera module with Type-C connector, matte finish

LORDWORLD

LORDWORLD Long-Wave IR Thermal Camera Module 80×62 45°FOV Type-C

SKU CH-BG2E-ECQH6

Long-wave infrared thermal camera module for Raspberry Pi with 80×62 pixels, 45° field of view, shutterless design and up to 25 FPS video output via USB-C

  • Hybrid microbolometer-thermopile sensor delivers 80×62 thermal detail
  • Shutterless design enables continuous thermal video streaming on Raspberry Pi 4B
  • 150 mK NETD at 1 Hz provides sensitive temperature detection for Pi Zero
  • Up to 25 FPS thermal imaging output captures fast thermal changes
  • 45° field of view covers a wide scene in a single frame

Raspberry Pi thermal camera module

This LORDWORLD module adds long-wave infrared imaging to Raspberry Pi 4B and Zero boards through a Type-C connection. It targets makers, researchers and educators who need a compact sensor for temperature mapping or thermal video capture. The 80 by 62 pixel array provides a 45 degree field of view for close-range scenes. Online Python demos and host-computer manuals accelerate integration into custom projects.

Shutterless sustained streaming

A hybrid microbolometer and thermopile design eliminates a mechanical shutter, so the camera delivers continuous thermal video without the periodic pauses found in shuttered sensors. The module sustains up to 25 frames per second for live monitoring of thermal dynamics. Noise Equivalent Temperature Difference is rated at 150 millikelvin RMS at a 1 hertz refresh rate, indicating the sensitivity floor during extended operation. This combination suits long-duration data logging or real-time visualisation.

Type-C mounting and daily use

The Type-C port carries both power and data, reducing cable count and simplifying enclosure design for portable or embedded builds. Shutterless construction removes a moving part that could wear or snag in tight mounts, improving reliability in vibration-prone or outdoor settings. Software resources cover Raspberry Pi, Android and Windows hosts, letting developers switch platforms without rewriting driver code. The small pixel grid keeps processing demands modest for single-board computers.

Puntos fuertes

  • Hybrid microbolometer-thermopile sensor delivers 80×62 thermal detail
  • Shutterless design enables continuous thermal video streaming on Raspberry Pi 4B
  • 150 mK NETD at 1 Hz provides sensitive temperature detection for Pi Zero
  • Up to 25 FPS thermal imaging output captures fast thermal changes
  • 45° field of view covers a wide scene in a single frame

Especificaciones

BrandLORDWORLD

Preguntas sobre este artículo

How much power does the module draw when running thermal video all day?

The module uses a hybrid microbolometer and thermopile sensor with a shutterless design that enables continuous operation, and it streams up to 25 FPS thermal video over the Type-C connection.

Which Raspberry Pi board and cable do I need to start capturing images?

The camera is built for Raspberry Pi 4B and Raspberry Pi Zero and connects through a Type-C port, with Python demos and manuals provided for quick setup.

Will the 80×62 pixel sensor work alongside my older Pi 3 Model B?

The module targets Raspberry Pi 4B and Zero via Type-C and delivers 80×62 resolution at 45° FOV with a NETD of 150 mK, so compatibility with earlier Pi models is not covered by the supplied specifications.
