Rectangular benchtop power supply unit in dark grey metal casing with front panel controls and display

Matrix

Matrix WPS300S-80-6 80V 6A 150W server power supply

SKU CH-KYEJ-0B4FH

Programmable DC supply delivering 0-80V at up to 6A with 1mV resolution, LIST sequencing, RS-232/RS-485/USB interfaces and OVP/OCP protection

  • Single/RedundantMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6,
  • Maximum Power150 watts
  • Output Current6 amps
  • Output150 watts
  • Input Frequency Rangenot_applicable
  • +12V RailsMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6,
  • Programmable 0-80 V, 0-6 A, 150 W output for versatile lab use
  • 1 mV / 0.1 mA resolution enables precise voltage and current setting
  • LIST function runs up to 9999 automatic output cycles
  • RS232, RS485 and USB interfaces support SCPI and MODBUS remote control
  • Low ripple matching linear supplies plus OVP, OCP and over-temperature protection

Matrix WPS300S-80-6 programmable DC supply

The Matrix WPS300S-80-6 is a wide-range programmable DC power supply rated for 80V, 6A and 150W. It suits engineers, technicians and educators who need adjustable bench power for circuit development, electronic repair or classroom demonstration.

Switching topology with linear-grade ripple

The unit uses a switching design yet achieves ripple below 8mVrms and 5mArms, matching linear supply noise performance. It accepts AC 110V or 220V input with ±10% tolerance and provides 1mV and 0.1mA setting resolution across the full output range.

Bench installation with SCPI and MODBUS control

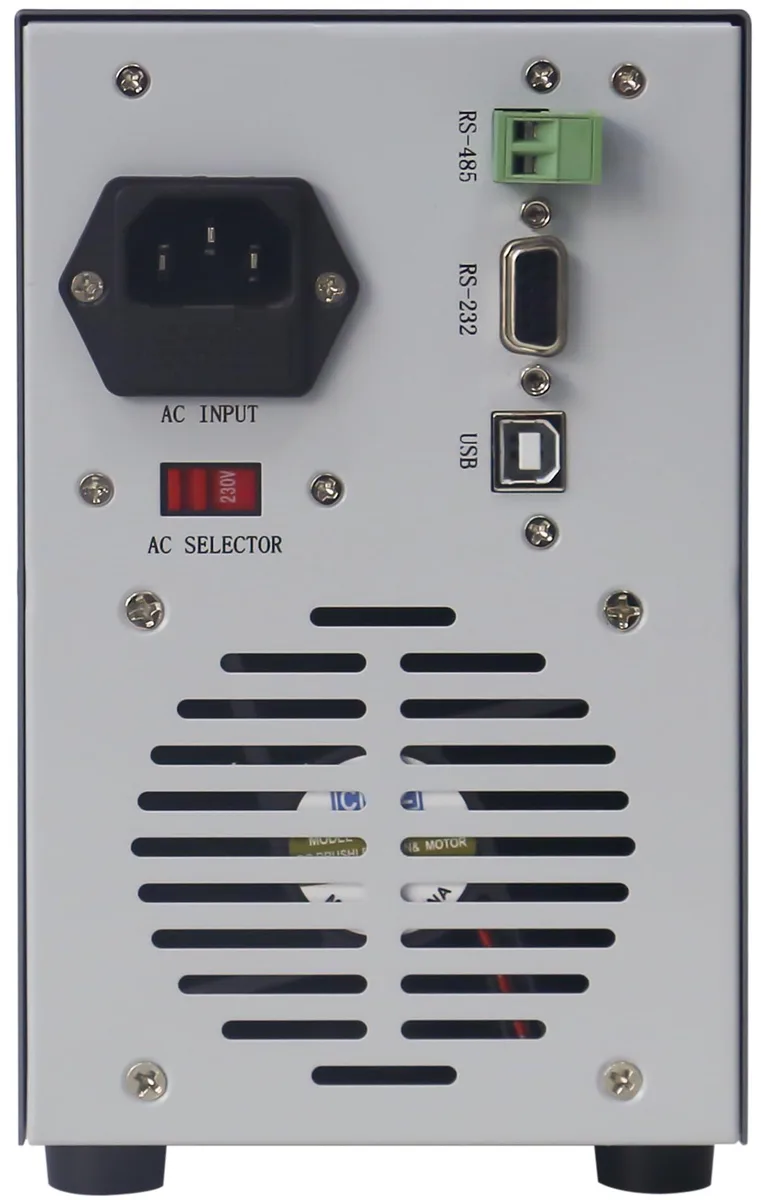

Standard RS232, RS485 and USB interfaces allow remote operation via SCPI or MODBUS commands, while the LIST function can run up to 9999 output cycles. Intelligent fan control reduces acoustic noise and an over-temperature sensor protects the supply; users without serial or USB host equipment cannot access programmable features.

Puntos fuertes

  • Programmable 0-80 V, 0-6 A, 150 W output for versatile lab use
  • 1 mV / 0.1 mA resolution enables precise voltage and current setting
  • LIST function runs up to 9999 automatic output cycles
  • RS232, RS485 and USB interfaces support SCPI and MODBUS remote control
  • Low ripple matching linear supplies plus OVP, OCP and over-temperature protection

Especificaciones

BrandMATRIX
Series80V 6A 150W, WPS300S-80-6
Model80V 6A 150W
Part NumberWPS300S-80-6
Single/RedundantMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6, 80V 6A 150W, Switching Adjustable Bench Power Supply 1mV/0.1mA Resolution,List Output,OCP OVP for Lab, Electronic Repair, School Teaching, programmable dc power supply adjustable 80V 6A 150W MATRIX benchtop power supply variable voltage power supply variable wide rang switching dc power supplies
Maximum Power150 watts
Output Current6 amps
Output150 watts
Input Frequency Rangenot_applicable
+12V RailsMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6, 80V 6A 150W, Switching Adjustable Bench Power Supply 1mV/0.1mA Resolution,List Output,OCP OVP for Lab, Electronic Repair, School Teaching, programmable dc power supply adjustable 80V 6A 150W MATRIX benchtop power supply variable voltage power supply variable wide rang switching dc power supplies
PFCMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6, 80V 6A 150W, Switching Adjustable Bench Power Supply 1mV/0.1mA Resolution,List Output,OCP OVP for Lab, Electronic Repair, School Teaching, programmable dc power supply adjustable 80V 6A 150W MATRIX benchtop power supply variable voltage power supply variable wide rang switching dc power supplies
Protectionprogrammable dc power supply adjustable 80V 6A 150W MATRIX benchtop power supply variable voltage power supply variable wide rang switching dc power supplies
Featuresprogrammable dc power supply adjustable 80V 6A 150W MATRIX benchtop power supply variable voltage power supply variable wide rang switching dc power supplies
Dimensions4.4 in x 9.9 in x 6.7 in
Weight4.4 pounds
Package ContentsMATRIX Wide Range Programmable DC Power Supply WPS300S-80-6, 80V 6A 150W, Switching Adjustable Bench Power Supply 1mV/0.1mA Resolution,List Output,OCP OVP for Lab, Electronic Repair, School Teaching x 1

Preguntas sobre este artículo

Which version of the WPS300S series should I choose for my bench?

The WPS300S-80-6 provides 0-80V and 0-6A with 150W maximum; other listed models are 150V/5A (300W), 80V/10A (300W), 30V/5A (150W), 32V/6A plus fixed rails (409W), or 30V/5A plus 5V/3A (315W).

What does the 150W headline figure mean once the unit is on my bench?

It is the maximum output power the supply can deliver; any combination of voltage and current whose product exceeds 150W is outside the operating envelope.

Which communication interfaces are fitted and what do they cap in practice?

RS232, RS485 and USB are standard, supporting SCPI and MODBUS commands for remote control and data logging; the interfaces do not limit the 0-80V, 0-6A, 150W output range.
