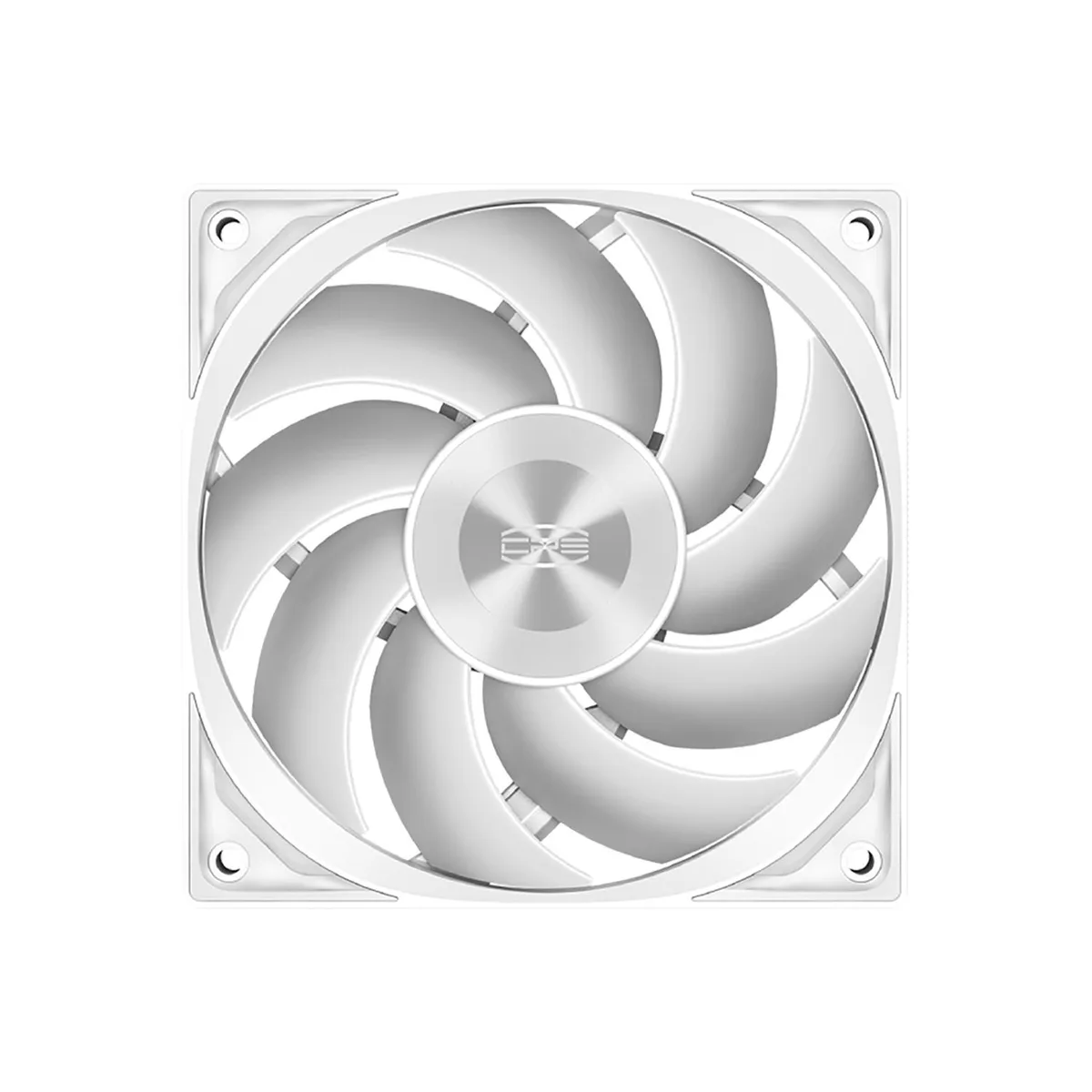

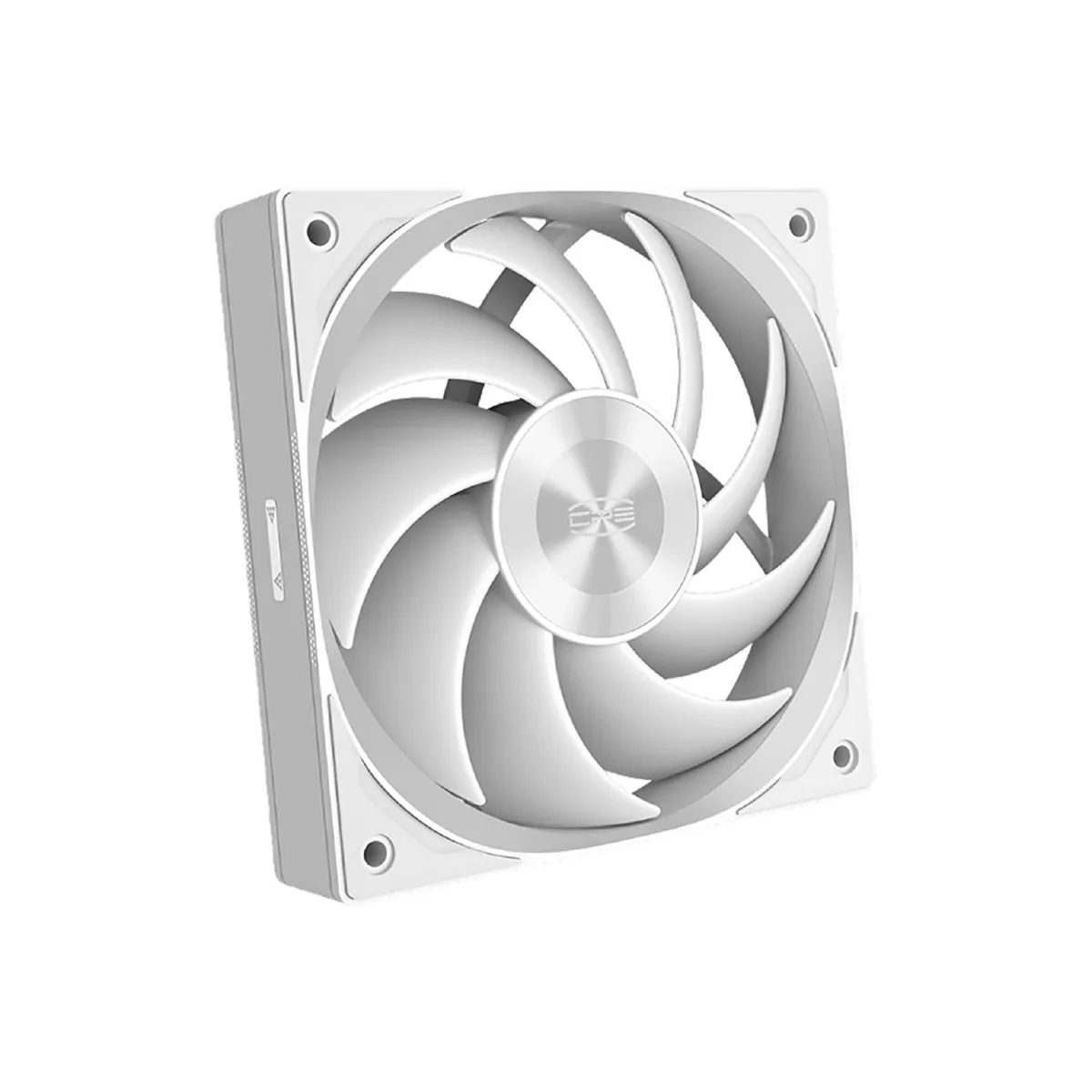

White 120mm square case fan, 25mm thick, nine 39° blades, no LED, vibration pads included

PCCOOLER

PCCOOLER F5R120 WH 120mm case fan white

SKU CH-GGTQ-ZR95E

White 120 mm case fan with fluid-dynamic bearing, 4-pin PWM control and three preset modes reaching 2200 RPM and 86.73 CFM

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness25mm

Option 1 Pack

  • Quiet work at 28 dBA in Silent mode running at 1800 RPM
  • Strong airflow up to 86.73 CFM in Turbo mode at 2200 RPM
  • High static pressure of 3.2 mmH₂O for dense radiators and filters
  • PWM control from 500 to 2000 RPM with 30 dBA maximum noise
  • Fluid dynamic bearing and 39° blades for long life and low vibration

Built for air and liquid cooling

The PCCOOLER F5R120 WH is a single 120mm case fan designed for CPU air coolers, AIO liquid coolers and standard chassis mounts. Its nine blades are angled at 39 degrees and moulded from industrial-grade PBT polymer. The white, non-LED finish suits clean builds that need intake or exhaust airflow without added lighting.

Three speed profiles for thermals and noise

Silent mode runs at 1800 RPM, delivering 68.64 CFM at 2.1 mmH₂O and 28 dBA. Performance mode spans 500 to 2000 RPM for up to 78.10 CFM, 2.6 mmH₂O and 30 dBA. Turbo mode pushes 2200 RPM, reaching 86.73 CFM, 3.2 mmH₂O and 32 dBA. A fluid dynamic bearing and pre-installed anti-vibration pads keep operation steady across all settings.

Daisy-chain cable and vibration pads included

The 4-pin PWM connector supports daisy-chaining multiple fans from one motherboard header, simplifying cable routing. Four silicone mounting pads are pre-fitted to decouple the frame from the case or radiator. No separate controller or software suite is bundled, so speed management relies entirely on the system BIOS or fan-control utilities.

Puntos fuertes

  • Quiet work at 28 dBA in Silent mode running at 1800 RPM
  • Strong airflow up to 86.73 CFM in Turbo mode at 2200 RPM
  • High static pressure of 3.2 mmH₂O for dense radiators and filters
  • PWM control from 500 to 2000 RPM with 30 dBA maximum noise
  • Fluid dynamic bearing and 39° blades for long life and low vibration

Especificaciones

BrandPCCOOLER
ModelF5R120 WH
Part NumberF5R120-WHNT1-GL
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness25mm
Bearing TypeFluid Dynamic Bearing
RPMSilent Mode: 1800 RPM ±10%
Performance Mode: 500 ~ 2000 RPM ±10%
Turbo Mode: 2200 RPM ±10%
Air FlowSilent Mode: 68.64 CFM
Performance Mode: 78.10 CFM Max
Turbo Mode: 86.73 CFM
Air PressureSilent Mode: 2.1 mmH₂O
Performance Mode: 2.6 mmH₂O Max
Turbo Mode: 3.2 mmH₂O
Noise LevelSilent Mode: 28 dBA
Performance Mode: 30 dBA Max
Turbo Mode: 32 dBA
Power Connector4-pin PWM
ColorWhite
LEDNon-LED
Dimensions120×120×25mm

Otras versiones de este modelo

2 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

How do I install the PCCOOLER F5R120 WH 120mm case fan and what step is commonly missed?

Mount the fan using the four pre-installed vibration-damping pads at the corners, then plug the 4-pin PWM connector into the motherboard header; the step often missed is leaving the protective film on the pads, which prevents proper adhesion and vibration isolation.

What maintenance or replacement will the PCCOOLER F5R120 WH fan need over time?

The Fluid Dynamic Bearing is sealed and rated for long life; the only maintenance is occasional dust removal from the 9 blades angled at 39° and the frame using compressed air, with no lubrication or bearing service required.

What limit appears first when running the PCCOOLER F5R120 WH at Turbo mode continuously?

At the 2200 RPM Turbo setting the fan reaches 32 dBA and 3.2 mmH₂O static pressure; sustained operation at this speed makes acoustic output the first practical limit before thermal or bearing constraints arise.
