Black aluminium trayless mobile rack with four 3.5in drive bays and 70mm fan

STARTECH

STARTECH HSB4SATSASBA 4-bay 3.5in SAS II/SATA III 6 Gbps hdd accessory

SKU CH-T732-6034H MPN HSB4SATSASBA

A trayless mobile rack that hot-swaps four 3.5in SATA III or SAS II drives in three 5.25in bays with a 70 mm fan and key lock

  • ColorBlack
  • Conversion Tray2 x SATA Power (15 pin) Receptacle 4 x SATA (7 pin; Data) Re
  • Mobile Rack Drives Support4 x SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products3.5" & 5.25"

Model 3 x 5.25in

Option 4-Bay (3.5in SATA/SAS)

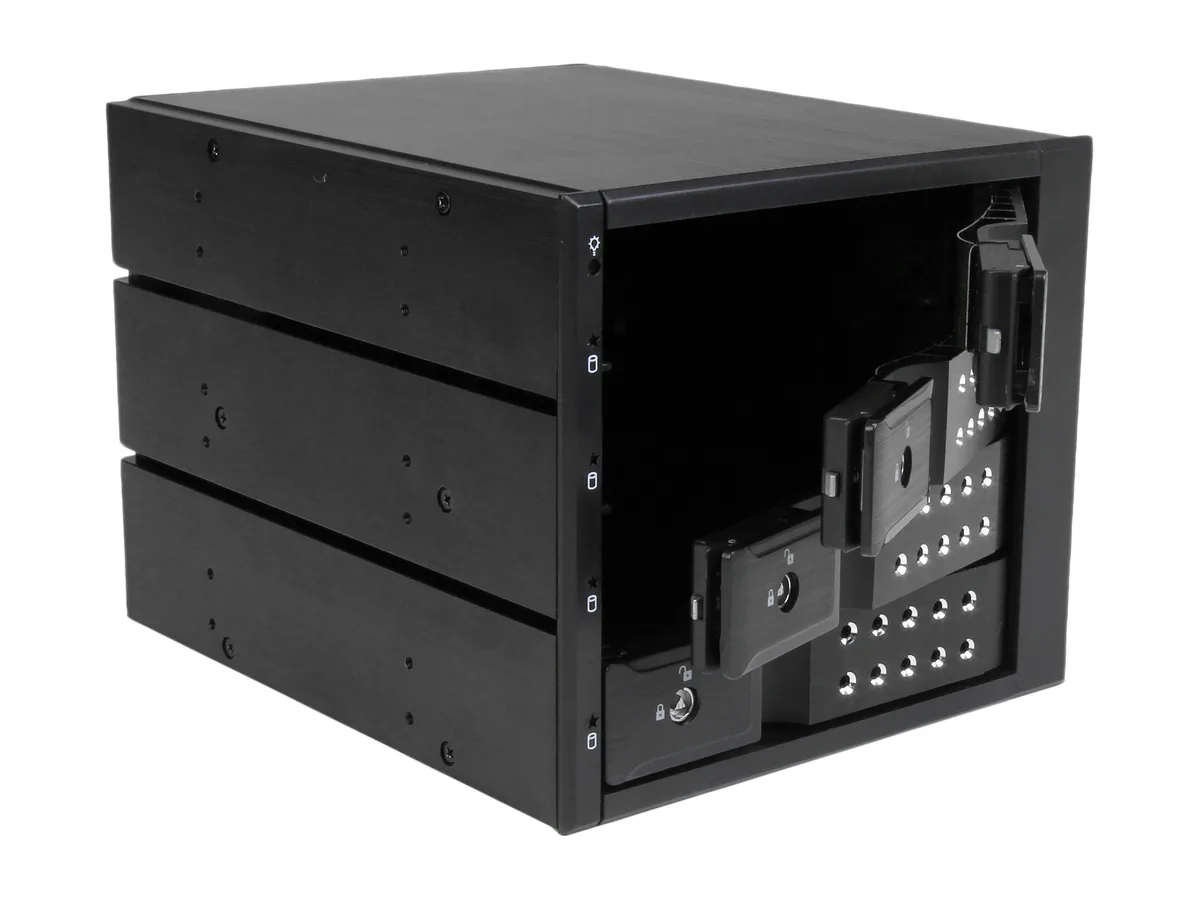

  • Hot-swap four 3.5in drives without trays using a trayless backplane

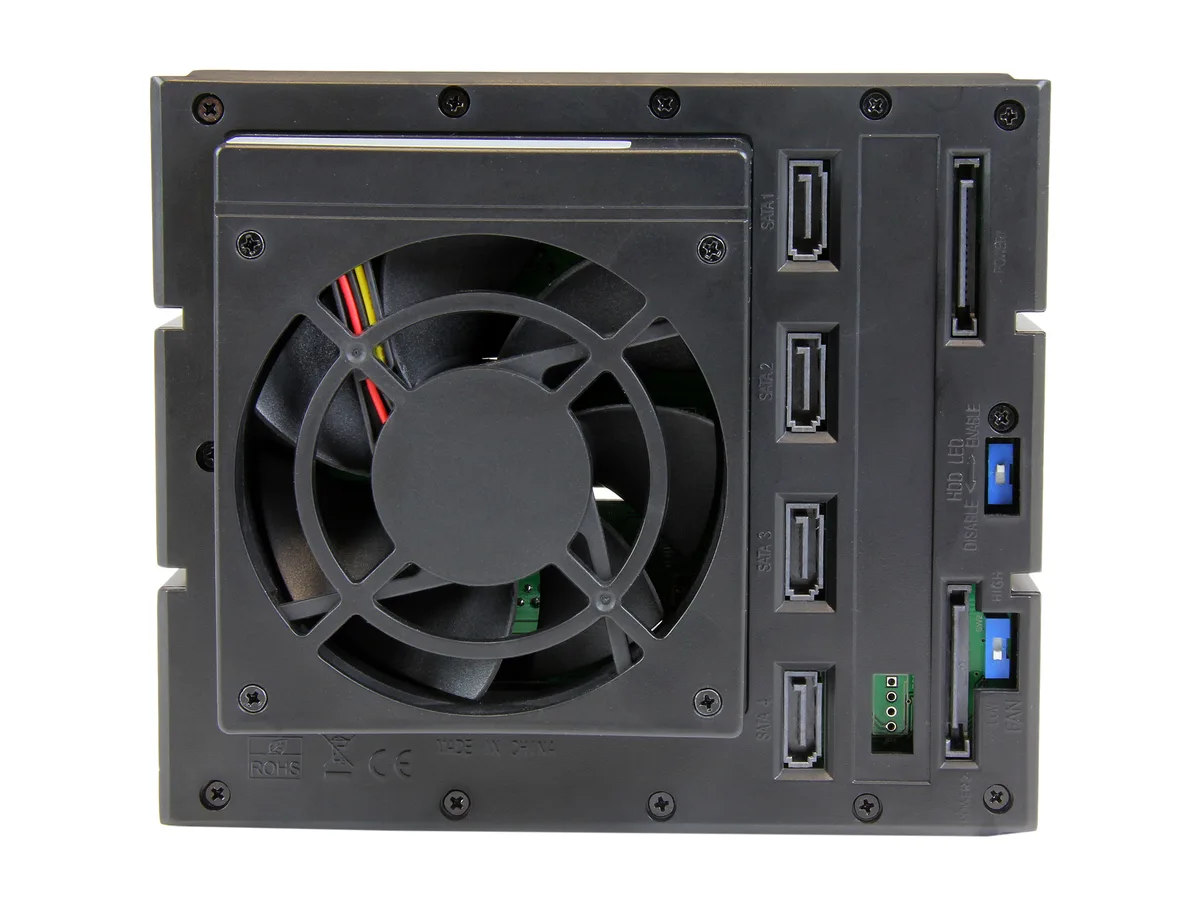

  • Built-in 70mm sleeve-bearing fan keeps drives cool during operation
  • Key lock secures all four drive bays against unauthorised removal
  • Supports SATA 1.5, 3.0, 6.0 Gbps and SAS II interfaces
  • Fits three 5.25in bays for server or workstation installation

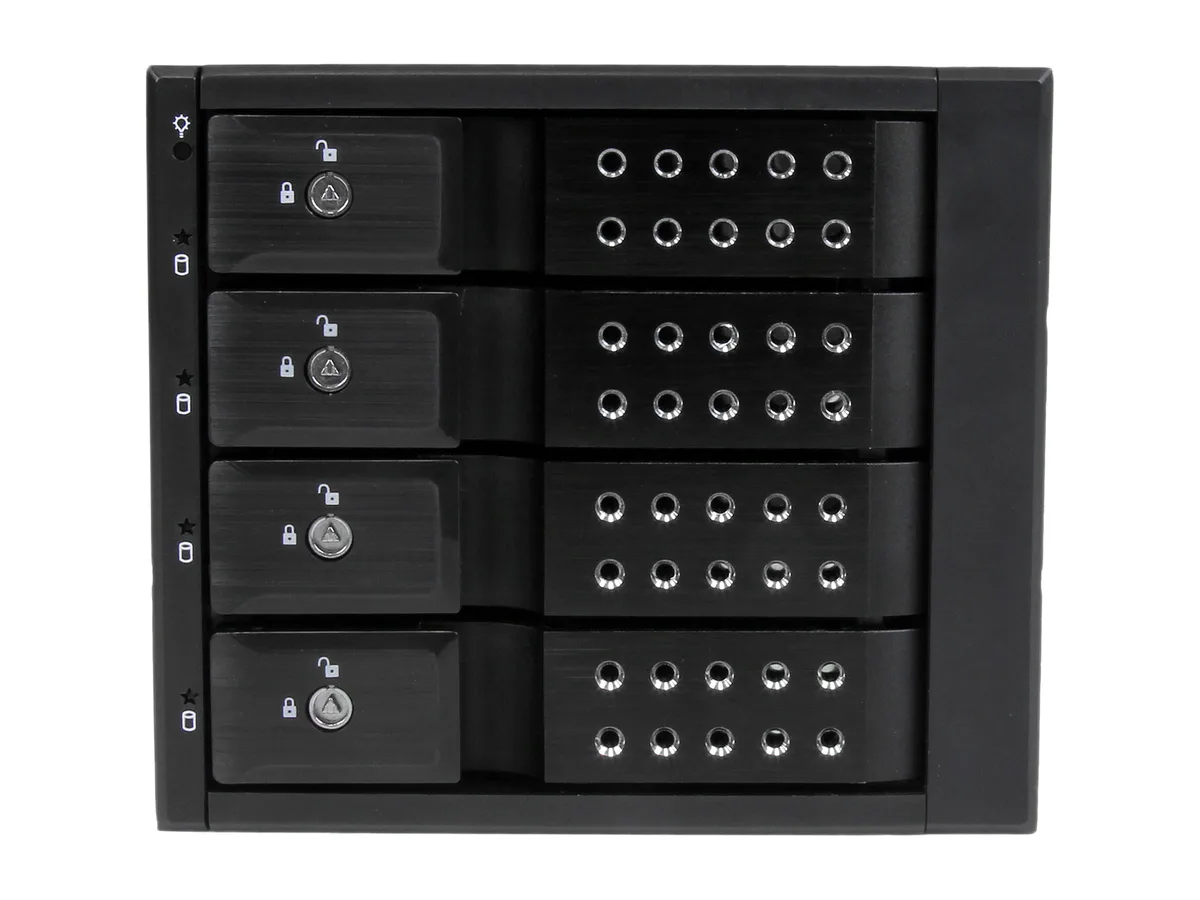

Four-bay trayless mobile rack

The StarTech HSB4SATSASBA installs in three 5.25in bays and holds four 3.5in hard drives. It accepts both SATA III and SAS II drives and provides a 70 mm sleeve-bearing fan for active cooling. A built-in key lock secures the drives, and the trayless design allows hot-swap changes without tools. The unit connects through four SATA data and two SATA power receptacles.

Suited for servers and workstations needing

Administrators who want on-site backup or quick drive rotation will benefit from the hot-swap capability and lockable bays. The rack requires three adjacent 5.25in front-panel openings, so compact cases without that space cannot accommodate it. Builders using only 2.5in drives or needing more than four bays should consider a different enclosure.

SATA 6 Gbps and SAS II support

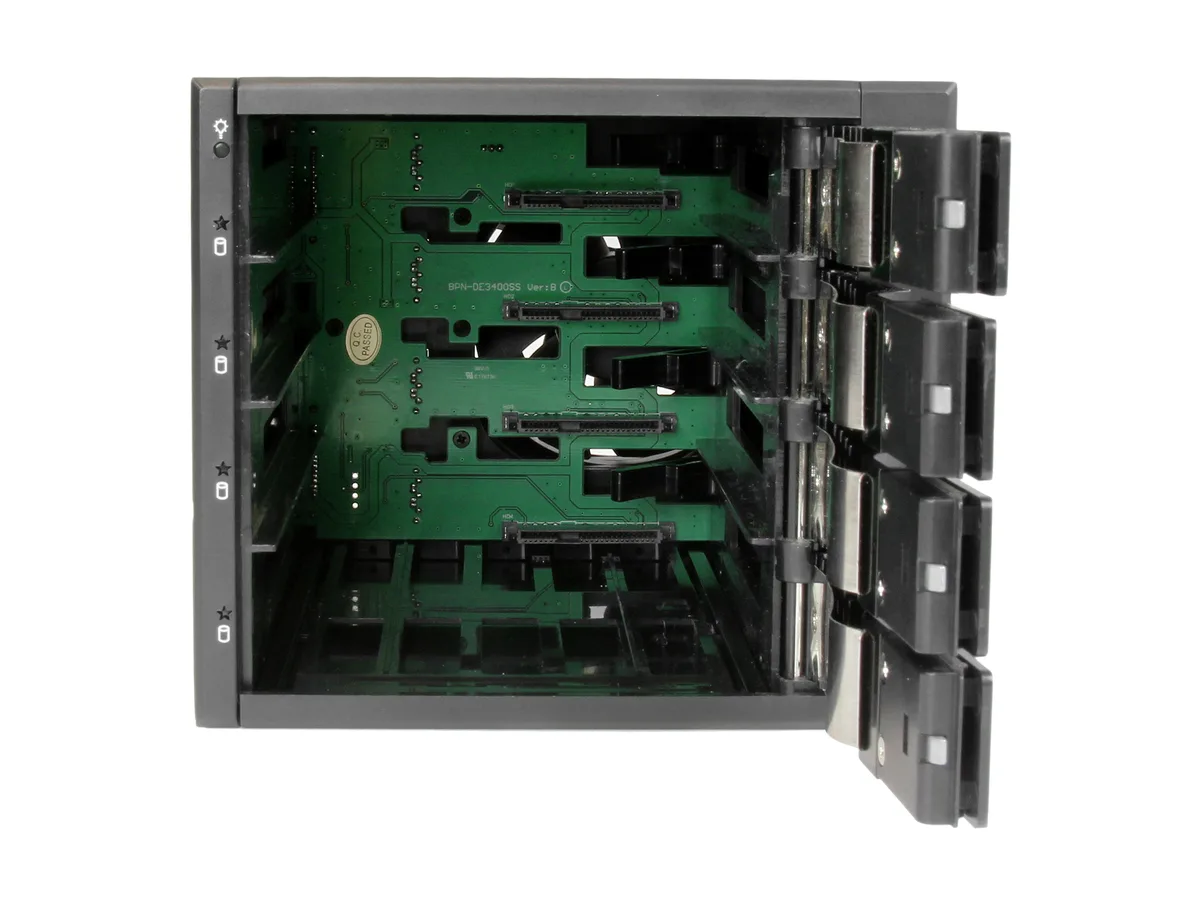

The backplane operates at SATA revision I, II and III speeds up to 6.0 Gbps and supports SAS II through SFF-8482 connectors. This single interface specification determines whether your host controller and drives are compatible with the rack.

Puntos fuertes

  • Hot-swap four 3.5in drives without trays using a trayless backplane
  • Built-in 70mm sleeve-bearing fan keeps drives cool during operation
  • Key lock secures all four drive bays against unauthorised removal
  • Supports SATA 1.5, 3.0, 6.0 Gbps and SAS II interfaces
  • Fits three 5.25in bays for server or workstation installation

Especificaciones

BrandStarTech.com
ModelHSB4SATSASBA
ColorBlack
Conversion Tray2 x SATA Power (15 pin) Receptacle
4 x SATA (7 pin; Data) Receptacle
Mobile Rack Drives Support4 x SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products3.5" & 5.25"
SpecificationsDrive Installation: Removable
Fan Bearing Type: Sleeve Bearing
Fan: 1 - 70 mm
Key Lock: Yes
Number of Drives: 4
Number of internal 3.5 inch bays: 4
Max Drive Capacity: Currently tested with up to 6TB 7200 RPM hard drives
Maximum Data Transfer Rate: 6 Gbit/s
OS Compatibility: OS independent; No software or drivers required
System and Cable Requirements: Flammability rating: UL94 - V0
LED Indicators:
1 x Power LED
1 x Drive 1 Activity LED
1 x Drive 2 Activity LED
1 x Drive 3 Activity LED
1 x Drive 4 Activity LED
Humidity: 5% to 85% RH
Operating Temperature: 0 to 55 degree C
Storage Tem
FeaturesSolid aluminum construction
Key lock design
Built-in fan
4 drive bay design
Installs in three 5.25" drive bays
Trayless design for easier hot swapping
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Support for SAS revision I/II (3.0/6.0 Gbps)
Power and Activity LEDs for each drive
UL94 - V0 flammability rating

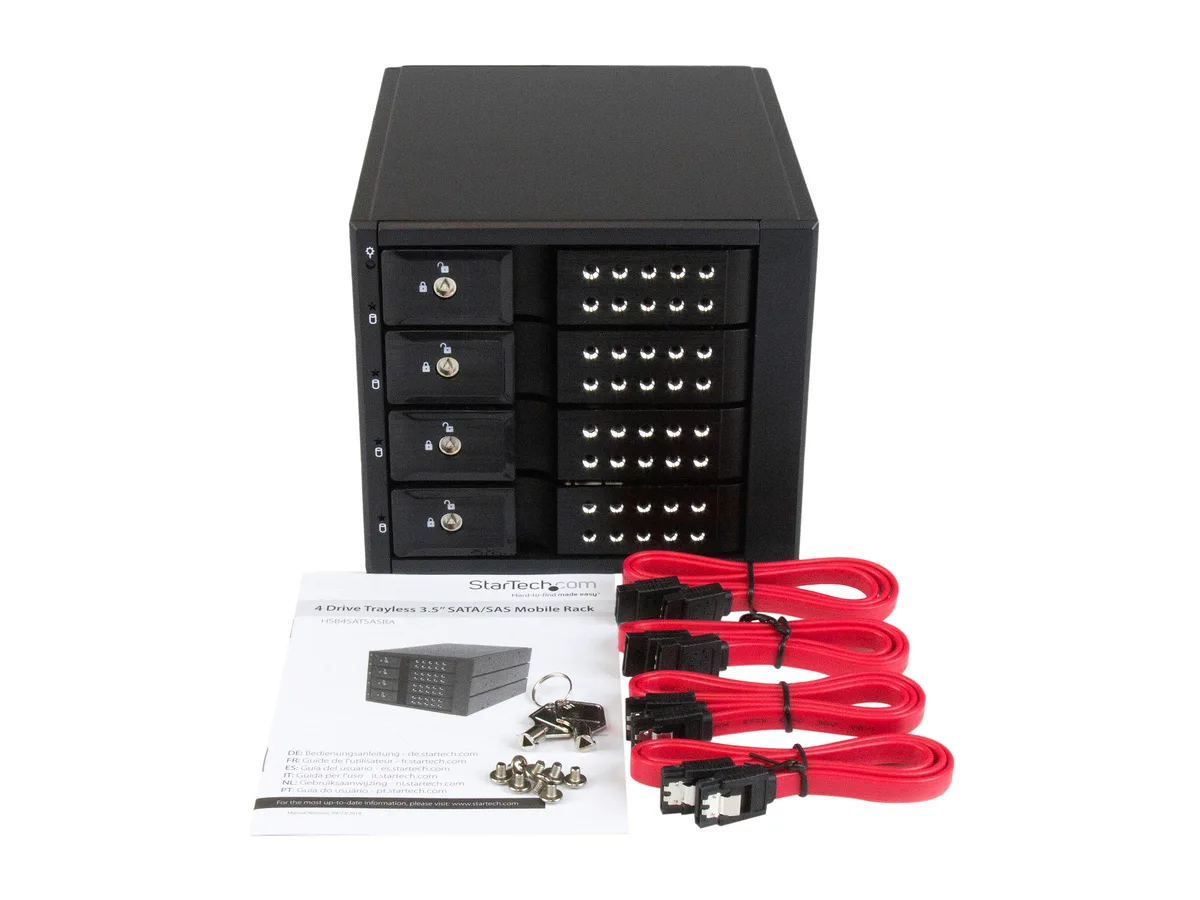

Package Contents1 x 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
8 x Installation screws
2 x Drive bay keys
4 x SATA cables
1 x Instruction manual
Peso de envío1.59 kg
Dimensiones del paquete254 × 180 × 163 mm

Otras versiones de este modelo

1 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

How loud is the built-in 70 mm sleeve-bearing fan when the unit runs all day?

The 70 mm sleeve-bearing fan provides active cooling for the four drives; sleeve bearings typically run quieter than ball bearings at low speed, so noise stays low during continuous operation.

Which cables and host connectors must my system already have to use all four bays?

Your motherboard or controller needs four free SATA 7-pin data ports, and the backplane requires two SATA 15-pin power connectors from your power supply.

Will my older 1.5 Gbps or 3.0 Gbps SATA drives work in this SAS II / SATA III backplane?

Yes — the backplane supports SATA I, II and III (1.5, 3.0 and 6.0 Gbps) as well as SAS II, so legacy SATA drives negotiate down to their native speed and function normally.
