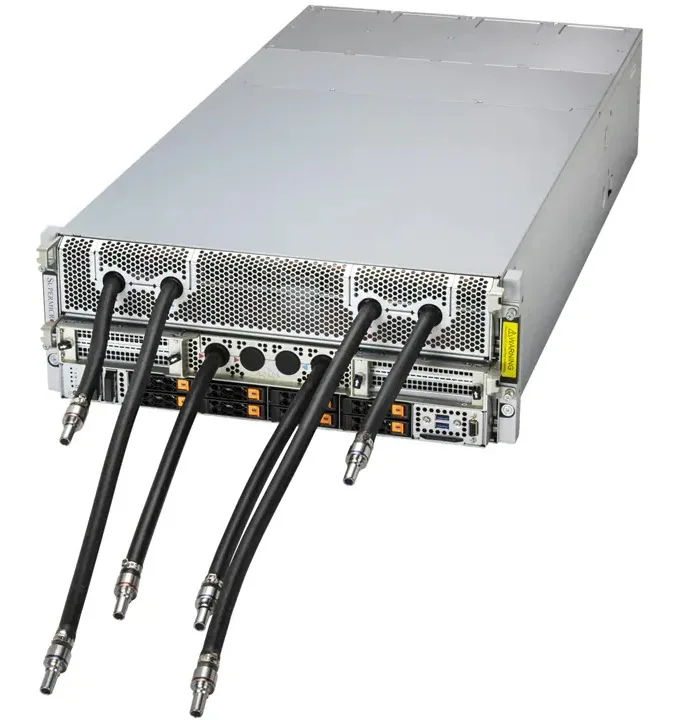

4U rack server front view with eight 2.5 inch drive bays and network LEDs

Supermicro

Supermicro AS -4126GS-NBR-LCC-G1 rack server dual EPYC 9575F 3TB DDR5 4x 15.3TB NVMe 8x B200 GPU

SKU CH-CEA2-T2G0V MPN AS -4126GS-NBR-LCC-G1

A 4U rack server with dual EPYC 9575F processors, 3TB DDR5-6400, eight B200 GPUs, and 4x 15.3TB NVMe storage

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height4U
  • LEDsNetwork activity LEDs System information (overheat/UID) UID
  • Hot-swap Fans5 Fan 60mm Fan(s)
  • CPU TypeAMD EPYC 9005 Series
  • Dual AMD EPYC 9575F CPUs provide 64 cores each at 3.30 GHz for heavy compute
  • Eight NVIDIA B200 GPUs with 180 GB video memory accelerate AI and HPC tasks
  • 3 TB DDR5-6400 memory installed across 24 slots supports large datasets
  • 4× 15.3 TB U.2 NVMe SSDs plus 2× 960 GB M.2 NVMe SSDs deliver fast storage
  • Four 6600 W Titanium redundant power supplies in 2+2 configuration ensure uptime

Dual EPYC 9575F GPU server

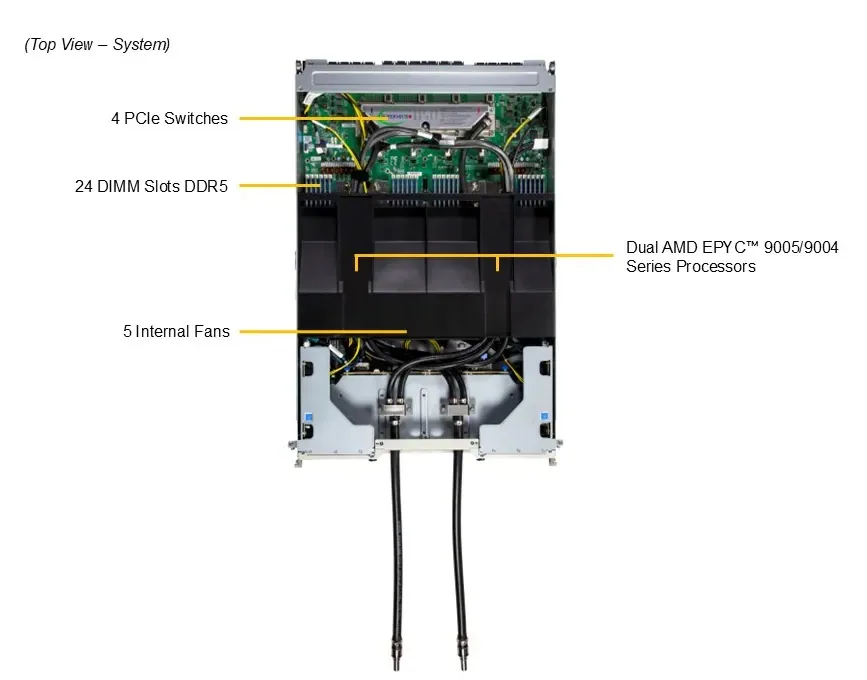

The Supermicro AS -4126GS-NBR-LCC-G1 is a 4U rack system built for large-scale AI and HPC workloads. It ships with two AMD EPYC 9575F processors, each delivering 64 cores at 3.30 GHz, plus eight NVIDIA HGX B200 GPUs providing 180 GB of video memory. The platform includes 3 TB of DDR5-6400 ECC memory and 4 x 15.3 TB U.2 NVMe SSDs with 2 x 960 GB M.2 NVMe boot drives.

Installation and common issues

The unit occupies a full 4U rack space and requires 2.5-inch drive bay compatibility for its eight front hot-swap NVMe slots. Four 6600 W redundant power supplies in a 2+2 Titanium configuration demand adequate PDU capacity and three-phase input planning. Five hot-swap 60 mm fans handle airflow, but GPU density means cable routing for the 8 x 400 Gb/s OSFP and BlueField-3 DPU links must be verified before power-on.

GPU memory capacity

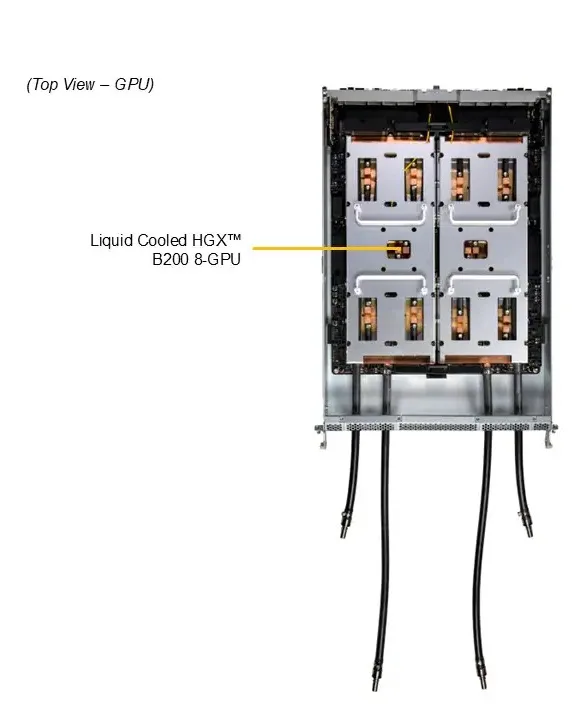

The eight B200 GPUs deliver a combined 180 GB of HBM3e memory, which is the decisive figure for model size and batch throughput. Buyers training models that exceed this aggregate VRAM will need multi-node scaling or a different GPU configuration. The installed 3 TB of system DDR5-6400 supports CPU-side preprocessing but does not extend GPU memory.

Puntos fuertes

  • Dual AMD EPYC 9575F CPUs provide 64 cores each at 3.30 GHz for heavy compute
  • Eight NVIDIA B200 GPUs with 180 GB video memory accelerate AI and HPC tasks
  • 3 TB DDR5-6400 memory installed across 24 slots supports large datasets
  • 4× 15.3 TB U.2 NVMe SSDs plus 2× 960 GB M.2 NVMe SSDs deliver fast storage
  • Four 6600 W Titanium redundant power supplies in 2+2 configuration ensure uptime

Especificaciones

BrandSUPERMICRO
ModelAS -4126GS-NBR-LCC-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height4U
LEDsNetwork activity LEDs
System information (overheat/UID)
UID
Hot-swap Fans5 Fan 60mm Fan(s)
CPU TypeAMD EPYC 9005 Series
CPU Speed9575F (3.30 GHz)
Number of CPU Cores64-Core Processor
Cache Memory256 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size3TB
Memory TypeDDR5 6400
Max Memory Capacity6TB
Memory FeaturesMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Number of Memory Slots24
SSD (Installed)4 x 15.3TB U.2 NVMe SSD
2 x 960GB M.2 NVMe SSD
Servers_Graphic Installed1
GPU TypeNVIDIA HGX GPU Baseboard 8 B200
Video Memory180GB
Ethernet Controller8 x Single 400G NDR/ETH OSFP
1 x NVIDIA BlueField-3 DPU 200Gb/s

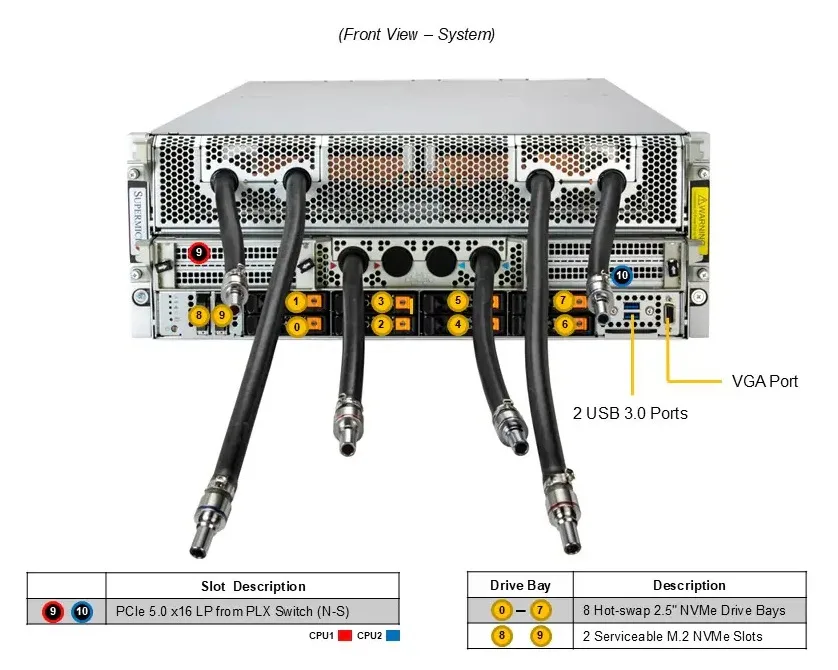

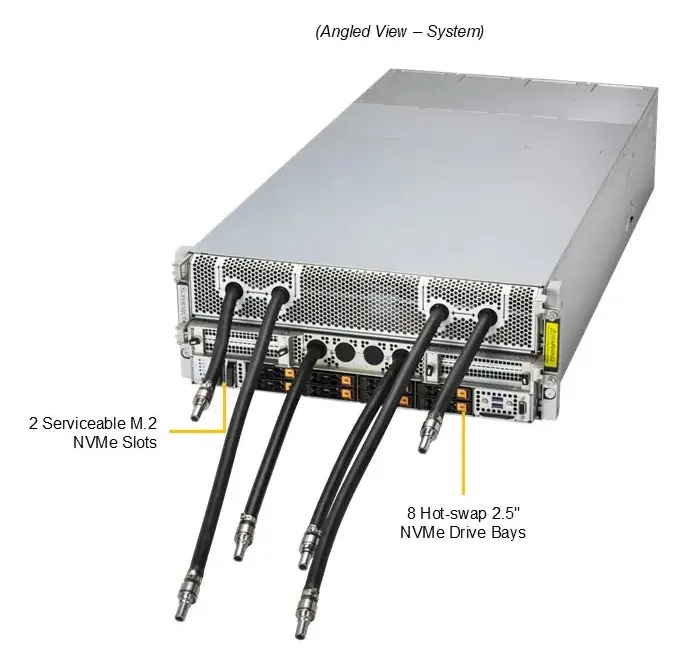

Expansion Bays8 front hot-swap 2.5" NVMe drive bays
2 M.2 NVMe slots (M-key)

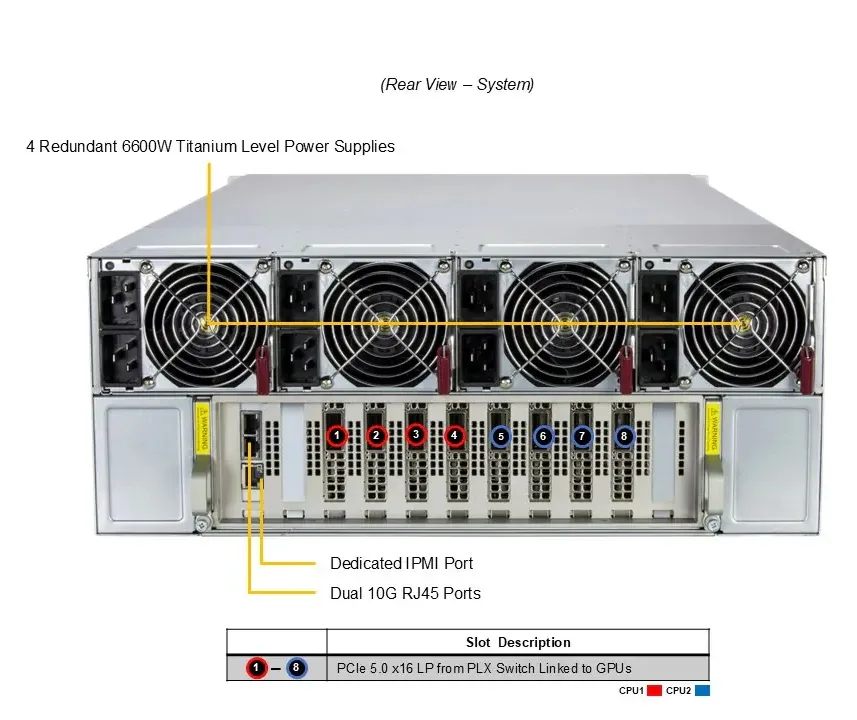

Power Characteristics4x 6600W Redundant (2 + 2) Titanium Level (96%) power supplies
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions6.85" x 17.6" x 35.25"
Weight203 lbs.
Peso de envío107.05 kg
Dimensiones del paquete1280 × 729 × 410 mm

Preguntas sobre este artículo

How can I verify the NVIDIA HGX B200 8-GPU baseboard with 180GB video memory is operating correctly after installation?

Check the system LEDs for network activity and UID status, confirm all 5 hot-swap 60mm fans are spinning, and use the NVIDIA BlueField-3 DPU 200Gb/s management interface to validate GPU detection and health.

What components are included and what must be sourced separately for the AS -4126GS-NBR-LCC-G1?

The server ships with dual EPYC 9575F 64-core CPUs, 3TB DDR5-6400 across 24 slots, 4x 15.3TB U.2 NVMe SSDs, 2x 960GB M.2 NVMe SSDs, the 8-GPU HGX B200 baseboard, 8x 400G NDR/ETH OSFP ports, 1x BlueField-3 DPU, and 4x 6600W Titanium redundant PSUs; no additional parts are required for the listed configuration.

Which memory capacity should I select between the installed 3TB and the maximum 6TB for this platform?

The system arrives with 3TB DDR5-6400 ECC RDIMM populated; choose the 6TB option only if your workload needs the full 24-slot capacity at 1DPC, otherwise the factory 3TB configuration is ready to run.
