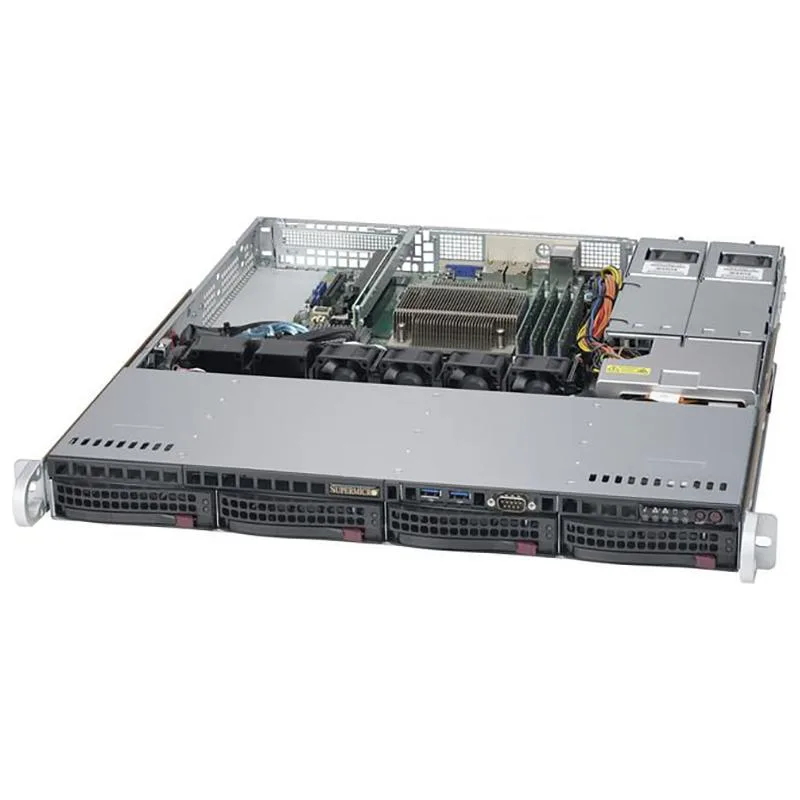

Silver 1U rack server front with four 3.5-inch drive bays and power LEDs

Supermicro

Supermicro SYS-5019S-W4TR 1U rack server E3-1270 v6 3.8GHz 8GB DDR4

SKU CH-XXZE-MYBGZ

1U rack server with four hot-swap 3.5″ bays, a 3.8 GHz 4-core Xeon, 8 GB DDR4 ECC, MegaRAID 9361-8i controller, quad 10GBase-T ports, IPMI 2.0 and dual 500 W Platinum supplies

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed3.80 GHz
  • CPU SocketLGA 1151
  • Number of CPU Cores4-Core Processor
  • 1U rackmount form factor saves data-centre space
  • Intel Xeon E3-1270 v6 3.8 GHz 4-core CPU delivers responsive compute
  • 8 GB DDR4-2400 ECC memory protects data integrity
  • MegaRAID 9361-8i with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Quad 10GBase-T ports plus IPMI 2.0 give high-speed management

Compact 1U server with Xeon E3-1270 v6

The Supermicro SYS-5019S-W4TR is a 1U rackmount server system equipped with an Intel Xeon E3-1270 v6 processor running at 3.8 GHz with four cores. It includes 8 GB of DDR4 memory and dual 500 W redundant power supplies. The chassis provides four hot-plug 3.5-inch drive bays and a dedicated IPMI 2.0 management port.

Suited for storage-focused workloads.

This server suits administrators who need dense 3.5-inch storage capacity and four 10GBase-T network ports in a single rack unit. The LSI MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60. Buyers requiring GPU acceleration or more than four drive bays should look at larger platforms.

Four 3.5-inch hot-plug bays with SAS/SATA support

The defining specification is the four front-accessible 3.5-inch trays that accept both SATA and SAS drives via the onboard MegaRAID 9361-8i controller with 1 GB cache. This bay count and controller combination determines whether the chassis meets your storage density and redundancy requirements.

Puntos fuertes

  • 1U rackmount form factor saves data-centre space
  • Intel Xeon E3-1270 v6 3.8 GHz 4-core CPU delivers responsive compute
  • 8 GB DDR4-2400 ECC memory protects data integrity
  • MegaRAID 9361-8i with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Quad 10GBase-T ports plus IPMI 2.0 give high-speed management

Especificaciones

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB3-X11SSW-4TF
ModelSYS-5019S-W4TR
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed3.80 GHz
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE3-1270 V6
Installed Memory Size8GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X540 10GBase-T Ethernet Controller
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

How do I install the 3.5" drives in the hot-swap bays and what step is often missed?

Slide each drive into a front bay until the latch clicks; the step often missed is securing the latch fully so the drive seats on the backplane SATA/SAS connector.

Which components will need replacement first during the server's service life?

The two 500W redundant hot-swap power supplies and the MegaRAID 9361-8i controller's battery-backed cache module are the primary field-replaceable units.

What performance limit appears first under sustained heavy I/O workloads?

The 1GB cache on the MegaRAID 9361-8i controller fills during sustained writes, after which throughput drops to the raw drive array speed.
