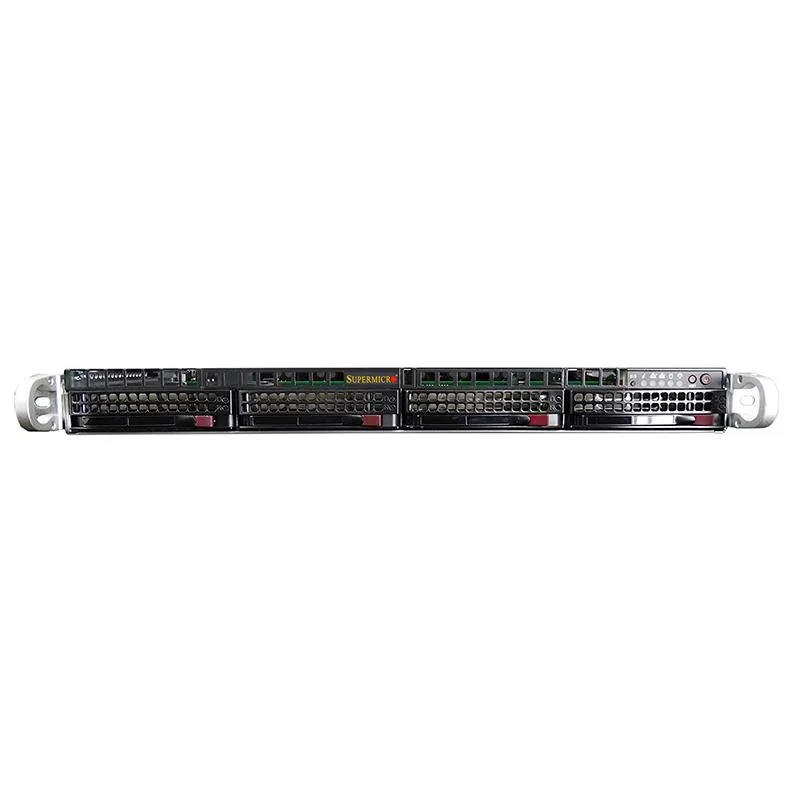

Black 1U rack server with four front 3.5 inch drive trays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2x Xeon E5-2695 v4 2.1GHz 18-core 64GB DDR4 4x 3.5" trays 10GbE

SKU CH-0AZW-T5JCC

1U rack server with dual 18-core Xeon E5-2695 v4 processors, 64GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5-inch hot-swap bays and quad 10GBase-T Ethernet

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • Dual 18-core Xeon E5-2695 v4 at 2.1 GHz with 3.3 GHz Turbo for heavy parallel workloads
  • 64 GB DDR4 2400 MHz registered ECC memory across four 16 GB modules for data integrity
  • MegaRAID 9361-8i 12 Gb/s SAS controller with 1 GB cache and battery backup for flexible RAID
  • Four 10 GbE RJ45 ports via Intel X540 for high-speed network connectivity
  • Redundant 750 W Platinum hot-swap power supplies for continuous uptime

Dual Xeon 1U rack server

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server system equipped with two Intel Xeon E5-2695 v4 processors. Each CPU runs at 2.1 GHz with 18 cores and reaches 3.3 GHz turbo frequency. The system includes 64 GB of DDR4 2400 MHz registered ECC memory across four 16 GB modules. It is built for dense compute workloads in data-centre racks.

Compute density with four 3.5-inch bays

This server suits teams that need high core counts in a single rack unit while retaining 3.5-inch drive support. The four hot-plug trays accept SATA or SAS drives managed by an LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup. Buyers who need more than four drive bays, GPU expansion slots or 2.5-inch bay density should look at other chassis configurations.

Quad 10 GbE with dedicated IPMI

Networking is handled by a Supermicro AOC-UR-i4XT card providing four RJ45 10GBase-T ports based on the Intel X540 controller. A separate RJ45 port gives IPMI 2.0 access with virtual media and KVM-over-LAN. If the deployment requires SFP+ fibre uplinks or a different port count, this network interface will not match.

Puntos fuertes

  • Dual 18-core Xeon E5-2695 v4 at 2.1 GHz with 3.3 GHz Turbo for heavy parallel workloads
  • 64 GB DDR4 2400 MHz registered ECC memory across four 16 GB modules for data integrity
  • MegaRAID 9361-8i 12 Gb/s SAS controller with 1 GB cache and battery backup for flexible RAID
  • Four 10 GbE RJ45 ports via Intel X540 for high-speed network connectivity
  • Redundant 750 W Platinum hot-swap power supplies for continuous uptime

Especificaciones

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2695 V4
Installed Memory Size64GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

Does the server include any hard drives or just the four 3.5" trays?

Only the four 3.5" SATA/SAS hot-plug trays are included; no hard disk drives are installed.

Which RAID levels does the MegaRAID 9361-8i controller support?

The controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across its eight ports.

What throughput can the four Intel X540 10GBase-T ports deliver in a live workload?

Each RJ45 port provides up to 10 Gb/s line-rate Ethernet connectivity for high-speed networking.
