Silver 1U rack server front with four 3.5-inch drive trays and control panel

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2× Xeon Gold 6130 768GB DDR4 4× 3.5" bays 4× 10GBase-T 2× 750W PSU

SKU CH-GNDB-NTR0V

1U rack server with dual 16-core Xeon Gold 6130 CPUs, 768GB DDR4, four 3.5" hot-swap bays, MegaRAID 9361-8i, four 10GBase-T ports, IPMI 2.0, and dual 750W platinum PSUs

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual Xeon Gold 6130 CPUs deliver 32 cores at 2.1 GHz with 3.7 GHz turbo
  • 768 GB DDR4-2666 ECC registered memory across 24 slots for high-capacity workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Four 10GBase-T ports via Intel X540 provide high-speed network connectivity and redundancy
  • Redundant 750 W platinum power supplies with hot-swap ensure continuous uptime

Dual Xeon Gold 6130 1U Server

The Supermicro SYS-6019U-TN4R4T is a 1U rack server built for dense compute clusters. Dual Intel Xeon Gold 6130 processors deliver 32 total cores at 2.1 GHz with 3.7 GHz turbo. 768 GB of DDR4-2666 ECC registered memory supports large virtualization hosts or in-memory databases. The MegaRAID 9361-8i controller manages four hot-swap 3.5" SATA/SAS bays.

Redundant 750 W Platinum Power

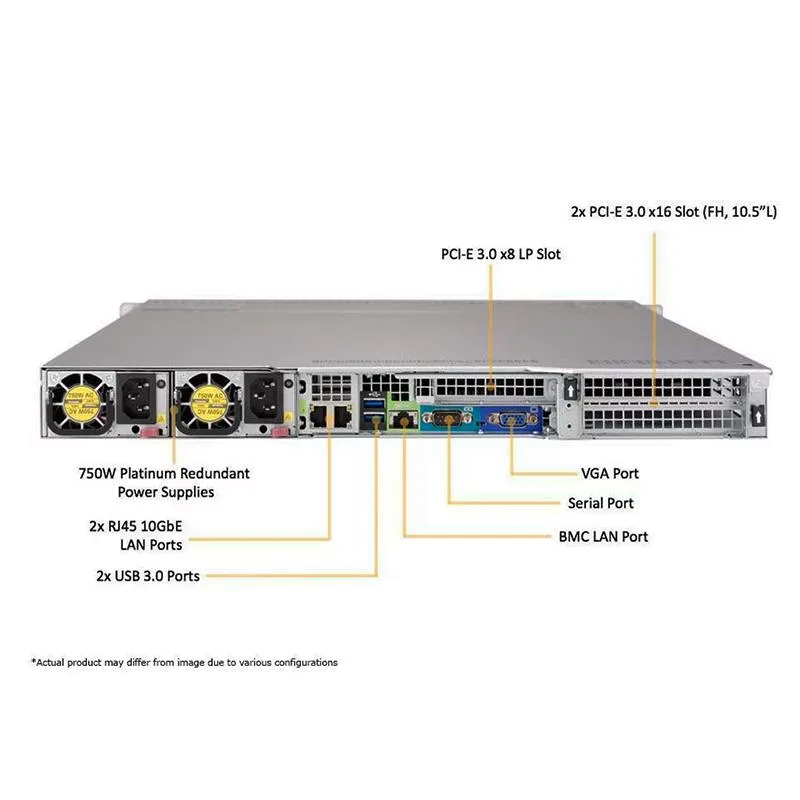

Two hot-swap 750 W Platinum power supplies share the load and keep the system running if one unit fails. The 1U chassis uses forced-air cooling tuned for the dual 16-core CPUs and the 24 memory modules. Four 10GBase-T ports on the Intel X540 adapter handle storage and cluster traffic. A dedicated IPMI 2.0 LAN port provides out-of-band management.

Four 3.5" Bays and 10G Networking

Four front-access 3.5" trays accept SATA or SAS drives for capacity-focused arrays. The 9361-8i RAID controller supports RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cached battery-backed write-back. The single PCIe slot is occupied by the quad-port 10GBase-T card, leaving no room for additional expansion cards. Rack rails and front bezel are not included.

Puntos fuertes

  • Dual Xeon Gold 6130 CPUs deliver 32 cores at 2.1 GHz with 3.7 GHz turbo
  • 768 GB DDR4-2666 ECC registered memory across 24 slots for high-capacity workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cached battery backup
  • Four 10GBase-T ports via Intel X540 provide high-speed network connectivity and redundancy
  • Redundant 750 W platinum power supplies with hot-swap ensure continuous uptime

Especificaciones

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

How do I install the 24 DDR4 DIMMs into the 1U chassis without blocking airflow?

Populate all 24 slots evenly across both CPU sockets following the motherboard channel guide; the 1U form factor leaves no room for cable slack, so route power and fan cables before seating the last DIMMs.

What maintenance will the MegaRAID 9361-8i controller and its battery-backed cache need over time?

The controller cache uses a battery backup unit that degrades with charge cycles; monitor the MegaRAID BIOS for battery health alerts and plan replacement when the controller reports reduced capacity.

Which limit appears first when the dual Xeon Gold 6130 CPUs sustain 3.7 GHz turbo loads in this 1U enclosure?

Thermal headroom is the first constraint — the 750 W platinum PSUs deliver ample power, but the compact chassis and dual 16-core processors push cooling limits before power or memory bandwidth saturate.
