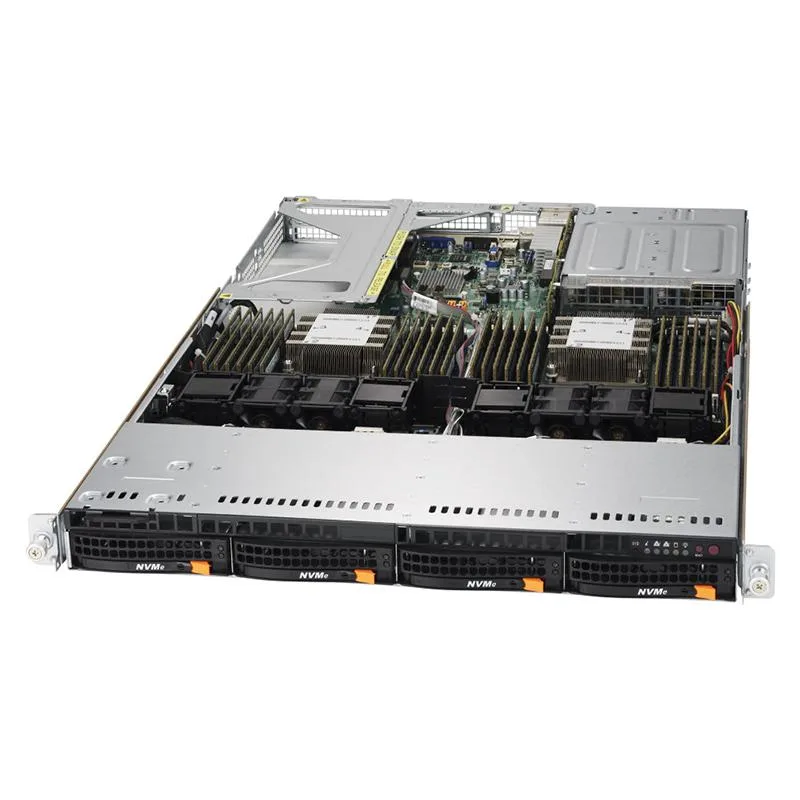

Silver 1U rack server front panel with four 3.5 inch drive bays

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon 8160 128GB DDR4 4x 3.5" bays

SKU CH-3YV4-75PXT

A 1U rack server with dual Xeon 8160 processors, 128GB DDR4, four 3.5" hot-swap bays, MegaRAID 9361-8i and four 10GBase-T ports

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor
  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz with 3.7 GHz turbo for heavy compute workloads
  • 128 GB DDR4-2666 ECC registered memory supports large virtualisation and database workloads
  • MegaRAID 9361-8i controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60 across four 3.5" hot-swap bays
  • Four 10GBase-T ports via Intel X540 deliver high-speed network connectivity for data-intensive applications
  • IPMI 2.0 with dedicated LAN port provides remote KVM and virtual media management over LAN

1U dual-socket server with 24-core Xeons

The Supermicro SYS-6019U-TN4R4T is a 1U rackmount server system built around two Intel Xeon Platinum 8160 processors, each delivering 24 cores at 2.10 GHz with a 3.7 GHz turbo frequency. It ships with 128 GB of DDR4-2666 ECC registered memory across eight 16 GB modules and includes a MegaRAID 9361-8i controller with 1 GB cache and battery backup for RAID 0, 1, 5, 6, 10, 50, 60.

Suited for virtualisation and dense storage.

This chassis fits workloads such as virtualisation, software-defined storage and high-performance computing that benefit from high core counts, four 10GBase-T ports and IPMI 2.0 remote management with dedicated LAN. Buyers who need GPU acceleration, more than four 3.5-inch hot-swap bays or front bezel and rails included should consider a different platform.

Four 3.5-inch hot-swap bays with SAS/SATA support

The single specification that determines fit is the drive bay count: exactly four 3.5-inch trays accepting SATA or SAS drives, served by the 12 Gb/s MegaRAID 9361-8i. If the deployment requires more bays or a different backplane interface, this 1U system will not meet the requirement.

Puntos fuertes

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz with 3.7 GHz turbo for heavy compute workloads
  • 128 GB DDR4-2666 ECC registered memory supports large virtualisation and database workloads
  • MegaRAID 9361-8i controller with 1 GB cache enables RAID 0, 1, 5, 6, 10, 50, 60 across four 3.5" hot-swap bays
  • Four 10GBase-T ports via Intel X540 deliver high-speed network connectivity for data-intensive applications
  • IPMI 2.0 with dedicated LAN port provides remote KVM and virtual media management over LAN

Especificaciones

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors InstalledPlatinum 8160
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

Do I need to buy any hard drives for the four 3.5-inch hot-swap bays?

Yes, the four 3.5-inch SATA/SAS hot-swap bays come with trays but no hard drives are installed, so you must supply your own SATA or SAS drives.

Will my existing SATA hard drives work with the MegaRAID 9361-8i controller?

Yes, the MegaRAID 9361-8i 8-port SAS 12Gb/s RAID controller supports both SATA and SAS drives and offers RAID 0, 1, 5, 6, 10, 50 and 60.

How can I verify the dual Xeon 8160 processors and 128GB DDR4 memory are detected after power-on?

Connect to the dedicated IPMI 2.0 RJ45 management port to access the remote KVM and virtual media, then check the BIOS or IPMI dashboard for both 24-core CPUs and eight 16GB DDR4-2666 modules.
