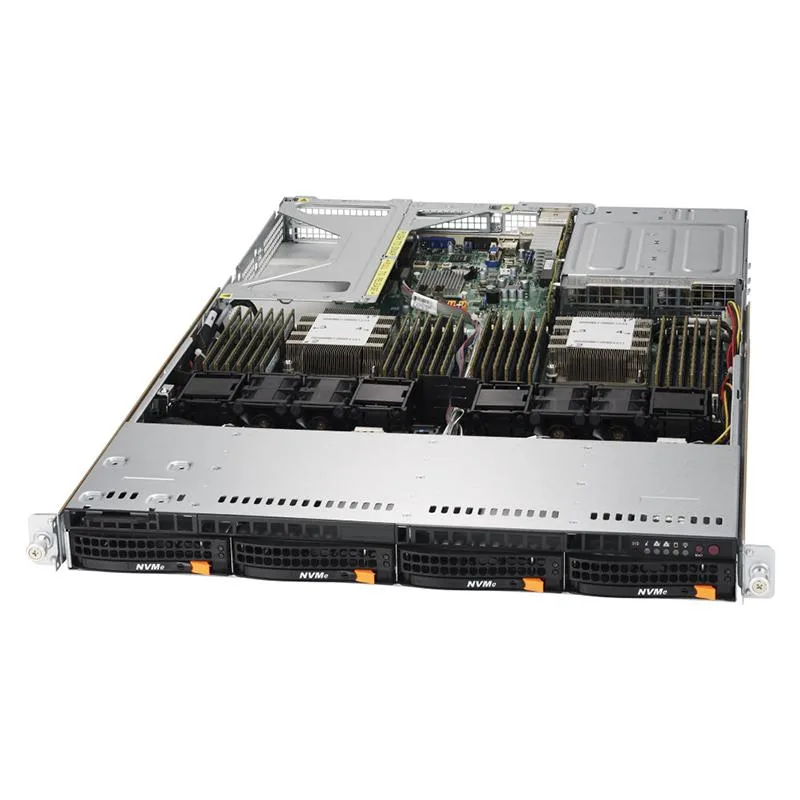

Silver 1U rack server front with four 3.5-inch drive bays and control panel

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon Platinum 8160 256GB DDR4 4x 3.5" bays

SKU CH-7S4Z-NS891

1U rack server with dual 24-core Xeon Platinum 8160 CPUs, 256GB DDR4, four 3.5" hot-swap bays, MegaRAID 9361-8i, quad 10GBase-T and dual 750W PSUs

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor
  • Dual Xeon Platinum 8160 24-core CPUs at 2.1 GHz with 3.7 GHz turbo for heavy compute
  • 256 GB DDR4-2666 ECC registered memory across eight 32 GB modules for large datasets
  • MegaRAID 9361-8i with 1 GB cache and battery backs RAID 0, 1, 5, 6, 10, 50, 60
  • Four 10GBase-T ports via Intel X540 add-in card for high-speed networking
  • IPMI 2.0 with dedicated LAN enables remote KVM and virtual media over LAN

Compact 1U server with dual Platinum 8160 CPUs

This 1U rackmount system ships with two Intel Xeon Platinum 8160 processors at 2.10 GHz and 256 GB of DDR4-2666 ECC registered memory. Four hot-swap 3.5-inch bays accept SATA or SAS drives managed by an LSI MegaRAID 9361-8i controller with 1 GB cache. Four 10GBase-T ports and a dedicated IPMI 2.0 LAN port provide high-speed networking and remote management.

Suited for virtualization hosts

The dual 24-core CPUs and large memory capacity fit multi-tenant workloads and software-defined storage nodes. Buyers who need more than four drive bays or GPU acceleration should look at larger chassis. The fixed 256 GB memory configuration limits expansion without replacing modules.

Four 3.5-inch hot-swap bays with MegaRAID 9361-8i

Storage capacity and RAID flexibility are defined by the four-bay backplane and the 12 Gb/s SAS controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. No drives are included so the buyer selects capacity and endurance to match the workload.

Puntos fuertes

  • Dual Xeon Platinum 8160 24-core CPUs at 2.1 GHz with 3.7 GHz turbo for heavy compute
  • 256 GB DDR4-2666 ECC registered memory across eight 32 GB modules for large datasets
  • MegaRAID 9361-8i with 1 GB cache and battery backs RAID 0, 1, 5, 6, 10, 50, 60
  • Four 10GBase-T ports via Intel X540 add-in card for high-speed networking
  • IPMI 2.0 with dedicated LAN enables remote KVM and virtual media over LAN

Especificaciones

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors InstalledPlatinum 8160
Installed Memory Size256GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

At what temperature does the Xeon Platinum 8160 throttle under sustained load?

The Intel Xeon Platinum 8160 processors have a maximum turbo frequency of 3.7 GHz and a base speed of 2.1 GHz with 24 cores each; thermal throttling engages at the CPU's specified junction temperature limit.

How loud are the fans and what is the power draw when the server runs continuously?

Dual 750 Watt Platinum efficiency power supplies provide redundant hot-swap power; fan speed is managed by the IPMI 2.0 subsystem based on component temperatures.

Which rails and drives are required to install this 1U server in a rack?

The chassis includes four 3.5" SATA/SAS hot-plug drive trays but no hard drives; front bezel and rack mount rails are not included and must be sourced separately.
