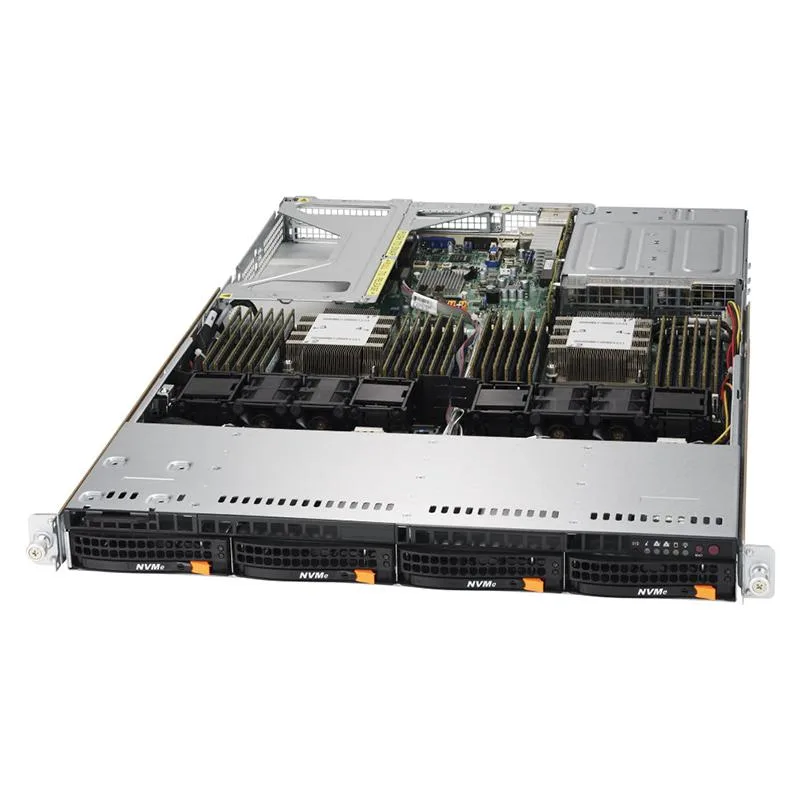

Silver 1U rack server front with four 3.5 inch drive trays and power LEDs

Supermicro

Supermicro SYS-6019U-TN4R4T 1U rack server 2x Xeon Silver 4110 512GB DDR4 4x 3.5" bays 9361-8i

SKU CH-KB5T-FEQYB

Dual Xeon Silver 4110 1U server with 512GB DDR4, four 3.5" hot-swap bays and 9361-8i RAID controller

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores8-Core Processor
  • Dual 8-core Xeon Silver 4110 CPUs deliver 16 threads at 2.1 GHz base with 3.0 GHz turbo
  • 512 GB DDR4 2400 MHz registered ECC memory across 16 DIMM slots for high-capacity workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-swap SATA/SAS drive bays enable dense storage in a 1U form factor
  • Four 10GBase-T ports via Intel X540 plus IPMI 2.0 dedicated LAN for fast data and remote management

Dual-processor 1U server

The Supermicro SYS-6019U-TN4R4T is a 1U rackmount server system built for dense data-centre deployments. It ships with two Intel Xeon Silver 4110 processors running at 2.10 GHz with eight cores each and 512 GB of DDR4 2400 MHz registered ECC memory. Four 3.5-inch hot-swap bays accept SATA or SAS drives for flexible storage capacity.

Sustained-load behaviour

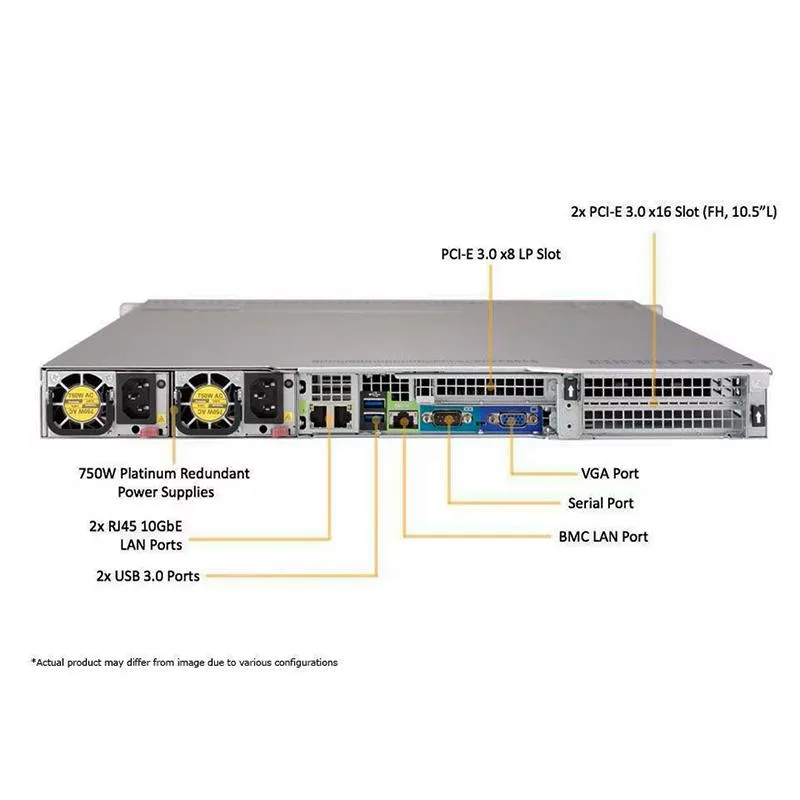

Redundant 750-watt platinum-efficiency power supplies and hot-swap drive bays keep the platform running during component replacement. The LSI MegaRAID 9361-8i controller with 1 GB battery-backed cache maintains write performance and data integrity across RAID 0, 1, 5, 6, 10, 50 and 60 under continuous I/O. IPMI 2.0 with dedicated LAN enables remote monitoring and KVM-over-LAN without interrupting the host.

Four-bay storage limit

Only four 3.5-inch drive bays are provided, so the chassis cannot hold more than four spinning disks or SSDs. Buyers who need more internal storage bays must choose a different form factor. The included Matrox G200 graphics with 8 MB video memory is sufficient only for console output, not for compute acceleration.

Puntos fuertes

  • Dual 8-core Xeon Silver 4110 CPUs deliver 16 threads at 2.1 GHz base with 3.0 GHz turbo
  • 512 GB DDR4 2400 MHz registered ECC memory across 16 DIMM slots for high-capacity workloads
  • MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-swap SATA/SAS drive bays enable dense storage in a 1U form factor
  • Four 10GBase-T ports via Intel X540 plus IPMI 2.0 dedicated LAN for fast data and remote management

Especificaciones

BrandSUPERMICRO
SeriesCSE-819UTS-R751P-T-X11DPU
ModelSYS-6019U-TN4R4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors InstalledSilver 4110
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via AOC-UR-i4XT (Intel X540 10GBase-T)
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

How much heat and power do the dual 750 W platinum supplies draw when the SYS-6019U-TN4R4T runs 24/7?

Each supply is rated at 750 W with platinum efficiency; actual draw depends on workload but the redundant pair shares the load and hot-swaps without downtime.

Which drives and cables must I already have to populate the four 3.5" hot-swap bays?

The bays accept SATA or SAS 3.5" drives; the MegaRAID 9361-8i provides eight 12 Gb/s SAS ports and 1 GB cache with battery backup.

Will the onboard X540 10GBase-T ports and IPMI 2.0 work with my older Cat 5e patch panel and KVM switch?

The four X540 ports negotiate down to 1 GbE on Cat 5e, and the dedicated RJ45 IPMI 2.0 link works with any standard KVM-over-IP client.
