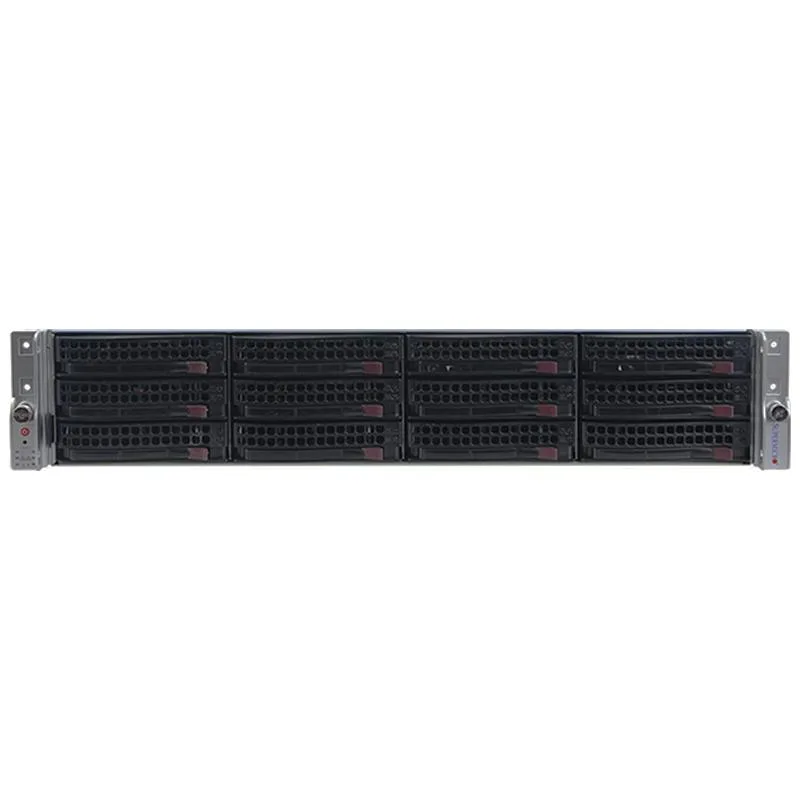

Silver 2U rack server front with twelve 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 12-bay 2U rack server 2x Xeon Platinum 8160 2.1GHz 24-core 512GB DDR4

SKU CH-A2NS-5C9ZD

A 2U rack server with dual Xeon Platinum 8160 processors, 512GB DDR4, 12 hot-swap 3.5-inch drive bays, MegaRAID 9361-8i, quad 10GBase-T networking and IPMI 2.0 management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor
  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz with 3.7 GHz turbo for heavy workloads
  • 512 GB DDR4-2666 ECC registered memory across 16 modules supports large datasets
  • MegaRAID 9361-8i controller enables RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Twelve hot-swap 3.5 inch drive bays accept SATA or SAS drives for flexible storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN give high-speed networking and remote management

Dual Xeon Platinum 8160 24-core server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system built around two Intel Xeon Platinum 8160 processors. Each CPU runs at 2.1 GHz with 24 cores and a 3.7 GHz turbo frequency. It targets organisations running virtualisation, hyper-converged storage or cloud workloads that demand high thread counts and large memory capacity.

512 GB DDR4 ECC and MegaRAID 9361-8i

Sixteen 32 GB DDR4-2666 registered ECC modules provide 512 GB of error-correcting memory out of the box. The included LSI MegaRAID 9361-8i controller adds eight SAS 12 Gb/s ports with 1 GB cache and a battery backup unit, enabling RAID 0, 1, 5, 6, 10, 50 and 60 across the twelve hot-swap 3.5-inch drive bays.

Twelve 3.5-inch bays and 4 x 10GBase-T

The chassis holds twelve SATA or SAS drives, with four hybrid bays ready for NVMe SSDs when a compatible add-on card is installed. Networking is handled by an Intel X710 adapter delivering four 10GBase-T ports, while a dedicated IPMI 2.0 port provides remote KVM and virtual media. Dual 1000 W titanium power supplies supply redundant power for continuous operation.

Puntos fuertes

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz with 3.7 GHz turbo for heavy workloads
  • 512 GB DDR4-2666 ECC registered memory across 16 modules supports large datasets
  • MegaRAID 9361-8i controller enables RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Twelve hot-swap 3.5 inch drive bays accept SATA or SAS drives for flexible storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN give high-speed networking and remote management

Especificaciones

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors InstalledPlatinum 8160
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

What is the capacity and chemistry of the battery-backed cache on the MegaRAID 9361-8i controller?

The MegaRAID 9361-8i includes 1GB of cache memory protected by a battery backup unit to preserve data during power loss.

What is the maximum thermal design power per processor that the cooling system can handle in this 2U chassis?

The system supports Intel Xeon Scalable processors with a TDP of up to 205W each within the 2U form factor.

How loud are the cooling fans when both 1000W titanium power supplies and dual 24-core CPUs run continuously?

Dual 1000W titanium efficiency power supplies reduce waste heat, while the 2U chassis uses redundant hot-swap fans managed by IPMI 2.0 for thermal control.
