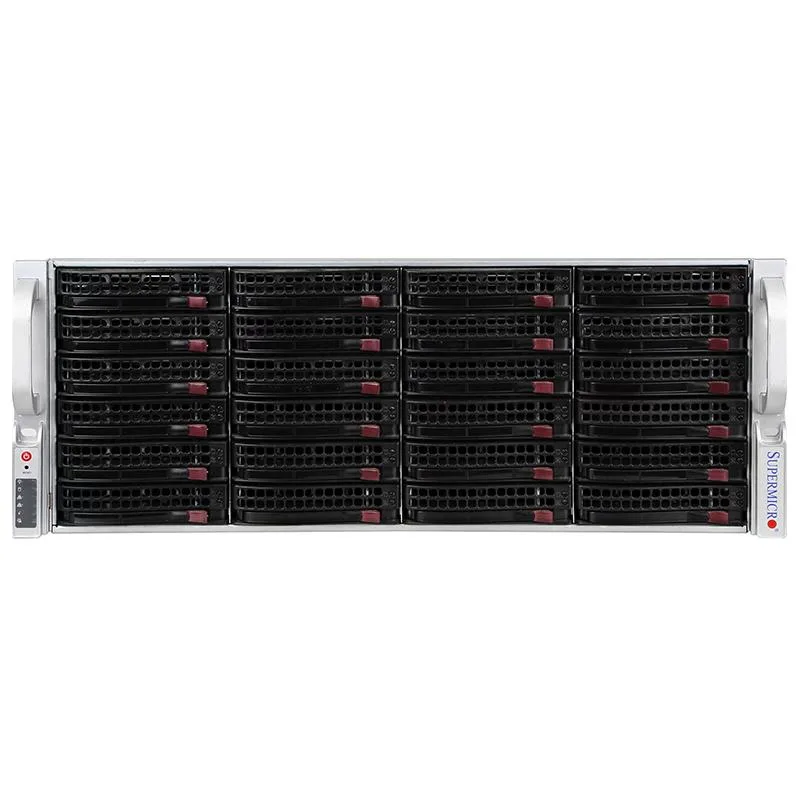

Silver 4U rack server front with 36 drive bays

Supermicro

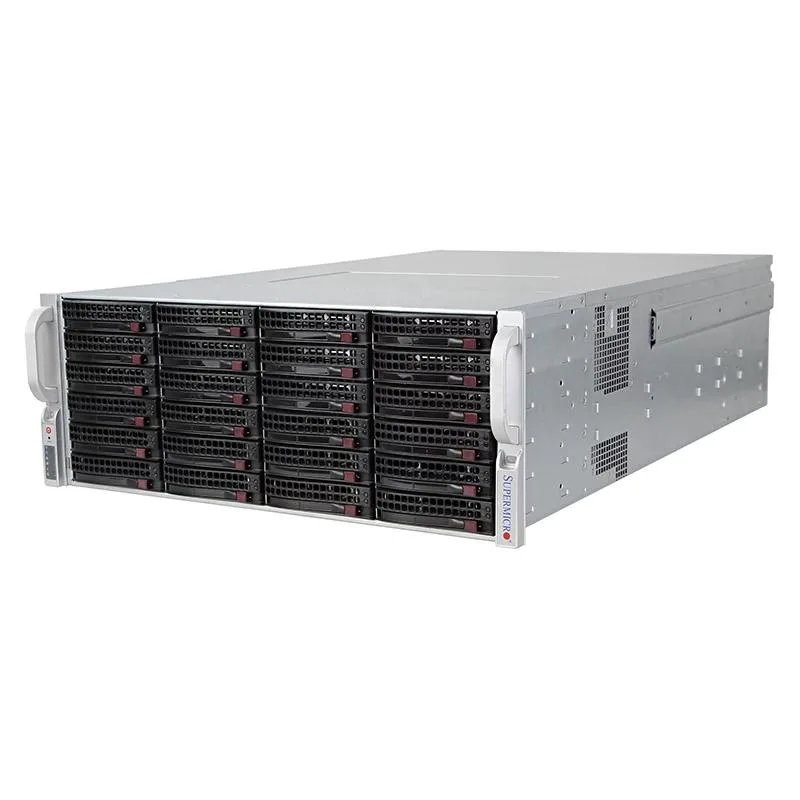

Supermicro SYS-6048R-E1CR36N 36-Bay 4U Rack Server 2x Xeon E5-2690 v4 2.6GHz 14-Core 256GB DDR4

SKU CH-TVH6-TAMBN

A 4U rack server with 36 hot-swap 3.5" drive bays, dual 14-core Xeon E5-2690 v4 CPUs at 2.6 GHz, 256 GB DDR4 ECC memory, a MegaRAID 9361-8i controller, quad 10GBase-T LAN and IPMI 2.0 management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual 14-core Xeon processors at 2.6 GHz deliver 28 total cores for heavy workloads
  • 256 GB DDR4 ECC memory across eight 32 GB modules ensures data integrity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible protection
  • 36 hot-swap 3.5" drive bays provide massive SAS/SATA storage density
  • Four 10GBase-T ports with X540 controller plus IPMI 2.0 enable high-speed remote management

36-Bay 4U Storage Server

The Supermicro SYS-6048R-E1CR36N is a 4U rackmount server system built for high-density storage deployments. It ships with dual Intel Xeon E5-2690 v4 14-core processors running at 2.60 GHz and 256 GB of DDR4 registered ECC memory. A MegaRAID 9361-8i controller manages up to 36 hot-swap 3.5-inch SATA or SAS drive bays. Quad 10GBase-T ports and IPMI 2.0 provide connectivity and remote management.

Storage-Focused Builds

This server suits organisations that need massive raw capacity in a single chassis for archiving, backup targets or software-defined storage clusters. The 36-bay layout and hardware RAID support cover typical object-store and NAS workloads. It is not suited for buyers who need GPU compute density or more than eight internal RAID ports. The fixed 14-core CPUs and 256 GB memory limit virtualisation density compared with larger configurations.

Eight-Port RAID Controller

The installed MegaRAID 9361-8i provides eight internal SAS 12 Gb/s ports with 1 GB cache and battery backup. It supports RAID 0, 1, 5, 6, 10, 50 and 60 across the 36 drive bays. Expanding the array beyond eight direct ports requires additional HBAs or expander backplanes not included in this configuration.

Puntos fuertes

  • Dual 14-core Xeon processors at 2.6 GHz deliver 28 total cores for heavy workloads
  • 256 GB DDR4 ECC memory across eight 32 GB modules ensures data integrity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 for flexible protection
  • 36 hot-swap 3.5" drive bays provide massive SAS/SATA storage density
  • Four 10GBase-T ports with X540 controller plus IPMI 2.0 enable high-speed remote management

Especificaciones

BrandSUPERMICRO
SeriesCSE-847BE1C-R1K28LPB-X10DRi-T4+
ModelSYS-6048R-E1CR36N
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2690 V4
Installed Memory Size256GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T LAN with Intel X540 Ethernet Controller
Management PortRJ 45
Features36 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

How do I install the MegaRAID 9361-8i controller and what step is often missed?

Seat the MegaRAID 9361-8i in a PCIe slot, connect its eight internal SAS ports to the backplanes, then attach the cache battery module to the controller header; the battery is easily forgotten and without it write-back caching stays disabled.

Which components will need replacement first under continuous operation?

The two 1280 W 80 Plus Platinum power supplies and the cooling fans are the primary field-replaceable units; the RAID cache battery also degrades and should be swapped every few years to keep write-back caching active.

What performance limit appears first when all 36 bays are driven hard?

The MegaRAID 9361-8i provides only eight 12 Gb/s SAS lanes, so aggregate throughput from 36 drives is bottlenecked at the controller before the dual Xeon E5-2690 v4 CPUs or the 256 GB DDR4 memory become saturated.
