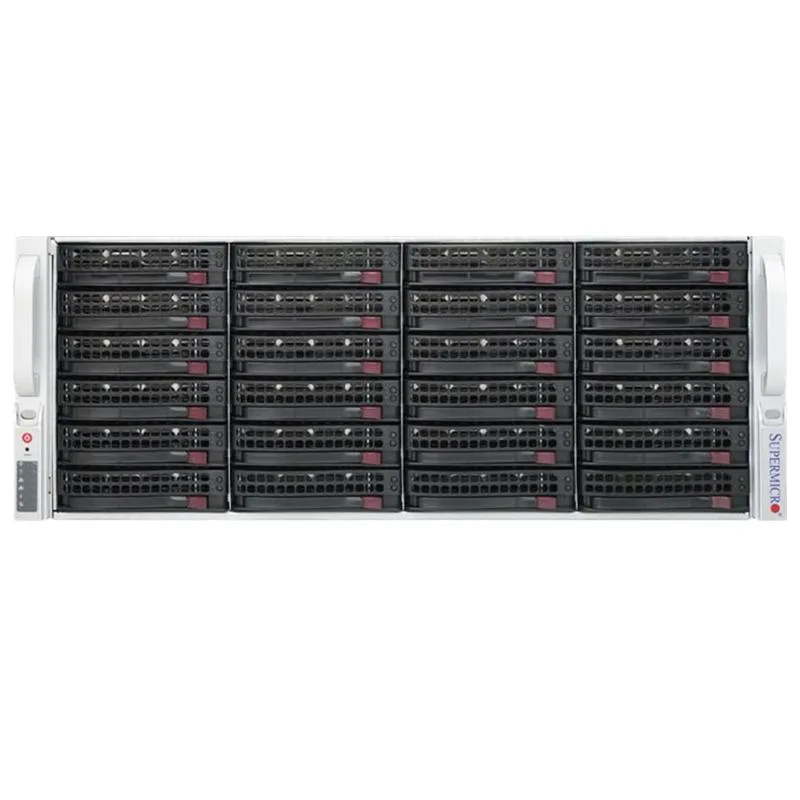

Silver 4U rack server with 24 front drive bays

Supermicro

Supermicro SYS-8048B-TRFT 4U rack server 4x Xeon E7-4820 v4 2.0 GHz 10-core 768GB DDR4 24x 3.5" bays

SKU CH-4MPV-J16B2

A 4U rack server with four 10-core Xeon processors at 2.0 GHz, 768 GB DDR4 ECC memory, 24 hot-swap 3.5" drive bays, LSI MegaRAID 9361-8i controller, dual 10GBase-T ports, IPMI 2.0.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores10-Core Processor
  • Quad-socket Xeon processing with 40 total cores
  • 768 GB DDR4 ECC memory for large datasets
  • 24 hot-swap 3.5" drive bays for massive storage
  • Dual 10GBase-T ports for high-speed networking
  • Four 1620 W platinum redundant power supplies

Enterprise 4U server

The Supermicro SYS-8048B-TRFT is a 4U rackmount server equipped with four Intel Xeon E7-4820 v4 processors, each running at 2.0 GHz with 10 cores. It ships with 768 GB of DDR4 2400 MHz registered ECC memory installed across 96 DIMM slots. The chassis provides 24 front-accessible 3.5-inch hot-swap bays for SATA or SAS drives and includes a MegaRAID 9361-8i controller supporting RAID 0, 1, 5, 6, 10, 50 and 60.

Compute-heavy workloads

This system suits organisations that need high core counts and large memory capacity for virtualisation, database or in-memory analytics workloads. Dual 10 GbE RJ45 ports and a dedicated IPMI 2.0 management port handle network and remote administration. Buyers who require GPU acceleration, more than eight internal RAID ports or single-thread frequencies above 2.0 GHz should evaluate alternative platforms.

24-bay storage capacity

The defining specification is the 24 hot-swap 3.5-inch drive bays paired with an 8-port 12 Gb/s SAS RAID controller. This combination determines how many drives can be attached internally and which RAID levels are available without adding external enclosures or additional controllers.

Puntos fuertes

  • Quad-socket Xeon processing with 40 total cores
  • 768 GB DDR4 ECC memory for large datasets
  • 24 hot-swap 3.5" drive bays for massive storage
  • Dual 10GBase-T ports for high-speed networking
  • Four 1620 W platinum redundant power supplies

Especificaciones

BrandSUPERMICRO
SeriesCSE-848X + X10QBi-R1.01A
ModelSYS-8048B-TRFT
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011
Number of CPU Cores10-Core Processor
# of Processors InstalledE7-4820 V4
Installed Memory Size768GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-STG-i2T - Intel X540 - 2x RJ45 10GBase-T Ports
Management PortRJ 45
Features24 x 3.5" SATA/SAS Hot-Plug Drive Bays

Preguntas sobre este artículo

Should I pick the 768 GB DDR4 configuration or add more memory later?

The system ships with 768 GB across 96 DDR4 slots; all slots are populated, so any increase means replacing modules rather than adding.

What does the 2.0 GHz Xeon E7-4820 v4 actually deliver in this 4U box?

Four 10-core processors run at a fixed 2.0 GHz with no turbo, giving 40 cores total for steady multi-threaded throughput.

How fast can the LSI MegaRAID 9361-8i and the X540 10GBase-T ports move data?

The RAID controller handles 12 Gb/s SAS per port across eight ports, while the dual 10GBase-T NICs cap at 10 Gb/s each over copper.
