White cylindrical access point with rounded ends, 1.9 inches wide by 6.3 inches tall

Ubiquiti Networks

Ubiquiti Networks U6-Mesh WiFi 6 access point

SKU CH-6VE0-FXFPW MPN U6-Mesh

Dual-band WiFi 6 access point with six spatial streams, PoE power and a single gigabit port covers 140 m indoors or out for 300+ devices

  • # of Users300+
  • Standards802.11a/b/g/n/ac/ax (WiFi 6)
  • WiFi GenerationWi-Fi 6
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO)

Options U6 Mesh

Las versiones tachadas existen, pero no están disponibles aquí.

  • Supports over 300 concurrent devices for high-density environments
  • WiFi 6 with six spatial streams delivers up to 4.8 Gbps throughput
  • 140 m operating range covers large indoor and outdoor areas
  • Powered by PoE through a single GbE RJ45 port

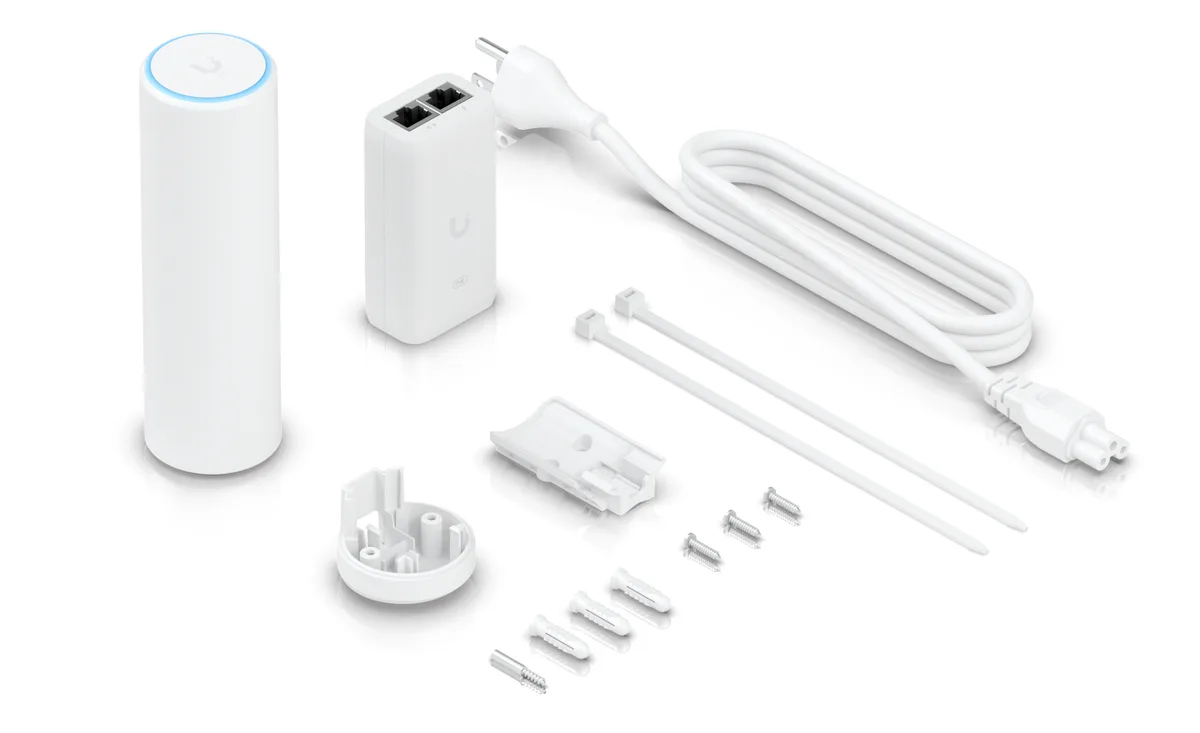

  • Versatile tabletop, wall and pole mounting options included

Indoor and outdoor WiFi 6 mesh access point

The Ubiquiti U6-Mesh is a WiFi 6 access point rated for both indoor and outdoor installation. It supports 802.11ax with six spatial streams and serves 300-plus concurrent clients. A single gigabit Ethernet port provides the wired uplink and the unit is powered entirely through PoE. It suits installers who need a compact mesh node that can mount on a wall, pole or tabletop.

Sustained throughput with six spatial streams

The 5 GHz radio uses a 4x4 MU-MIMO configuration while the 2.4 GHz radio uses 2x2, delivering up to 4.8 Gbps and 600 Mbps maximum PHY rates respectively. Both radios support downlink and uplink MU-MIMO so capacity scales when many devices transmit simultaneously. Advanced QoS with per-user rate limiting and eight BSSIDs per radio keep latency predictable under heavy load. Zero-wait DFS will be enabled by a future firmware update.

Passive cooling and PoE power draw

The cylindrical housing relies on convection cooling with no moving parts, so operation is silent in offices or covered outdoor areas. Transmit power reaches 22 dBm on 2.4 GHz and 26 dBm on 5 GHz within regulatory limits. Power is drawn from the PoE link, eliminating the need for a separate supply or nearby mains socket. The sealed enclosure meets the demands of sheltered exterior mounting.

Puntos fuertes

  • Supports over 300 concurrent devices for high-density environments
  • WiFi 6 with six spatial streams delivers up to 4.8 Gbps throughput
  • 140 m operating range covers large indoor and outdoor areas
  • Powered by PoE through a single GbE RJ45 port
  • Versatile tabletop, wall and pole mounting options included

Especificaciones

BrandUbiquiti Networks
SeriesWIFI Access points
ModelU6 Mesh
Part NumberU6-Mesh
# of Users300+
Standards802.11a/b/g/n/ac/ax (WiFi 6)
WiFi GenerationWi-Fi 6
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
Transmitted Power2.4 GHz 22 dBm
5 GHz 26 dBm
Mounting LocationIndoor
Operating RangeIndoor: Up to 140m, Outdoor: Up to 140m
Interface(1) GbE RJ45 port
LAN Ports(1) GbE RJ45 port
Power SupplyPoE
DimensionsØ48.5 x 159.5 mm (Ø1.9 x 6.3")
Weight400 g (14.1 oz)
FeaturesBSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Zero wait DFS Yes*
*Supported with upcoming firmware versions
Peso de envío1.00 kg
Dimensiones del paquete152 × 51 × 51 mm

Otras versiones de este modelo

2 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

How much power does the U6-Mesh draw when running 24/7?

The U6-Mesh is powered via PoE and has no built-in fan, so it runs silently with minimal heat output.

What network hardware must I already have to power and manage this access point?

You need a PoE injector or PoE switch to supply power through the single GbE RJ45 port, plus a UniFi controller for configuration.

Will the U6-Mesh mesh with my older UniFi AC access points?

Yes, it supports the same 802.11 standards down to 802.11a/b/g/n/ac and can join an existing UniFi mesh network managed by the same controller.
