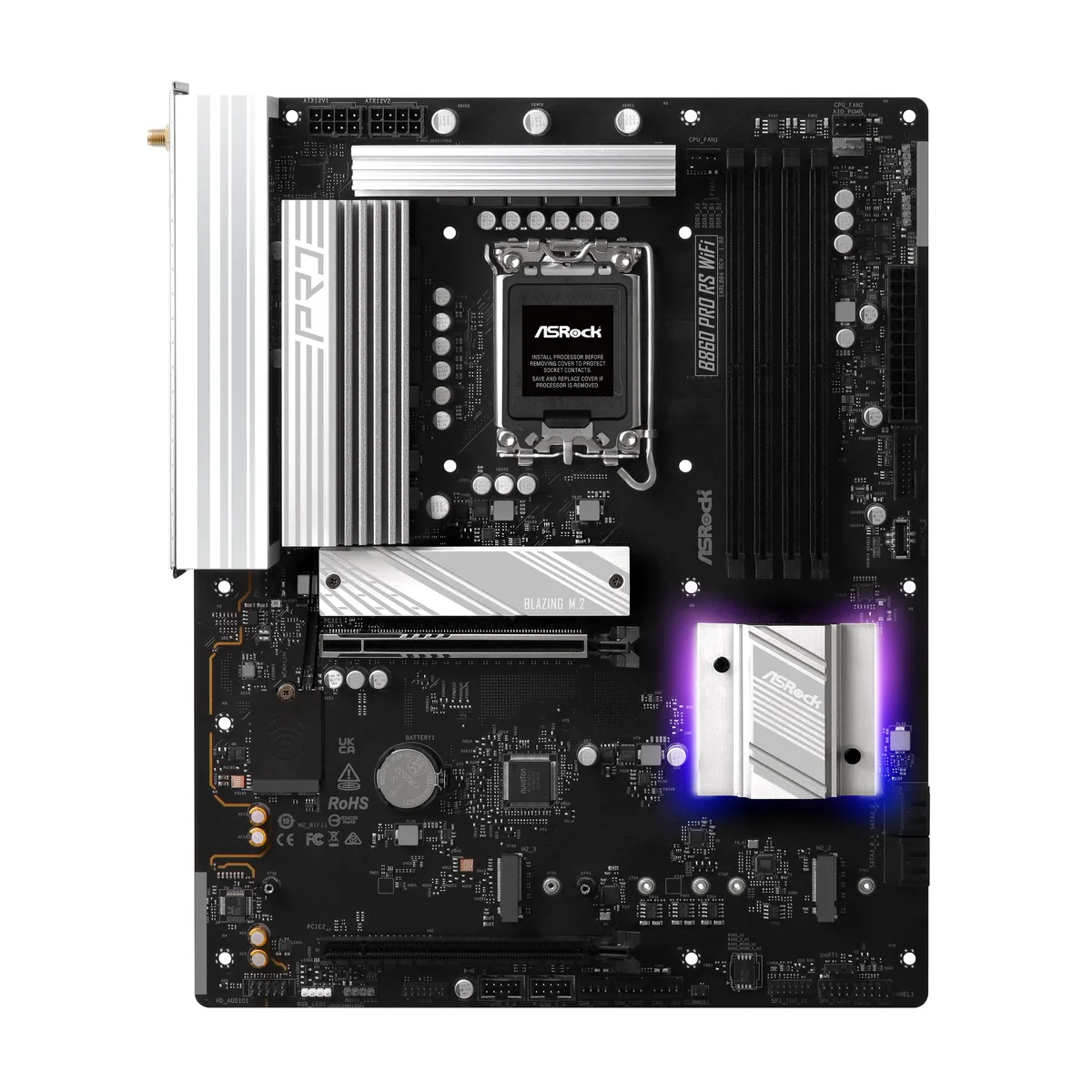

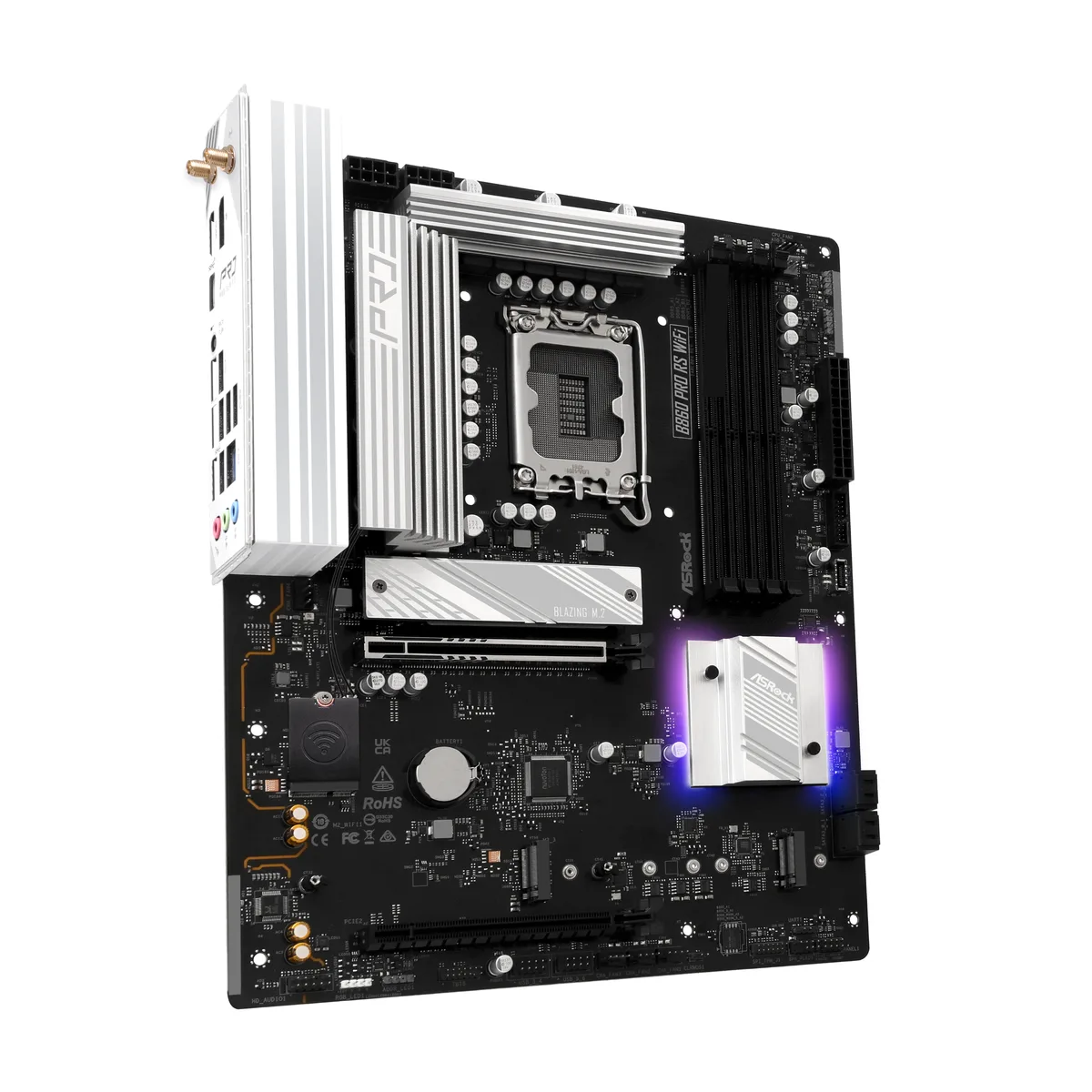

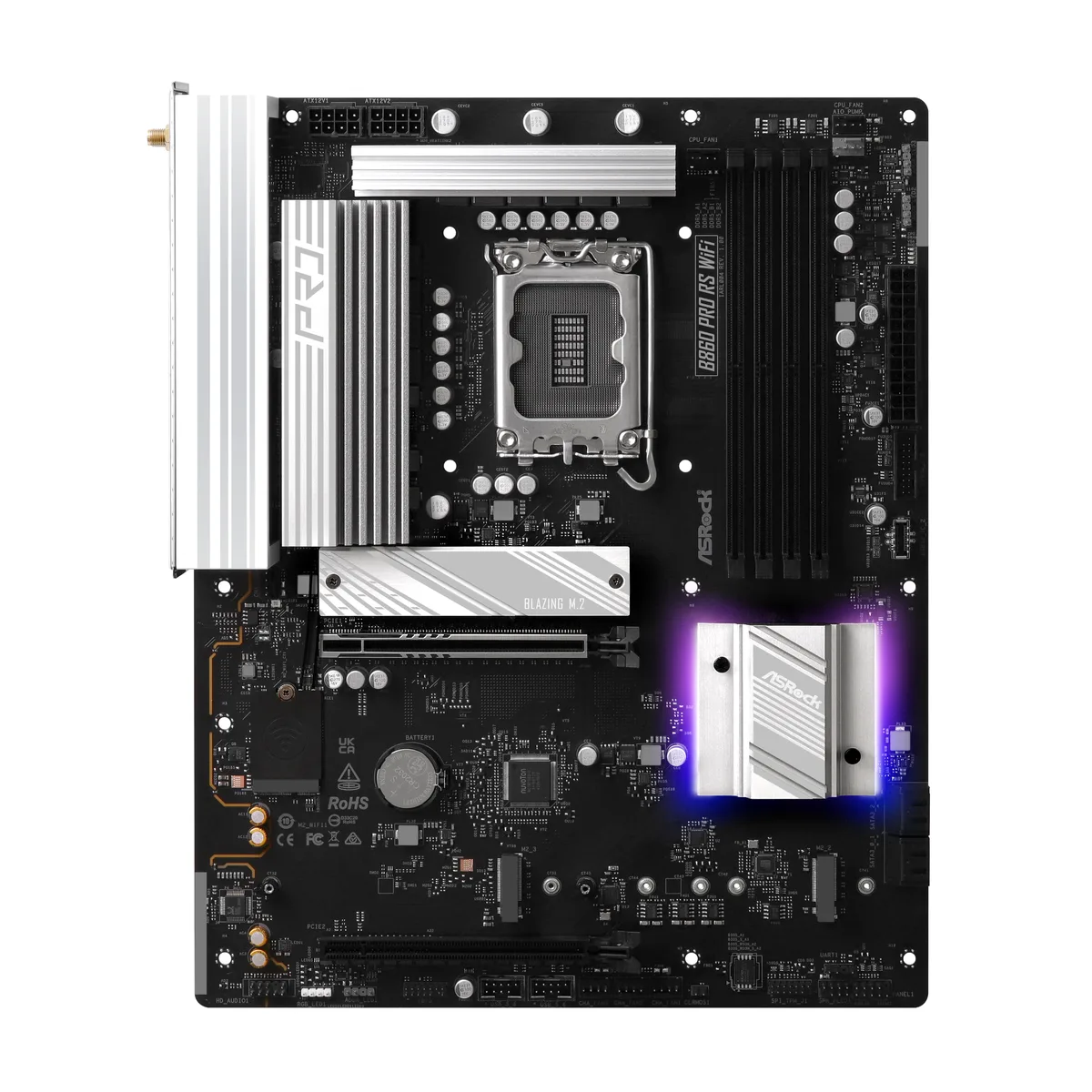

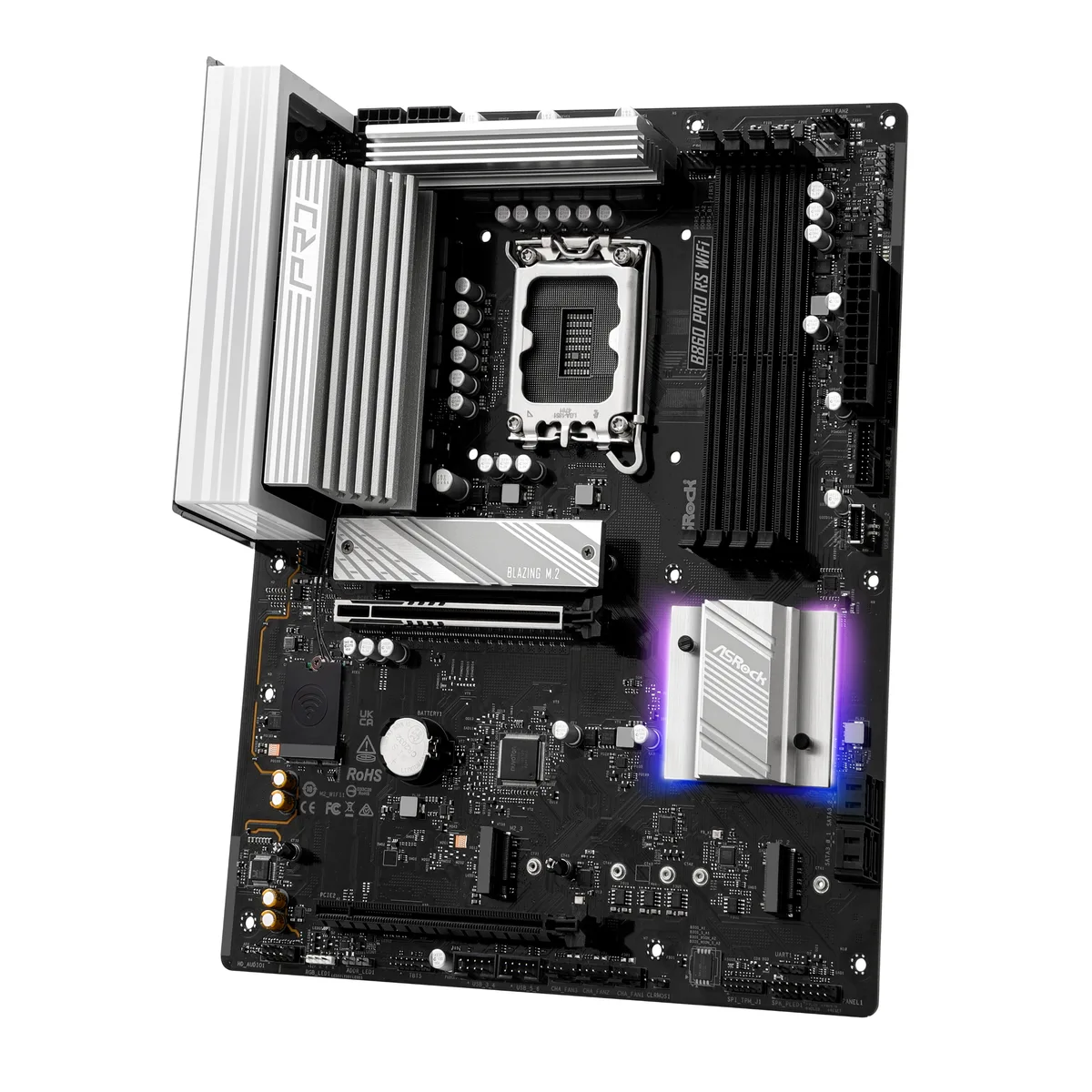

ATX motherboard in dark grey with silver heatsinks and four DDR5 slots

ASRock

ASRock B860 Pro RS WiFi Intel motherboard

SKU CH-YDKV-BJ4PE MPN B860 Pro RS WiFi

ATX board for Intel Core Ultra Series 2 CPUs on LGA 1851, four DDR5 slots up to 8666 MT/s, one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, four SATA ports, three M.2 sockets at Gen4 and one at Gen5.

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8666+(OC)
  • Maximum Memory Supported256GB

Option B860 Pro RS WiFi

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 10+1+1+1+1 power phase Dr.MOS design for stable CPU delivery
  • Four DDR5 slots up to 8666 MT/s OC with 256 GB max capacity
  • PCIe 5.0 x16 plus PCIe 4.0 x16 slots for GPU and add-in cards
  • Blazing M.2 Gen5 x4 128 Gb/s plus two Hyper M.2 Gen4 x4 64 Gb/s

Intel Core Ultra Series 2 platform

The ASRock B860 Pro RS WiFi is an ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It targets builders who want a modern mid-range foundation for gaming or content creation without stepping up to a Z-series chipset. The board delivers the essential connectivity and expansion these CPUs require.

256 GB DDR5 headroom

Four DDR5 slots accept up to 256 GB in dual-channel mode with XMP 3.0 profiles reaching 8666 MT/s. That capacity handles heavy multitasking and large project files comfortably, while the top overclocked speeds benefit memory-sensitive workloads. Everyday gaming and productivity run well within the standard JEDEC range.

Nahimic Audio and Dragon LAN

The Realtek ALC897 codec provides 7.1-channel output enhanced by Nahimic Audio software for spatial tuning and voice clarity. A Dragon RTL8125BG controller supplies wired networking, and the board includes Wi-Fi for wireless access. These integrated features reduce the need for separate sound or network cards.

Points forts

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 10+1+1+1+1 power phase Dr.MOS design for stable CPU delivery
  • Four DDR5 slots up to 8666 MT/s OC with 256 GB max capacity
  • PCIe 5.0 x16 plus PCIe 4.0 x16 slots for GPU and add-in cards
  • Blazing M.2 Gen5 x4 128 Gb/s plus two Hyper M.2 Gen4 x4 64 Gb/s

Caractéristiques

BrandASRock
ModelB860 Pro RS WiFi
Part NumberB860 Pro RS WiFi
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8666+(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureSupports DDR5 non-ECC, un-buffered memory up to 8666+(OC)*
Supports Clocked Unbuffered DIMM (CUDIMM)
PCI Express 5.0 x16CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 CH HD Audio with Content Protection
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
6 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Front Panel Audio Connector
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect
BIOS Feature256Mb AMI UEFI Legal BIOS with GUI support
SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Windows 11Windows 11 64-bit
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
FeaturesSuperb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Package Contents2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
Poids d’expédition1.81 kg
Dimensions du colis356 × 279 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Can I reuse my existing DDR5 modules in the B860 Pro RS WiFi's four 288-pin slots?

The board accepts DDR5 non-ECC unbuffered DIMMs up to 8666+(OC) and supports Intel XMP 3.0 profiles on all four slots.

How do I verify the PCIe 5.0 x16 slot and the Blazing M.2 socket are running at Gen5 speeds after assembly?

Check the BIOS or OS device manager for a x16 link on PCIE1 and a Gen5x4 link on M2_1; both should report 128 Gb/s bandwidth.

Which cables or brackets are included and what must I source separately for the 4 SATA 6Gb/s ports and the three M.2 sockets?

The box contains the ATX motherboard, I/O shield, SATA cables, M.2 screws and documentation; drives and DDR5 memory are not included.
