Black square mini PC barebone with front USB-C and USB-A ports

ASRock Industrial

ASRock Industrial NUC BOX-1340P/D4 barebone mini PC i5-1340P 2×2.5G LAN DDR4 64GB max

SKU CH-CANZ-DZKQ2 MPN NUC BOX-1340P/D4

Barebone mini PC with a 13th-gen Intel Core i5-1340P, dual 2.5 GbE LAN, Wi-Fi 6E, and quad-display support for up to 64 GB DDR4

  • ColorBlack
  • CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
  • CPU SocketIntel Socket LGA1700
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Options NUC Box-1340P/D4

  • 13th Gen Intel Core i5-1340P powers demanding workloads
  • Dual 2.5 GbE LAN ports deliver high-speed wired connectivity
  • Wi-Fi 6E and BT 5.2 provide fast wireless links
  • Quad display support via HDMI 2.0b and three DP 1.4a outputs
  • Up to 64 GB DDR4 3200 in dual-channel SO-DIMM slots

Ready-to-integrate mini PC

The ASRock Industrial NUC BOX-1340P/D4 is a barebone system with a soldered Intel Core i5-1340P processor. It arrives without memory or storage so integrators can choose DDR4 3200 SO-DIMMs up to 64 GB and an M.2 Key M SSD. Dual 2.5 Gigabit LAN ports and Wi-Fi 6E handle wired and wireless networking.

Suited for compact multi-display nodes

This unit fits digital-signage, kiosk and thin-client deployments that need four simultaneous screens via HDMI 2.0b and three DisplayPort 1.4a outputs. It is not for buyers who want a pre-built box with RAM and an OS already installed, nor for workloads that demand more than two SO-DIMM slots or a second M.2 Key M drive.

Dual 2.5 GbE LAN decides fit

Two Intel I226LM controllers provide 10/100/1000/2500 Mbps Ethernet, a specification that matters when the mini PC must aggregate camera streams or serve local files. If a project only needs single gigabit Ethernet, the extra port adds cost without benefit.

Points forts

  • 13th Gen Intel Core i5-1340P powers demanding workloads
  • Dual 2.5 GbE LAN ports deliver high-speed wired connectivity
  • Wi-Fi 6E and BT 5.2 provide fast wireless links
  • Quad display support via HDMI 2.0b and three DP 1.4a outputs
  • Up to 64 GB DDR4 3200 in dual-channel SO-DIMM slots

Caractéristiques

BrandASRock Industrial
SeriesNUC
ModelNUC BOX-1340P/D4
Part NumberNUC BOX-1340P/D4
ColorBlack
CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors i5-1340P
CPU SocketIntel Socket LGA1700
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Serial ATA1 x SATA3.0 (6.0 Gb/s)
M.2 Slot1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
Integrated GraphicsIntel® Iris® Xe Graphics
LAN2 x 2.5 Gigabit LAN
Max LAN SpeedIntel® I226LM with 10/100/1000/2500 Mbps
Wireless LAN1 x Wi-Fi 6E 802.11ax (2.4Gbps)
BluetoothBT 5.2

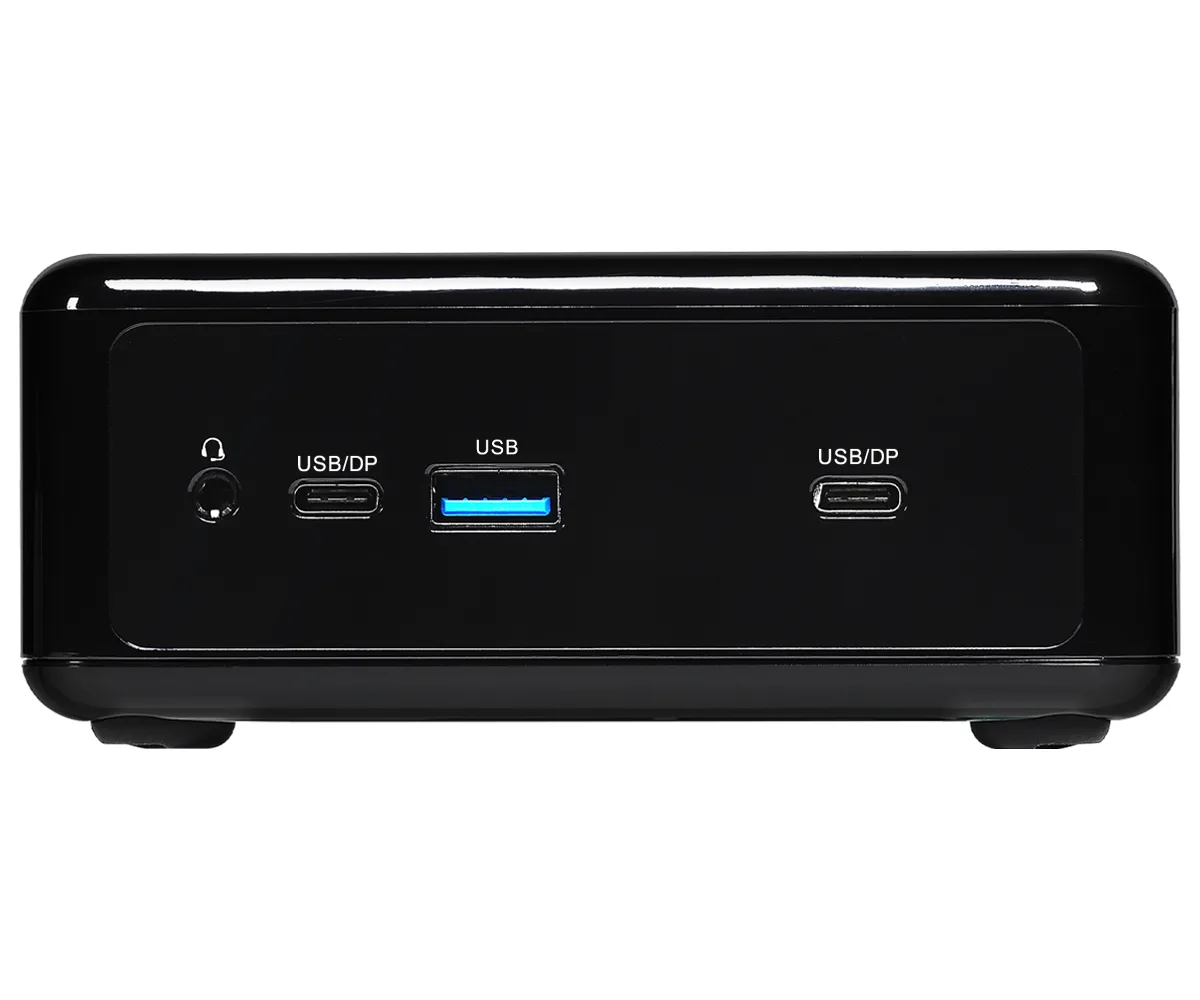

Front USB1 x USB 3.2 Gen2 (Type A)
1 x USB 4 (Supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
Front Audio Ports1 (headphone & microphone jack)

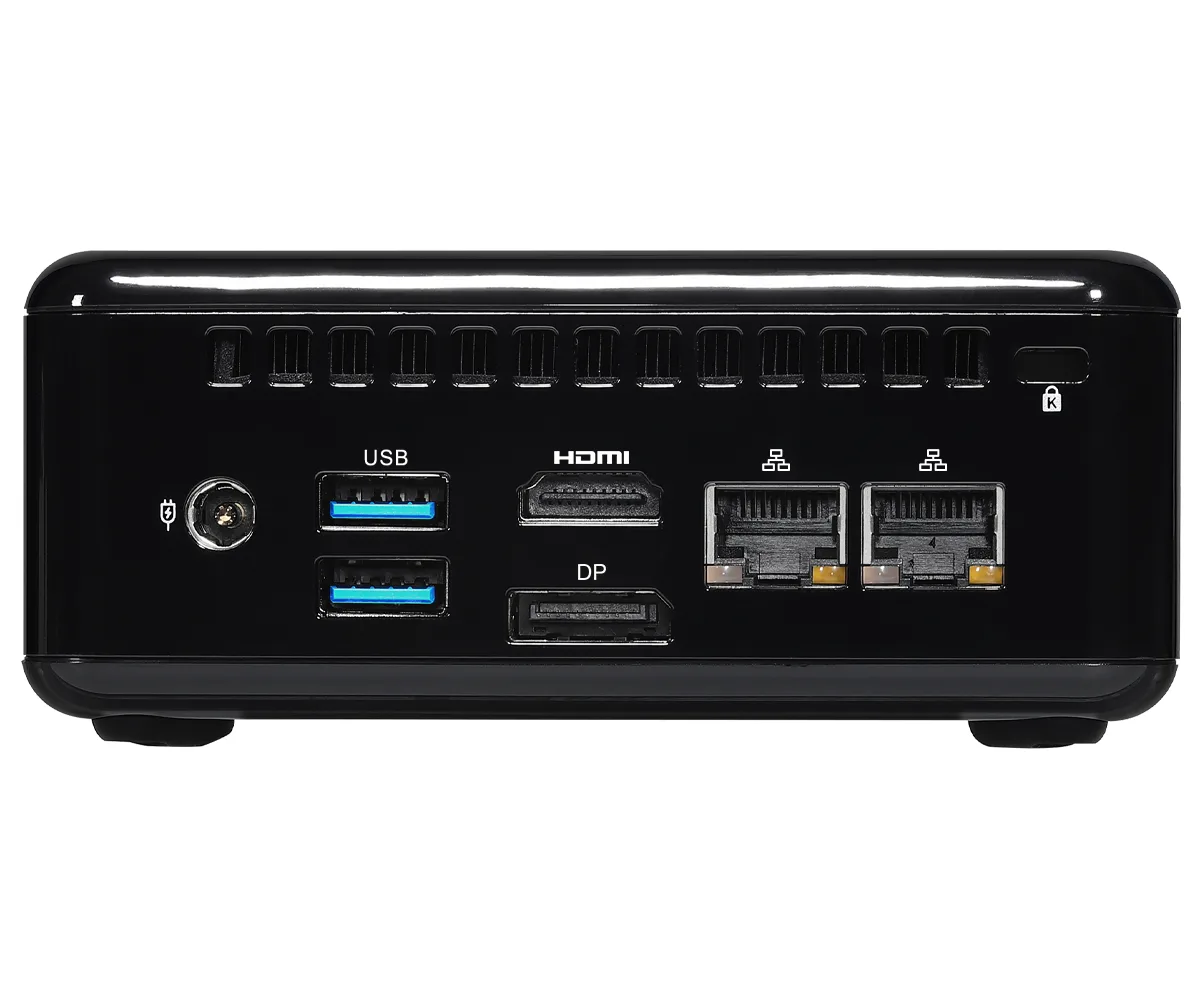

HDMI1 x HDMI 2.0b
DisplayPort1 x DP 1.4a
Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ452 x 2.5 Gigabit LAN
Input19V/90W Power Adapter
Dimensions110.0 x 117.5 x 47.85mm
WeightNet Weight:1.0Kg
MaterialPlastic with sheet metal
FeaturesTPM 2.0 onboard IC
OS support Windows 10/11
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
Quad-Display (Included 2 outputs from Type-C)
Watchdog Timer (Output :From Super I/O to drag RESETCON# ; interval 256 Segments, 0, 1, 2, ...255sec )
Packaging1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Poids d’expédition1.44 kg
Dimensions du colis225 × 138 × 118 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install RAM and an SSD in the NUC BOX-1340P/D4, and what step is often missed?

Insert two DDR4 3200 SO-DIMMs into the 260-pin slots and mount an M.2 2242/2260/2280 drive in the Key M slot; the 2280 length requires the supplied bracket, which is the step most builders forget.

Which parts will need replacement first during long-term operation?

The internal cooling fan is the only moving component; plan to clean or replace it when noise or temperature rise appears, while the soldered i5-1340P, Wi-Fi 6E module and TPM 2.0 IC are not user-serviceable.

What thermal limit appears first when the i5-1340P runs sustained loads in this 47.85 mm chassis?

The 90 W power adapter and compact fan define the cooling ceiling; under continuous multi-core work the CPU will hit its thermal throttle point before the 2.5 GbE or USB 4 controllers saturate.
