Black compact mini PC barebone with front USB ports and ventilation grille

ASRock Industrial

ASRock Industrial NUC BOX-1360P/D5 i7-1360P DDR5 4800 barebone mini PC

SKU CH-QM9Z-7RA39 MPN NUC BOX-1360P/D5

Barebone mini PC with Intel Core i7-1360P, dual-channel DDR5 4800 MHz up to 32 GB, dual 2.5 GbE LAN, Wi-Fi 6E, and quad-display support via HDMI 2.0b, USB4 and USB-C

  • ColorBlack
  • CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors (i7-1360P,
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDual Channel DDR5 4800 MHz
  • Max Memory Supported32GB

Options NUC Box-1360P/D5

  • 13th Gen Intel Core i7-1360P with 12 cores for responsive multitasking
  • Dual-channel DDR5 4800 MHz support up to 32 GB for fast memory bandwidth
  • M.2 Key M slot with PCIe Gen4 x4 for high-speed SSD storage
  • Dual 2.5 Gbps Intel LAN plus Wi-Fi 6E for reliable wired and wireless connectivity
  • Quad-display output via HDMI 2.0b, DP 2.1 and two DP 1.4a ports

Industrial barebone with i7-1360P

The ASRock Industrial NUC BOX-1360P/D5 is a compact barebone mini PC built around a 13th Gen Intel Core i7-1360P processor with four performance and eight efficient cores. It targets system integrators and IT teams who need a fan-cooled platform for digital signage, kiosks or edge workloads. No memory or storage is included so the final specification is chosen by the builder.

Fanned chassis with dual 2.5GbE and USB4

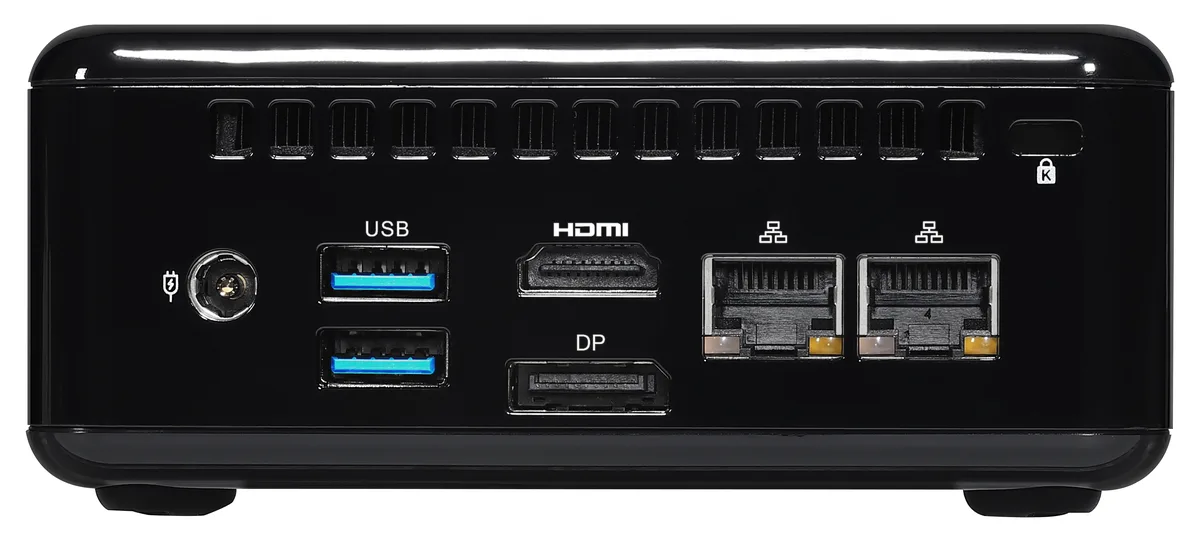

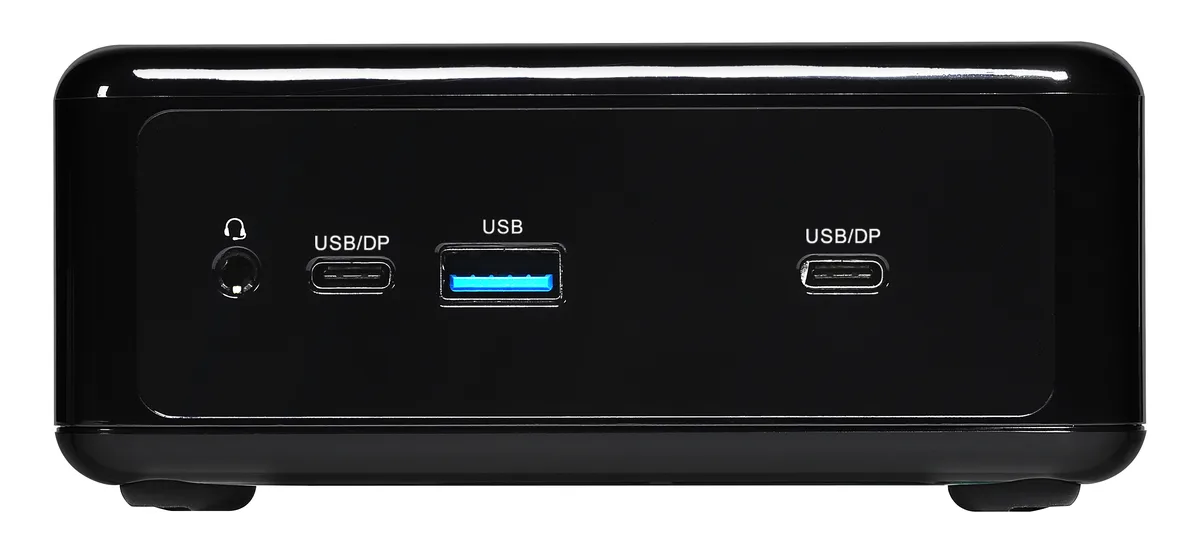

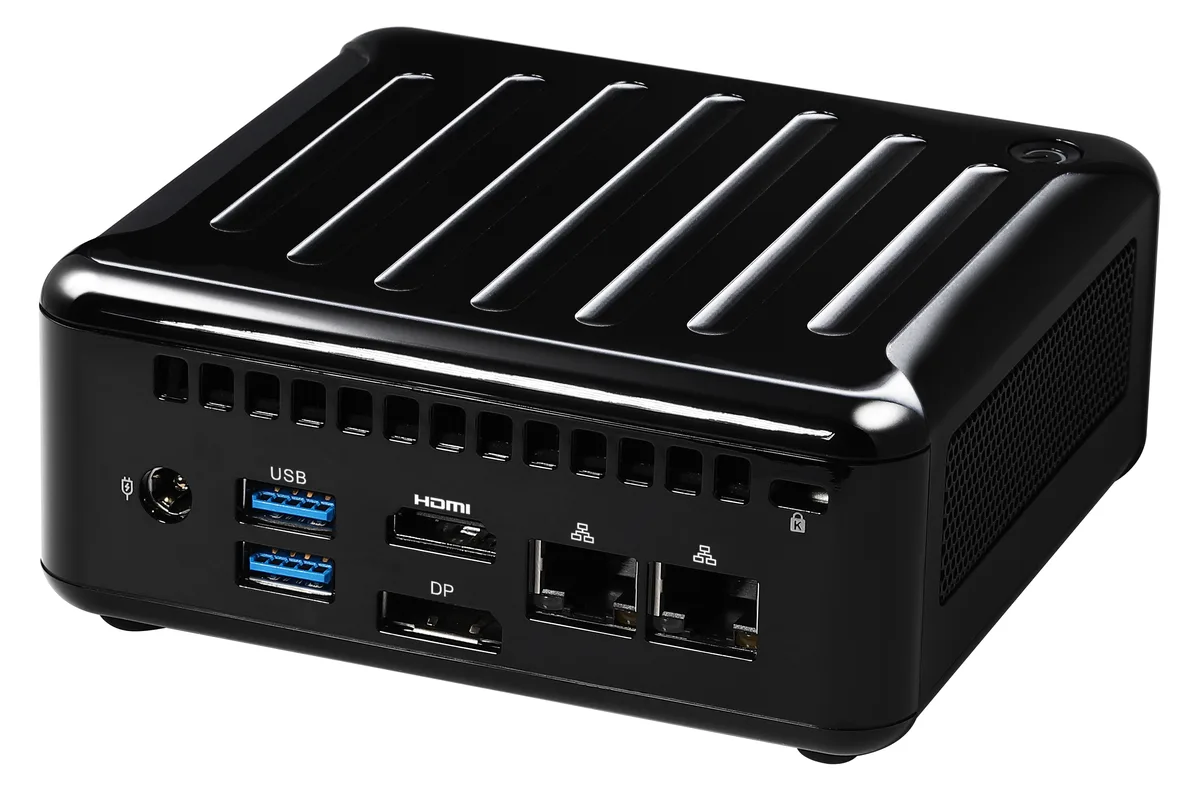

The black enclosure measures 110.0 x 117.5 x 47.85mm and uses active cooling for sustained loads. Two Intel I226 controllers provide dual 2.5Gbps LAN ports for wired infrastructure. Front I/O includes USB 3.2 Gen2 Type-A, USB4 with DP 2.1 output and USB 3.2 Gen2 Type-C with DP 1.4a output alongside a combo audio jack. A 120W power adapter is supplied.

Verify DDR5 SO-DIMM and M.2 Key M length

Buyers must source two 262-pin DDR5 4800 SO-DIMMs up to 32GB total and an M.2 Key M SSD in 2242, 2260 or 2280 form factor; the 2280 size requires the supplied bracket. Quad-display support relies on HDMI 2.0b plus the two DisplayPort alt-mode USB-C ports and the USB4 port. Wireless connectivity uses Wi-Fi 6E and BT 5.2.

Points forts

  • 13th Gen Intel Core i7-1360P with 12 cores for responsive multitasking
  • Dual-channel DDR5 4800 MHz support up to 32 GB for fast memory bandwidth
  • M.2 Key M slot with PCIe Gen4 x4 for high-speed SSD storage
  • Dual 2.5 Gbps Intel LAN plus Wi-Fi 6E for reliable wired and wireless connectivity
  • Quad-display output via HDMI 2.0b, DP 2.1 and two DP 1.4a ports

Caractéristiques

BrandASRock Industrial
ModelNUC BOX-1360P/D5
Part NumberNUC BOX-1360P/D5
ColorBlack
CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors (i7-1360P, 4P+8E)
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDual Channel DDR5 4800 MHz
Max Memory Supported32GB
Dual Channel Memory SupportedYes
M.2 Slot1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket
Integrated GraphicsIntel Iris Xe Graphics
Onboard AudioRealtek ALC256, High Definition Audio
LANLAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Max LAN Speed2.5Gbps
Wireless LAN1 x Wi-Fi 6E 802.11ax (2.4Gbps)
BluetoothBT 5.2
Front USB1 x USB 3.2 Gen2 (Type A)
1 x USB4/ThunderboltTM 4 (Supports DP 2.1 display output)
1 x USB3.2 gen2 (Type-C, Supports DP1.4a display output)
Front Audio Ports1 (headphone & microphone jack)
HDMI1 x HDMI 2.0b
DisplayPort1 x DP1.4a
Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ452 x RJ-45
Input12V~19V DC-In Jack
Dimensions110.0 x 117.5 x 47.85mm
WeightNet Weight : 1.0 KG
MaterialPlastic with sheet metal
FeaturesOS support : Windows 10/11
TPM 2.0 onboard IC
Packaging19V/120W Power Adapter (i7-1360P)
1 x Screw Package
1 x VESA mounting bracket
Poids d’expédition1.43 kg
Dimensions du colis226 × 140 × 119 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What speed does the M.2 Key M slot run at for the SSD?

The slot provides PCIe Gen4 x4, so a compatible SSD will operate at Gen4 x4 bandwidth.

What are the physical dimensions and mounting options for this barebone?

The chassis measures 110.0 x 117.5 x 47.85 mm and includes a bracket to secure a 2280-length M.2 drive.

How do I install memory, and what mistake should I avoid?

Insert two 262-pin DDR5 4800 MHz SO-DIMMs for dual-channel operation; the system supports up to 32 GB total.
