Small black square mini PC with rounded edges and front ports

ASRock Industrial

ASRock Industrial NUC BOX-1340P/D5 barebone mini PC, i5-1340P, DDR5, Wi-Fi 6E

SKU CH-RP5X-J5X6Q MPN NUC BOX-1340P/D5

Barebone mini PC with a 13th Gen Intel Core i5-1340P, dual-channel DDR5 4800 MHz support up to 32 GB, 2.5 GbE dual LAN, Wi-Fi 6E and quad-display output via HDMI 2.0b and USB4

  • ColorBlack
  • CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors (i5-1340P,
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDual Channel DDR5 4800 MHz
  • Max Memory Supported32GB

Options NUC Box-1340P/D5

  • 13th Gen Intel Core i5-1340P with 4 performance and 8 efficient cores
  • Dual-channel DDR5 4800 MHz support up to 32 GB across two SO-DIMM slots
  • Wi-Fi 6E plus dual Intel 2.5 Gbps LAN ports
  • Quad-display via HDMI 2.0b, DP 2.1 from USB4 and two DP 1.4a outputs
  • Compact 110 x 117.5 x 47.85 mm fanned barebone with 19 V 90 W adapter

Compact 13th Gen barebone for quad-display workflows

The ASRock Industrial NUC BOX-1340P/D5 arrives as a new barebone mini PC with a soldered Intel Core i5-1340P processor. It targets integrators and power users who need four simultaneous display outputs and dual 2.5 GbE LAN in a 110.0 x 117.5 x 47.85 mm fanned chassis. A 19 V 90 W adapter is included.

Suits builders adding their own DDR5 SO-DIMMs

This unit ships with no memory installed and no storage drive, so buyers must supply up to 32 GB of dual-channel DDR5 4800 MHz modules and a 2242, 2260 or 2280 M.2 Key M SSD. It is not for buyers who want a complete system out of the box or who require more than one internal M.2 slot.

Single M.2 Key M slot with PCIe Gen4 x4

The sole M.2 Key M interface provides one PCIe Gen4 x4 lane for a primary solid-state drive. A bracket is required for the 2280 form factor. No additional M.2 storage connectors are present.

Points forts

  • 13th Gen Intel Core i5-1340P with 4 performance and 8 efficient cores
  • Dual-channel DDR5 4800 MHz support up to 32 GB across two SO-DIMM slots
  • Wi-Fi 6E plus dual Intel 2.5 Gbps LAN ports
  • Quad-display via HDMI 2.0b, DP 2.1 from USB4 and two DP 1.4a outputs
  • Compact 110 x 117.5 x 47.85 mm fanned barebone with 19 V 90 W adapter

Caractéristiques

BrandASRock Industrial
ModelNUC BOX-1340P/D5
Part NumberNUC BOX-1340P/D5
ColorBlack
CPU TypeIntel® 13th Gen (Raptor Lake-P) Core™ Processors (i5-1340P, 4P+8E))
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDual Channel DDR5 4800 MHz
Max Memory Supported32GB
Dual Channel Memory SupportedYes
M.2 Slot1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket
Integrated GraphicsIntel Iris Xe Graphics
Onboard AudioRealtek ALC256, High Definition Audio
LANLAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Max LAN Speed2.5Gbps
Wireless LAN1 x Wi-Fi 6E 802.11ax (2.4Gbps)
BluetoothBT 5.2
2.5" Internal Bays1

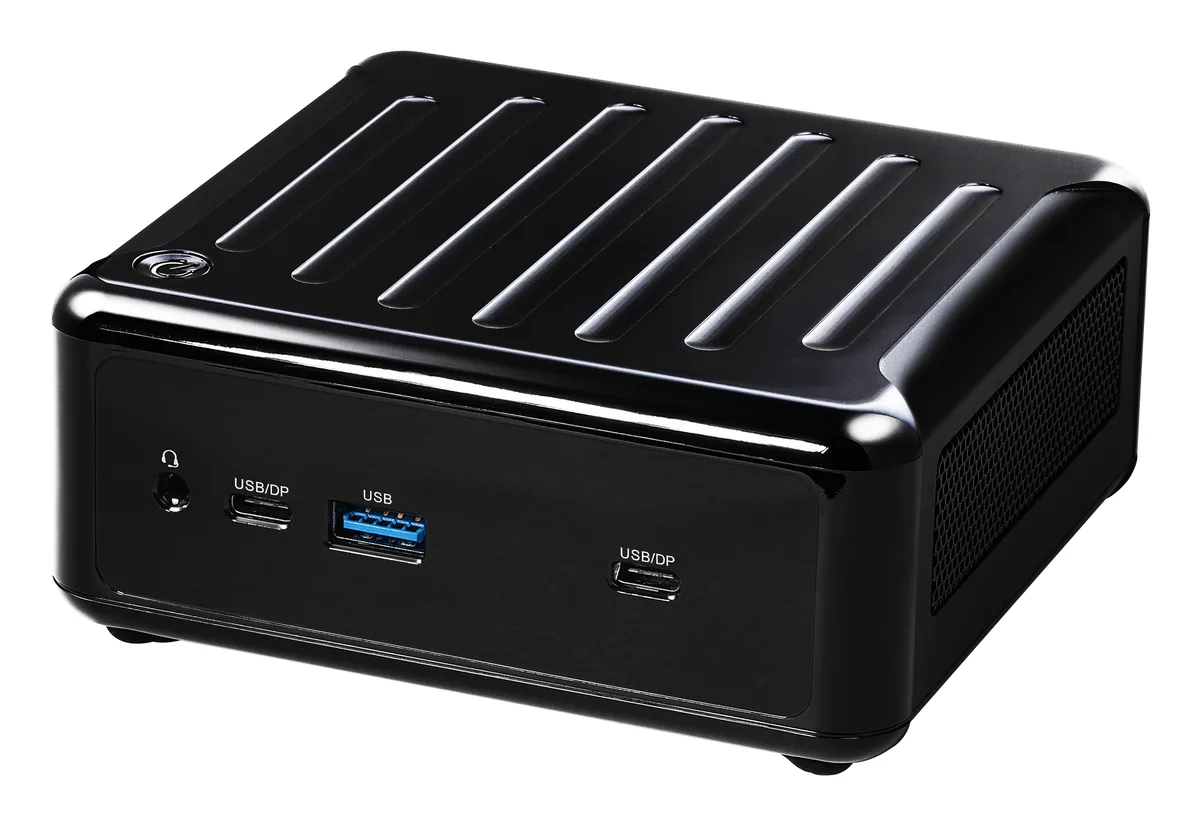

Front USB1 x USB 3.2 Gen2 (Type A)
1 x USB4/ThunderboltTM 4 (Supports DP 2.1 display output)
1 x USB3.2 gen2 (Type-C, Supports DP1.4a display output)
Front Audio Ports1 (headphone & microphone jack)
HDMI1 x HDMI 2.0b
DisplayPort1 x DP1.4a

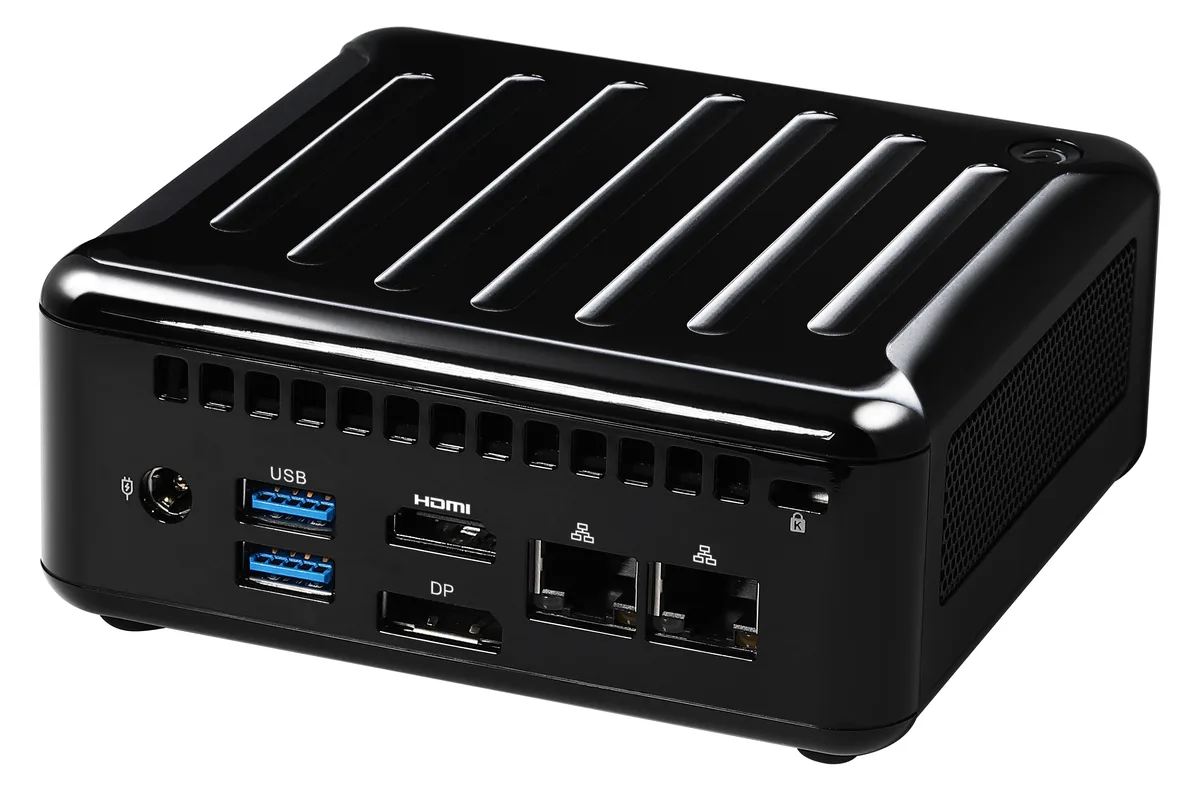

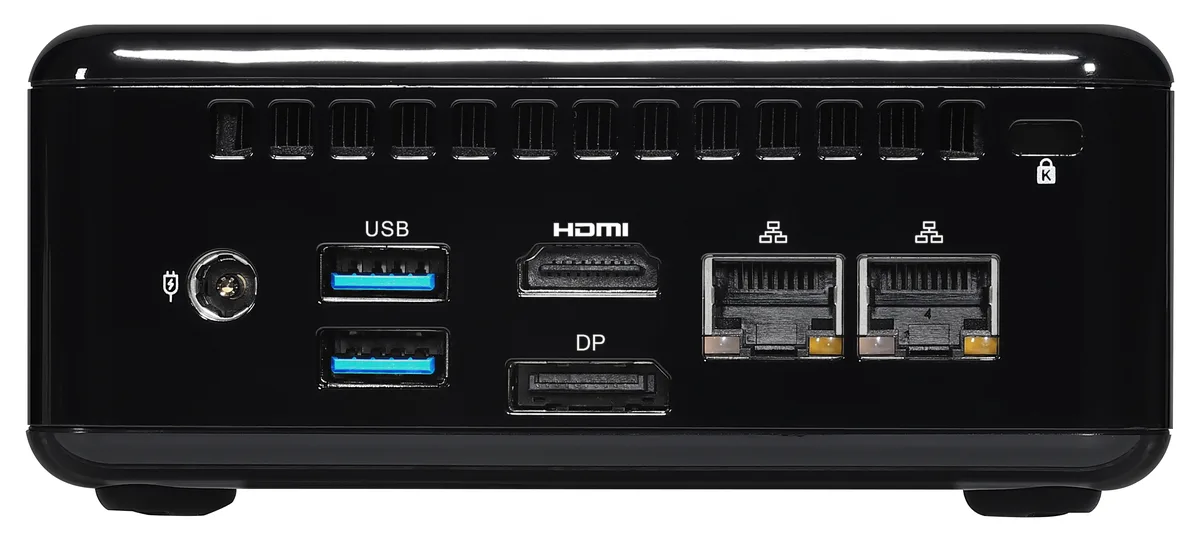

Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ452 x RJ-45
Input12V~19V DC-In Jack
Power Supply19V/90W Power Adapter
Dimensions110.0 x 117.5 x 47.85mm
MaterialPlastic with sheet metal
FeaturesOS Support Windows 10/11
TPM 2.0 onboard IC
Packaging19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Poids d’expédition1.43 kg
Dimensions du colis226 × 140 × 119 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud and hot does the i5-1340P get with the 19V 90W adapter under constant load?

The fan-cooled chassis measures 110.0 x 117.5 x 47.85 mm and uses a 19V 90W power adapter; the 13th Gen i5-1340P (4P+8E) runs at 4800 MHz DDR5 with integrated Iris Xe graphics.

Which DDR5 SO-DIMMs and M.2 SSD do I need to add before this barebone will boot?

You must supply two 262-pin DDR5 4800 MHz SO-DIMMs up to 32 GB total and one M.2 Key M drive (2242, 2260 or 2280) with PCIe Gen4 x4; 2280 length requires the included bracket.

Will my older 2.5-inch drive and 1080p monitor work with the 2.5 GbE LAN and HDMI 2.0b port?

A single 2.5-inch internal bay is provided for legacy storage; HDMI 2.0b drives one 1080p display while dual 2.5 GbE Intel I226 ports handle wired networking.
