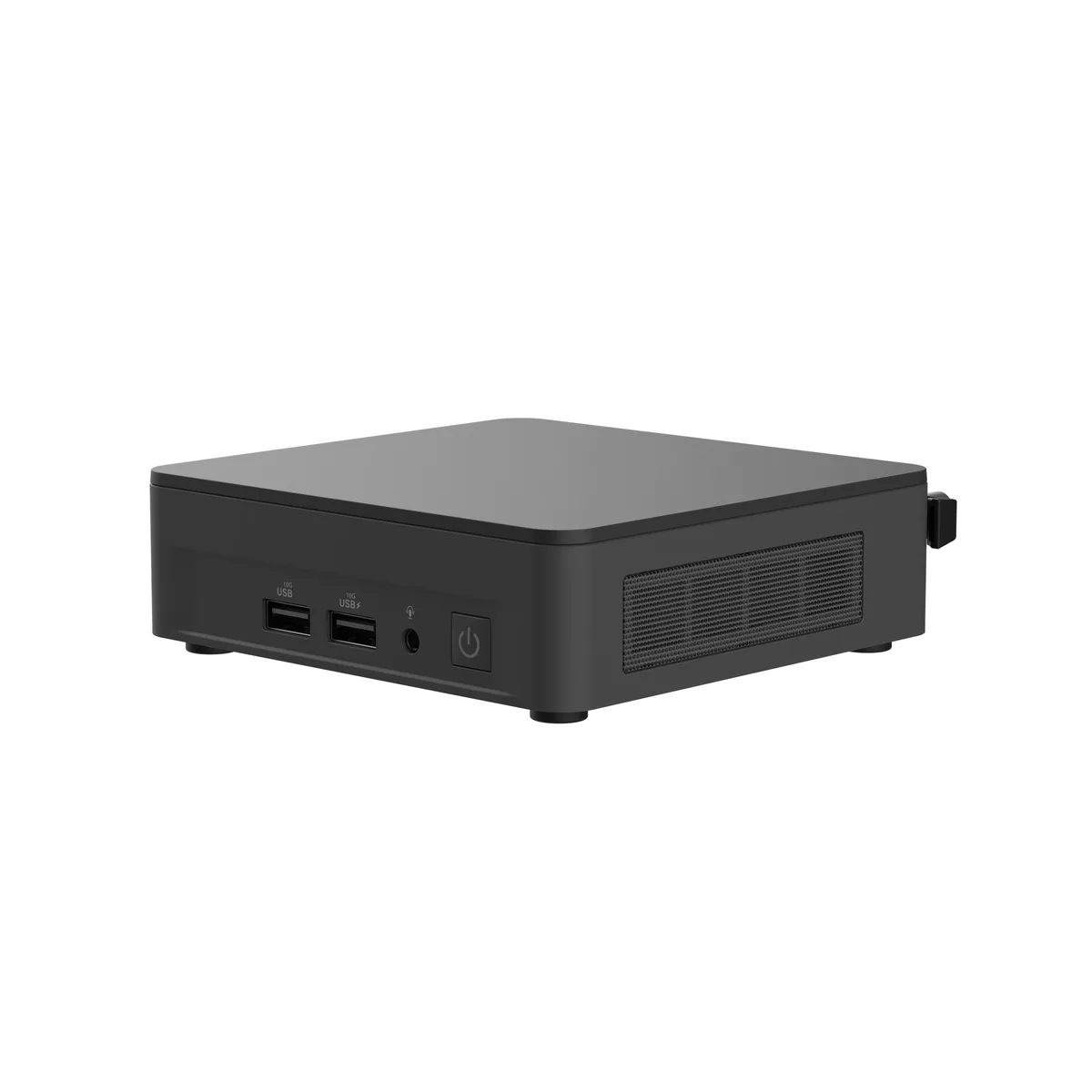

Compact black barebone mini PC with slim rectangular chassis

ASUS

ASUS NUC 13 PRO RNUC13ANKI70000UI barebone mini PC i7-1360P DDR4 64GB max

SKU CH-HTVG-JDR9N MPN RNUC13ANKI70000UI

Slim barebone mini PC with an Intel Core i7-1360P processor, DDR4 memory support up to 64GB, and a PCIe Gen4 M.2 slot for NVMe storage

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core i7-1360P
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Type Intel Core i7-1360P

Group Slim Kit

  • Intel Core i7-1360P processor powers demanding workloads
  • 5 Gbps Ethernet and Wi-Fi 6E deliver fast network connectivity
  • Dual Thunderbolt 4 ports support up to four 4K displays
  • Two DDR4 SO-DIMM slots accept up to 64 GB memory
  • M.2 2280 PCIe Gen4 slot fits NVMe SSD up to 8 TB

ASUS NUC 13 Pro i7-1360P barebone

The ASUS NUC 13 Pro RNUC13ANKI70000UI is a slim barebone mini PC built around an Intel Core i7-1360P processor with Intel Iris Xe graphics. It targets users who want a compact, quiet system for office productivity, digital signage or light content creation and who prefer to choose their own memory, storage and operating system.

Upgrading from older NUCs or full-size desktops

This unit replaces larger towers or earlier-generation NUC kits when space, noise or power draw are the primary concerns. The jump is worth it if you need 2.5GbE wired networking, Wi-Fi 6E and up to four 4K displays driven through two HDMI 2.1 ports and two Thunderbolt 4 ports, but you do not require discrete graphics performance.

Installing memory, SSD and OS

Installation requires inserting two 260-pin DDR4 3200 SO-DIMMs up to 64 GB total and one M.2 2280 PCIe Gen4 NVMe SSD from 128 GB to 8 TB, then adding an operating system. The slim chassis leaves little working room, so cable routing for the DC-in and the cable-locking arm can be awkward; forgetting to seat the SO-DIMMs fully is the most common cause of a no-post condition.

Points forts

  • Intel Core i7-1360P processor powers demanding workloads
  • 5 Gbps Ethernet and Wi-Fi 6E deliver fast network connectivity
  • Dual Thunderbolt 4 ports support up to four 4K displays
  • Two DDR4 SO-DIMM slots accept up to 64 GB memory
  • M.2 2280 PCIe Gen4 slot fits NVMe SSD up to 8 TB

Caractéristiques

BrandASUS
SeriesNUC 13 PRO
ModelRNUC13ANKI70000UI
Part Number90AR0031-M000C0
ColorBlack
Form FactorSlim
CPU TypeIntel Core i7-1360P
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe SSD
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (up to 4K@60Hz)

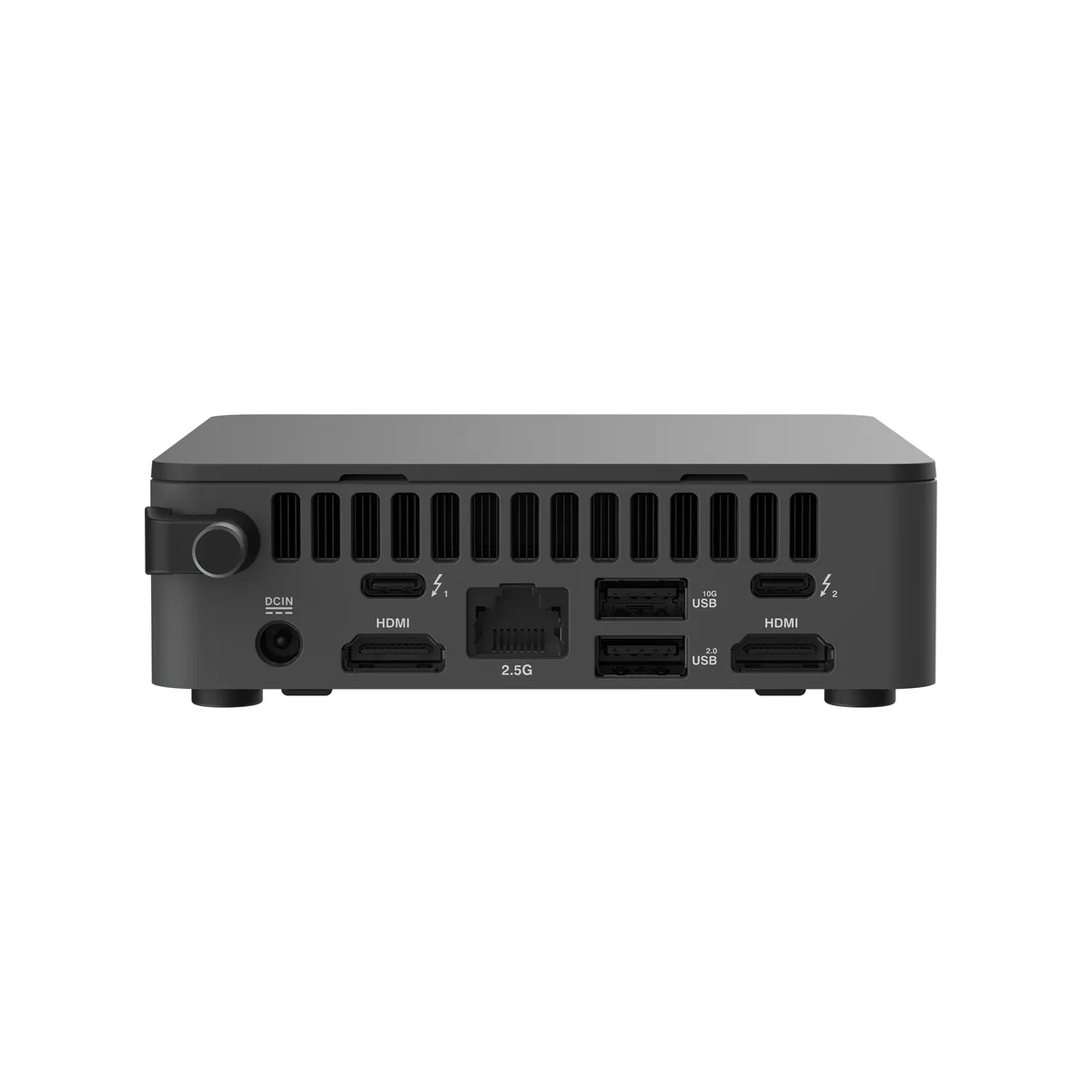

Rear USB2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel i226-V LAN, 2.5GbE (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply120W
Dimensions4.61" x 4.41" x 1.45"
Weight1.07 lbs.
FeaturesPerformance: Powered by a 13th Gen Intel Core i7-1360P processor with integrated Intel Iris Xe Graphics
Compact Design: Maximize productivity without sacrificing space, the ultrasmall 4x4 form factor enables easy setup on walls or behind monitors with the included VESA mount
Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel Ethernet port, Bluetooth, and Intel Wi-Fi 6E (Gig+)
Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt 4 Type-C ports for a variety of digital signage and dis
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord
Poids d’expédition1.54 kg
Dimensions du colis191 × 165 × 102 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What size DDR4 SO-DIMM modules fit the two 260-pin slots?

The board accepts two 260-pin DDR4 3200 SO-DIMMs up to 64 GB total.

Which screw secures the M.2 2280 NVMe drive during installation?

The M.2 2280 slot uses a single mounting screw; install the drive at an angle then fasten it down before closing the chassis.

When should the internal fan be cleaned in a dusty environment?

Remove the bottom cover and blow out the fan and heatsink fins every six to twelve months to maintain airflow.
