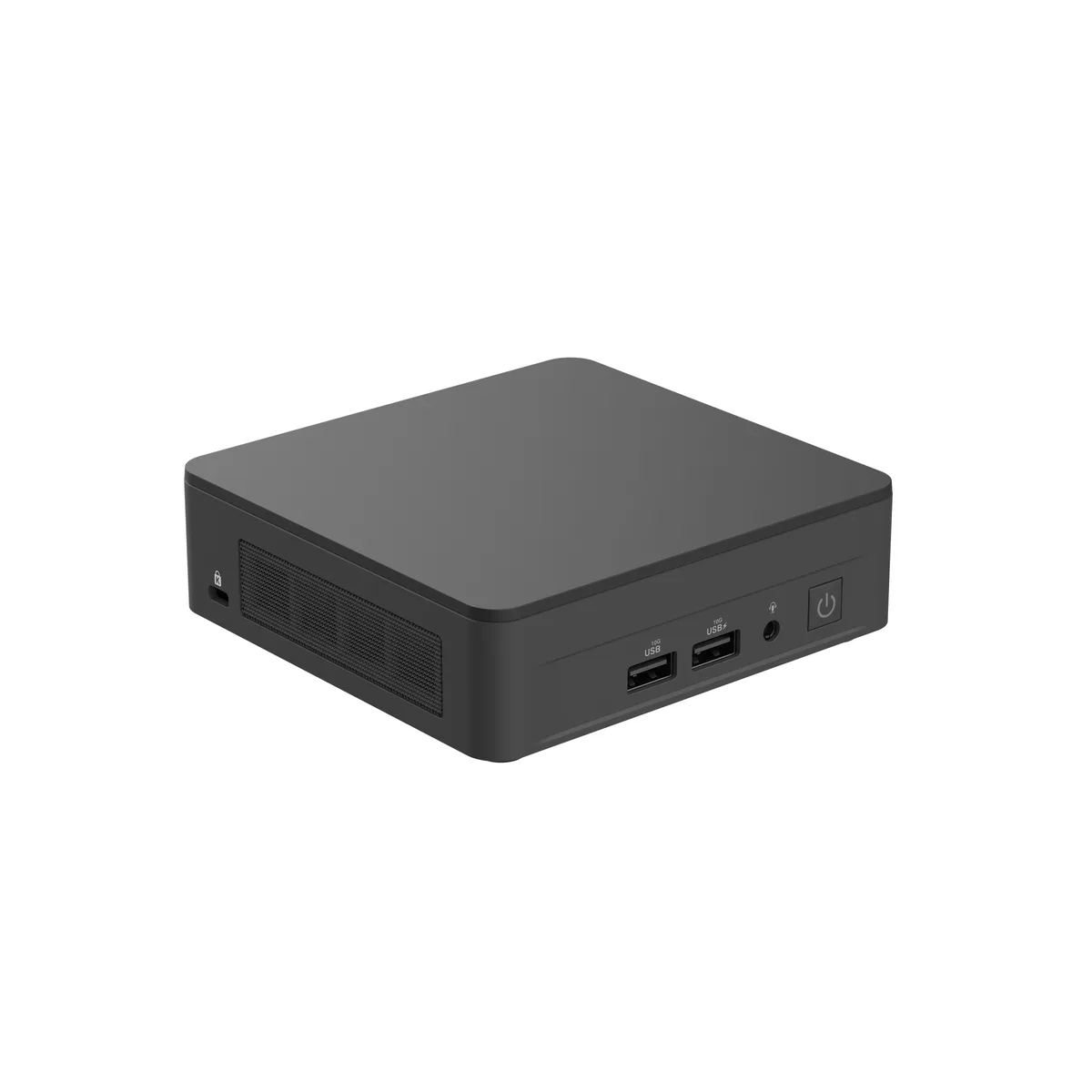

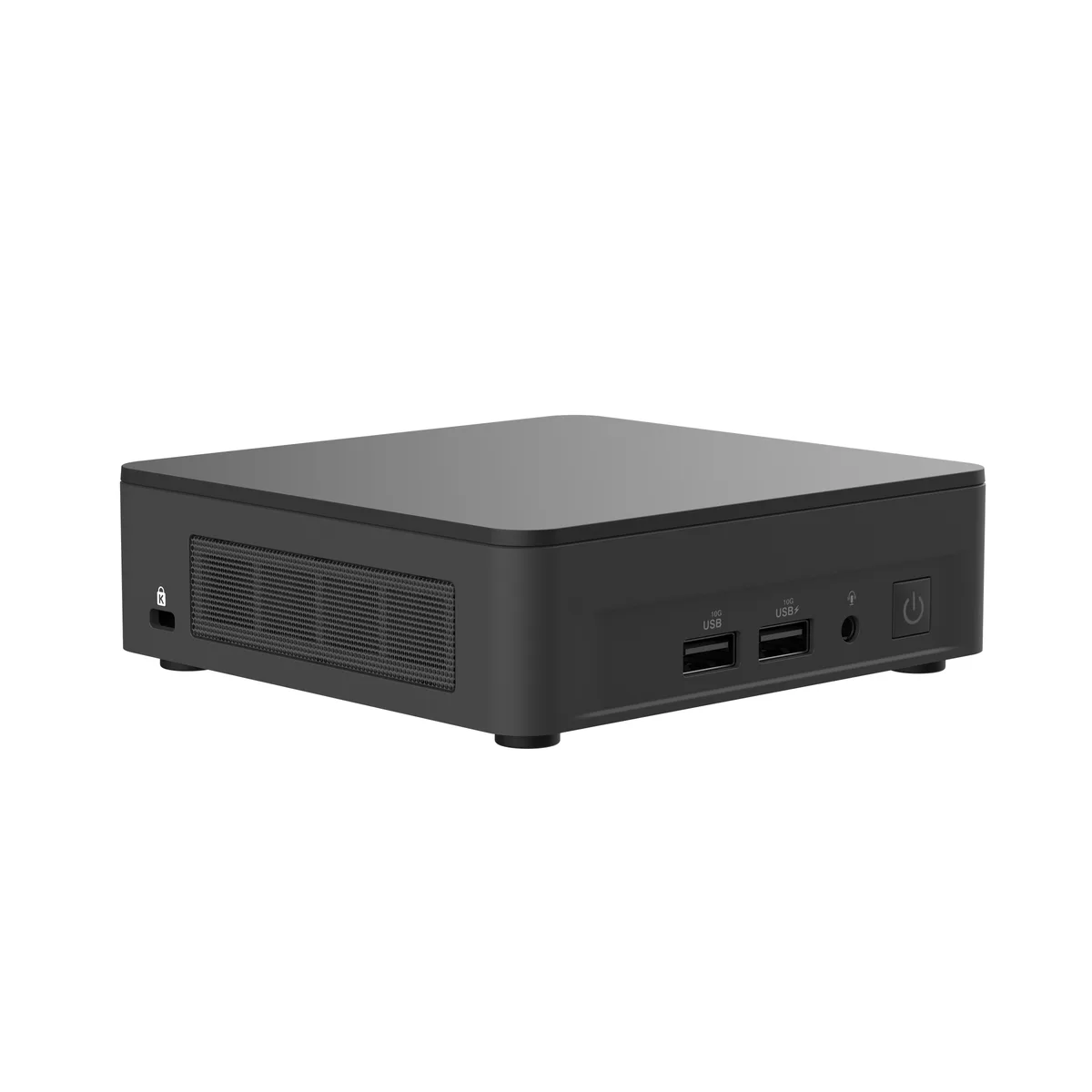

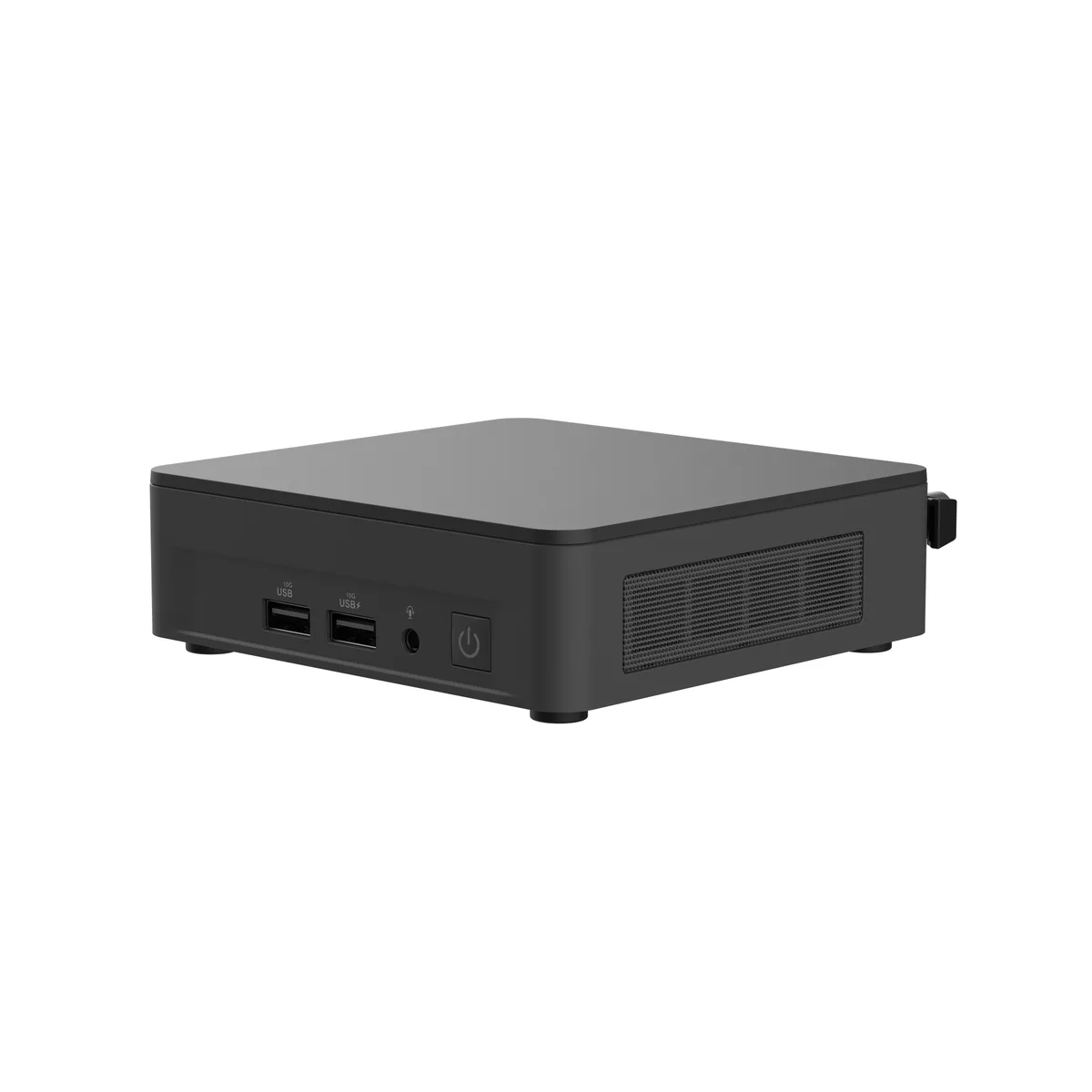

Small black rectangular barebone mini PC, slim profile

ASUS

ASUS RNUC13ANKI50000UI barebone mini PC i5-1340P DDR4

SKU CH-VGW5-W1FKF MPN RNUC13ANKI50000UI

Slim barebone kit with Core i5-1340P, DDR4 3200 support up to 64 GB, M.2 PCIe Gen4x4 slot, 2.5 GbE, Wi-Fi 6E, Bluetooth 5.3 and Thunderbolt 4

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core i5-1340P
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Type Intel Core i5-1340P

Group Slim Kit

  • Ready for your DDR4 3200 memory up to 64 GB
  • 5 Gbps LAN and Wi‑Fi 6E for fast network access
  • Thunderbolt 4 ports drive up to four 4K displays
  • Slim 4.6 cm chassis includes VESA mount for tight spaces
  • 120 W power supply supports the 28 W i5‑1340P CPU

Compact barebone for custom builds

The ASUS NUC 13 Pro RNUC13ANKI50000UI is a slim mini PC barebone built around an Intel Core i5-1340P processor with 28W TDP and Intel Iris Xe graphics. It arrives without memory or storage, letting integrators choose DDR4 3200 SO-DIMMs up to 64GB and an M.2 2280 PCIe Gen4x4 NVMe SSD from 128GB to 8TB. A 120W power supply is included.

Suited for signage and office deployments

This kit fits digital signage, kiosk and compact office roles that need multi-monitor output through dual Thunderbolt 4 ports with DisplayPort 1.4 and dual HDMI, plus 2.5GbE LAN, Wi-Fi 6E and Bluetooth 5.3. Buyers who want a complete system with RAM and an SSD pre-installed, or who need more than one M.2 slot, should look at a different configuration.

Straightforward assembly with VESA mount

The chassis opens for two 260-pin SO-DIMM modules and one M.2 2280 drive; the included VESA bracket allows wall or behind-monitor mounting. Common issues are inserting DDR4 modules at the wrong angle, forgetting to enable the M.2 slot in BIOS, and using a drive thicker than the single-sided clearance allows.

Points forts

  • Ready for your DDR4 3200 memory up to 64 GB
  • 5 Gbps LAN and Wi‑Fi 6E for fast network access
  • Thunderbolt 4 ports drive up to four 4K displays
  • Slim 4.6 cm chassis includes VESA mount for tight spaces
  • 120 W power supply supports the 28 W i5‑1340P CPU

Caractéristiques

BrandASUS
SeriesNUC 13 PRO
ModelRNUC13ANKI50000UI
Part Number90AR0031-M00070
ColorBlack
Form FactorSlim
CPU TypeIntel Core i5-1340P
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe SSD
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3

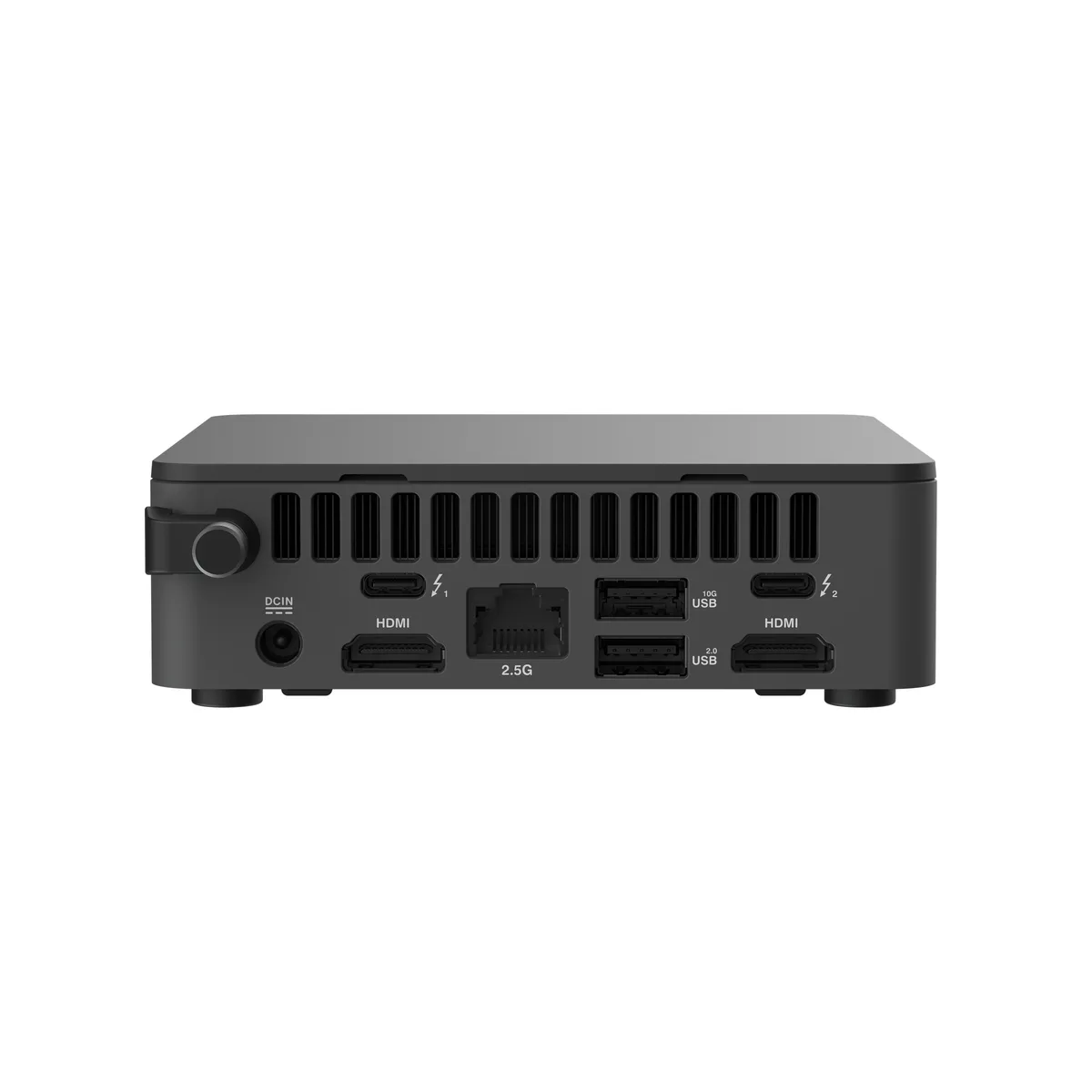

Front USB2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel i226-V LAN, 2.5GbE (RJ45)
Other Rear Ports2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W
Dimensions4.61" x 4.41" x 1.45"
Weight1.07 lbs.
FeaturesPerformance: Powered by a 13th Gen Intel Core i5-1340P processor with integrated Intel Iris Xe Graphics
Compact Design: Maximize productivity without sacrificing space, the ultrasmall 4x4 form factor enables easy setup on walls or behind monitors with the included VESA mount
Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel Ethernet port, Bluetooth, and Intel Wi-Fi 6E (Gig+)
Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt 4 Type-C ports for a variety of digital signage and dis
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord
Poids d’expédition1.52 kg
Dimensions du colis198 × 165 × 102 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR4 SO-DIMM modules do I need to add to the two 260-pin slots?

Install two DDR4 3200 SO-DIMMs up to 64 GB total; the board has two 260-pin slots and ships with no memory installed.

Will my existing 2.5 Gbps switch and Wi-Fi 6E router work with the Intel i226-V LAN and AX211 wireless?

Yes, the 2.5 Gbps Ethernet port and Wi-Fi 6E AX211 adapter are backward compatible with your current switch and router.

How can I verify the Core i5-1340P and Iris Xe graphics are running correctly after I add memory and an NVMe SSD?

Open Task Manager to confirm 12 threads at 28 W TDP and Device Manager to show Intel Iris Xe Graphics without errors.
