ATX motherboard with large silver heatsinks, integrated I/O cover, and a Ryzen 9 9950X CPU in the AM5 socket

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 AMD motherboard & Ryzen 9 9950X CPU combo

SKU CH-D9AN-AXAYA

ATX motherboard with 16+2+1 power stages, four DDR5 slots, two PCIe 5.0 and two PCIe 4.0 M.2 slots, WiFi 7 and 5 Gbps LAN, paired with a 16-core 5.7 GHz Ryzen 9 9950X CPU

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU +R9 9950X

  • 16-core 32-thread Ryzen 9 9950X delivers 5.7 GHz max boost for heavy multitasking
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors feed the CPU cleanly
  • Four DDR5 slots support up to 256 GB at 8000+ MT/s for large memory workloads
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks give fast storage expansion
  • WiFi 7 plus Realtek 5Gb Ethernet provide high-throughput low-latency networking

Combo purpose

The bundle pairs an ASUS ROG STRIX X870E-H GAMING WIFI7 motherboard with an AMD Ryzen 9 9950X processor for the AM5 socket. It targets builders who need 16 cores and 32 threads for heavy multitasking, content creation or advanced AI workloads. The board delivers 16+2+1 power stages rated at 80A each, dual 8-pin CPU power connectors and support for DDR5 memory up to 8000 MT/s. PCIe 5.0 x16 and two PCIe 5.0 M.2 slots provide high-bandwidth expansion.

Thermals and power

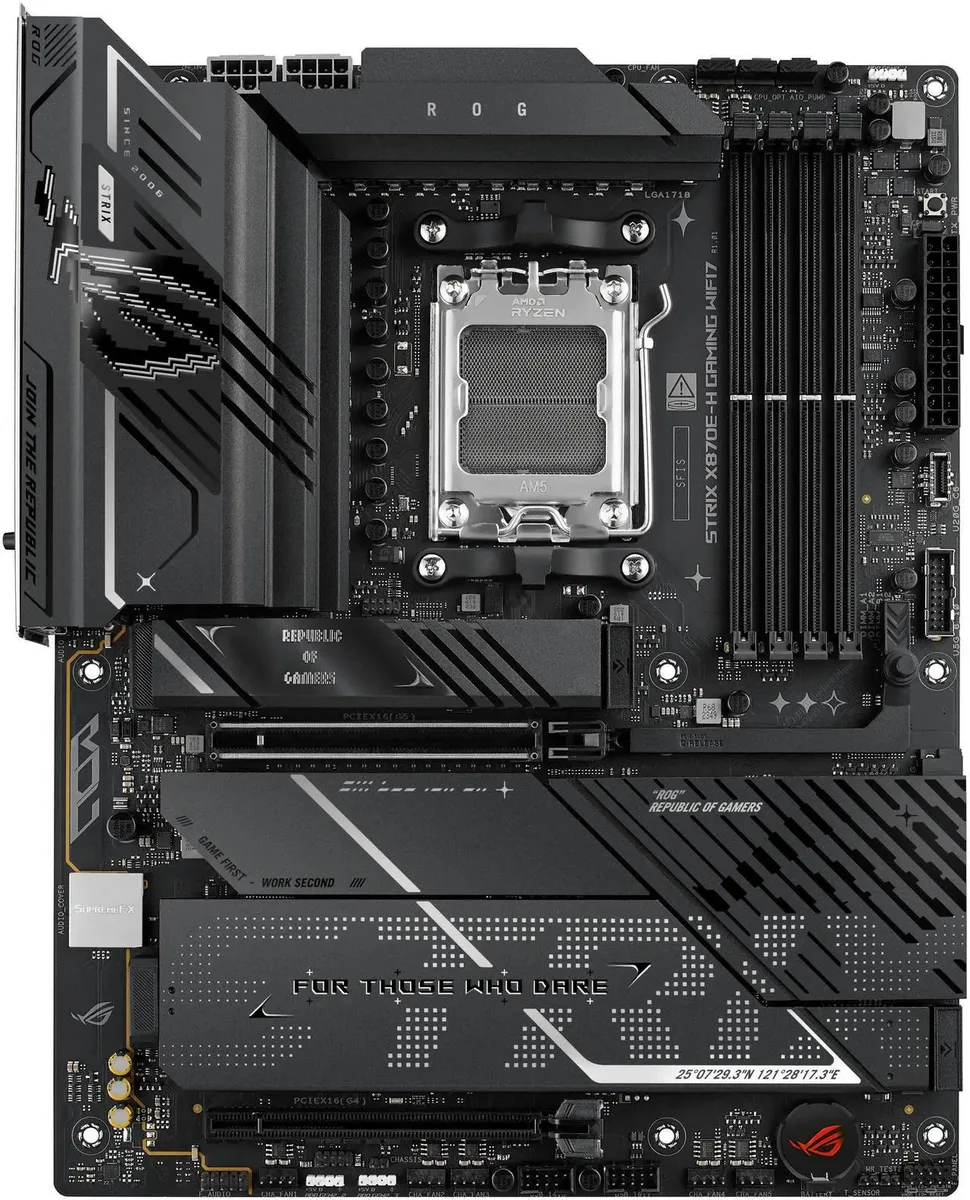

Massive heatsinks with an integrated I/O cover and high-conductivity thermal pads cool the VRM and M.2 areas under sustained loads. Five chassis fan headers, a dedicated AIO pump header and CPU OPT header give flexible airflow options for air or liquid cooling. The 24-pin ATX and dual 8-pin 12V connectors feed the 80A-per-stage power solution, while AI Networking II and AI Cache Boost manage power draw dynamically during normal operation.

Bundled intelligence

ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP firmware features simplify setup and tune memory, cache and network behaviour automatically. WiFi 7 (802.11be) and Realtek 5Gb Ethernet deliver low-latency wireless and wired connectivity. Rear I/O includes two USB4 40Gbps Type-C ports, four USB 10Gbps ports with one 30W PD/PPS Type-C, six USB 5Gbps Type-A ports, HDMI and audio jacks. Three addressable RGB Gen 2 headers and a chassis intrusion header complete the package.

Points forts

  • 16-core 32-thread Ryzen 9 9950X delivers 5.7 GHz max boost for heavy multitasking
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors feed the CPU cleanly
  • Four DDR5 slots support up to 256 GB at 8000+ MT/s for large memory workloads
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks give fast storage expansion
  • WiFi 7 plus Realtek 5Gb Ethernet provide high-throughput low-latency networking

Caractéristiques

BrandASUS
ModelROG STRIX X870E-H GAMING WIFI7+R9 9950X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 9 9950X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the Ryzen 9 9950X into the AM5 socket without bending pins?

Lift the socket lever, align the triangle marker on the CPU with the socket corner, place the processor gently without pressure, then lower and lock the lever. The step people miss is removing the plastic protective cover from the motherboard socket before seating the CPU.

What maintenance or replacement will the motherboard VRM cooling need over time?

The massive heatsinks and high-conductivity thermal pad are passive. Clean dust from the fins annually with compressed air. The thermal pad does not require scheduled replacement unless physical damage occurs during a rebuild.

Which limit appears first when the 16-core 5.7 GHz CPU runs sustained all-core workloads?

The 16+2+1 power stages rated at 80A each and dual 8-pin ProCool II connectors deliver ample current. The practical ceiling is the CPU package power limit and the thermal capacity of your chosen cooler.
