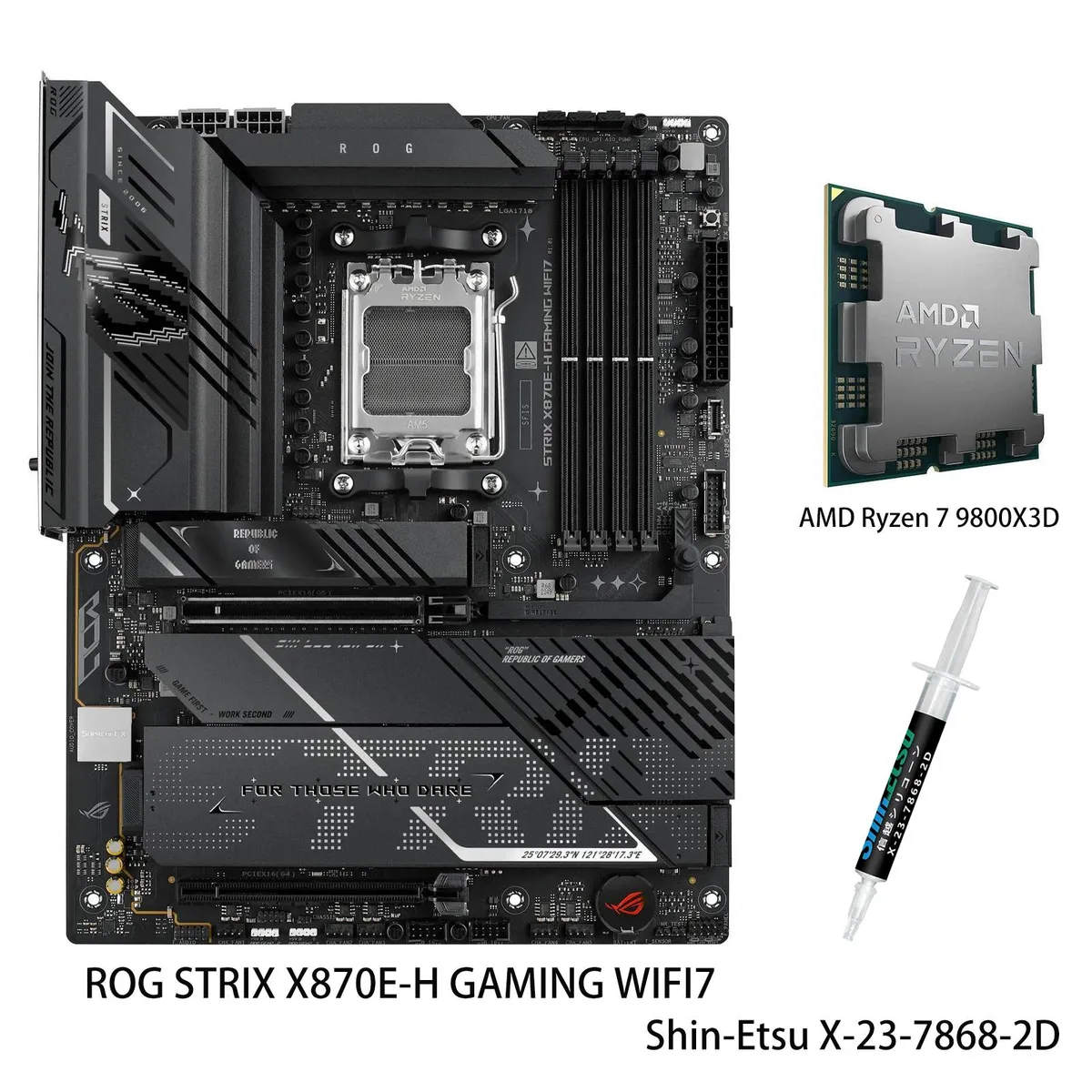

ATX motherboard with silver heatsinks, black PCB, installed CPU and I/O shield

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-B2FM-GJ52B

Ready for AMD Ryzen 9000, 8000 and 7000 series processors, this ATX combo pairs the X870E chipset with the 9800X3D CPU, 16+2+1 power stages, DDR5 up to 8000+ MT/s, WiFi 7, 5 Gbps LAN.

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU +R7 9800X3D

  • Ready for advanced AI workloads with high-speed connectivity
  • 16+2+1 power stages rated 80A each for stable multi-core performance
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with dedicated cooling
  • On-board WiFi 7 and Realtek 5Gb Ethernet for fast networking
  • Ryzen 7 9800X3D with second-gen 3D V-Cache for low-latency gaming

Ready for advanced AI PCs

This motherboard and CPU combo pairs the ROG STRIX X870E-H GAMING WIFI7 with the AMD Ryzen 7 9800X3D processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series desktop processors. It targets builders who want a high-performance platform for demanding AI applications and gaming.

Build integration and expansion

The ATX board measures 12.0 x 9.6 inches and requires a 24-pin main power connector plus two 8-pin +12V CPU power connectors. It provides four DDR5 slots supporting up to 256GB at 8000+ MT/s, one PCIe 5.0 x16 slot for graphics, two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots. Rear I/O includes two USB4 40Gbps ports, four USB 10Gbps ports, six USB 5Gbps ports and two USB 2.0 ports.

Bundled accessories and software impact

The package delivers WiFi 7 (802.11be) and Realtek 5Gb Ethernet for high-speed networking. Onboard audio supports 7.1 channels. ASUS AI Advisor, AI Cache Boost, AI Networking II and AEMP simplify setup and optimise performance. Massive heatsinks with an integrated I/O cover and high-conductivity thermal pad cool the power stages and all four M.2 slots. The CPU earned a CES 2025 Innovation Award Honoree for its 2nd-gen 3D V-Cache technology.

Points forts

  • Ready for advanced AI workloads with high-speed connectivity
  • 16+2+1 power stages rated 80A each for stable multi-core performance
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with dedicated cooling
  • On-board WiFi 7 and Realtek 5Gb Ethernet for fast networking
  • Ryzen 7 9800X3D with second-gen 3D V-Cache for low-latency gaming

Caractéristiques

BrandASUS
ModelROG STRIX X870E-H GAMING WIFI7+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 7 9800X3D CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How long can the 16+2+1 power stages rated at 80A sustain full CPU load before thermal throttling?

The 16+2+1 power solution uses dual ProCool II connectors, alloy chokes and durable capacitors to support multi-core processors; massive heatsinks with an integrated I/O cover and a high-conductivity thermal pad keep the VRM cool during sustained workloads.

What are the fan-header options and typical noise levels when the system runs all day?

The board provides one 4-pin CPU fan header, one CPU OPT header, one AIO pump header and five chassis fan headers, all controllable via UEFI or ASUS Fan Xpert for quiet 24/7 operation.

Which DDR5 memory kit and cooler mounting hardware must I already own for this combo to work?

You need a DDR5 kit up to 8000+ MT/s (OC) and an AM5-compatible cooler; the motherboard includes four 288-pin slots supporting 256 GB maximum in dual-channel non-ECC configuration.
