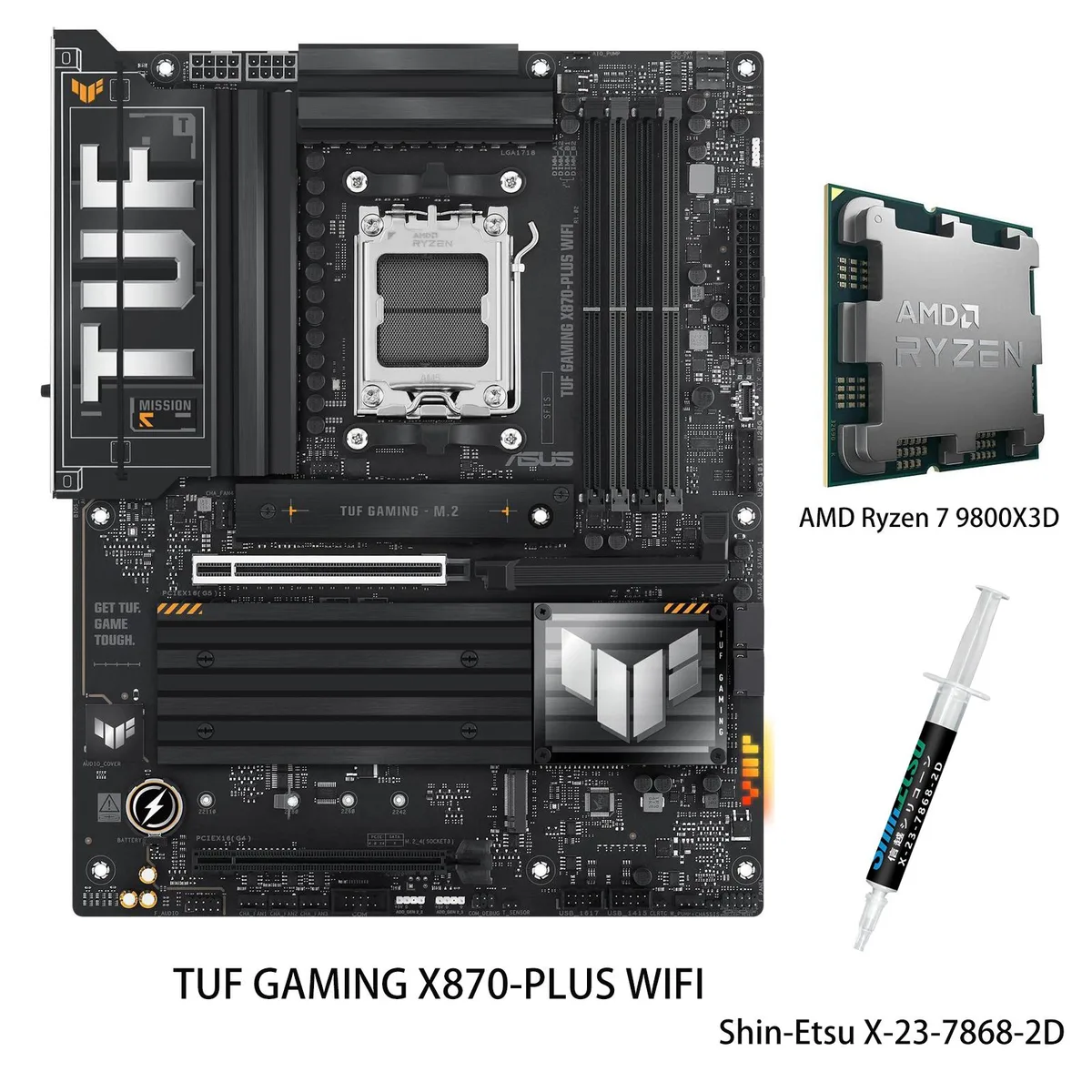

ATX motherboard with large grey heatsinks and a Ryzen 7 9800X3D CPU in AM5 socket

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX AMD Motherboard & Ryzen 7 9800X3D CPU Combo

SKU CH-7X5N-QANVD

AM5 motherboard with Ryzen 7 9800X3D, 16+2+1 80A power stages, DDR5 4400 support to 256GB, two PCIe 5.0 M.2 slots, WiFi 7, 2.5Gb LAN and dual USB4 40Gbps ports

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

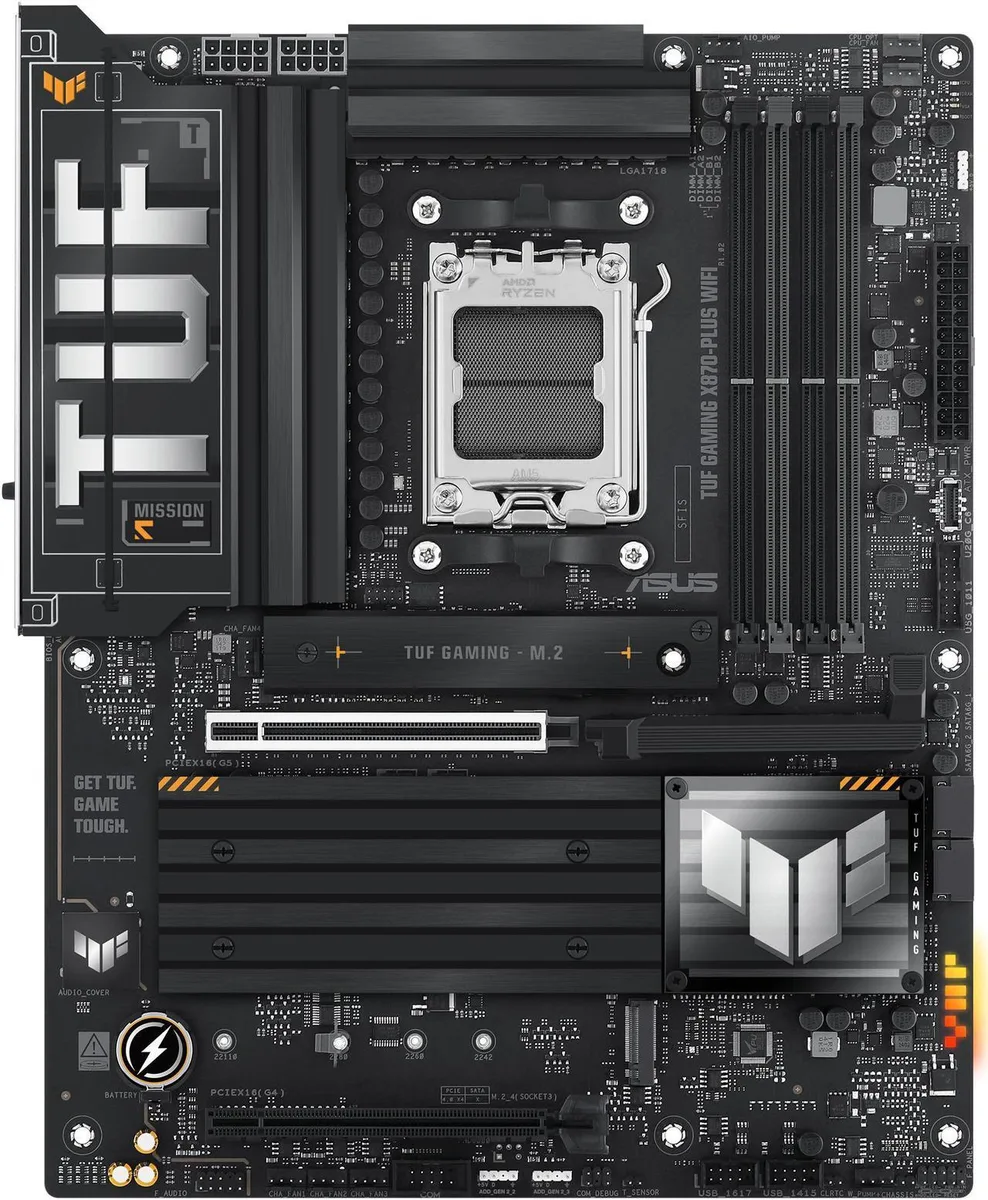

Motherboard TUF GAMING X870-PLUS WIFI

CPU + R7 9800X3D

  • Stable power delivery for heavy workloads with 16+2+1 80A SPS power stages
  • Simplified tuning via AI Overclocking AI Cooling II and AEMP
  • Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with large heatsinks
  • Wi-Fi 7 2.5Gb Ethernet dual USB4 40Gbps Type-C and front USB 20Gbps Type-C with 30W PD
  • Faster gaming through second-gen AMD 3D V-Cache on the Ryzen 7 9800X3D

Combo Platform

This bundle pairs the ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 7 9800X3D processor on the AM5 socket. It targets enthusiasts building a high-end gaming or AI workstation who want matched components ready for DDR5 memory and PCIe 5.0 expansion.

Memory Capacity & Headroom

Four 288-pin slots support up to 256 GB of DDR5 4400 in dual-channel mode with ECC and EXPO profiles. That headroom handles heavy multitasking and large datasets, but the board maxes out at 256 GB and does not support buffered or registered modules.

Interface Practical Limits

The primary PCIe 5.0 x16 slot and two M.2 2280 slots run at PCIe 5.0 x4 with Ryzen 9000 or 7000 series CPUs, dropping to PCIe 4.0 with 8000 series. Rear I/O includes dual USB4 40 Gbps Type-C ports, 2.5 Gb Ethernet and WiFi 7, while front-panel USB 20 Gbps offers 30 W power delivery.

Points forts

  • Stable power delivery for heavy workloads with 16+2+1 80A SPS power stages
  • Simplified tuning via AI Overclocking AI Cooling II and AEMP
  • Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots with large heatsinks
  • Wi-Fi 7 2.5Gb Ethernet dual USB4 40Gbps Type-C and front USB 20Gbps Type-C with 30W PD
  • Faster gaming through second-gen AMD 3D V-Cache on the Ryzen 7 9800X3D

Caractéristiques

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R7 9800X3D
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 7 9800X3D CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 16 plus 2 plus 1 power design and 80A SPS stages handle the Ryzen 7 9800X3D at full boost without throttling?

Yes, the 16 plus 2 plus 1 phase VRM with 80A SPS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors is built for stable delivery to the included Ryzen 7 9800X3D.

Can I run four DDR5 modules at 4400 MT/s to reach the 256GB maximum?

The board has four 288-pin DDR5 slots supporting dual-channel up to 256GB; 4400 MT/s is the base JEDEC speed, and EXPO or AEMP profiles can raise frequency further.

Does the front-panel USB Type-C header deliver enough power to fast-charge a laptop?

The onboard USB 20Gbps header supports USB Type-C with up to 30W Power Delivery for fast-charging compatible devices.
