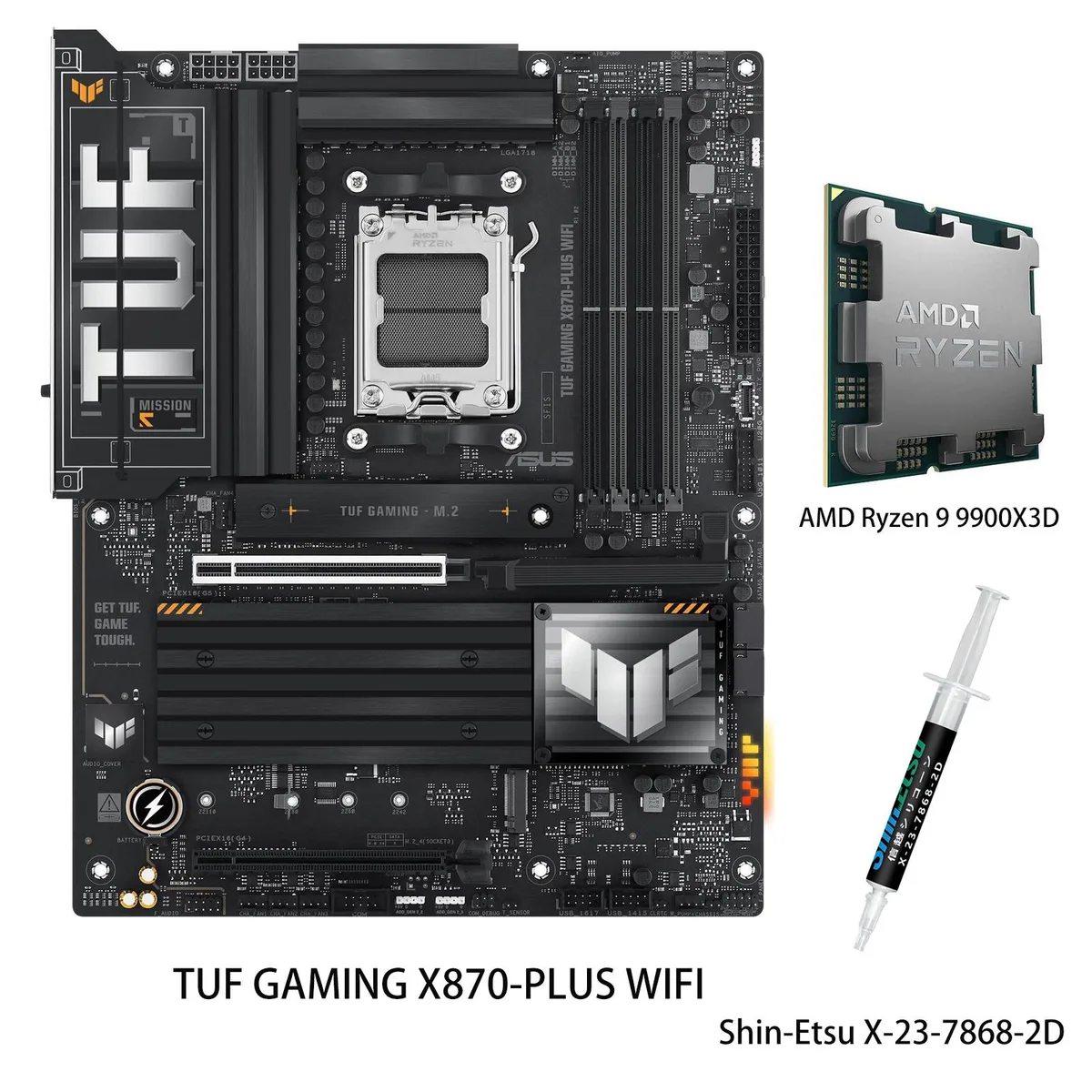

ATX motherboard with metallic heatsinks and a Ryzen CPU in the AM5 socket

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Motherboard & AMD Ryzen 9 9900X3D CPU Combo

SKU CH-JFPJ-45Q0N

ATX combo pairs an AMD X870 board with a Ryzen 9 9900X3D CPU, 16+2+1 80A power stages, DDR5 4400 support to 256GB, two PCIe 5.0 M.2 slots, WiFi 7, 2.5Gb LAN, dual USB4 40Gbps Type-C and 128MB L3 cache

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

Motherboard TUF GAMING X870-PLUS WIFI

CPU + R9 9900X3D

  • Stable power delivery for heavy workloads with 16+2+1 80A SPS stages
  • Ready for advanced AI computing with Ryzen 9 9900X3D and X870 chipset
  • Ultrafast connectivity via WiFi 7, 2.5Gb LAN and dual USB4 40Gbps ports
  • High-speed storage expansion using four M.2 slots with two PCIe 5.0 lanes
  • Immersive 7.1 surround sound from Realtek ALC1220P with headphone amplifier

Combo Ready for AMD AM5 Platform

This bundle pairs the ASUS TUF GAMING X870-PLUS WIFI motherboard with the AMD Ryzen 9 9900X3D processor. The board uses the AMD X870 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256GB of memory running at 4400 with EXPO and AEMP profiles. The combination targets builders who want a single validated platform for gaming and AI workloads.

Sustained Load Power Delivery and Cooling

The 16+2+1 phase design uses 80A SPS power stages on an 8-layer PCB with ProCool connectors, alloy chokes and durable capacitors. This layout keeps voltage stable when the 120W Zen 5 processor maintains high frequencies across its 12 cores during extended compiles or rendering. AI Cooling II adjusts the four chassis fan headers and dedicated AIO pump header based on real-time thermal data, while massive heatsinks cover both PCIe 5.0 M.2 slots to prevent throttling.

Interface Limits on PCIe 5.0 and USB4

The primary x16 slot and two M.2 2280 slots run at PCIe 5.0 x4 speeds with Ryzen 9000 and 7000 series CPUs, while Ryzen 8000 series drops the graphics slot to PCIe 4.0 x8 and the M.2 slots to PCIe 4.0. Dual USB4 Type-C ports on the rear I/O deliver 40Gbps bandwidth, and a front-panel USB 20Gbps header adds 30W Power Delivery. Realtek 2.5Gb Ethernet and WiFi 7 provide the network ceiling for this platform.

Points forts

  • Stable power delivery for heavy workloads with 16+2+1 80A SPS stages
  • Ready for advanced AI computing with Ryzen 9 9900X3D and X870 chipset
  • Ultrafast connectivity via WiFi 7, 2.5Gb LAN and dual USB4 40Gbps ports
  • High-speed storage expansion using four M.2 slots with two PCIe 5.0 lanes
  • Immersive 7.1 surround sound from Realtek ALC1220P with headphone amplifier

Caractéristiques

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R9 9900X3D
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 9 9900X3D CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the included Ryzen 9 9900X3D processor fit the AM5 socket on this board?

Yes, the board uses the AMD AM5 socket and the bundle includes a Ryzen 9 9900X3D, which is built for that socket.

What DDR5 memory speeds can I run with the 9900X3D in this board?

The board supports DDR5 4400 as standard and also supports AMD EXPO and ASUS AEMP profiles for higher speeds with compatible kits.

How many M.2 drives can I install and do they have heatsinks?

Four M.2 slots are provided — two wired for PCIe 5.0 x4 and two for PCIe 4.0 x4 — and the board includes massive heatsinks for them.
