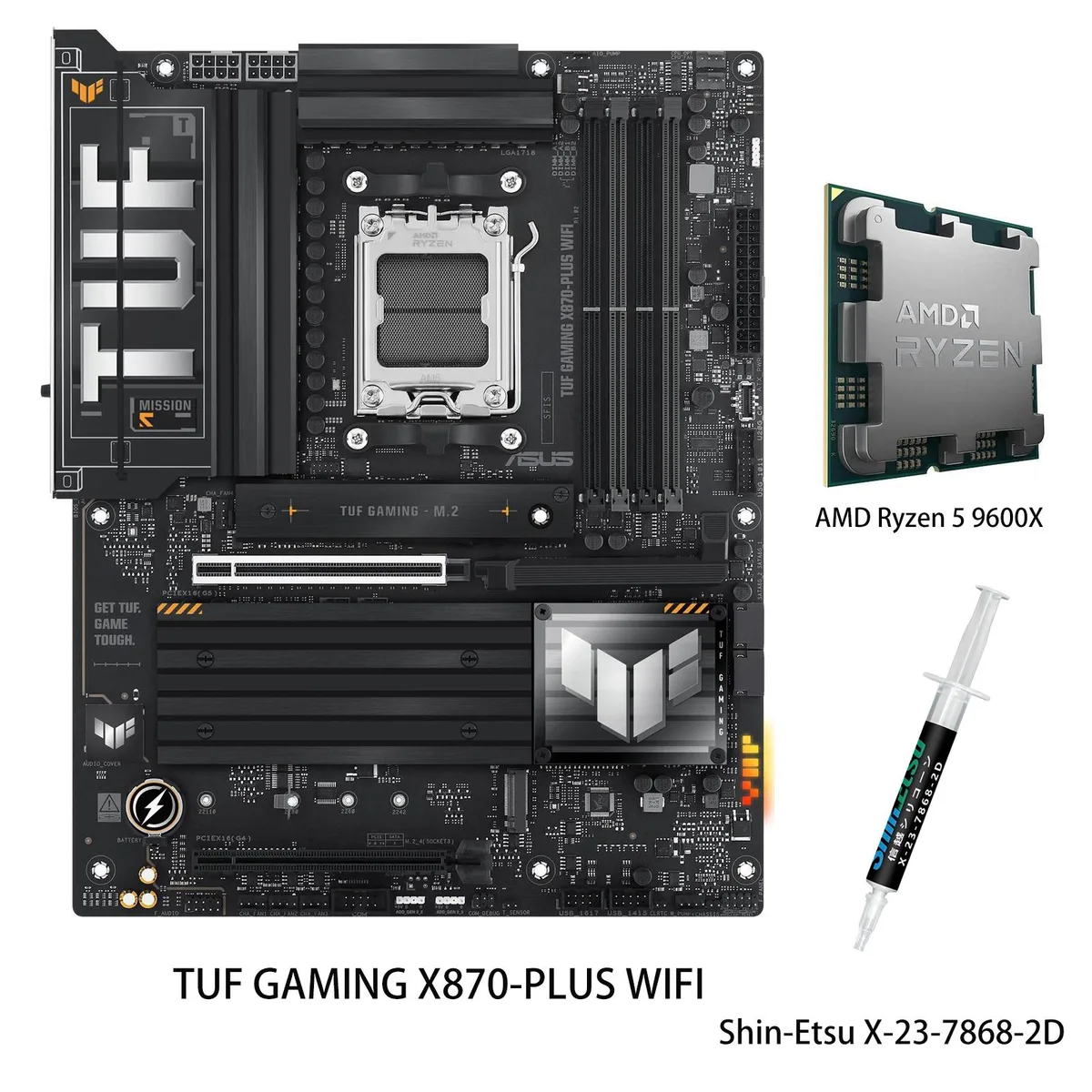

ATX motherboard in grey and yellow with large heatsinks and a Ryzen 5 9600X CPU seated in the AM5 socket

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Motherboard & AMD Ryzen 5 9600X CPU Combo

SKU CH-EHDR-DEDFP

Socket AM5 ATX board with 16+2+1 80A power stages, four DDR5 slots up to 256 GB, dual PCIe 5.0 M.2, WiFi 7, 2.5Gb LAN and dual USB4 40Gbps, paired with a 6-core 12-thread Ryzen 9600X CPU

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

Motherboard TUF GAMING X870-PLUS WIFI

CPU + R5 9600X

  • Stable power delivery with 16+2+1 80A SPS power stages
  • Ready for advanced AI computing with high-performance connectivity
  • Ultrafast storage via two PCIe 5.0 M.2 slots with large heatsinks
  • High-speed networking through WiFi 7 and 2.5Gb Ethernet
  • Exceptional gaming performance from 6-core 12-thread Zen 5 processor

Combo for AMD AM5 builds

This bundle pairs an ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 5 9600X processor. The board uses the X870 chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series CPUs. It targets enthusiasts building a high-performance desktop for gaming or AI workloads. The CPU delivers 6 cores and 12 threads based on the Zen 5 architecture.

Check DDR5 memory and cooler clearance

Verify you have DDR5 modules; the board has four 288-pin slots running at 4400 MT/s with a 256 GB maximum in dual-channel mode. Non-ECC unbuffered DIMMs are supported with on-die ECC. Ensure your CPU cooler fits the AM5 mounting pattern and that your power supply provides the 8-pin ProCool connectors required by the 16+2+1 80A SPS power stage design.

Sustained load behaviour with AI features

The 8-layer PCB, alloy chokes and durable capacitors work with AI Overclocking, AI Cooling II and PBO Enhancement to maintain stable power delivery during extended sessions. Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots include large heatsinks to throttle less under continuous I/O. WiFi 7, 2.5Gb LAN and dual USB4 40Gbps ports keep throughput high for long transfers.

Points forts

  • Stable power delivery with 16+2+1 80A SPS power stages
  • Ready for advanced AI computing with high-performance connectivity
  • Ultrafast storage via two PCIe 5.0 M.2 slots with large heatsinks
  • High-speed networking through WiFi 7 and 2.5Gb Ethernet
  • Exceptional gaming performance from 6-core 12-thread Zen 5 processor

Caractéristiques

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R5 9600X
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 5 9600X CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the included CPU work with the board's PCIe 5.0 M.2 slots and x16 graphics slot?

Yes, the Ryzen 5 9600X enables both PCIe 5.0 M.2 slots at x4 speed and the PCIe 5.0 x16 graphics slot at full x16 bandwidth.

What memory speeds and capacity can I run with this combo?

The board supports up to 256 GB of DDR5 across four slots; EXPO and AEMP profiles are supported for speeds above the 4400 MT/s base.

Does the front-panel USB-C header deliver enough power for fast phone charging?

The onboard USB 20 Gbps header provides up to 30 W Power Delivery for compatible devices.
