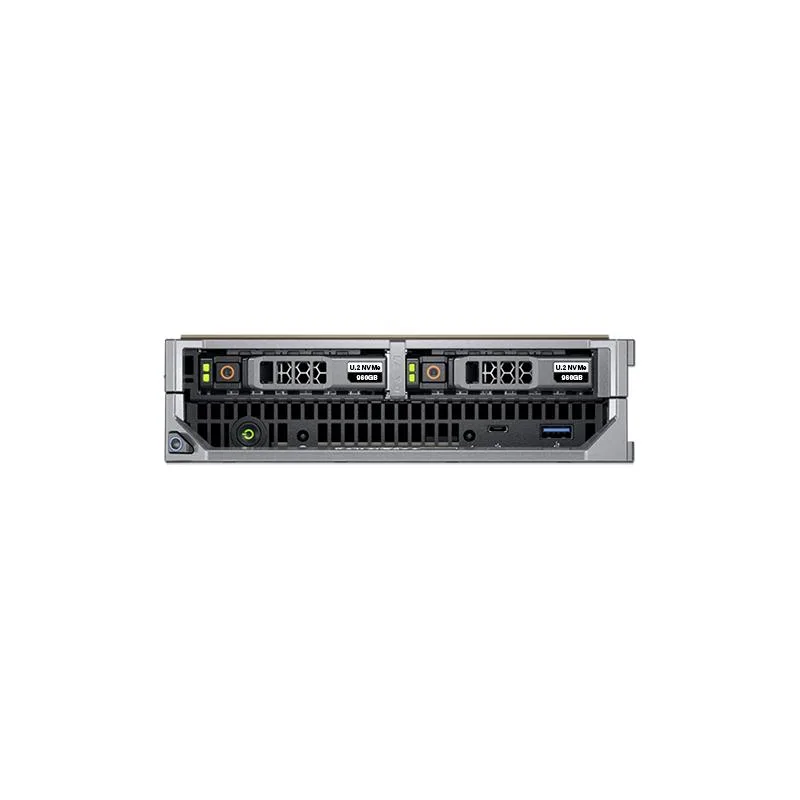

Dell PowerEdge M640 half-height blade server, matte black metal chassis with two 2.5-inch drive bays

DELL

DELL PowerEdge M640 blade server 2x Xeon Gold 6230 20-core 16GB DDR4 2x 960GB SSD

SKU CH-CG3F-648RW

Dual-socket blade server with 40 total cores, 16 GB DDR4 and two 960 GB SATA SSDs

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores20-Core Processor

Installed Memory Size 16GB

SSD (Installed) 2 x 960GB SATA SSD

  • Dual Xeon Gold 6230 CPUs deliver 40 total cores for heavy workloads
  • 16 GB DDR4 2666 MHz ECC memory supports reliable virtualization
  • Two 960 GB SATA SSDs with PERC S140 controller enable RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network card handles high-throughput traffic
  • iDRAC 9 Enterprise provides remote management and automation for simplified administration

Dual 20-core Xeon blade server

The Dell PowerEdge M640 is a half-height blade server fitted with two Intel Xeon Gold 6230 processors, each running at 2.1 GHz with a 3.9 GHz turbo. Twenty cores per socket give 40 threads for virtualization, private cloud or high-performance computing workloads. It ships with 16 GB of DDR4 2666 MHz registered ECC memory and two 960 GB SATA SSDs on a PERC S140 controller. The blade includes a Broadcom 57810S-K dual-port 10 Gb network daughter card and iDRAC9 Enterprise remote management.

Chassis slot and memory headroom

Verify you have a free half-height slot in a compatible PowerEdge MX or M1000e chassis before ordering. The server supports up to 1.5 TB of DDR4 across 16 DIMM slots, so plan additional memory modules if your workloads need more than the installed 16 GB. Storage bays accept 2.5-inch SATA or SAS drives; the PERC S140 handles RAID 0, 1, 5 and 10. No operating system is included, so prepare installation media separately.

Density and management fit

The half-height form factor leaves the adjacent slot open for a second blade, doubling compute density in the same chassis enclosure. Dual 10 Gb ports connect directly to the chassis fabric, freeing PCIe slots for other daughter cards. iDRAC9 Enterprise provides out-of-band monitoring, firmware updates and virtual console access without consuming host resources. Front bezel and ready rails are not supplied, so factor those into rack integration if required.

Points forts

  • Dual Xeon Gold 6230 CPUs deliver 40 total cores for heavy workloads
  • 16 GB DDR4 2666 MHz ECC memory supports reliable virtualization
  • Two 960 GB SATA SSDs with PERC S140 controller enable RAID 0/1/5/10
  • Broadcom 57810S-K dual-port 10 Gb blade network card handles high-throughput traffic
  • iDRAC 9 Enterprise provides remote management and automation for simplified administration

Caractéristiques

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores20-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
HDD InterfaceSATA/SAS
SSD (Installed)2 x 960GB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the blade ship with rails or a front bezel, or do I need to order them separately?

The listing states that the front bezel and ready rails are not included, so they must be purchased separately if required for your chassis.

Should I choose the 960 GB SATA SSDs or add NVMe drives for faster storage?

The server includes two 960 GB SATA SSDs and the PERC S140 controller supports NVMe; adding NVMe drives will provide higher throughput for demanding workloads.

What does the 2.1 GHz base clock with 3.9 GHz turbo mean for actual performance in a virtualisation host?

Each of the two 20-core Xeon Gold 6230 processors runs at 2.1 GHz base and can boost to 3.9 GHz, giving strong single-thread speed and 40 total cores for dense VM consolidation.
