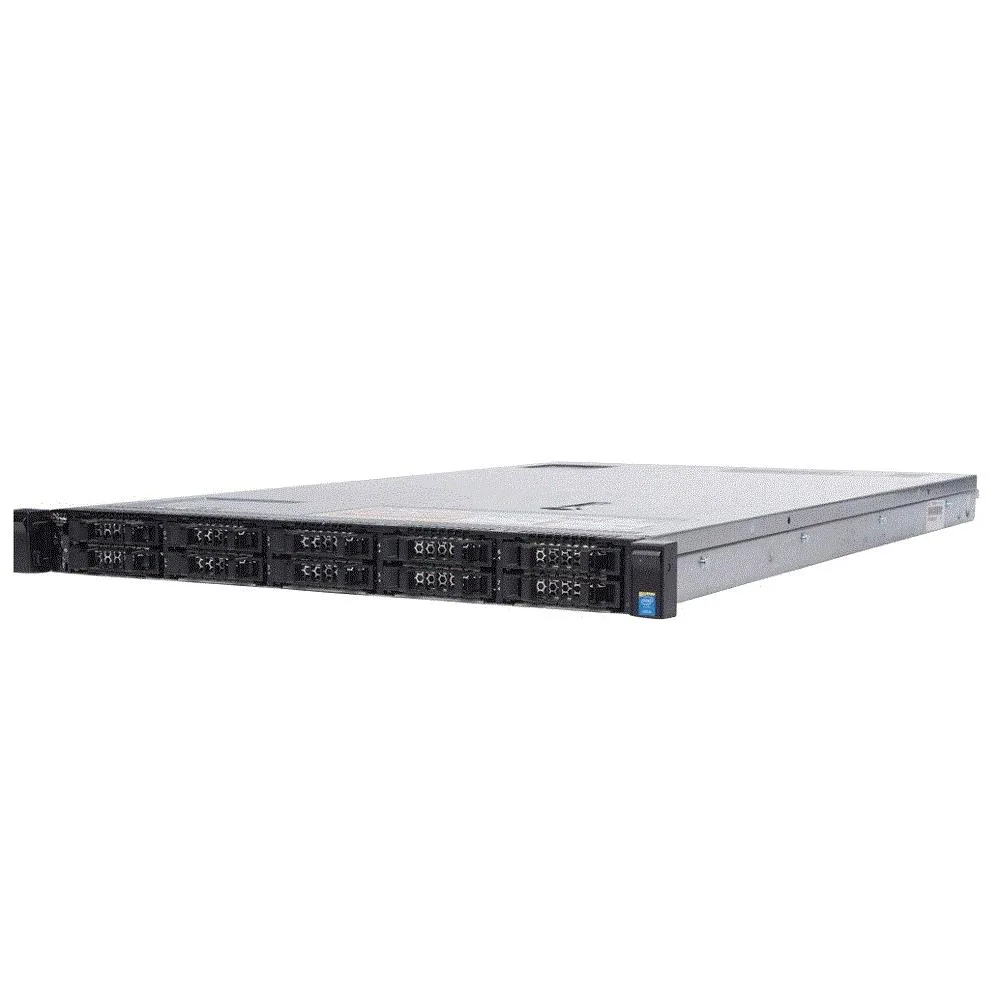

Dell PowerEdge R630 1U rack server silver front with ten 2.5 inch drive bays

DELL

DELL PowerEdge R630 10-bay 2x E5-2609 V3 32GB DDR4 H730

SKU CH-28KZ-R7VS9

1U rack server with dual 1.9 GHz Xeon E5-2609 V3 CPUs, 32 GB DDR4, H730 RAID controller and ten 2.5-inch hot-plug bays

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeDual Intel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 32GB

  • Dual Xeon E5-2609 V3 CPUs deliver 12 cores for parallel workloads
  • 32 GB DDR4 memory installs in 24 DIMM slots for expansion
  • PERC H730 RAID controller supports levels 0/1/5/6/10/50/60
  • Ten 2.5" hot-plug bays accept SAS or SATA drives
  • Dual 750 W redundant supplies keep the 1U rack server running

1U 10-bay rack server for virtualised workloads

The PowerEdge R630 fits two Intel Xeon E5-2609 V3 six-core processors at 1.9 GHz and 32 GB of DDR4 memory into a single rack unit. It targets IT teams that need dense compute for virtualisation, database or web-tier duties without occupying extra rack space.

H730 RAID controller and redundant power

A Dell PERC H730 card with 1 GB cache brings 12 Gbps SAS/SATA connectivity and supports RAID 0, 1, 5, 6, 10, 50 and 60 across up to ten 2.5-inch hot-plug bays. Dual 750 W hot-swap supplies keep the system running if one unit fails, and the dedicated PERC slot leaves three PCIe 3.0 slots free for additional I/O cards.

Memory ceiling and drive limits

The installed 32 GB already reaches the processor-dependent maximum, so buyers who want more memory must change the CPU configuration. Only 2.5-inch SAS or SATA drives are supported; the 10-bay chassis has no room for 3.5-inch disks or an optical drive, and the Matrox G200 video provides basic console output only.

Points forts

  • Dual Xeon E5-2609 V3 CPUs deliver 12 cores for parallel workloads
  • 32 GB DDR4 memory installs in 24 DIMM slots for expansion
  • PERC H730 RAID controller supports levels 0/1/5/6/10/50/60
  • Ten 2.5" hot-plug bays accept SAS or SATA drives
  • Dual 750 W redundant supplies keep the 1U rack server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeDual Intel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H730 2GB Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What memory modules can be added later to expand the 32 GB of DDR4?

The 24 DIMM slots accept 4 GB, 8 GB, 16 GB, 32 GB, 64 GB or 128 GB DDR4 modules up to 2400 MT/s; total capacity reaches 1536 GB.

Which resource hits its ceiling first during continuous heavy workloads?

The dual E5-2609 V3 CPUs at 1.9 GHz with six cores each will limit sustained compute throughput before memory or storage bandwidth saturates.

How loud and hot does the 1U chassis get with both 750 W power supplies running 24/7?

Redundant hot-swap 750 W supplies and dense 1U airflow mean fan noise and exhaust heat are noticeable in quiet rooms; plan for server-room cooling.
