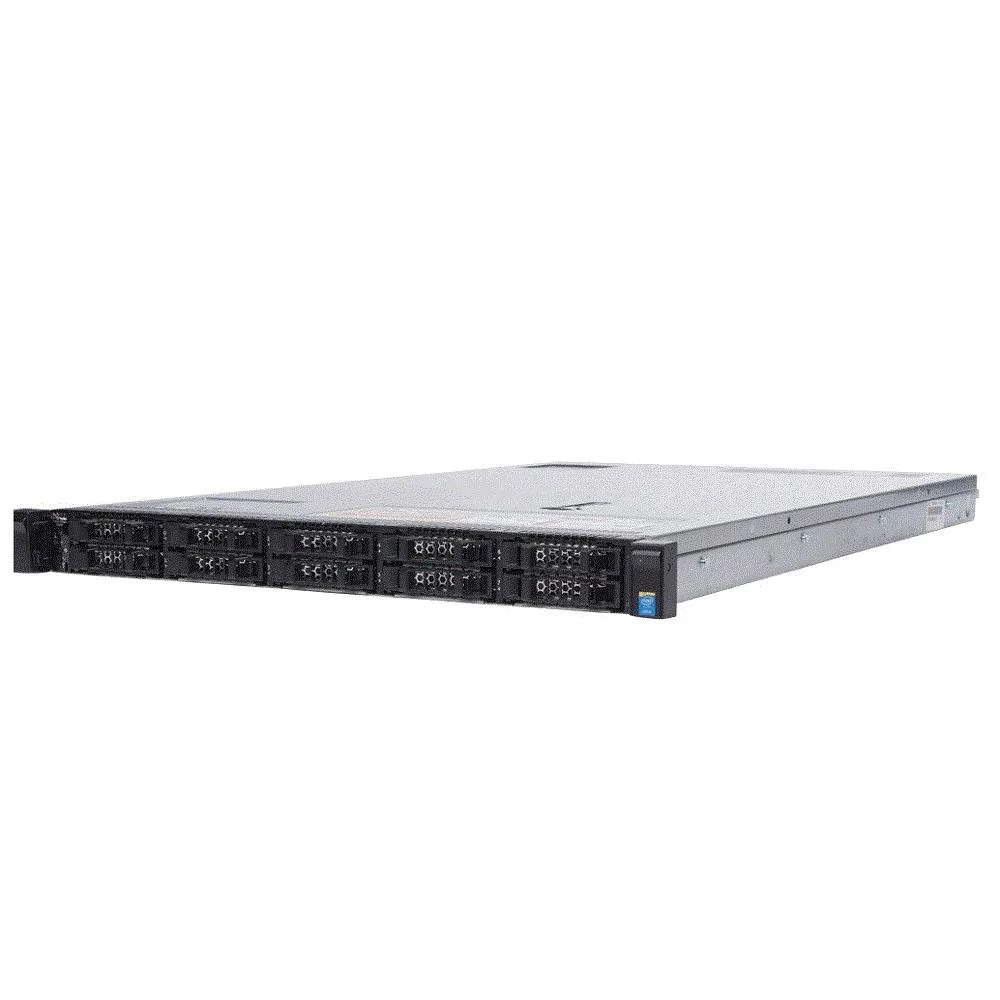

Silver 1U rack server with ten front drive bays

DELL

DELL PowerEdge R630 10-bay rack server E5-2603 V3 1.6GHz 24GB 2x 300GB 15K SAS H330

SKU CH-HWEM-8BYFM

1U rack server with 10 drive bays, single Xeon E5-2603 V3 six-core 1.6GHz processor, 24GB DDR4, two 300GB 15K SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 24GB

HDD 2 x 300GB 15K

  • 10-bay 2.5" hot-plug chassis fits dense storage
  • Single Xeon E5-2603 V3 six-core 1.6GHz CPU handles core workloads
  • 24GB DDR4 memory with 24 DIMM slots for expansion
  • Dual 300GB 15K SAS drives plus H330 RAID controller support RAID 0/1/5/10/50/60
  • Redundant 750W power supplies and iDRAC8 remote management

1U rack server with ten 2.5-inch bays

The Dell PowerEdge R630 fits a single Intel Xeon E5-2603 v3 six-core processor at 1.6 GHz and 24 GB of DDR4 memory. Two 300 GB 15K SAS drives and a PERC H330 RAID controller provide RAID 0, 1, 5, 10, 50 and 60. Dual 750 W hot-swap supplies and iDRAC8 remote management come standard. The chassis supports up to three PCIe 3.0 expansion slots.

Verify CPU socket count and drive carrier type

The system board accepts a second Xeon processor but only one is installed. Memory runs at speeds the CPU allows, up to 2400 MT/s across 24 DIMM slots. The ten front bays take 2.5-inch hot-plug SAS or SATA drives; no optical drive option exists on this 10-bay model. Network connectivity uses a four-port 1 GbE daughter card with optional 10 GbE upgrades.

Sustained load stays cool with redundant power

Dual 750 W supplies share the load so neither unit runs near its limit during continuous operation. The 1U airflow path moves air front-to-back across both CPUs, memory and drive bays. The H330 controller handles steady RAID parity calculations without a dedicated cache battery. iDRAC8 monitors temperatures and power draw in real time for proactive alerts.

Points forts

  • 10-bay 2.5" hot-plug chassis fits dense storage
  • Single Xeon E5-2603 V3 six-core 1.6GHz CPU handles core workloads
  • 24GB DDR4 memory with 24 DIMM slots for expansion
  • Dual 300GB 15K SAS drives plus H330 RAID controller support RAID 0/1/5/10/50/60
  • Redundant 750W power supplies and iDRAC8 remote management

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size24GB
Memory TypeDDR4
Max Memory Capacity24GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the 10-bay chassis come populated with drives, or do I need to buy SAS drives separately?

Two 300GB 15K 2.5'' SAS drives are already installed; the remaining eight bays are empty and accept additional 2.5'' SAS or SATA drives

Should I choose the single E5-2603 v3 configuration or add a second processor for more memory capacity?

The installed CPU is a single six-core 1.6GHz Xeon E5-2603 v3; adding a second processor unlocks the other 12 DIMM slots and raises the maximum memory to 1536GB

What does the H330 RAID controller's 12Gbps rating mean for the installed 15K SAS drives in daily use?

The controller runs the two 300GB 15K SAS drives at full 12Gbps SAS speed and supports RAID 0, 1, 5, 10, 50 and 60 across all 10 bays
