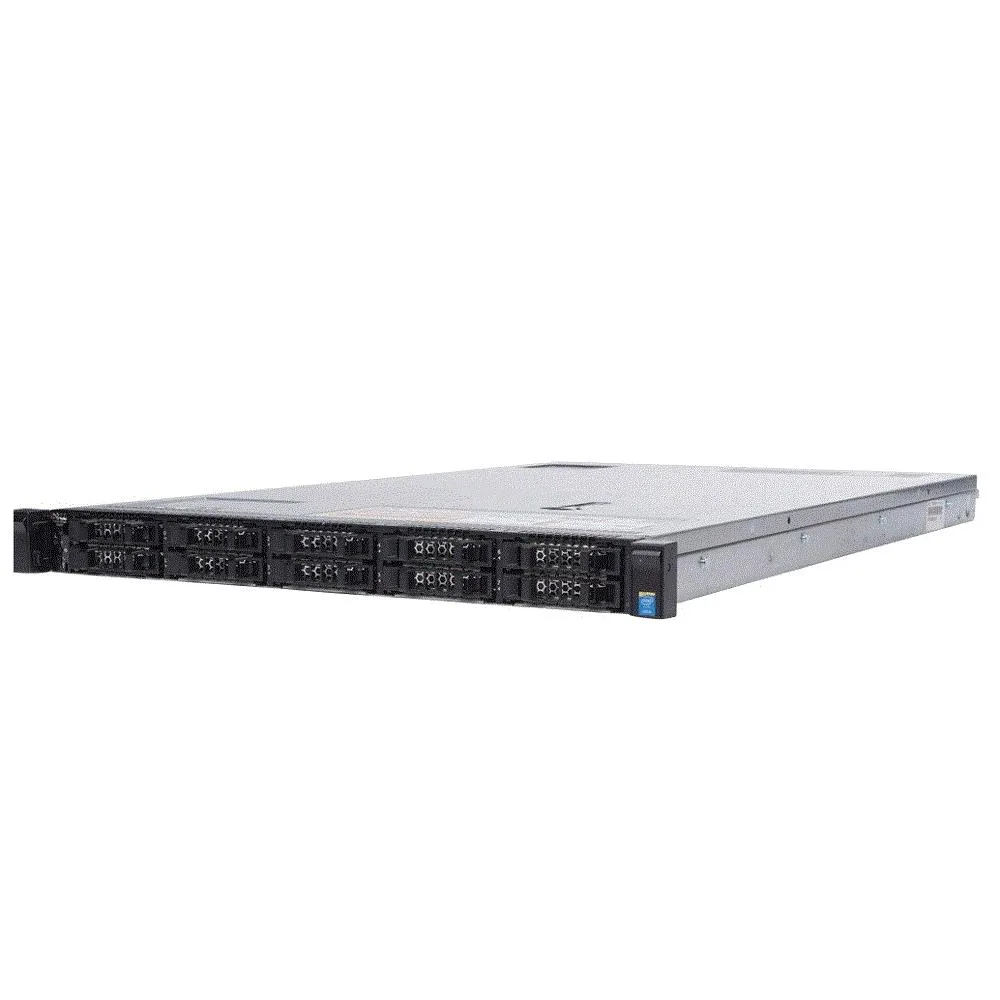

Silver 1U rack server with ten front 2.5-inch drive bays

DELL

DELL PowerEdge R630 10-bay Xeon E5-2603 v3 1.6GHz 32GB DDR4 H330 rack server

SKU CH-JSKB-4H58Y

A 1U rack server holding ten 2.5-inch hot-plug drives, powered by a six-core Xeon E5-2603 v3 at 1.6 GHz with 32 GB DDR4 and an H330 RAID controller supporting RAID 0/1/5/10/50/60

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 32GB

HDD None

  • 10 hot-plug 2.5" drive bays for dense storage capacity
  • Single Xeon E5-2603 v3 six-core 1.6GHz processor installed
  • 32GB DDR4 memory across 24 DIMM slots
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies ensure uptime

Dense 1U rack server for scale-out workloads

The Dell PowerEdge R630 fits a single Xeon E5-2603 v3 six-core 1.6GHz processor and 32GB of DDR4 memory into a 1U chassis. It targets buyers who need maximum compute density in a standard rack and can operate without pre-installed drives or an operating system. Builders who need a second processor or pre-populated storage bays should look elsewhere.

Dual 750W redundant supplies handle power

Two hot-swap 750W power supplies share the load and keep the system running if one unit fails. The 1U form factor relies on high-speed internal airflow rather than large-diameter fans, so acoustic output rises under sustained load. Buyers planning a quiet office deployment should note the noise profile.

H330 controller and iDRAC8 enable remote fleet

The Perc H330 12Gbps RAID controller supports RAID 0, 1, 5, 10, 50 and 60 across up to ten 2.5-inch hot-plug SAS or SATA bays. Integrated iDRAC8 with Lifecycle Controller provides out-of-band monitoring, firmware updates and power control without an OS. The bundled power cable and rail kit simplify rack installation, while the Matrox G200 video output covers basic console access.

Points forts

  • 10 hot-plug 2.5" drive bays for dense storage capacity
  • Single Xeon E5-2603 v3 six-core 1.6GHz processor installed
  • 32GB DDR4 memory across 24 DIMM slots
  • H330 12Gbps RAID controller supports RAID 0/1/5/10/50/60
  • Dual 750W redundant hot-swap power supplies ensure uptime

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity32GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install a second Xeon processor in the R630 and what step is often missed?

Insert the second CPU into the empty socket, apply thermal paste, attach its heatsink, then populate the 12 DIMM slots assigned to that processor so the memory controller has local memory.

Which component will need replacement first under continuous operation?

The 750 W redundant power supplies are the first field-replaceable units to wear out; each can be hot-swapped without shutting down the server.

What sustained-use limit appears first when all 10 drive bays are populated?

The H330 controller’s 12 Gbps SAS/SATA bandwidth becomes the bottleneck before the PCIe 3.0 slots or CPU cores are saturated.
