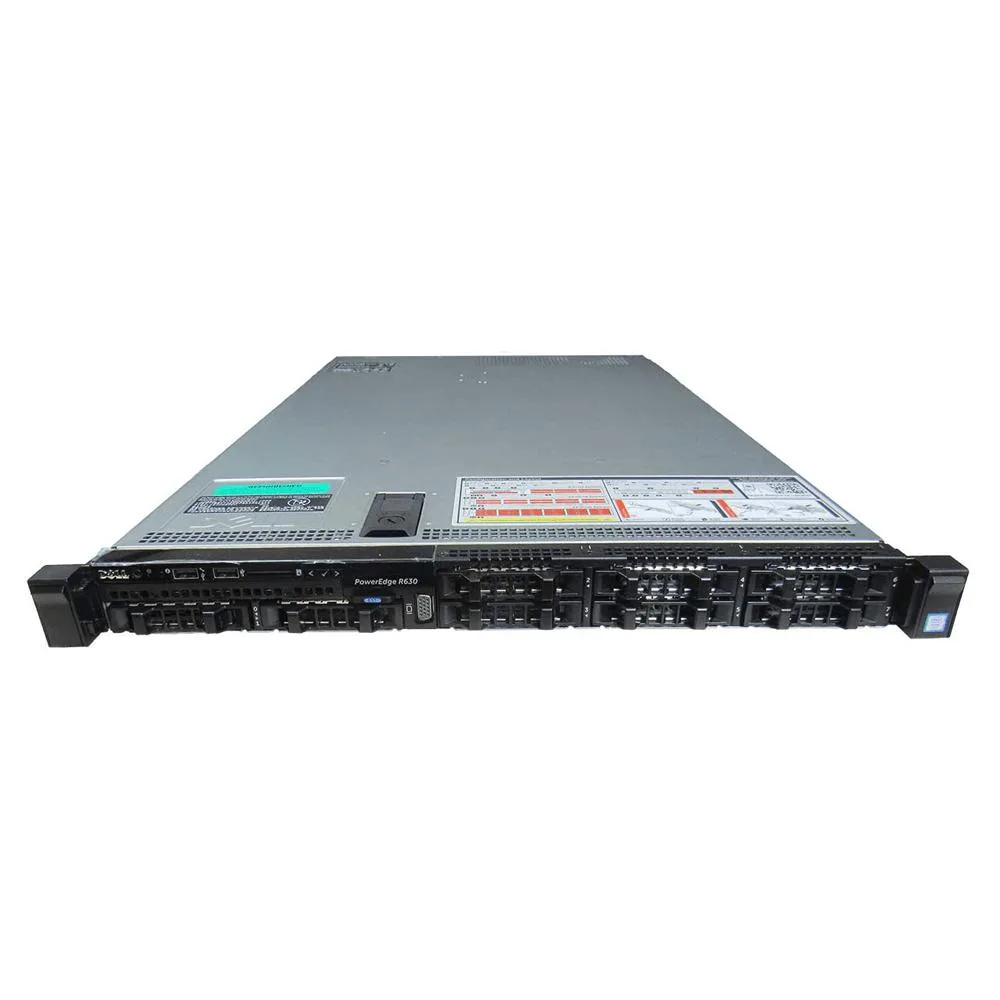

Silver 1U rack server with eight front drive bays and dual power supplies

DELL

DELL PowerEdge R630 1U rack server E5-2637 V3 3.5GHz 16GB 2x 300GB SAS H330

SKU CH-6BYT-ZG6ZR

1U rack server with Xeon E5-2637 V3 3.5GHz, 16GB DDR4, dual 300GB 15K SAS drives and H330 RAID controller

  • TypeRack
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

SSD (Installed) No

HDD 2 x 300GB 15K

  • Quad-core Xeon at 3.5 GHz for responsive compute
  • 16 GB DDR4 memory installed across 24 DIMM slots
  • Two 300 GB 15 K SAS drives deliver fast storage
  • H330 controller supports RAID 0, 1, 5, 10, 50, 60
  • Dual 750 W redundant power supplies keep the server running

1U rack server with dual Xeon capability

The Dell PowerEdge R630 fits a single Intel Xeon E5-2637 V3 quad-core processor at 3.5 GHz into a 1U rack chassis. Sixteen gigabytes of DDR4 memory and two 300 GB 15K SAS drives come installed, managed by a PERC H330 controller supporting RAID 0, 1, 5, 10, 50 and 60. Dual 750 W hot-swap power supplies provide redundancy.

Suits dense compute or virtualisation hosts

Organisations that require maximum memory capacity from day one should note only one processor socket is populated, limiting usable DIMM slots to twelve. Buyers who need an operating system pre-loaded or an internal optical drive will not find either here. Workloads demanding ten-gigabit networking require an optional daughter card not included in this configuration.

Single Xeon E5-2637 V3 with twelve active DIMM slots

The installed CPU enables twelve of the twenty-four DDR4 slots and caps official memory speed at 2400 MT/s. Adding a second supported processor would unlock the remaining slots and the full 1536 GB maximum capacity.

Points forts

  • Quad-core Xeon at 3.5 GHz for responsive compute
  • 16 GB DDR4 memory installed across 24 DIMM slots
  • Two 300 GB 15 K SAS drives deliver fast storage
  • H330 controller supports RAID 0, 1, 5, 10, 50, 60
  • Dual 750 W redundant power supplies keep the server running

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R630
TypeRack
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity14TB
Media DrivesNo
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 3 x PCIe 3.0 slots plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight60.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How does the E5-2637 V3 at 3.5 GHz perform in a live server?

The single installed processor delivers four cores at 3.5 GHz with hyper-threading for eight threads, suited to latency-sensitive workloads in a 1U chassis.

What does the H330 controller’s 12 Gbps SAS link limit in practice?

The controller caps each drive at 12 Gbps and supports RAID 0, 1, 5, 10, 50 and 60 across the two 300 GB 15 K SAS drives supplied.

Will the 1U, 26.8-inch deep chassis fit our rack and what power does it need?

The unit is 1U high, 17.44 inches wide and 26.8 inches deep with dual 750 W redundant supplies for standard rack mounting.
