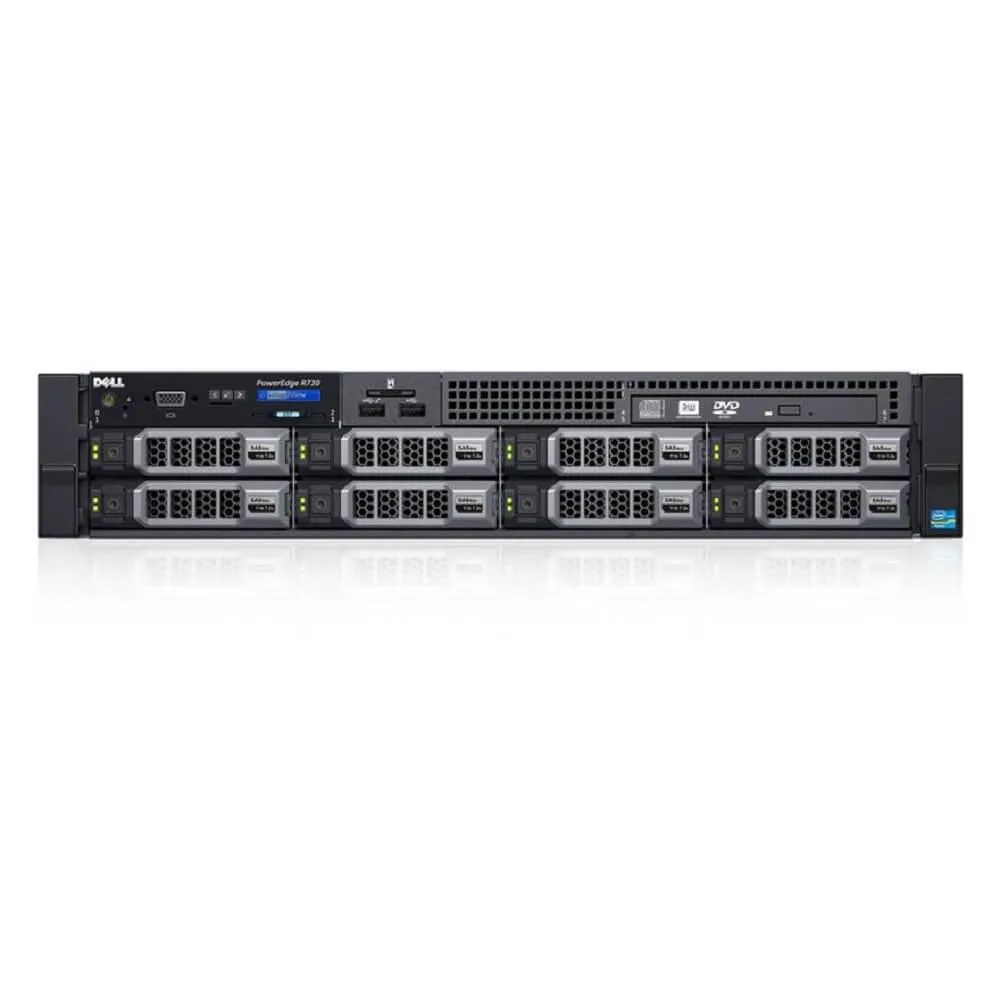

Silver 2U rack server with eight front 3.5-inch drive bays

DELL

DELL PowerEdge R730 2U E5-2650v3 10C 2.3GHz 16GB DDR4 2x 2TB SAS H330

SKU CH-6V7M-0DTA1

A 2U rack server with a ten-core Xeon at 2.3GHz, 16GB DDR4, two 2TB SAS drives and an H330 RAID controller

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • MAX Processors2
  • ChipsetIntel C610

Installed Memory Size 16GB

  • 8GB
  • 16GB
  • 48GB
  • 64GB

Les versions barrées existent, mais ne sont pas disponibles ici.

HDD 2 x 2TB SAS

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Ten-core Xeon at 2.3 GHz delivers 20 virtual threads
  • 16 GB DDR4 with 24 slots for expansion up to 1536 GB
  • Dual 2 TB SAS drives on H330 RAID controller supporting RAID 0/1/5/10/50/60
  • Two hot-swap 750 W redundant power supplies keep the server running
  • 2U rack chassis with eight 3.5-inch hot-plug bays for dense storage

Purpose-built 2U rack server

The Dell PowerEdge R730 is a 2U rackmount server system designed for organisations that need dense compute and storage in a standard cabinet. It ships with a single Intel Xeon E5-2650v3 ten-core processor running at 2.3GHz and 16GB of DDR4 memory. Dual 750W redundant power supplies keep the platform running through a supply failure.

Storage controller and drive bay limit

The PERC H330 RAID controller manages up to eight 3.5-inch hot-plug SAS or SATA drives and supports RAID 0, 1, 5, 10, 50 and 60. Two 2TB 7.2K SAS drives are installed, leaving six bays free for expansion up to the controller’s 64TB maximum capacity.

Remote management and expansion slots

The integrated iDRAC8 with Lifecycle Controller provides out-of-band monitoring and firmware updates without an operating system. Seven PCIe 3.0 slots plus a dedicated PERC slot allow additional networking or accelerator cards, while the four-port 1GbE daughter card handles baseline connectivity.

Points forts

  • Ten-core Xeon at 2.3 GHz delivers 20 virtual threads
  • 16 GB DDR4 with 24 slots for expansion up to 1536 GB
  • Dual 2 TB SAS drives on H330 RAID controller supporting RAID 0/1/5/10/50/60
  • Two hot-swap 750 W redundant power supplies keep the server running
  • 2U rack chassis with eight 3.5-inch hot-plug bays for dense storage

Caractéristiques

BrandDELL
SeriesPowerEdge
ModelPowerEdge R730
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
MAX Processors2
ChipsetIntel C610
Installed Memory Size16GB
Memory TypeDDR4
Max Memory Capacity16GB
Memory Features24 DIMM slots, 12 per processor. (4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots24
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementiDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
LAN Ports4 x Ports
Expansion SlotsUp to 7 x PCIe 3.0 plus dedicated PERC slot
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the 2.3 GHz ten-core Xeon deliver inside this 2U server?

The installed E5-2650v3 runs at 2.3 GHz with ten cores and twenty threads via Hyper-Threading, giving strong multi-thread throughput for virtualization or database workloads within the 2U chassis.

How does the H330 controller’s 12 Gbps SAS link limit real drive speed?

The Perc H330 supports 12 Gbps SAS, but the supplied 7.2K drives operate at 6 Gbps, so sustained throughput caps at the drive interface rather than the controller maximum.

What rail depth and power connections does this 26.8-inch deep chassis need?

The server measures 26.8 inches long and requires two 750 W redundant hot-swap supplies; sliding rails for a standard-depth rack are needed to support the 58 lb weight.
